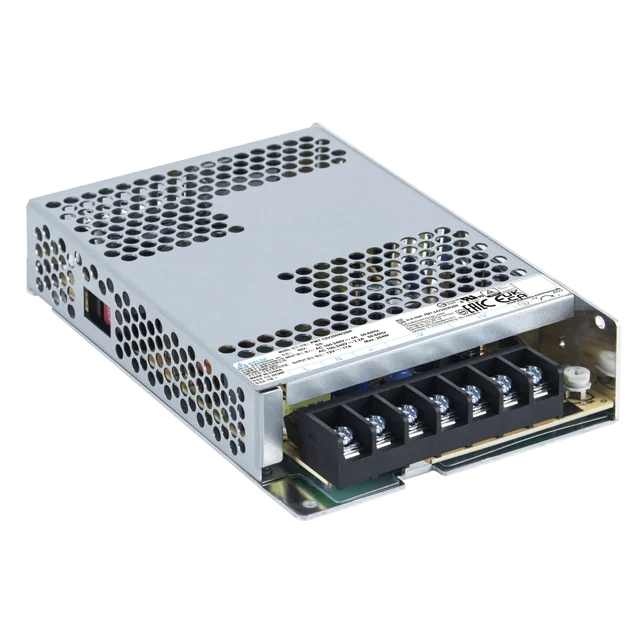

Delta Electronics PMT2 200W Series Panel Mount AC/DC Power Supply

The Delta PMT2 200W Series is a range of high-power, low-profile panel mount AC-DC power supplies designed for industrial control, automation, instrumentation, and information technology equipment where higher output capacity, reliability, and safety compliance are essential. Housed in a compact 30 mm low-profile enclosure, the PMT2 200W Series ...

Read More

The Delta PMT2 200W Series is a range of high-power, low-profile panel mount AC-DC power supplies designed for industrial control, automation, instrumentation, and information technology equipment where higher output capacity, reliability, and safety compliance are essential.

Housed in a compact 30 mm low-profile enclosure, the PMT2 200W Series integrates easily into space-constrained control panels and OEM systems. A selectable AC input range (90–132 Vac / 180–264 Vac) allows the units to be deployed across global installations while maintaining stable, regulated DC output across multiple voltage options.

Built for demanding environments, the PMT2 200W Series supports fanless convection cooling and operates from -40°C to +70°C, including -40°C cold start capability. High efficiency and low no-load power consumption (<0.5 W) help reduce heat build-up and improve long-term system reliability.

Certified to IEC/EN/UL 62368-1 alongside additional household appliance and industrial safety standards, the PMT2 200W Series provides dependable, compliant power for critical applications. Backed by Powerbox local support, it delivers a robust AC-DC power conversion solution for modern industrial and infrastructure systems.

Show Less
Unit Price
—
or send a quick enquiry about this product only
Delta_Electronics_PMT2_200W_Series
Features
  • Selectable AC Input Range: 90–132 Vac / 180–264 Vac via onboard switch
  • Output Voltage Options: 12, 24, 36 and 48 Vdc
  • Rated Output Current: Up to 17.0 A (model dependent)
  • 200 W Single Output Panel Mount Power Supplies
  • Low-Profile Design: Only 30 mm height for compact enclosures
  • Wide Operating Temperature: -40°C to +70°C with cold start support
  • High Efficiency & Low Standby Power: < 0.5 W no-load consumption
  • Fanless Convection Cooling: Quiet, maintenance-free operation
  • Adjustable Output Voltage: Supports voltage trimming and cable-drop compensation
  • Comprehensive Protection: Overload/overcurrent, over-temperature, over-voltage (latch mode) and short-circuit protection
  • Status Indication: Green DC OK LED
  • Industrial Safety & EMC Compliance: IEC/EN/UL 62368-1, IEC/EN 60335-1, IEC/EN 61558-1 / -2-16, AS/NZS CISPR 32
  • High Reliability: MTBF > 700,000 hours (Telcordia SR-332)
