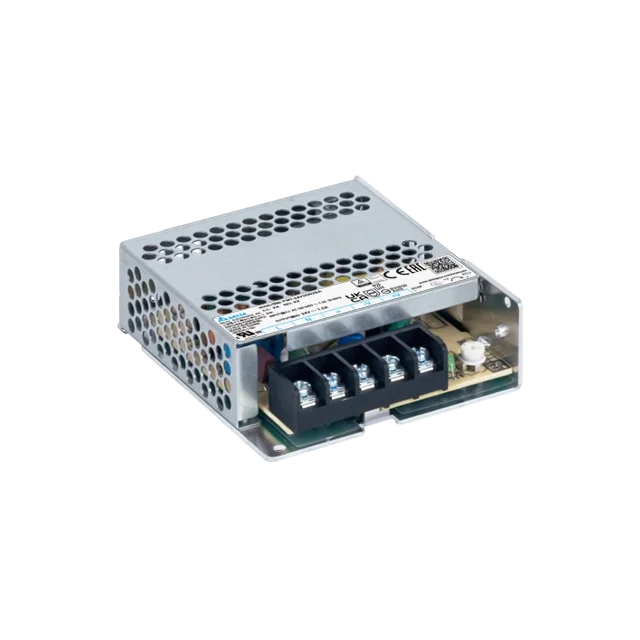

Delta Electronics PMT2 50W Series Panel Mount AC/DC Power Supply
The Delta PMT2 50W Series is a range of compact, high-reliability panel mount power supplies designed for industrial control, and automation applications where space, safety, and long service life are critical. With an ultra-slim 29 mm low-profile design and universal AC input (90–264 Vac), the PMT2 series integrates easily into space-constraine...
Read MoreThe Delta PMT2 50W Series is a range of compact, high-reliability panel mount power supplies designed for industrial control, and automation applications where space, safety, and long service life are critical.
With an ultra-slim 29 mm low-profile design and universal AC input (90–264 Vac), the PMT2 series integrates easily into space-constrained control panels and enclosures. Multiple regulated DC output voltage options provide flexibility across a wide range of system requirements.
Built for demanding environments, PMT2 power supplies operate from -30°C to +70°C with fanless convection cooling, reducing maintenance and improving reliability. Ultra-low no-load power consumption (<0.3 W) helps minimise heat and energy waste inside panels.
Certified to IEC/EN/UL 62368-1 and additional global safety and EMC standards, the PMT2 50W Series delivers dependable, compliant power backed by Powerbox Australia’s local support and expertise.
Show Less
Features
- Universal AC Input: 90–264 Vac, 50/60 Hz
- Multiple Output Voltages: 12, 15, 24, 30, 36 and 48 Vdc options
- Rated Output Current: Up to 4.2 A (model dependent)
- Ultra-Slim Design: Only 29 mm height for space-constrained panels
- Wide Operating Temperature: -30°C to +70°C (-40°C cold start support)
- High Efficiency & Low Standby Power: <0.3 W no-load consumption
- Fanless Convection Cooling: Quiet and maintenance-free operation
- Adjustable Output Voltage: For fine-tuning and voltage drop compensation
- Industrial Protections: Overload, over-temperature, short-circuit and over-voltage protection
- Status Monitoring: Green DC OK LED
- Certified Safety & EMC: IEC/EN/UL 62368-1, IEC 60335-1, IEC 61558-2-16, AS/NZS CISPR 32
- High Reliability: MTBF >700,000 hours (Telcordia SR-332)
Specifications
| INPUT RATINGS/CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Model Number | PMT-12V50W2BA | PMT-15V50W2BA | PMT-24V50W2BA |
PMT-30V50W2BA |
PMT-36V50W2BA | PMT-48V50W2BA |
| Nominal Input Voltage | 100...240 Vac | |||||
| Input Voltage Range | 90...264 Vac | |||||
| Nominal Input Frequency | 50...60 Hz | |||||
| Input Frequency Range | 47...63 Hz | |||||
| Input Current | 0.95 A typ. @ 115 Vac, 0.6 A typ. @ 230 Vac | |||||
| Efficiency at 100% Load @230Vac | 85.0% typ. | 87.0% typ. | 88.0% typ. | 88.0% typ. | 89.0% typ. | 88.5% typ. |
| No Load Power Consumption | < 0.3 W@ 230 Vac | |||||
| Max Inrush Current (Cold Start) | 45 A typ. @ 230 Vac | |||||
| Leakage Current | < 0.5 mA @ 240 Vac | |||||
| OUTPUT RATINGS/CHARACTERISTICS*² | ||||||
|---|---|---|---|---|---|---|
| Model Number | PMT-12V50W2BA | PMT-15V50W2BA | PMT-24V50W2BA | PMT-30V50W2BA | PMT-36V50W2BA | PMT-48V50W2BA |
| Nominal Output Voltage | 12 Vdc | 15 Vdc | 24 Vdc | 30 Vdc | 36 Vdc | 48 Vdc |
| Factory Set Point Tolerance | 24 Vdc ± 1% | 15 Vdc ± 1% | 24 Vdc ± 1% | 30 Vdc ± 1% | 36 Vdc ± 1% | 48 Vdc ± 1% |
| Output Voltage Adjustment Range | 10.8-13.2 Vdc | 13.5-16.5 Vdc | 21.6-26.4 Vdc | 27.0-33.0 Vdc | 32.4-39.6 Vdc | 43.2-52.8 Vdc |
| Output Current | 4.2 A | 3.4 A | 2.2 A | 1.7 A | 1.45 A | 1.1 A |
| Output Power | 50.4 W Max. | 51 W Max. | 52.8 W Max. | 51 W Max. | 52.2 W Max. | 52.8 W Max. |
| Line Regulation | ± 0.5% (@ 115 Vac & 230 Vac input) | |||||
| Load Regulation | ± 0.5% (@ 115 Vac & 230 Vac input) | |||||
| PARD*³ (20MHz) | < 120 mVpp @ 0°C to 70°C 360 mVpp typ. @ -30°C to 0°C |
< 150 mVpp @ 0°C to 70°C 450 mVpp typ. @ -30°C to 0°C |
< 200 mVpp @ 0°C to 70°C 600 mVpp typ. @ -30°C to 0°C |
|||
| Rise Time | 30 ms typ. @ 115 Vac & 230 Vac | |||||
| Start-up Time | 1,000 ms typ. @ 115 Vac 500 ms typ. @ 230 Vac |
|||||
| Hold-up Time | 12 ms typ. @ 115 Vac, 60 ms typ. @ 230 Vac | |||||
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 115 & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz) | |||||
| Start-up with Capacitive Loads | 8,000μF Max | 8,000μF Max | 8,000μF Max | 470uF Max | 470uF Max | 470uF Max |
| *2 For power de-rating from > 50°C to 70°C, see power de-rating on page 3. *3 PARD is measured with an AC coupling mode, and in parallel to end terminal with 0.1μF ceramic capacitor & 47μF electrolytic capacitor. PSU need to burn in > 5 minutes when AMB ≤ 0℃ |
||||||
| MECHANICAL | |||||||
|---|---|---|---|---|---|---|---|
| Model Number | PMT-12V50W2BA | PMT-15V50W2BA | PMT-24V50W2BA |
PMT-30V50W2BA |
PMT-36V50W2BA |
PMT-48V50W2BA |
|
| Case Chassis | Aluminum | ||||||
| Case Cover | SGCC | ||||||
| Dimensions (L x W x H) | 99 x 82 x 29 mm (3.9 x 3.23 x 1.14 inch) | ||||||
| Unit Weight | 0.176 kg (0.389 lb) | ||||||
| Indicator | Green LED (DC OK) | ||||||
| Cooling System | Convection | ||||||
| Terminal | M3.5 x 5 Pins (Rated 300 V / 20 A) | ||||||
| Wire | AWG 18-12 Current rating can refer to page 6 “Wire AWG Table” |
||||||
| Noise (1 Meter from power supply) | Sound Pressure Level (SPL) < 25 dBA | ||||||
| ENVIRONMENT | |||||||
|---|---|---|---|---|---|---|---|
| Model Number | PMT-12V50W2BA | PMT-15V50W2BA | PMT-24V50W2BA |
PMT-30V50W2BA |
PMT-36V50W2BA |
PMT-48V50W2BA | |
| Surrounding Air Temperature | Operating | -30°C to +70°C (-40°C Cold Start) | |||||
| Storage | -40°C to +85°C | ||||||
| Power De-rating | > 50°C de-rate power by 2% / °C < 100 Vac de-rate power by 1.33% / V (86.67% load @ 90 Vac) |
||||||
| Operating Humidity | 20 to 90% RH (Non-Condensing) | ||||||
| Operating Altitude | 0 to 5,000 Meters (0 to 16,400 ft) | ||||||
| Shock Test | Non- Operating | IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11 ms, 3 shocks for each 3 directions | |||||
| Operating | IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions. | ||||||
| Vibration | Non- Operating | IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction |
|||||
| Operating | IEC 60068-2-6, Sine Wave: 20Hz to 500 Hz (5G); 10 min per cycle, 60 min for each axis (X, Y, Z) |
||||||
| Over Voltage Category | II (Compliance to EN 62477-1 OVC III with 2000 meters altitude) | ||||||
| Pollution Degree | 3 | ||||||
| PROTECTIONS | ||||||
|---|---|---|---|---|---|---|
| Model Number | PMT-12V50W2BA | PMT-15V50W2BA | PMT-24V50W2BA |
PMT-30V50W2BA |
PMT-36V50W2BA |
PMT-48V50W2BA |
| Overvoltage |
13.2 V - 17.4 V SELV Output, Latch Mode |
16.5 V - 21.0 V SELV Output, Latch Mode |
26.4V - 33.6 V |
33.0 V - 40.5 V SELV Output, Latch Mode |
39.6 V - 48.6 V SELV Output, Latch Mode |
52.8 V - 64.8 V SELV Output, Latch Mode |
| Overload / Overcurrent | 110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery) | |||||
| Over Temperature | Latch Mode | |||||
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed) |
|||||
| Protection Against Shock | Class I with PE*⁴ connection | |||||
| *4 PE: Primary Earth | ||||||
| RELIABILITY DATA | ||||||
|---|---|---|---|---|---|---|
| Model Number | PMT-12V50W2BA | PMT-15V50W2BA |
PMT-24V50W2BA |
PMT-30V50W2BA |
PMT-36V50W2BA |
PMT-48V50W2BA |
| MTBF | > 700,000 hrs as per Telcordia SR-332 I/P: 230 Vac, O/P: 100% Load, Ta: 25°C) |
|||||
| Expected Cap Life Time | 10 years (230 Vac, 50% load @ 40°C) | |||||
| SAFETY STANDARDS/DIRECTIVES | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | PMT-12V50W2BA | PMT-15V50W2BA | PMT-24V50W2BA | PMT-30V50W2BA | PMT-36V50W2BA | PMT-48V50W2BA | ||||||
| Safety Entry Low Voltage | SELV | |||||||||||
| Electrical Safety | TUV Bauart | EN 62368-1, EN 60335-1, EN 61558-1/-2-16 | ||||||||||
| cULus | UL 62368-1, and CAN/CSA C22.2 No. 62368-1 | |||||||||||
| CB scheme | IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16 | |||||||||||
| KC | K 60950-1 | |||||||||||
| EAC | TP TC 004/2011 | |||||||||||
| CCC | GB 4943.1 | |||||||||||
| BSMI | CNS 14336-1 | |||||||||||
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU | |||||||||||
| UKCA | In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016 | |||||||||||
| Galvanic Isolation | Input to Output | 4.0 kVac | ||||||||||
| Input to Ground | 2.0 kVac | |||||||||||
| Output to Ground | 1.25 kVac | |||||||||||
| EMC | ||||
|---|---|---|---|---|
| Emissions (CE & RE) | CISPR 32, EN/BS EN 55032, KN 32, AS/NZS CISPR 32 Compliance to EN/BS EN 55014-1, FCC Title 47, EN/BS EN 61000-6-4, EN/BS EN 61000-6-3 : Class B |
|||
| Immunity | EN/BS EN 55035, KN 35 Compliance to EN/BS EN 55014-2, EN/BS EN 61000-6-2, EN/BS EN 61000-6-1 |
|||
| Electrostatic Discharge | IEC 61000-4-2 |
Level 4 Criteria A¹⁾ |
||
| Radiated Field | IEC 61000-4-3 |
Level 3 Criteria A¹⁾ |
||
| Electrical Fast Transient / Burst | IEC 61000-4-4 |
Level 3 Criteria A¹⁾ |
||
| Surge | IEC 61000-4-5 |
Level 4 Criteria A¹⁾ |
||
| Conducted | IEC 61000-4-6 | Level 3 Criteria A¹⁾ 150 kHz – 80 MHz, 10 Vrms |
||
| Power Frequency Magnetic Fields | IEC 61000-4-8 | Level 4 Criteria A¹⁾ 30 A/meter |
||
| Voltage Dips and Interruptions | IEC 61000-4-11 | 0% residual; 1 cycle, Criteria B 40% residual; 10 cycle, Criteria C³⁾ 70% residual; 25 cycle, Criteria C³⁾ |
||
| Harmonic Current Emission | IEC/EN/BS EN 61000-3-2 | Class A | ||
| Voltage Sag Immunity SEMI F47 – 0706 | 80% of 200 Vac 70% of 200 Vac 50% of 200 Vac |
160 Vac, 1000 ms 140 Vac, 500 ms 100 Vac, 200 ms |
Criteria A¹⁾ Criteria A¹⁾ Criteria A¹⁾ |
|
| 1) Criteria A: Normal performance within the specification limits 2) Criteria B: Output out of regulation, or shuts down during test. Automatically restored to normal operation after test. 3) Criteria C: Output out of regulation, shuts down during test (Need to recycle AC power cord to normal operation after test) 4) Asymmetrical: Common mode (Line to earth) 5) Symmetrical: Differential mode (Line to line) |
||||
Selection Table
| MODEL NUMBER | INPUT VOLTAGE RANGE | RATED OUTPUT VOLTAGE | RATED OUTPUT CURRENT |
|---|---|---|---|
| PMT-12V50W2BA |
90-264 Vac |
12Vdc | 4.2 A |
| PMT-15V50W2BA | 15Vdc | 3.4 A | |
| PMT-24V50W2BA | 24Vdc | 2.2 A | |
| PMT-30V50W2BA | 30Vdc | 1.7 A | |
| PMT-36V50W2BA | 36Vdc | 1.45 A | |
| PMT-48V50W2BA | 48Vdc | 1.1 A |
