AC/DC Power Supplies

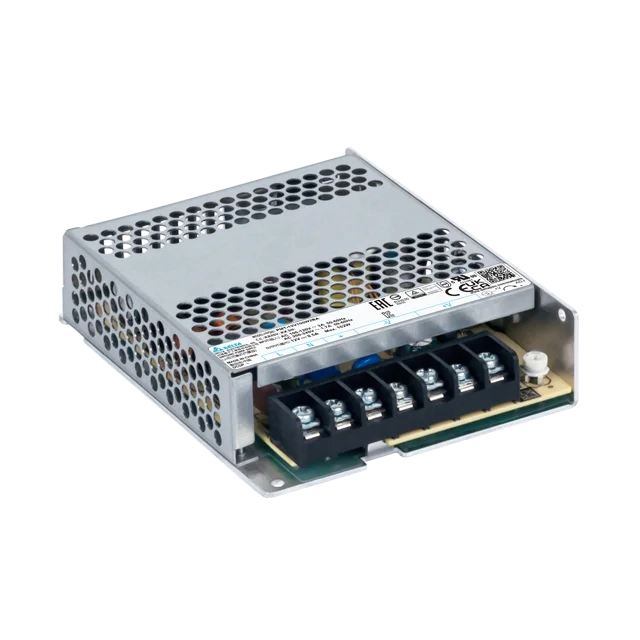

Delta Electronics PMT2 100W Series Panel Mount AC/DC Power Supply

The Delta PMT2 100W Series is a range of high-reliability, low-profile panel mount power supplies designed for industrial control, automation, instrumentation, and information technology equipment where space efficiency, safety compliance, and long service life are essential. With a compact 30 mm low-profile enclosure and universal AC input (90–...

Read More

The Delta PMT2 100W Series is a range of high-reliability, low-profile panel mount power supplies designed for industrial control, automation, instrumentation, and information technology equipment where space efficiency, safety compliance, and long service life are essential.

With a compact 30 mm low-profile enclosure and universal AC input (90–264 Vac), the PMT2 100W Series integrates easily into space-constrained control panels and OEM equipment. Multiple single-output DC voltage options allow the series to support a wide variety of industrial and commercial applications.

Built for demanding environments, PMT2 100W power supplies operate from -30°C to +70°C with fanless convection cooling, reducing maintenance requirements and improving long-term reliability. Ultra-low no-load power consumption (<0.3 W) and high efficiency help minimise heat generation and energy loss inside electrical enclosures.

Certified to IEC/EN/UL 62368-1 and additional global safety and EMC standards, the PMT2 100W Series delivers dependable, compliant AC-DC power conversion. Backed by Powerbox local support, it provides a robust solution for modern industrial systems requiring reliable and long-life power.

Show Less
Unit Price
—
or send a quick enquiry about this product only
Delta_Electronics_PMT2_100W_Series
Features
  • Universal AC Input: 90–264 Vac, 50/60 Hz
  • Output Voltage Options: 12, 15, 24, 30, 36 and 48 Vdc
  • Rated Output Current: Up to 8.5 A (model dependent)
  • 100 W Single Output Panel Mount Power Supplies
  • Wide Operating Temperature: -30°C to +70°C (-40°C cold start support)
  • High Efficiency & Low Standby Power: <0.3 W no-load consumption
  • Fanless Convection Cooling: Quiet, maintenance-free operation
  • Adjustable Output Voltage: Supports voltage trimming and cable-drop compensation
  • Industrial Protection Features: Overload, over-temperature, over-voltage and short-circuit protection
  • Status Indication: Green DC OK LED
  • Safety & EMC Compliance: IEC/EN/UL 62368-1, IEC 60335-1, IEC 61558-1/-2-16, AS/NZS CISPR 32
  • High Reliability: MTBF >700,000 hours (Telcordia SR-332)
