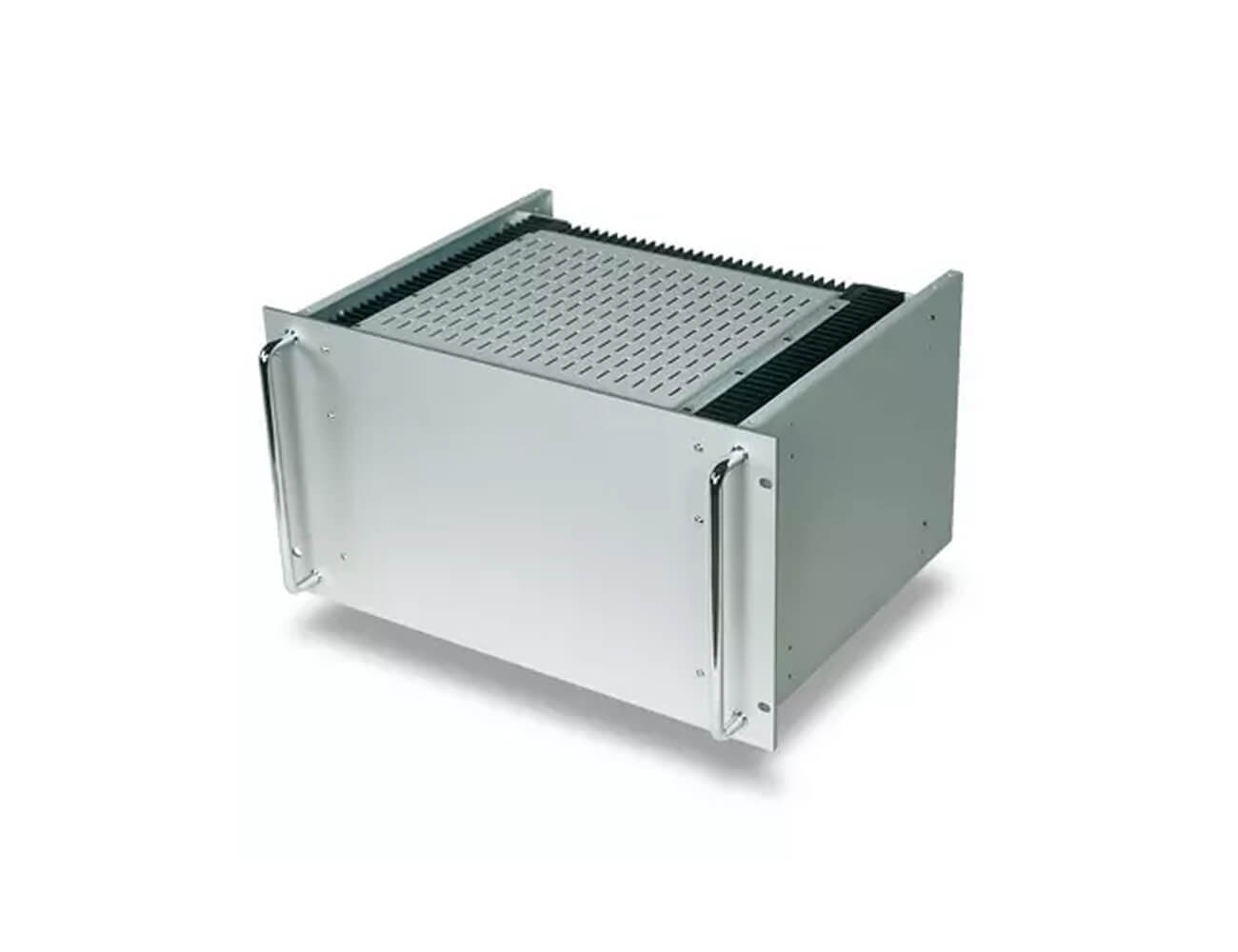

Schaefer C5700A-SERIES AC/DC Power Supply

The Schaefer C5700A Series is a high-power AC/DC power supply for industrial applications, delivering output power from 6.5kW to 8kW. Offering a range of output voltages and fan-assisted cooling for reliable performance under demanding conditions, the C5700A Series is designed for flexibility. It can be mounted within a 19" cabinet or on a wall-mountable plate, adapting to various industrial requirements. Multiple units can be installed within a system to provide higher output power or redundant operation. Additional features, such as system monitoring, make the C5700A Series suitable for high-demand environments in sectors like Renewable Energy, Utilities, Mining, and Heavy Industry.

View Models
Schaefer C5700A-SERIES AC/DC Power Supply

Features

  • Industrial Grade AC/DC Power Supply
  • High Output Power: 6.5kW - 8kW
  • AC Input: 1-Phase and 3-Phase Models
  • Wide Range of DC outputs 9, 12, 15, 24, 28, 48, 60, 110, 200, 220, 400
  • Mounting via 19" plug-in module or wall plate
  • Multiple units can be easily installed for high power / redundant installations.

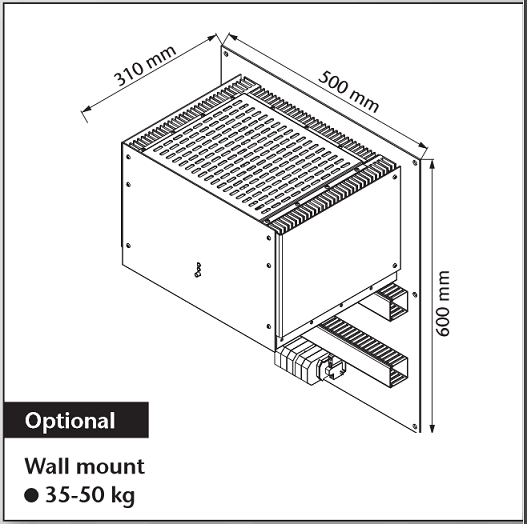

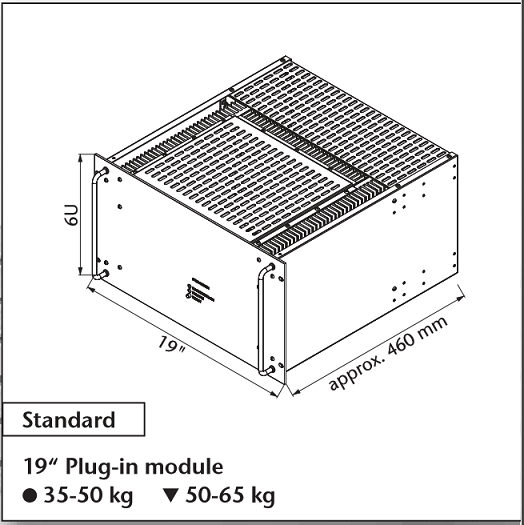

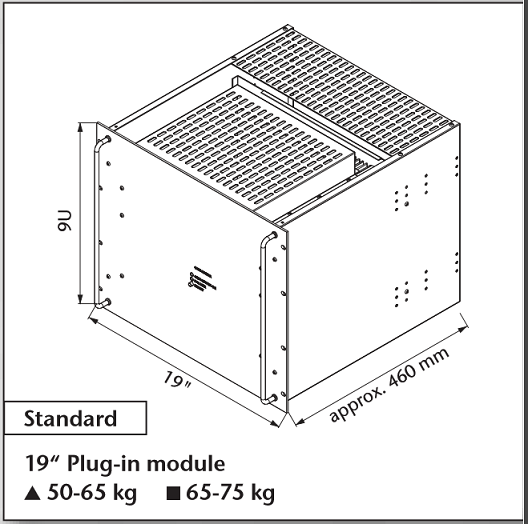

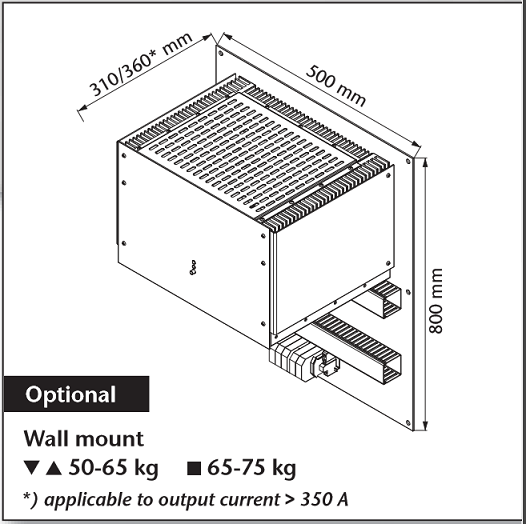

Technical Illustrations
Downloads
Schaefer_cb5700-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
Schaefer_cb5700-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant C5761 115Vac ± 20 % 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 400A
product variant C5762 115Vac ± 20 % 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 400A
product variant C5763 115Vac ± 20 % 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 385A
product variant C5764 115Vac ± 20 % 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 250A
product variant C5765 115Vac ± 20 % 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 215A
product variant C5769 115Vac ± 20 % 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 115A
product variant C5766 115Vac ± 20 % 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 95A
product variant C5767 115Vac ± 20 % 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 50A
product variant C5767J 115Vac ± 20 % 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 32A
product variant C5768 115Vac ± 20 % 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 26A
product variant C5768J 115Vac ± 20 % 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 16A
product variant C5767H 115Vac ± 20 % 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 10.8A
product variant C5768H 115Vac ± 20 % 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 8A
product variant C5783 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 400A
product variant C5784 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 310A
product variant C5785 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 270A
product variant C5789 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 145A
product variant C5786 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 120A
product variant C5787 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 62A
product variant C5787J 230Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 40A
product variant C5788 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 32A
product variant C5788J 230Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 20A
product variant C5787H 230Vac +15%/-20% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 13.5A
product variant C5788H 230Vac +15%/-20% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 10A
product variant C5763V 3 x 200Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 400A
product variant C5764V 3 x 200Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 310A
product variant C5765V 3 x 200Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 270A
product variant C5769V 3 x 200Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 145A
product variant C5766V 3 x 200Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 120A
product variant C5767V 3 x 200Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 62A
product variant C5767JV 3 x 200Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 40A
product variant C5768V 3 x 200Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 32A
product variant C5768JV 3 x 200Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 20A
product variant C5767VH 3 x 200Vac +15%/-20% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 13.5A
product variant C5768VH 3 x 200Vac +15%/-20% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 10A
product variant C5783V 3 x 400Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 400A
product variant C5784V 3 x 400Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 310A
product variant C5785V 3 x 400Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 270A
product variant C5789V 3 x 400Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 145A
product variant C5786V 3 x 400Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 120A
product variant C5787V 3 x 400Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 62A
product variant C5787JV 3 x 400Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 40A
product variant C5788V 3 x 400Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 32A
product variant C5788JV 3 x 400Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 20A
product variant C5787VH 3 x 400Vac +15%/-20% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 13.5A
product variant C5788VH 3 x 400Vac +15%/-20% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 10A
product variant C5793V 3 x 480Vac +10%/-15% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 400A
product variant C5794V 3 x 480Vac +10%/-15% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 310A
product variant C5795V 3 x 480Vac +10%/-15% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 270A
product variant C5799V 3 x 480Vac +10%/-15% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 145A
product variant C5796V 3 x 480Vac +10%/-15% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 120A
product variant C5797V 3 x 480Vac +10%/-15% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 62A
product variant C5797JV 3 x 480Vac +10%/-15% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 40A
product variant C5798V 3 x 480Vac +10%/-15% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 32A
product variant C5798JV 3 x 480Vac +10%/-15% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 20A
product variant C5797VH 3 x 480Vac +10%/-15% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 13.5A
product variant C5798VH 3 x 480Vac +10%/-15% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 10A
