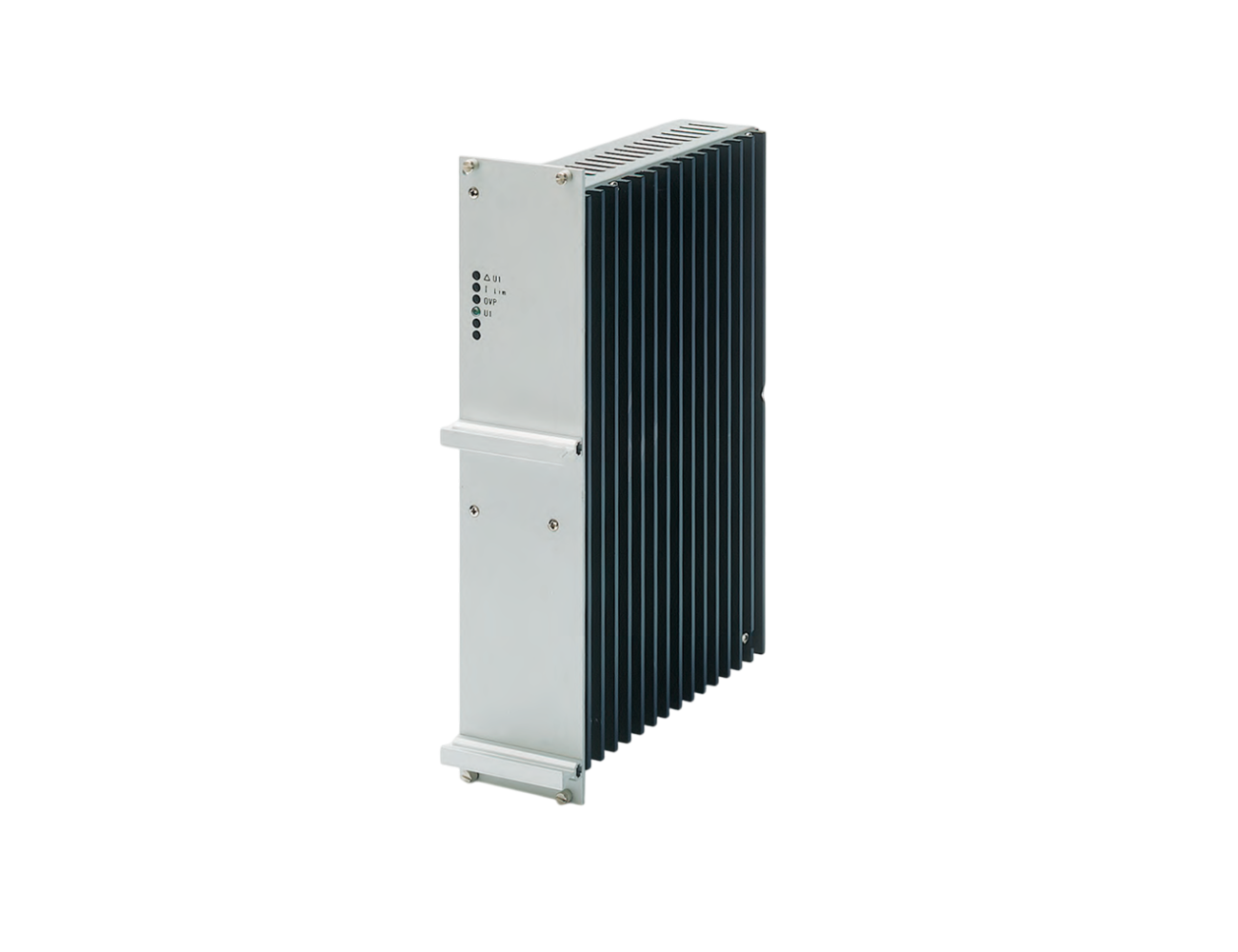

Schaefer C1300A-SERIES AC/DC Power Supply

The Schaefer C1300A Series is a compact and efficient AC/DC power supply, delivering 400W of output power for industrial applications. With a range of DC output voltages from 5Vdc to 220Vdc, the C1300A Series supports flexible system configurations. Its extremely low profile of 14TE allows up to six units to be installed within a 6U subrack, making it ideal for space-constrained environments. Natural convection cooling enhances reliable performance, making the C1300A Series a versatile solution for high-demand applications.

View Models
Schaefer C1300A-SERIES AC/DC Power Supply

Features

  • Industrial Grade 400W AC/DC Power Supply
  • AC Input: 1-Phase and 3-Phase Models
  • Wide Range of DC outputs: 5, 9, 12,15, 24, 28, 48, 60, 110 and 220

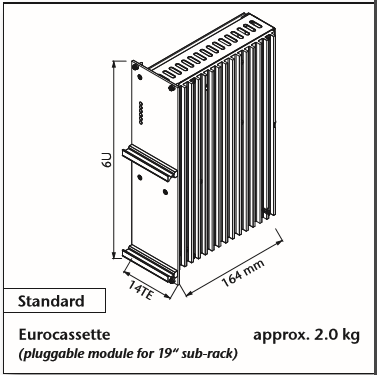

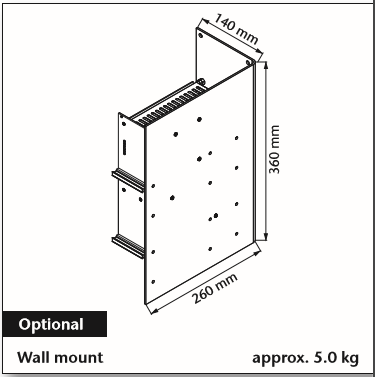

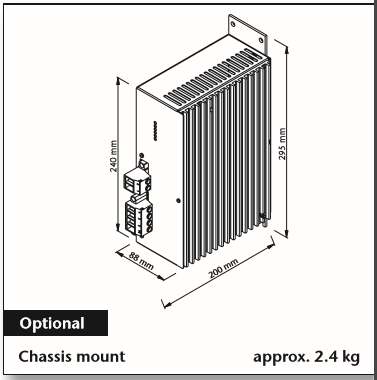

  • Extremely narrow profile with flexible mounting options via Chassis, Wall or Euro Cassette (19" rackmount via 6U subrack)
  • Natural Convection Cooling, with temperature operation up to 75 °C
Technical Illustrations
Downloads
Schaefer_ccpbbp1300-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
Schaefer_ccpbbp1300-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant C1360 115Vac ± 20 % 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant C1361 115Vac ± 20 % 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 35A
product variant C1362 115Vac ± 20 % 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 30A
product variant C1363 115Vac ± 20 % 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 25A
product variant C1364 115Vac ± 20 % 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 15A
product variant C1365 115Vac ± 20 % 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 13A
product variant C1369 115Vac ± 20 % 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 7.3A
product variant C1366 115Vac ± 20 % 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 6A
product variant C1367 115Vac ± 20 % 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant C5668 115Vac ± 20 % 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
product variant C1380 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant C1381 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 35A
product variant C1382 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 30A
product variant C1383 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 25A
product variant C1384 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 15A
product variant C1385 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 13A
product variant C1389 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 7.3A
product variant C1386 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 6A
product variant C1387 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant C1388 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
product variant C1390 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant C1391 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 35A
product variant C1392 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 30A
product variant C1393 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 25A
product variant C1394 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 15A
product variant C1395 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 13A
product variant C1399 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 7.3A
product variant C1396 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 6A
product variant C1397 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant C1398 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
