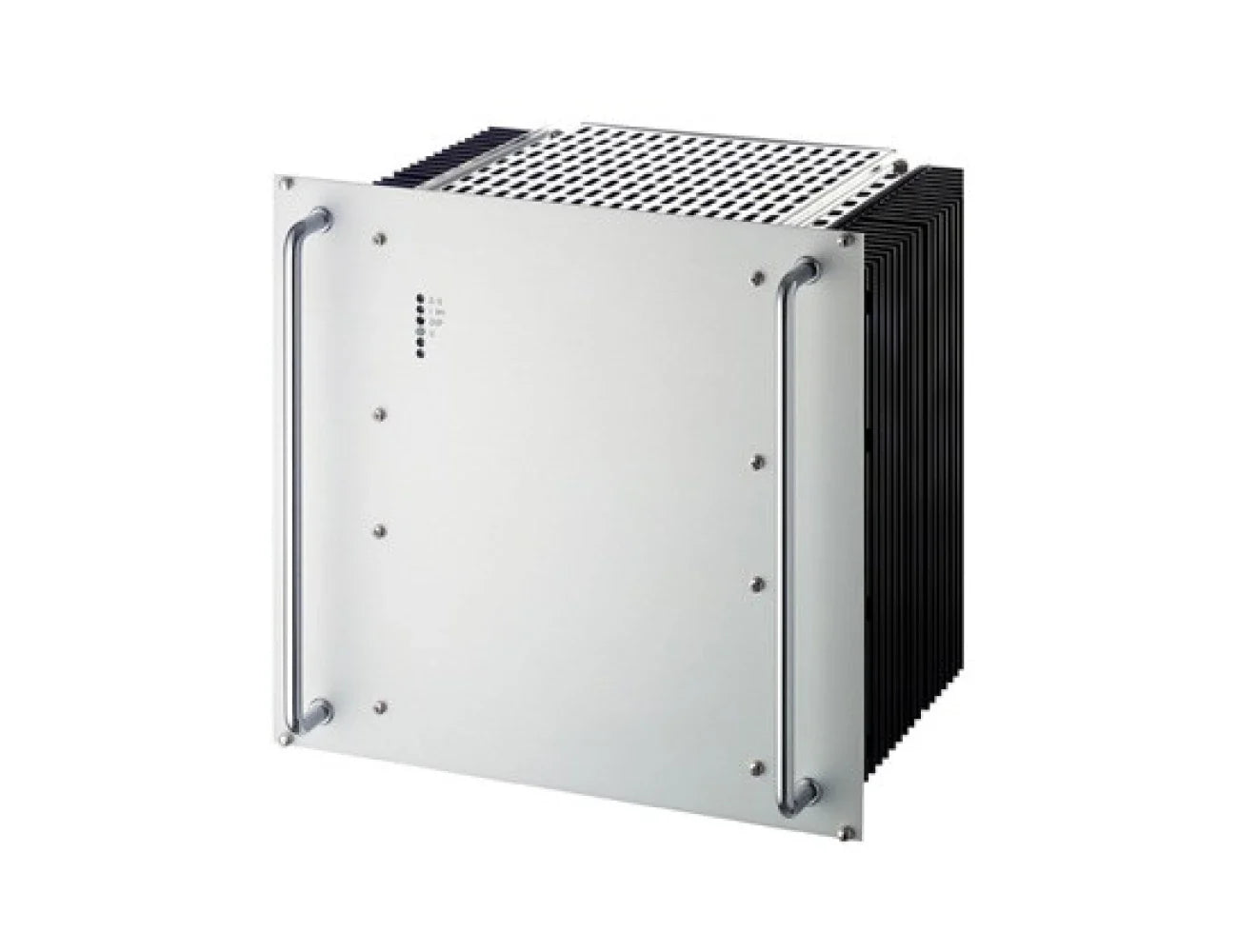

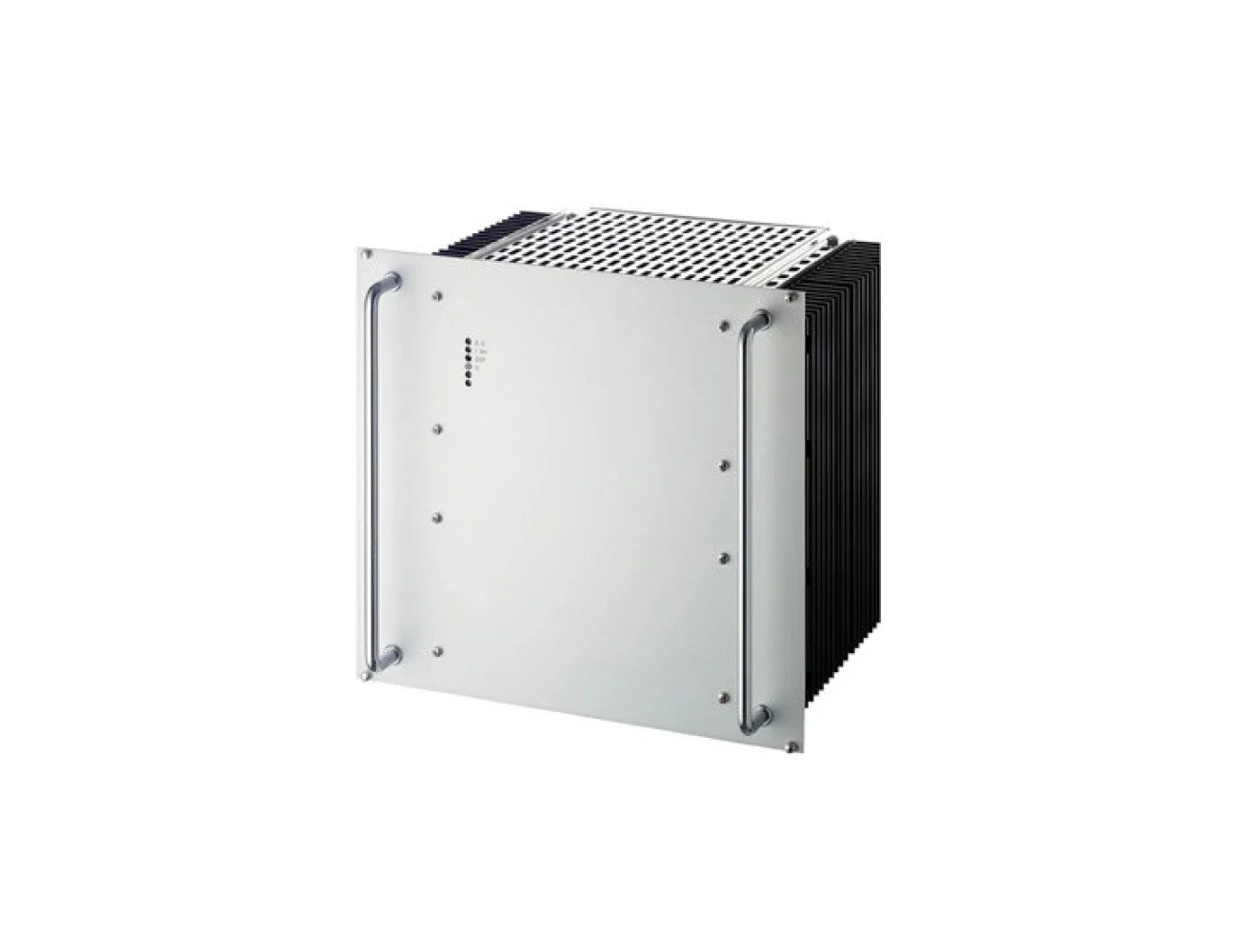

Schaefer C3800A SERIES AC/DC Power Supply

The Schaefer C3800A Series is a high-performance AC/DC power supply for industrial applications, delivering an output power of 2.5kW. This series supports a range of DC output voltages from 12Vdc to 400Vdc. Designed for natural convection cooling, the C3800A Series ensures reliable performance in various demanding environments. Mounting options include wall mount or 19" rack installation when used with a separate 6U subrack. With options for monitoring, parallel/redundant operation, and conformal coating, the C3800A Series is well-suited for sectors such as Railway, Utilities, Mining, and Heavy Industry.

View Models
  • Schaefer C3800A SERIES AC/DC Power Supply
  • Schaefer C3800A SERIES AC/DC Power Supply

Features

  • Industrial Grade 2500W AC/DC Power Supply
  • AC Input: 1-Phase and 3-Phase Models
  • Wide Range of DC outputs: 12,15, 24, 28, 48, 60, 110, 220,400
  • Flexible mounting options via Wall or Euro Cassette (19" rackmount via 6U subrack)
  • Natural Convection Cooling (increased airflow via external fan recommended for high power applications)

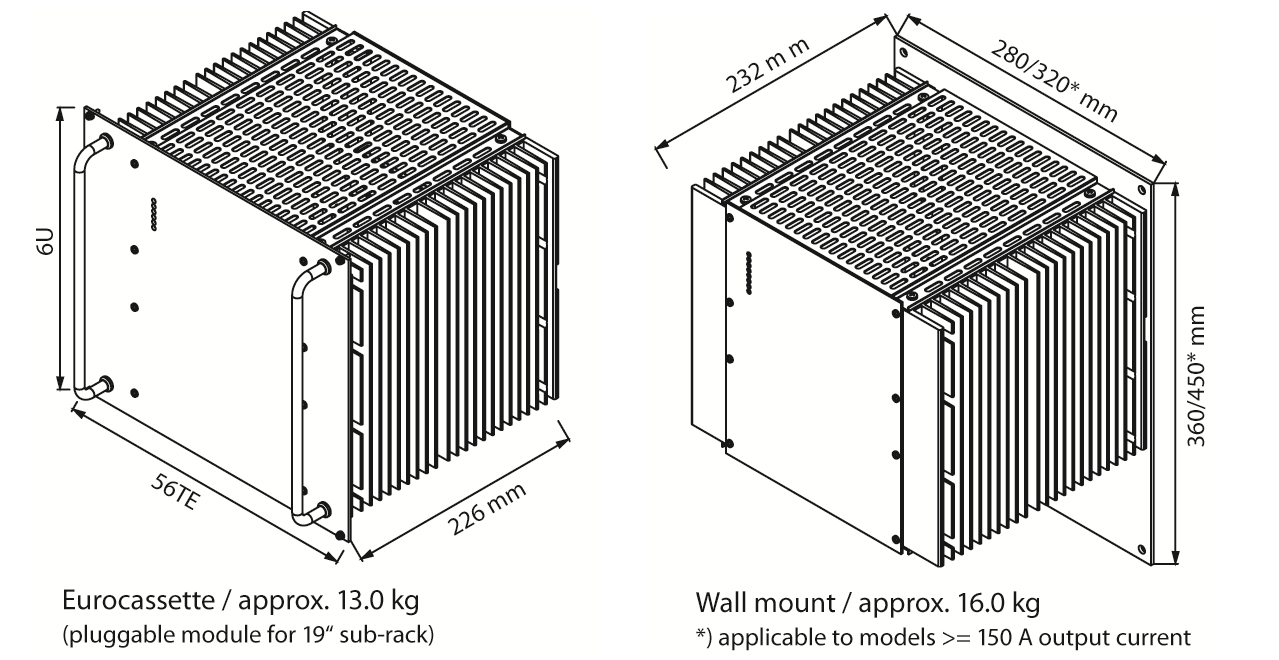

Technical Illustrations
Downloads
Schaefer_cb3800-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
Schaefer_cb3800-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant C3862 115Vac ± 20 % 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 160A
product variant C3863 115Vac ± 20 % 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 130A
product variant C3864 115Vac ± 20 % 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 100A
product variant C3665 115Vac ± 20 % 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 85A
product variant C3869 115Vac ± 20 % 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 45A
product variant C3866 115Vac ± 20 % 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 36A
product variant C3867 115Vac ± 20 % 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C3867J 115Vac ± 20 % 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 12A
product variant C3868 115Vac ± 20 % 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C3868J 115Vac ± 20 % 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 6A
product variant C3882 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 160A
product variant C3883 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 130A
product variant C3884 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 100A
product variant C3685 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 85A
product variant C3889 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 45A
product variant C3886 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 36A
product variant C3887 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C3887J 230Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 12A
product variant C3888 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C3888J 230Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 6A
product variant C3892 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 160A
product variant C3893 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 130A
product variant C3894 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 100A
product variant C3895 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 85A
product variant C3899 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 45A
product variant C3896 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 36A
product variant C3897 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C3897J 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 12A
product variant C3898 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C3898J 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 6A
product variant C3862V 3 x 200Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 160A
product variant C3863V 3 x 200Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 130A
product variant C3864V 3 x 200Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 100A
product variant C3665V 3 x 200Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 85A
product variant C3869V 3 x 200Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 45A
product variant C3866V 3 x 200Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 36A
product variant C3867V 3 x 200Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C3867VJ 3 x 200Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 12A
product variant C3868V 3 x 200Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C3868VJ 3 x 200Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 6A
product variant C3882V 3 x 400Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 160A
product variant C3883V 3 x 400Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 130A
product variant C3884V 3 x 400Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 100A
product variant C3685V 3 x 400Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 85A
product variant C3889V 3 x 400Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 45A
product variant C3886V 3 x 400Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 36A
product variant C3887V 3 x 400Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C3887VJ 3 x 400Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 12A
product variant C3888V 3 x 400Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C3888VJ 3 x 400Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 6A
product variant C3892V 3 x 480Vac +10%/-15% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 160A
product variant C3893V 3 x 480Vac +10%/-15% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 130A
product variant C3894V 3 x 480Vac +10%/-15% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 100A
product variant C3695V 3 x 480Vac +10%/-15% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 85A
product variant C3899V 3 x 480Vac +10%/-15% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 45A
product variant C3896V 3 x 480Vac +10%/-15% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 36A
product variant C3897V 3 x 480Vac +10%/-15% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C3897VJ 3 x 480Vac +10%/-15% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 12A
product variant C3898V 3 x 480Vac +10%/-15% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C3898VJ 3 x 480Vac +10%/-15% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 6A
