Dunkermotoren BGA 22 dCore Brushless DC Motor

The Dunkermotoren BGA 22 dCore is a compact 3‑phase brushless DC (BLDC) motor designed for precision motion applications requiring smooth torque, high dynamic performance and efficient operation in a small mechanical envelope. At the heart of the BGA 22 dCore is a coreless rotor design, eliminating cogging torque and delivering exceptionally smo...

Read More

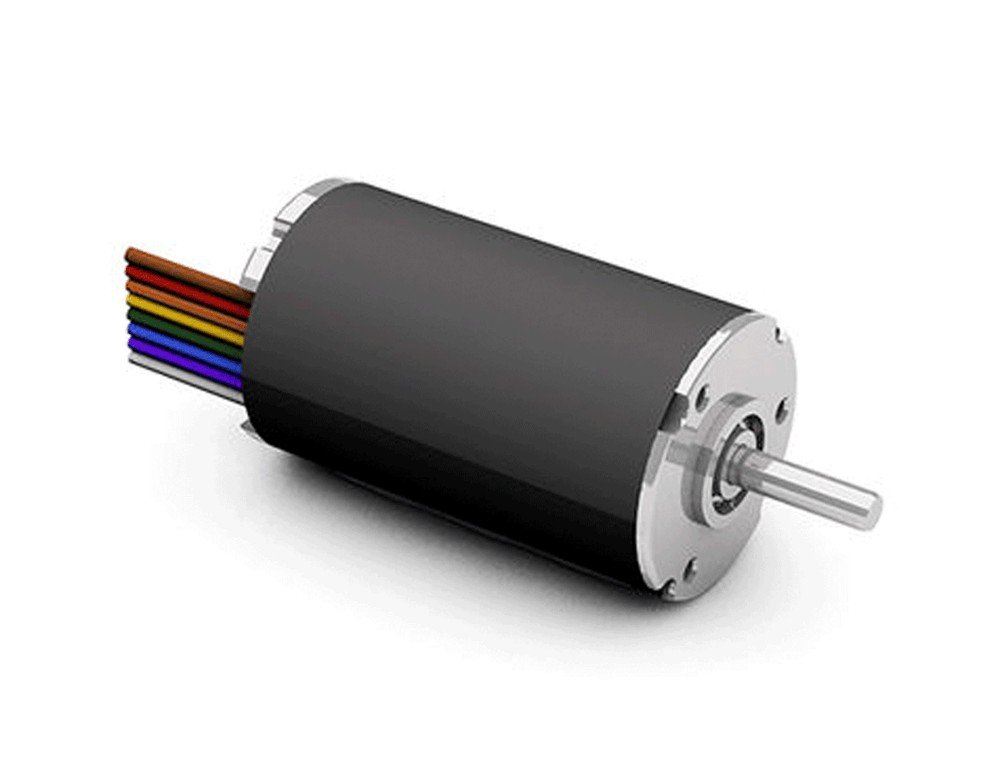

The Dunkermotoren BGA 22 dCore is a compact 3‑phase brushless DC (BLDC) motor designed for precision motion applications requiring smooth torque, high dynamic performance and efficient operation in a small mechanical envelope.

At the heart of the BGA 22 dCore is a coreless rotor design, eliminating cogging torque and delivering exceptionally smooth, low‑noise operation. This makes the motor well‑suited to applications where vibration, acoustic noise or torque ripple must be minimised, such as laboratory equipment, medical devices and precision automation systems.

The motor is equipped with integrated Hall sensors for reliable rotor position detection and supports sensorless control, offering flexibility when pairing with external drive electronics. An integrated 18 cpr feedback signal provides additional position information to support accurate speed and torque control in demanding motion systems.

The BGA 22 dCore is intended for use with external motor controllers, with available settings for compatible Dunkermotoren control electronics. Power supply options include 6 VDC, 12 VDC and 24 VDC variants, allowing easy integration into low‑voltage DC systems commonly used in industrial, mobile and embedded applications.

As part of Dunkermotoren’s modular motion system, the BGA 22 dCore can be combined with planetary gearboxes, brakes and encoders, enabling tailored drive solutions without complex mechanical redesign. Electrical connection is via a 300 mm AWG 24 ribbon cable, with optional flying leads available depending on configuration.

Show Less
Unit Price
—
or send a quick enquiry about this product only
Dunkermotoren BGA 22 dCore Brushless DC Motor
Features
  • 3‑Phase Coreless BLDC Design: No cogging torque, low noise and smooth operation
  • High Power Density in 22 mm Frame: Up to 25.8 W continuous, 236 W peak (variant dependent)
  • Integrated Hall Sensors & 18 cpr Feedback: Supports precise commutation and control
  • Designed for External Controllers: Compatible with Dunkermotoren control electronics
  • Multiple Supply Voltage Options: 6 VDC, 12 VDC and 24 VDC variants available.
  • Modular Motion System Compatibility: Supports gearboxes, brakes and encoders
Specifications
BGA 22x22 dCore Specifications
Nominal voltage Vdc 6 6 12 24
Nominal current A* 2.08 4.95 5.40 0.94 2.12 2.66 0.96 1.27
Nominal Torque Nm* 0.02 0.0191 0.02 0.0182 0.0193 0.0168 0.0174 0.0173
Nominal speed rpm* 2.990 9.260 12.100 2.950 8.940 13.120 8.820 13.160
Stall torque Nm** 0.0589 0.0872 0.16 0.054 0.115 0.144 0.107 0.156
Maximum torque Nm** - 0.145 - - 0.144 0.136 0.146 0.134
No load speed rpm* 5500 12750 14000 5330 11030 14560 10700 14490
Nominal output power W** 6.20 18.50 25.80 5.60 18.00 23.00 16.00 23.80
Maximum output power W** 34 116 59 30 132 220 119 236
Torque constant Nm A⁻¹ 0.011 0.0046 0.004 0.0223 0.0106 0.008 0.022 0.0162
Terminal Resistance Ω 1.0 0.2 0.15 4.6 1.0 0.55 4.6 2.39
Terminal inductance μH 45 0.009 7.0 186 45 26 186 102
Starting current A** - 32.0 - - 12.20 21.70 5.20 10
No load current A** - 0.800 - - 0.300 0.500 0.150 0.250
Demagnetisation current A** - ≥ 32 - - ≥ 14 ≥ 17 ≥ 7 ≥ 8.5
Rotor inertia gcm² 15
Weight of motor kg 0.078
*) Δϑw = 100 K; **) ϑR = 20°C
