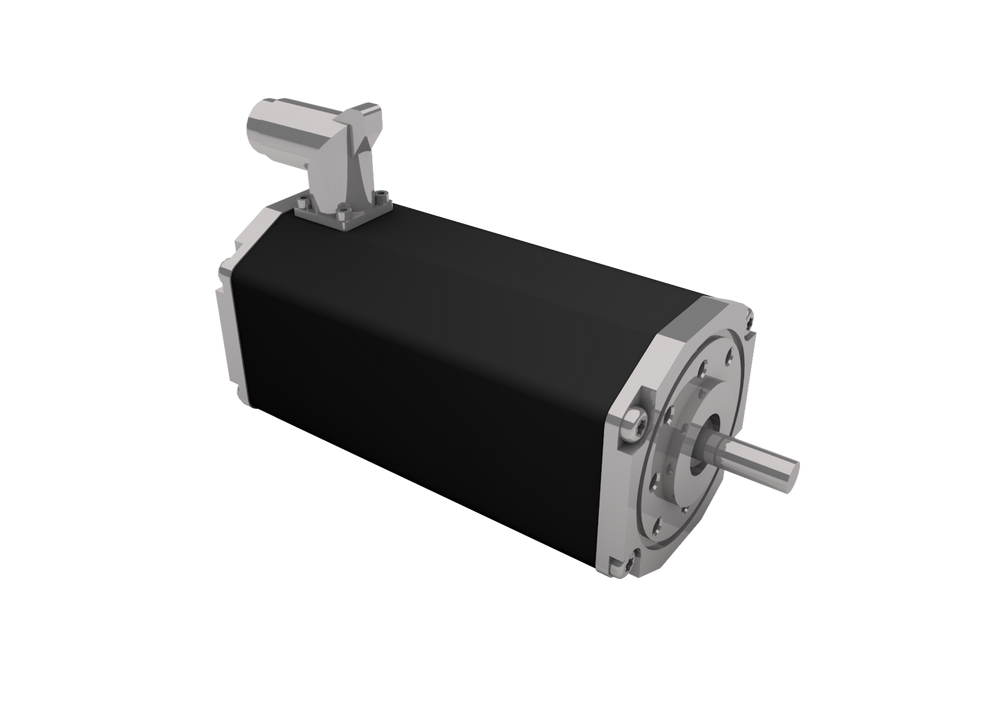

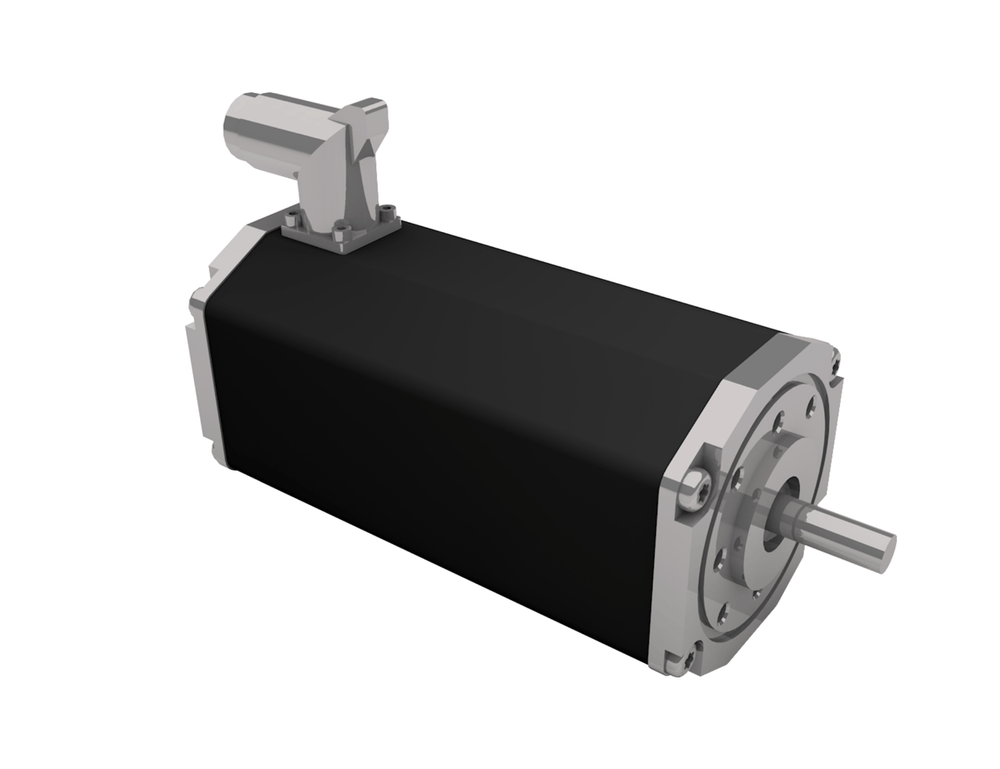

Dunkermotoren BG 66 dCore Brushless DC Motor

The Dunkermotoren BG 66 dCore is a highly dynamic 3-phase EC motor with a 10-pole neodymium magnet, Hall sensors for rotor position detection, and a high-resolution magnetic encoder MR 1 providing 4×1,024 pulses per revolution (4096 cpr). The motor features a One-Connector-Solution for simplified connectivity. Available in BG 66x25, BG 66x50, an...

Read More

The Dunkermotoren BG 66 dCore is a highly dynamic 3-phase EC motor with a 10-pole neodymium magnet, Hall sensors for rotor position detection, and a high-resolution magnetic encoder MR 1 providing 4×1,024 pulses per revolution (4096 cpr). The motor features a One-Connector-Solution for simplified connectivity. Available in BG 66x25, BG 66x50, and BG 66x75 stack lengths with supply voltage options from 12 Vdc to 110 Vdc, the series delivers continuous output power up to 359 W and peak output power up to 838 W.

Nominal torque spans 0.347 Nm to 0.985 Nm, nominal speed from 3,160 rpm to 3,850 rpm, and motor weights from 0.99 kg to 1.93 kg. Rotor inertia ranges from 70 gcm² to 188 gcm² depending on stack length. Protection class reaches IP65 (for supply voltages above 36 V). Redundant encoders for safe system design are optionally available.

The BG 66 dCore is part of the Dunkermotoren modular system and can be combined with controllers (BGE 5510 dPro, BGE 6060 A, BN 6773), planetary gearboxes (PLG 52 EB/HT, PLG 60, PLG 60 LB, PLG 63 EP, PLG 75 HT, PLG 80 LB), angular gearboxes (SG 80, SG 120, STG 65, KG 120), and brakes and encoders (E 90 R, E 100 R, E 310 R, RE 30 TI, AE 38). EPLAN Data Portal support is included.

Show Less
Unit Price
—
or send a quick enquiry about this product only
bg66x50_dcore
Features
  • Highly dynamic 3-phase EC motor with 10-pole neodymium magnet.
  • Hall sensors for rotor position detection.
  • High-resolution magnetic encoder MR 1 with 4096 cpr (4×1,024 ppr).
  • One-Connector-Solution for simplified wiring.
  • Supply voltage from 12Vdc to 110Vdc.
  • Integrated 30 cpr and 4096 cpr feedback.
  • Protection class up to IP65 (>36 V supply).
  • Redundant encoders for safe system design (optional).
  • EPLAN Data Portal support.
  • On request, available in different voltage versions.
Specifications
BG 66 dCore Specifications
Parameter Units BG 66x25
12V		 BG 66x25
24V		 BG 66x25
48V		 BG 66x25
60V		 BG 66x25
110V		 BG 66x50
24V		 BG 66x50
48V		 BG 66x50
60V		 BG 66x50
110V		 BG 66x75
48V		 BG 66x75
60V		 BG 66x75
110V
Nominal voltage VDC 12 24 48 60 110 24 48 60 110 48 60 110
Nominal current A* 14.1 8 4 3.2 1.6 10.8 5.5 4.6 2.5 8.5 6.7 3.7
Nominal torque Nm* 0.347 0.398 0.42 0.444 0.465 0.653 0.667 0.67 0.693 0.954 0.985 0.973
Nominal speed rpm* 3460 3850 3680 3440 3160 3200 3200 3360 3290 3540 3410 3530
Stall torque Nm** 1.315 tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd.
Maximum torque Nm** 1.46 1.46 1.46 1.46 1.46 2.92 2.92 2.92 2.92 4.38 4.38 4.38
No load speed rpm* 4480 4750 4580 4340 4060 3940 3940 4100 4030 3870 3740 3860
Nominal output power W** 126 160 162 160 154 219 224 236 239 353 351 359
Maximum output power W 158 329 326 306 269 508 531 608 616 811 779 838
Torque constant Nm A⁻¹*** 0.029 0.062 0.13 0.172 0.338 0.066 0.132 0.159 0.296 0.13 0.168 0.298
Rotor inertia gcm² 70 70 70 70 70 129 129 129 129 188 188 188
Weight of motor kg 0.99 0.99 0.99 0.99 0.99 1.43 1.43 1.43 1.43 1.93 1.93 1.93
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point
Values for vector commutation
