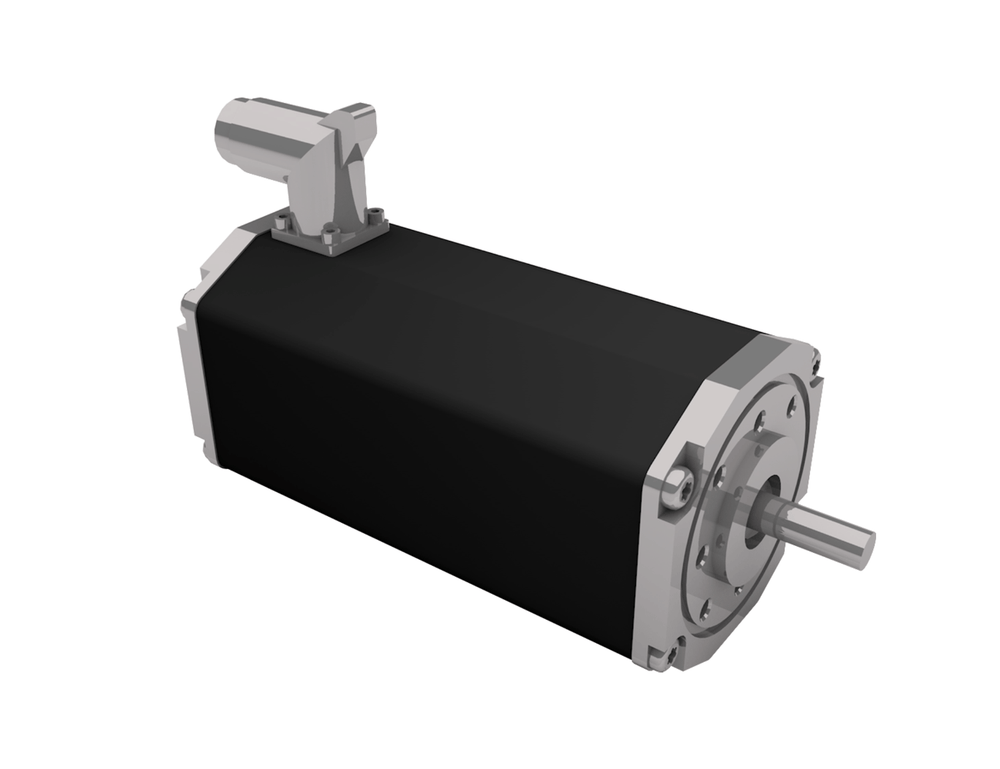

Dunkermotoren BG 65 dCore Brushless DC Motor

The Dunkermotoren BG 65 dCore is a highly dynamic 3-phase EC (electronically commutated) motor with a 10-pole magnet and Hall sensors for rotor position detection. Designed for demanding motion applications, the series delivers continuous output power up to 181 W and peak output power up to 355 W across three stack length options. Supply voltage...

Read More

The Dunkermotoren BG 65 dCore is a highly dynamic 3-phase EC (electronically commutated) motor with a 10-pole magnet and Hall sensors for rotor position detection. Designed for demanding motion applications, the series delivers continuous output power up to 181 W and peak output power up to 355 W across three stack length options. Supply voltage versions span 12 Vdc to 325 Vdc, making the BG 65 dCore suitable for a wide range of industrial automation, robotics, and drive system applications.

The BG 65 dCore family is available in BG 65x25, BG 65x50, and BG 65x75 variants. Nominal torque ranges from 0.214 Nm to 0.506 Nm, nominal speed from 2,920 rpm to 4,170 rpm, and motor weights from 0.87 kg to 1.80 kg. Rotor inertia values span 71.6 gcm² to 172 gcm² depending on the stack length selected. Protection class reaches IP65 and the motor includes integrated 30 cpr feedback.

As part of the Dunkermotoren modular system, the BG 65 dCore can be combined with a range of controllers (BGE 5510 dPro, BGE 6005 A, BN 6773), encoders (RE 30, RE 56, AE 38), brakes (E 90 R, E 100 R), planetary gearboxes (PLG 52 EB/HT, PLG 60, PLG 60 LB, PLG 63 EP, PLG 63 HT, PLG 75 EP), and angular gearboxes (SG 80, SG 120, STG 65, KG 80).

Show Less
Unit Price
—
or send a quick enquiry about this product only

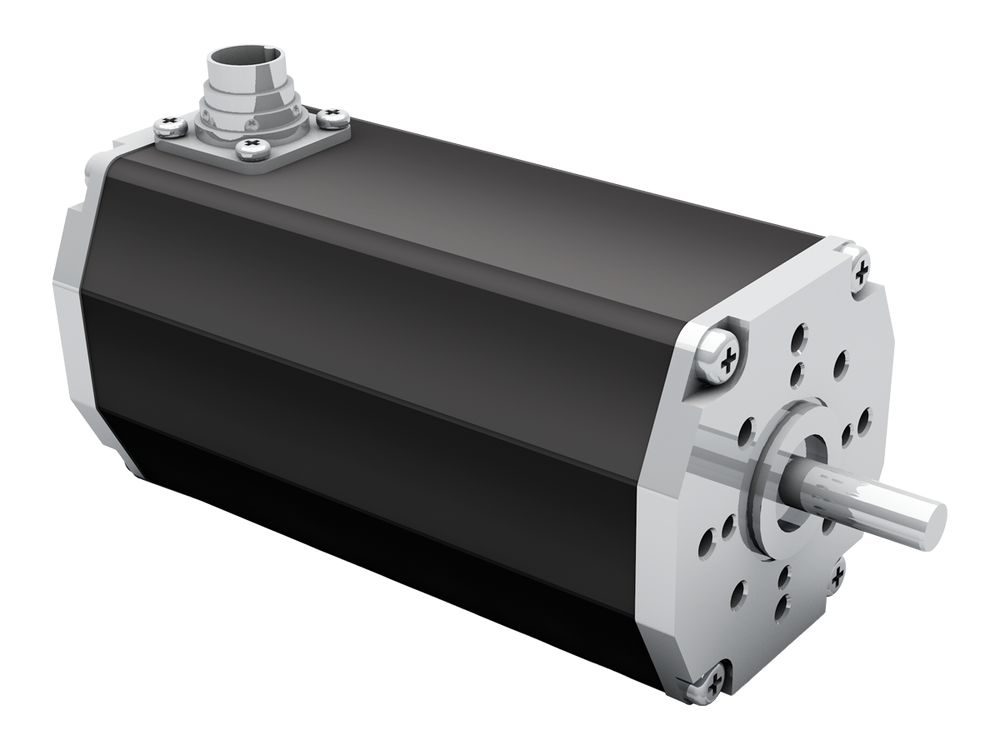

BG 65 dCore
Features
  • Highly dynamic 3-phase EC motor with 10-pole magnet.
  • Hall sensors for rotor position detection.
  • Supply voltage versions from 12Vdc to 325Vdc (48–325V for IP65).
  • Integrated 30 cpr feedback.
  • Protection class up to IP65.
  • High efficiency design.
  • Vibration resistance.
  • Modular system: compatible with controllers, encoders, brakes, and gearboxes.
  • On request, available in different voltage versions.
  • Three stack length options: BG 65x25, BG 65x50, BG 65x75.
Specifications
BG 65 dCore Specifications
Parameter Units BG 65x25
12V		 BG 65x25
24V		 BG 65x25
48V		 BG 65x25
60V		 BG 65x25
110V		 BG 65x50
24V		 BG 65x50
48V		 BG 65x50
60V		 BG 65x50
110V		 BG 65x75
24V		 BG 65x75
48V		 BG 65x75
60V		 BG 65x75
110V		 BG 65x75
325V
Nominal voltage VDC 12 24 48 60 110 24 48 60 110 24 48 60 110 325
Nominal current A* 9.51 5.03 2.55 2.04 1.12 7.13 3.75 3.01 1.66 8.69 4.59 3.68 2.23 0.73
Nominal torque Nm* 0.214 0.27 0.219 0.234 0.262 0.367 0.376 0.383 0.391 0.425 0.482 0.429 0.502 0.506
Nominal speed rpm* 3530 4170 3920 3530 2920 3360 3560 3480 3450 3650 3390 3940 3440 3240
Stall torque Nm** tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd.
Maximum torque Nm** 0.3 0.3 0.3 0.3 0.3 0.97 0.97 0.97 0.97 1.85 1.85 1.85 2.42 2.42
No load speed rpm** 7330 7970 7720 7330 6720 5900 6100 6020 5990 5730 5470 6020 5790 5590
Nominal output power W* 79 90 90 86.6 80 129.3 140 140 141.2 162.2 171 177 181 172
Maximum output power W 79 103 102 95 82 177 210 208 212 292 319 355 339 302
Torque constant Nm A⁻¹*** 0.031 0.057 0.118 0.155 0.311 0.065 0.127 0.161 0.296 0.065 0.138 0.157 0.309 0.946
Rotor inertia gcm² 71.6 71.6 71.6 71.6 71.6 128 128 128 128 172 172 172 172 172
Weight of motor kg 0.87 0.87 0.87 0.87 0.87 1.3 1.3 1.3 1.3 1.8 1.8 1.8 1.8 1.8
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point
