Cincon LFM420M Series 420W Medical AC/DC Power Supply
The Cincon LFM420M Series is a 420W medical AC-DC power supply with active PFC, efficiency up to 94.5%, constant-current over-current protection, and a 25.4mm low-profile package. The series is designed for Class I installations and is approved to ANSI/AAMI ES 60601-1, IEC 60601-1 and EN 60601-1 Ed. 3.2 for 2 MOPP, as well as IEC/EN/UL 62368-1 E...
Read MoreThe Cincon LFM420M Series is a 420W medical AC-DC power supply with active PFC, efficiency up to 94.5%, constant-current over-current protection, and a 25.4mm low-profile package. The series is designed for Class I installations and is approved to ANSI/AAMI ES 60601-1, IEC 60601-1 and EN 60601-1 Ed. 3.2 for 2 MOPP, as well as IEC/EN/UL 62368-1 Ed. 3.0, and meets IEC/EN 60335-1.

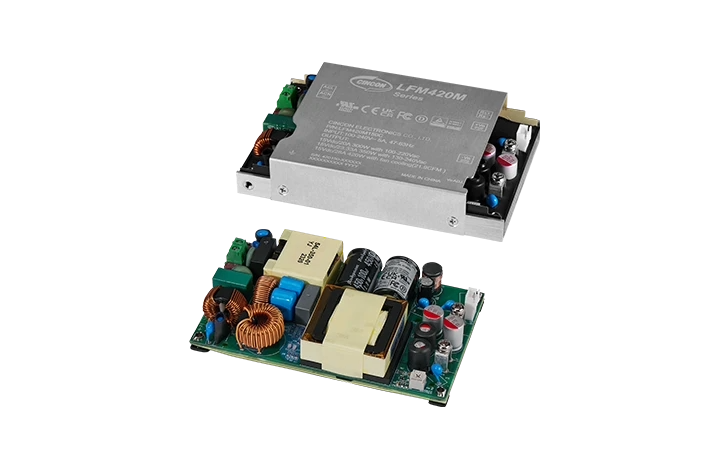

Available in baseplate and covered versions, the LFM420M Series provides single outputs from 12V to 54V and supports forced-air cooling, baseplate conduction cooling, and external baseplate conduction cooling. It is suited to compact system designs that need high efficiency, high power density and medical safety approvals.
Show Less
Features
- Wide Universal AC Input Range: 85–264Vac input allowing reliable operation across global AC power systems.
- Multiple Output Voltage Options: Available in 12V, 15V, 24V, 28V, 30V, 36V, 48V and 54V output models for flexible system integration.
- High Output Current Capability: Provides up to 35A output current depending on model, supporting higher power medical and industrial equipment.
- 420W High Power Density Design: Delivers up to 420W output power within a compact 25.4mm low-profile package.
- Safety: IEC/EN/UL 62368-1 Ed.3.0 | Meets IEC/EN 60335-1 | ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1 Ed. 3.2, Class I
- High Efficiency: Up to 94.5% (230Vac, full load, 25°C)
- No-Load Input Power: <0.5W (<0.6W for 54V model)
- Active PFC: Power Factor 0.95 @ 230Vac full load
- Constant Current Output Protection (OCP: 110–180%, auto-recovery)
- Output Voltage Adjustment: −5% to +5% (model-dependent)
- OVP: Latch off (auto-reset ~1 min after input off)
- SCP: Continuous, auto-recovery | OTP: Auto-recovery
- Load Regulation: ±1.0% (10–100% load) | Line Regulation: ±0.5%
- Cooling: External Fan (21.9CFM, above 100Vac) | Baseplate Conduction | External Baseplate
- Operating Temp: −40°C to +80°C | Case Temp: −40°C to +85°C | Altitude: 5000m
- MTBF: 400,000h (MIL-HDBK-217F) | 1,600,000h (Telcordia SR332)
- EMC Immunity: EN 60601-1-2, IEC/EN 61000-4-2/3/4/5/6/8/11 Ed.4.1
- EMC Emission: EN 55011 Class B, EN 55032 Class B, FCC Part 15 & 18 Class B
Specifications
| ABSOLUTE MAXIMUM RATINGS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Input Voltage | Safety approvals only to the AC input No safety approvals |
All | 85 120 |
264 370 |
Vac Vdc |
|
| Operating Temperature | See derating curve | All | -40 | 80 | ℃ | |
| Operating Case Temperature | At the center of base plate (T꜀ = Case temperature) |
All | -40 | 85 | ℃ | |
| Storage Temperature | All | -40 | 85 | ℃ | ||
| Operating Altitude | All | 5000 | m | |||
| INPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device | Min. |
Typ. |
Max. |
Units |
| Operating Input Voltage | All | 100 | 240 | Vac | ||
| Input Frequency Range | All | 47 | 63 | Hz | ||
| Maximum Input Current | 100% Load, Vᵢₙ=100Vac | All | 6 | A | ||
| Leakage Current (Earth) | All | 300 | uA | |||
| Leakage Current (Touch) | All | 100 | uA | |||
| Inrush Current | Vᵢₙ=240Vac, Cold Start @25℃ | All | 30 | A | ||
| Under Voltage Protection | All | 65 | 75 | Vac | ||
| Power Factor | 230Vac @ Full load | All | 0.95 | |||
| OUTPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. | Max. |
Units |
| Output Voltage Set Point |
Vᵢₙ=Nominal Vᵢₙ, Iₒ= Iₒ_ₘₐₓ., T꜀=25℃ |
LFM420M120 |
11.88 14.85 23.76 27.72 29.70 35.64 47.52 53.46 |
12 15 24 28 30 36 48 54 |
12.12 |
Vdc |
| Operating Output Current Range | Vᵢₙ=85Vac-264Vac, see derating curve | LFM420M120 LFM420M150 LFM420M240 LFM420M280 LFM420M300 LFM420M360 LFM420M480 LFM420M540 |
|
35.00A 28.00A 17.50A 15.00A 14.00A 11.67A 8.75A 7.78A |
A | |
| Holdup Time | Vᵢₙ=115Vac load:350W Ambient temperature=25℃ Vᵢₙ=115Vac Load:420W Ambient temperature=25℃ |
All |
12
|
ms | ||
| Output Voltage Regulation | ||||||
| Load Regulation | 10% Load to full load | All | ±1.0 | % | ||
| Line Regulation | Vᵢₙ=High line to low line | All | ±0.5 | % | ||
| Output Voltage Adjustment | Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. |
LFM420M280 LFM420M540 Others |
0 -5 -5 |
+5 +2 +5 |
% | |
| Over Voltage Protection | Latch off (reset after about one minute after the input is turned off) | LFM420M120 LFM420M150 LFM420M240 LFM420M280 LFM420M300 LFM420M360 LFM420M480 LFM420M540 |
16 20 30 35 35 50 63 63 |
Vdc | ||
| Over Current Protection | Constant current, auto recovery (see application note) |
All | 110 | 180 | % | |
| Short Circuit Protection | Auto recovery | All | ||||
| Over Temperature Protection | Auto recovery If conduction convection with external baseplate is used or the recommended temperature curve is exceeded, the Tc temperature must be maintained <85℃ |
All | ||||
| Output Ripple and Noise | 1. Add a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor to output 2. Oscilloscope is 20MHz band width. 3. Ambient Temperature=25℃ |
LFM420M120 LFM420M150 LFM420M240 LFM420M280 LFM420M300 LFM420M360 LFM420M480 LFM420M540 |
120 150 240 280 300 360 480 540 |
mV | ||
| Load Capacitance | 1. Vᵢₙ=115Vac and 230Vac 2. Output is max. load 3. Ambient temperature=25℃ |
LFM420M120 LFM420M150 LFM420M240 LFM420M280 LFM420M300 LFM420M360 LFM420M480 LFM420M540 |
29100 23300 14500 12500 11600 9700 7200 6400 |
uF | ||
| Efficiency | 1. Input Voltage is 230Vac 2. Output is rated load 3. Ambient temperature=25℃ |
LFM420M120 LFM420M150 LFM420M240 LFM420M280 LFM420M300 LFM420M360 LFM420M480 LFM420M540 |
92.5 93.0 94.0 94.0 94.0 94.0 94.0 94.5 |
% | ||
| ISOLATION CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Input to Output | 1 Minute (without dielectric breakdown) | All | 4250 | Vac | ||
| Input to Earth (Ground) | 1 Minute (without dielectric breakdown) | All | 2000 | Vac | ||
| Output to Earth (Ground) | 1 Minute (without dielectric breakdown) |
All |
2000 | Vac | ||
| Isolation Resistance | Input to output | All | 100 | MΩ | ||
| FEATURE CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Switching Frequency | Pₒᵤₜ=max. rated power |
All |
65 | kHz | ||
| GENERAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| MTBF | Iₒ=100%; Ta=25℃ per MIL-HDBK-217F Iₒ=100%; Ta=25℃ per Telcordia SR332 |
All |
1600 |
400 | k hours | |
| Life Time (Detail refer to Application Note) | Conduction cooling @75% Load, 40℃ Fan cooling @75% Load, 40℃ |
All | 119 288 |
k hours | ||
| Humidity | Non-condensing | All | 93 | % RH | ||
| Shock | Meet MIL-STD-810F Table 516.5,Table 516.5-I 10ms, each axis 3 times(±X ±Y ±Z axis) | All | 75 | g | ||
| Vibration | Meet MIL-STD-810F Table 514.5C-VIII,15~2000Hz, X Y Z axis, 1 hour (each axis),. Total 3 hrs. | All | 4 | g | ||
| Weight | Baseplate versions Covered versions |
All | 350 470 |
grams | ||
| Dimensions |
Baseplate versions
|
All | 5.00x3.00x1.00 Inches (127x76.2x25.40mm) 5.09x3.29x1.00 Inches (129.4x83.5x25.4mm) |
|||
| Safety |
Class I, Class I, IEC/EN/UL 62368-1 |
Ed. 3.2 Ed. 3.0 |
||||
| EMC Emission |
EN 55011, Class B, IEC/EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 18
|
|||||
| Conducted Disturbance | EN 55011, EN 55032 47, CFR FCC Part 18 & Part 15 | Class B | ||||
| Radiated Disturbance | EN 55011, EN 55032 47, CFR FCC Part 18 & Part 15 | Class B | ||||
| Harmonic Current Emissions | IEC/EN 61000-3-2 | Class A, C, D | ||||
| Voltage Fluctuations & Flicker | EN 61000-3-3 | |||||
| EMC Immunity | EN 60601-1-2, IEC/EN 61000-4-2, 3, 4, 5, 6, 8, 11 EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61204-3 |
Ed 4.1 | ||||
| Electrostatic Discharge (ESD) | IEC 61000-4-2, Level 4: Air Discharge: ±15kV, Contact Discharge: ±8kV | Criterion A | ||||
| Radio-Frequency, Continuous Radiated Disturbance |
IEC/EN 61000-4-3, Level 3: 80~2700MHz, 10V/m | Criterion A | ||||
| Electrical Fast Transient (EFT) | EN 61000-4-4, Level 3: ±2KV | Criterion A | ||||
| Surge | EN 61000-4-5, Level 4: L-N: ±2kV, L-E (Ground): ±4kV | Criterion A | ||||
| Conducted Disturbances, Induced by RF Fields | IEC/EN 61000-4-6, Level 3: 0.15~80MHz, 10V | Criterion A | ||||
| Power Frequency Magnetic Field | EN 61000-4-8, Level 4: 30A/m | Criterion A | ||||
| Voltage Dips | IEC/EN 61000-4-11, Dip: 30% Reduction IEC/EN 61000-4-11, Dip >95% Reduction |
Criterion A | ||||
| Voltage Interruptions | IEC/EN 61000-4-11, >95% Reduction | Criterion B | ||||
| Application Note Link | LFM420M Series App Notes | |||||
Selection Table
| MODEL NUMBER | OUTPUT VOLTAGE | OUTPUT CURRENT | RIPPLE & NOISE NOTE1 | VOLTAGE ACCURACY NOTE2 | VOLTAGE ADJ. RANGE | LINE REGULATION NOTE3 | LOAD REGULATION NOTE4 | % EFF. (Typ.) NOTE5 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| With Fan NOTE6 | With Conduction Cooling NOTE7 | |||||||||
| Baseplate | Cover | |||||||||
| LFM420M120 |
12 Vdc |
35 A | 26.25 A | 29.17 A | 120 mV | ±1% | 11.4-12.6 V | ±0.5% | ±1% | 92.5% |
|
LFM420M150 |
15 Vdc |
28 A | 21 A | 23.33 A | 150 mV | ±1% | 14.25-15.75 V | ±0.5% | ±1% | 93% |
| LFM420M240 |
24 Vdc |
17.5 A | 13.13 A | 14.58 A | 240 mV | ±1% | 22.8-25.2 V | ±0.5% | ±1% | 94% |
| LFM420M280 |
28 Vdc |
15 A | 11.25 A | 12.50 A | 280 mV | ±1% | 28-29.4 V | ±0.5% | ±1% | 94% |
| LFM420M300 |
30 Vdc |
14 A | 10.50 A | 11.67 A | 300 mV | ±1% |
28.5-31.5 V |
±0.5% | ±1% | 94% |
| LFM420M360 |
36 Vdc |
11.67 A | 8.75 A | 9.72 A | 360 mV | ±1% |
34.2-37.8 V |
±0.5% | ±1% | 94% |
| LFM420M480 |
48 Vdc |
8.75 A | 6.56 A | 7.29 A | 480 mV | ±1% | 45.6-50.4 V | ±0.5% | ±1% | 94% |
| LFM420M540 |
54 Vdc |
7.78 A | 5.83 A | 6.48 A | 540 mV | ±1% | 51.3-55.0 V | ±0.5% | ±1% | 94.5% |
|
NOTE: |
||||||||||
PART NUMBER
| SERIES | NUMBER OF OUTPUTS | NOMINAL OUTPUT VOLTAGE | TYPE | MOUNTING INSERTS |
|---|---|---|---|---|
| LFM420 | O | XXX | X | -YZ |
| LFM420 |
M：Medical |
120 : 12Vdc |
B：With Baseplate C：With Cover |
Blank：Through Hole C0：Threaded Hole |
|
Part Number Example: |
||||

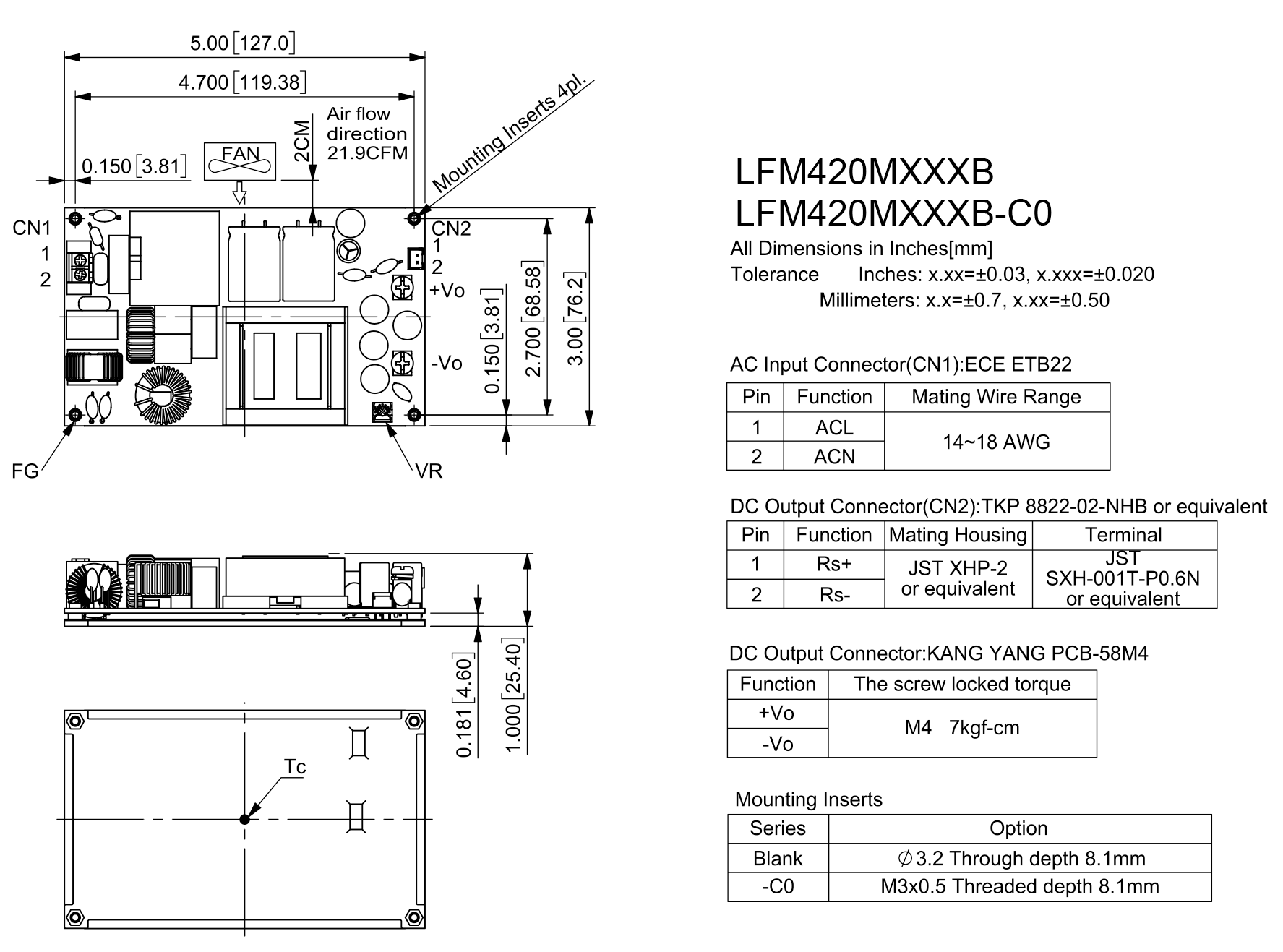

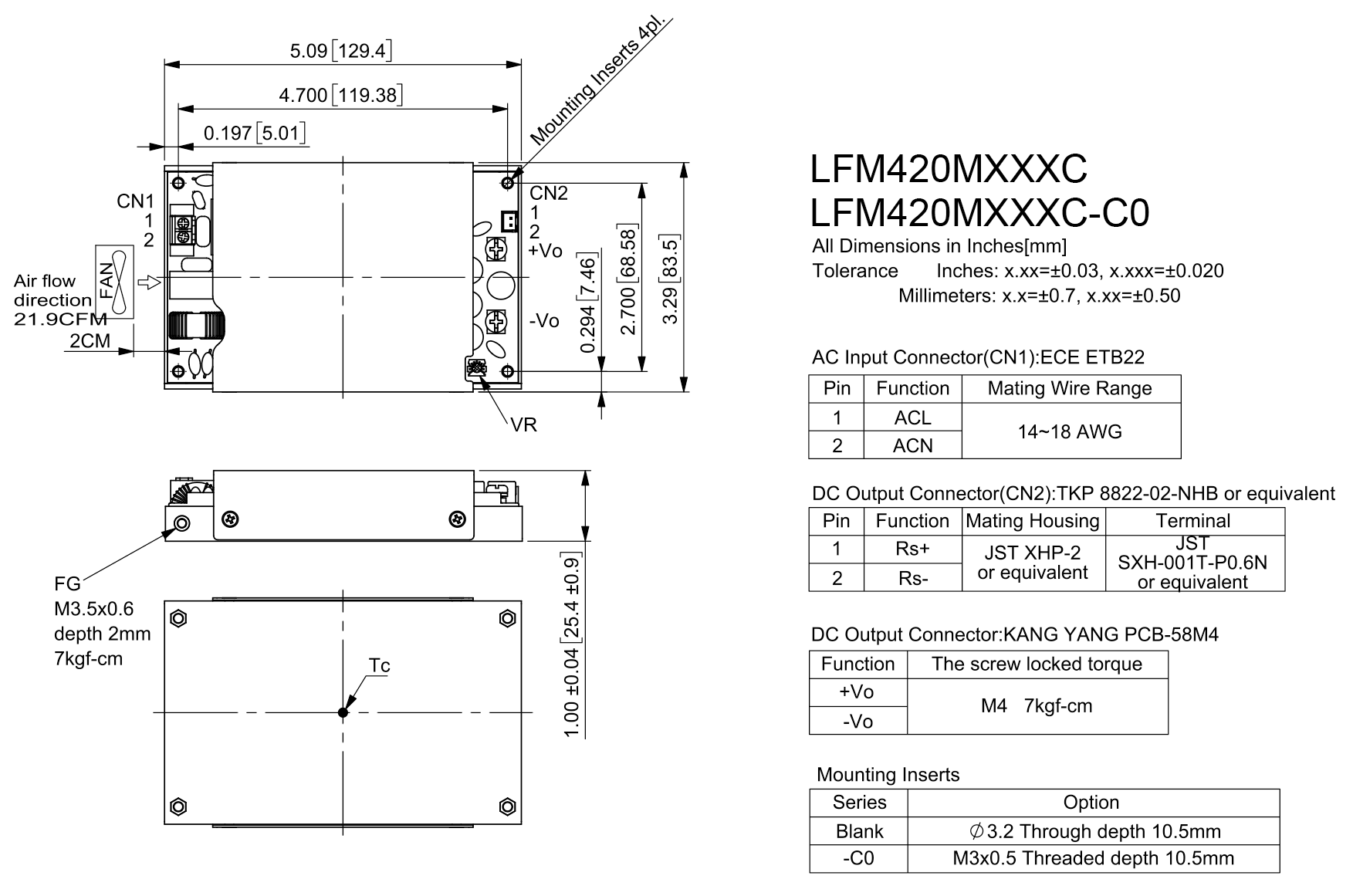

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
