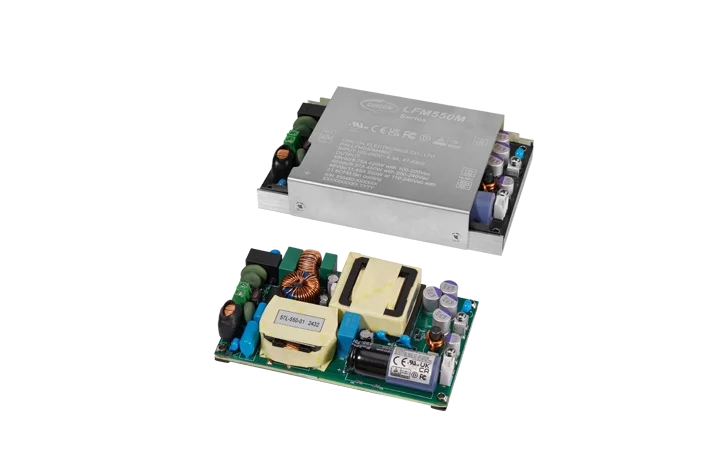

Cincon LFM550M Series 550W Medical AC/DC Power Supply
The Cincon LFM550M Series is a 550W medical AC-DC power supply with active PFC, efficiency up to 94%, and a compact 25.4mm low-profile package. The series supports Class I and Class II installations and is approved to ANSI/AAMI ES 60601-1, IEC 60601-1 and EN 60601-1 Ed. 3.2 for 2 MOPP, as well as IEC/EN/UL 62368-1 Ed. 3.0, and meets IEC/EN 60335...
Read MoreThe Cincon LFM550M Series is a 550W medical AC-DC power supply with active PFC, efficiency up to 94%, and a compact 25.4mm low-profile package. The series supports Class I and Class II installations and is approved to ANSI/AAMI ES 60601-1, IEC 60601-1 and EN 60601-1 Ed. 3.2 for 2 MOPP, as well as IEC/EN/UL 62368-1 Ed. 3.0, and meets IEC/EN 60335-1.
The LFM550M Series is available in baseplate and covered versions with single outputs from 12V to 54V. It supports forced-air cooling, baseplate conduction cooling, and external conduction plate cooling, making it a strong option where high output power, medical approvals and compact packaging are required.
Show Lessor send a quick enquiry about this product only
Features
- Wide Universal AC Input Range: 85–264Vac input enabling global operation across a wide range of AC power systems.
- Multiple Output Voltage Options: Available in 12V, 15V, 24V, 28V, 30V, 36V, 48V and 54V single output models for flexible system design.
- High Output Current Capability: Provides up to 45.83A output current depending on model, supporting high-power medical equipment.
- High Power Density 550W Design: Delivers up to 550W output power in a compact 25.4mm low-profile form factor.
- Safety: IEC/EN/UL 62368-1 Ed.3.0 | Meets IEC/EN 60335-1 | ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1 Ed. 3.2, Class I, Class II
- High Efficiency: Up to 94% (230Vac, full load, 25°C)
- Active PFC: Power Factor 0.96–0.98 @ 230Vac full load
- Output Voltage Adjustment Range: ±5% of nominal (±0 to +5% for 28V model)
- OVP: Latch off (AC recycle to reset) | OCP: 120–160%, auto-recovery
- SCP: Continuous, auto-recovery | OTP: Auto-recovery
- Load Regulation: ±0.5% (10–100% load) | Line Regulation: ±0.3%
- Cooling: Forced Air (21.9CFM) | Baseplate Conduction | External Baseplate (38.1×38.1cm)
- Operating Temp: −40°C to +80°C | Operating Case Temp: −40°C to +90°C | Altitude: 5000m
- MTBF: 400,000h (MIL-HDBK-217F) | 1,300,000h (Telcordia SR332)
- Lifetime: 150,000h fan cooling / 97,000h conduction @ 75% Load, 40°C
- EMC Immunity: EN 60601-1-2, IEC/EN 61000-4-2/3/4/5/6/8/11 Ed.4.1
- EMC Emission: EN 55011 Class B, EN 55032, FCC Part 15 & 18 Class B
Specifications
| ABSOLUTE MAXIMUM RATINGS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions | Device | Min. | Typ. | Max. | Units |
| Input Voltage | Safety approvals only to the AC input | All | 85 115 |
264 370 |
Vac Vdc |
|
| Operating Temperature | See derating curve | All | -40 | 80 | ℃ | |
| Operating Case Temperature | At the center of base plate (Tc = Case temperature) |
All | -40 | 90 | ℃ | |
| Storage Temperature | All | -40 | 90 | ℃ | ||
| Operating Altitude | All | 5000 | m |
| INPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions | Device | Min. | Typ. | Max. | Units |
| Operating Input Voltage | | All | 100 | | 240 | Vac |
| Input Frequency Range | | All | 47 | | 63 | Hz |
| Maximum Input Current | 100% Load, Vin=100Vac | All | | | 6.3 | A |
| Leakage Current | Contact leakage current Earth leakage current |
All | | | 100 300 |
uA |
| Inrush Current | Vin=240Vac, Cold Start @25℃ | All | | | 45 | A |
| Power Factor | 230Vac @ Full load | All | 0.96 | 0.98 | | |
| OUTPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions | Device | Min. | Typ. | Max. | Units |
| Output Voltage Set Point | Vin=Nominal Vin, Io=Io max., Tc=25℃ | LFM550M120 LFM550M150 LFM550M240 LFM550M280 LFM550M300 LFM550M360 LFM550M480 LFM550M540 |
11.88 14.85 23.76 27.72 29.7 35.64 47.52 53.46 |
12 15 24 28 30 36 48 54 |
12.12 15.15 24.24 28.28 30.3 36.36 48.48 54.54 |
Vdc |
| Operating Output Current Range | Vin=85Vac~264Vac, see derating curve | LFM550M120 LFM550M150 LFM550M240 LFM550M280 LFM550M300 LFM550M360 LFM550M480 LFM550M540 |
0 0 0 0 0 0 0 0 |
45.83 36.66 22.91 19.64 18.33 15.27 11.45 10.18 |
A | |
| Holdup Time | Vin=115Vac | All | 8 | 12 | ms | |
| Output Voltage Regulation | ||||||
| Load Regulation | 10% Load to full load | All | ±0.5 | % | ||
| Line Regulation | Vin=High line to low line | All | ±0.3 | % | ||
| Output Voltage Adjustment | Po≦max. rated power, Io≦Io max. | LFM550M280 Others |
0 -5 |
+5 +5 |
% | |
| Over Voltage Protection | Latch off (AC recycle to reset) | LFM550M120 LFM550M150 LFM550M240 LFM550M280 LFM550M300 LFM550M360 LFM550M480 LFM550M540 |
16 20 32 35 35 45 55 60 |
Vdc | ||
| Over Current Protection | Auto recovery (output is rated load) | All | 120 | 140 | 160 | % |
| Short Circuit Protection | Auto recovery | All | ||||
| Over Temperature Protection | Auto recovery | All | ||||
| Output Ripple and Noise | 1. Add a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor to output 2. Oscilloscope is 20MHz band width 3. Ambient Temperature=25℃ |
LFM550M120 LFM550M150 LFM550M240 LFM550M280 LFM550M300 LFM550M360 LFM550M480 LFM550M540 |
120 150 200 200 200 200 200 200 |
mV | ||
| Load Capacitance | 1. Vin=115Vac and 230Vac 2. Output is max. load 3. Ambient temperature=25℃ |
LFM550M120 LFM550M150 LFM550M240 LFM550M280 LFM550M300 LFM550M360 LFM550M480 LFM550M540 |
27200 22400 14100 11600 10600 9020 7200 6000 |
uF | ||
| Efficiency | 1. Input Voltage is 230Vac 2. Output is rated load 3. Ambient temperature=25℃ |
LFM550M120 LFM550M150 LFM550M240 LFM550M280 LFM550M300 LFM550M360 LFM550M480 LFM550M540 |
92 93 93 93 93 94 94 94 |
% | ||
| ISOLATION CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions | Device | Min. | Typ. | Max. | Units |
| Input to Output | 1 Minute (without dielectric breakdown) | All | 4250 | Vac | ||
| Input to Earth (Ground) | 1 Minute (without dielectric breakdown) | All | 2000 | Vac | ||
| Output to Earth (Ground) | 1 Minute (without dielectric breakdown) | All | 2000 | Vac | ||
| Isolation Resistance | Input to output | All | 100 | MΩ |
| FEATURE CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions | Device | Min. | Typ. | Max. | Units |
| Switching Frequency | All | 65 | kHz |
| GENERAL SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions | Device | Min. | Typ. | Max. | Units |
| MTBF | Io=100%; Ta=25℃ per MIL-HDBK-217F Io=100%; Ta=25℃ per Telcordia SR332 |
All | 400 1300 |
| | k hours |
| Life Time (Detail refer to Application Note) | Conduction cooling @75% Load, 40℃ Fan cooling @75% Load, 40℃ |
All | | 97 150 |
| k hours |
| Humidity | Non-condensing | All | | 93 | % RH | |
| Shock | Meet MIL-STD-810F Table 516.5, Table 516.5-I 10ms, each axis 3 times (±X, ±Y, ±Z axis) | All | 75 | | g | |
| Vibration | Meet MIL-STD-810F Table 514.5C-VIII, 15~2000Hz, X, Y, Z axis, 1 hour (each axis), total 3 hrs. | All | 4 | | g | |
| Weight | Baseplate versions Covered versions |
LFM550MXXXB LFM550MXXXC |
| 380 535 |
| grams |
| Dimensions | Baseplate versions Covered versions |
LFM550MXXXB LFM550MXXXC |
5.00x3.00x1.00 Inches (127.0x76.2x25.4 mm) 5.09x3.29x1.00 Inches (129.4x83.5x25.4 mm) |
|||
| Safety |
Class I, Class II Class I, IEC/EN/UL 62368-1 |
Ed. 3.2 |
||||
| EMC Emission | EN 55011 Class B, IEC/EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 18 EN 55032, EN 61000-6-4, EN 61204-3, EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 15 |
|||||
| Conducted Disturbance | EN 55011, EN 55032, 47 CFR FCC Part 18 & Part 15 |
Class B | ||||
| Radiated Disturbance | EN 55011, 47 CFR FCC Part 18 (Class II only meets Class A) EN 55032, 47 CFR FCC Part 15 |
Class B | ||||
| Harmonic Current Emissions | IEC/EN 61000-3-2 | Class A, C, D |
||||
| Voltage Fluctuations & Flicker | EN 61000-3-3 | Criterion A | ||||
| EMC Immunity | EN 60601-1-2, IEC/EN 61000-4-2, 3, 4, 5, 6, 8, 11 EN 55035, EN 61000-6-2, EN 61204-3 |
Ed. 4.1 | ||||
| Electrostatic Discharge (ESD) | IEC 61000-4-2, Level 4: Air Discharge: ±15kV, Contact Discharge: ±8kV | Criterion A | ||||
| Radio-Frequency, Continuous Radiated Disturbance | IEC/EN 61000-4-3, Level 3: 80~2700MHz, 10V/m | Criterion A | ||||
| Electrical Fast Transient (EFT) | EN 61000-4-4, Level 3: ±2KV | Criterion A | ||||
| Surge | EN 61000-4-5, Level 4: L-N: ±2kV, L-E (Ground): ±4kV | Criterion A | ||||
| Conducted Disturbances, Induced by RF Fields | EN 61000-4-6, Level 3: 0.15~80MHz, 10V | Criterion A | ||||
| Power Frequency Magnetic Field | EN 61000-4-8, Level 4: 30A/m | Criterion A | ||||
| Voltage Dips | IEC/EN 61000-4-11, Dip: 30% Reduction IEC/EN 61000-4-11, Dip >95% Reduction |
Criterion A | ||||
| Voltage Interruptions | IEC/EN 61000-4-11, >95% Reduction | Criterion B | ||||
| Application Note Link | LFM550M Series App Notes | |||||

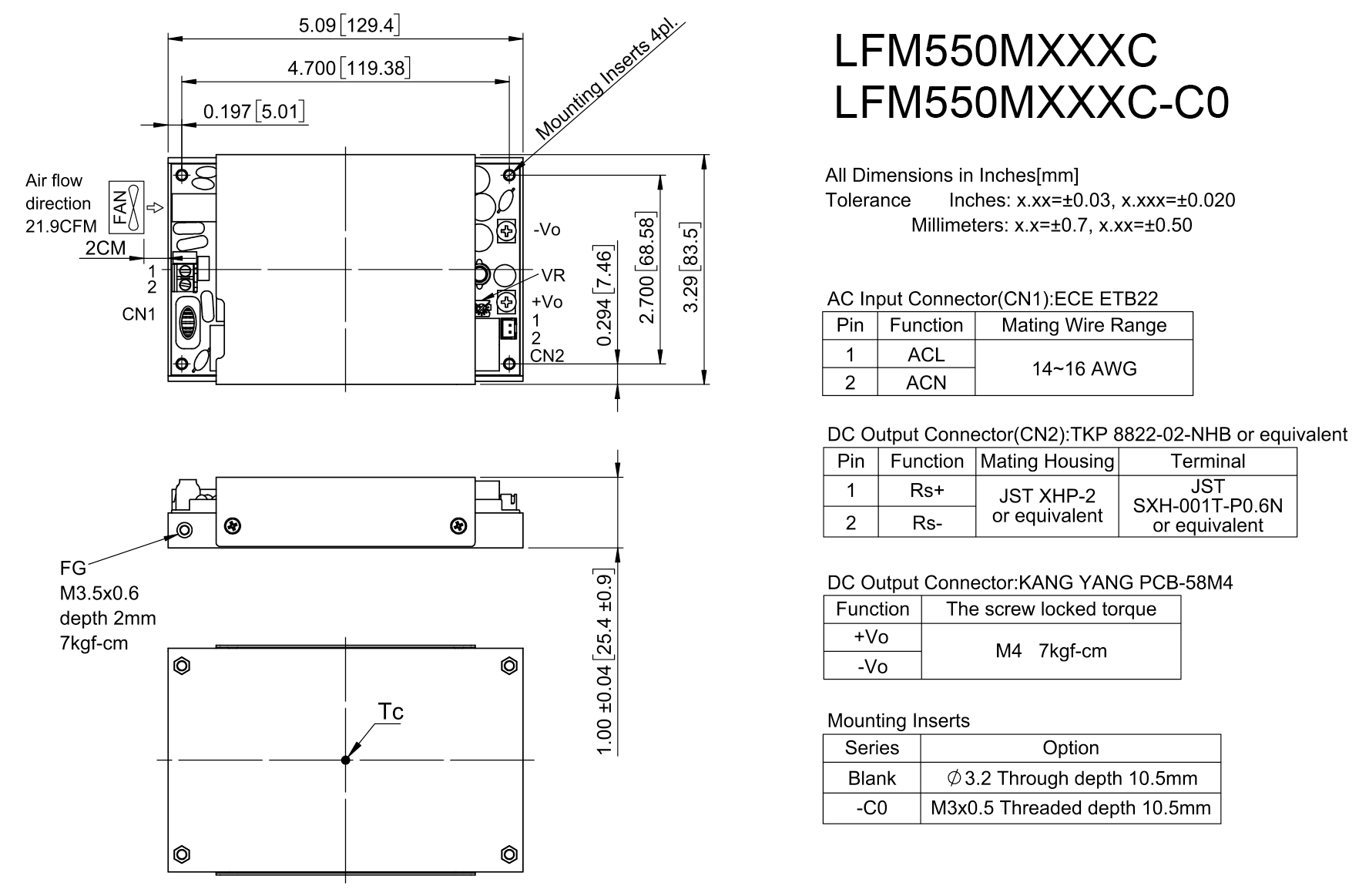

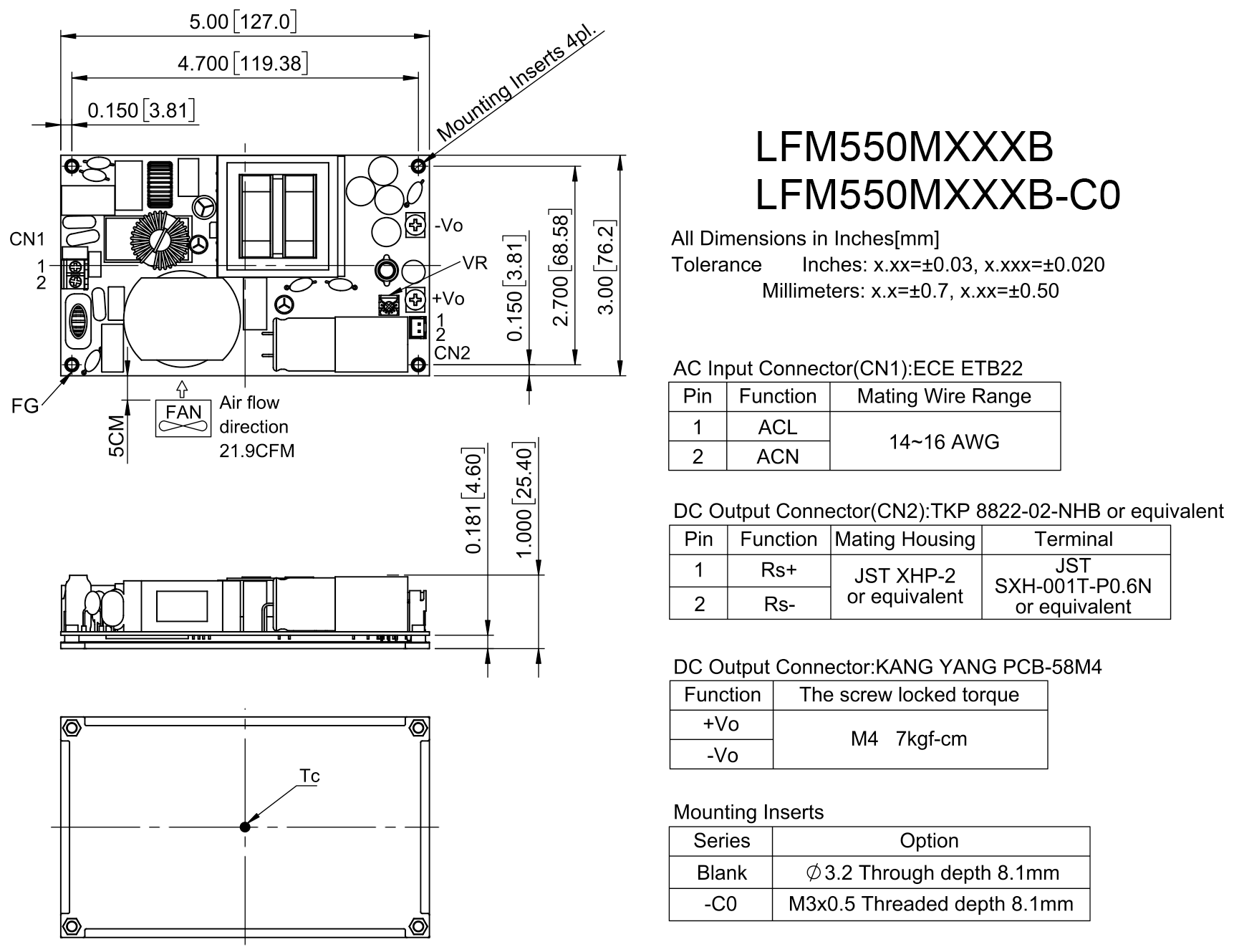

Technical Drawings
