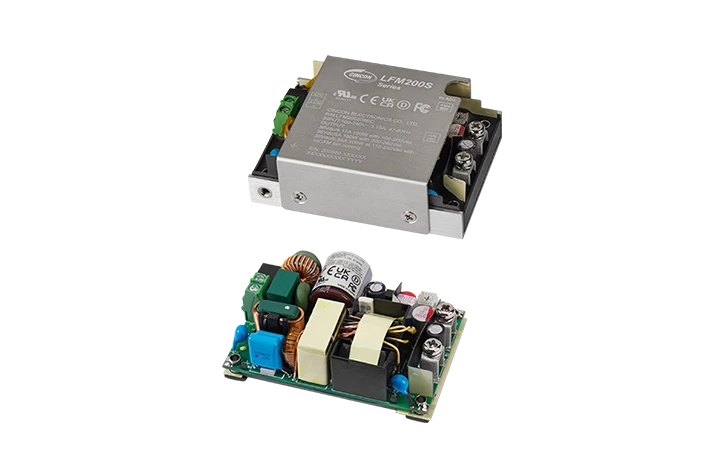

Cincon LFM200S Series AC/DC Power Supply
The Cincon LFM200S Series is a compact, high-efficiency 200W AC-DC power supply designed for demanding industrial and commercial applications. Featuring a universal AC input range of 85–264Vac and integrated active PFC, the LFM200S delivers reliable and stable DC output with efficiency up to 94%. Housed in a low-profile 25.4mm package, this Clas...
Read MoreThe Cincon LFM200S Series is a compact, high-efficiency 200W AC-DC power supply designed for demanding industrial and commercial applications. Featuring a universal AC input range of 85–264Vac and integrated active PFC, the LFM200S delivers reliable and stable DC output with efficiency up to 94%.
Housed in a low-profile 25.4mm package, this Class I power supply is available in single-output models ranging from 12V to 54V. The series supports both baseplate and enclosed (covered) versions, with through-hole or threaded mounting options for flexible mechanical integration.
Engineered for performance and safety, the LFM200S Series complies with IEC/EN/UL 62368-1 Ed. 3.0 and meets EN 55032 / CISPR / FCC Class B emission standards. With comprehensive protection features including over-voltage, over-current, short-circuit, and over-temperature protection, it ensures robust operation in harsh environments up to 5000m altitude.
Show Less
Features
- Input Voltage Range: 85–264Vac (Operating range: 100–240Vac)
- Output Voltage Options: 12V, 15V, 24V, 28V, 30V, 36V, 48V, 54V
- Maximum Output Current: Up to 16.67A (model dependent)
- Active Power Factor Correction (PFC): 0.96–0.98 typical @ 230Vac full load
- Over Current Protection : Auto recovery, 120–165%
- Over Voltage Protection: Latch-off (AC recycle to reset)
- Shock & vibration compliant with MIL-STD-810F
Specifications
| ABSOLUTE MAXIMUM RATINGS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Input Voltage | Safety approvals only to the AC input | All | 85 115 |
264 370 |
Vac Vdc |
|
| Operating Temperature | See derating curve | All | -40 | 80 | ℃ | |
| Operating Case Temperature | At the center of base plate (T꜀ = Case temperature) |
All | -40 | 90 | ℃ | |
| Storage Temperature | All | -40 | 90 | ℃ | ||
| Operating Altitude | IEC/EN/UL 62368-1 OVC II IEC/EN/UL 62368-1 OVC III |
All | 5000 2000 |
m | ||
| INPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device | Min. |
Typ. |
Max. |
Units |
| Operating Input Voltage | All | 100 | 240 | Vac | ||
| Input Frequency Range | All | 47 | 63 | Hz | ||
| Maximum Input Current | 100% Load, Vᵢₙ=100Vac | All | 3.15 | A | ||
| Leakage Current | Contact leakage current Earth leakage current |
All | 100 300 |
uA | ||
| Inrush Current | Vᵢₙ=240Vac, Cold Start @25℃ | All | 85 | A | ||
| Power Factor | 230Vac @ Full load | All | 0.96 | 0.98 | ||
| OUTPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. | Max. |
Units |
| Output Voltage Set Point |
Vᵢₙ=Nominal Vᵢₙ, Iₒ= Iₒ_ₘₐₓ., T꜀=25℃ |
LFM200S120 |
11.88 14.85 23.76 27.72 29.7 35.64 47.52 53.46 |
12 15 24 28 30 36 48 54 |
12.12 |
Vdc |
| Operating Output Current Range | Vᵢₙ=85Vac-264Vac, see derating curve | LFM200S120 LFM200S150 LFM200S240 LFM200S280 LFM200S300 LFM200S360 LFM200S480 LFM200S540 |
0 |
16.67 13.33 8.33 7.14 6.66 5.55 4.16 3.7 |
A | |
| Holdup Time | Vᵢₙ=115Vac | All | 10 | 12 | ms | |
| Output Voltage Regulation | ||||||
| Load Regulation | 10% Load to full load | All | ±0.5 | % | ||
| Line Regulation | Vᵢₙ=High line to low line | All | ±0.2 | % | ||
| Output Voltage Adjustment | Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. | All | -5 | +5 | % | |
| Over Voltage Protection | Latch off (AC recycle to reset) | LFM200S120 LFM200S150 LFM200S240 LFM200S280 LFM200S300 LFM200S360 LFM200S480 LFM200S540 |
16 20 32 35 35 45 55 63 |
Vdc | ||
| Over Current Protection | Auto recovery (output is rated load) | All | 120 | 145 | 165 | % |
| Short Circuit Protection | Auto recovery | All | ||||
| Over Temperature Protection | Auto recovery | All | ||||
| Output Ripple and Noise | 1. Add a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor to output 2. Oscilloscope is 20MHz band width. 3. Ambient Temperature=25℃ |
LFM200S120 LFM200S150 LFM200S240 LFM200S280 LFM200S300 LFM200S360 LFM200S480 LFM200S540 |
150 150 200 200 200 200 200 200 |
mV | ||
| Load Capacitance | 1. Vᵢₙ=115Vac and 230Vac 2. Output is max. load 3. Ambient temperature=25℃ |
LFM200S120 LFM200S150 LFM200S240 LFM200S280 LFM200S300 LFM200S360 LFM200S480 LFM200S540 |
6800 5360 3440 3440 3220 2680 2000 1560 |
uF | ||
| Efficiency | 1. Input Voltage is 230Vac 2. Output is rated load 3. Ambient temperature=25℃ |
LFM200S120 LFM200S150 LFM200S240 LFM200S280 LFM200S300 LFM200S360 LFM200S480 LFM200S540 |
92 92 94 93 93 94 94 93 |
% | ||
| ISOLATION CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Input to Output | 1 Minute (without dielectric breakdown) | All | 4250 | Vac | ||
| Input to Earth (Ground) | 1 Minute (without dielectric breakdown) | All | 2000 | Vac | ||
| Output to Earth (Ground) | 1 Minute (without dielectric breakdown) |
All |
2000 | Vac | ||
| Isolation Resistance | Input to output | All | 100 | MΩ | ||
| FEATURE CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Switching Frequency |
15V |
130 110 |
KHz | |||
| GENERAL SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| MTBF | Iₒ=100%; Ta=25℃ per MIL-HDBK-217F Iₒ=100%; Ta=25℃ per Telcordia SR332 |
All |
450 2800 |
K hours | ||
| Life Time (Detail refer to Application Note) | Conduction cooling @75% Load, 40℃ Fan cooling @75% Load, 40℃ |
All | 110 179 |
K hours | ||
| Humidity | Non-condensing | All | 93 | % RH | ||
| Shock | Meet MIL-STD-810F Table 516.5,Table 516.5-I 10ms, each axis 3 times(±X、±Y、±Z axis) | All | 75 | g | ||
| Vibration | Meet MIL-STD-810F Table 514.5C-VIII,15~2000Hz, X、Y、Z axis, 1 hour (each axis),. Total 3 hrs. | All | 4 | g | ||
| Weight | Baseplate versions Covered versions |
LFM200SXXXB LFM200SXXXC |
130 220 |
grams | ||
| Dimensions | Baseplate versions Covered versions |
LFM200SXXXB LFM200SXXXC |
3.04x2.00x1.00 Inches (77.2x50.8x25.4 mm) 3.09x2.28x1.00 Inches (78.6x57.9x25.4 mm) |
|||
| Safety | Class I, IEC/EN/UL 62368-1 | Ed. 3.0 | ||||
| EMC Emission | EN 55032, EN 61000-6-4, EN 61204-3, EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 15 | |||||
| Conducted Disturbance | EN 55032, 47 CFR FCC Part 15 | Class B | ||||
| Radiated Disturbance | EN 55032, 47 CFR FCC Part 15 | Class B | ||||
| Harmonic Current Emissions | EN 61000-3-2 | Class A, C, D | ||||
| Voltage Fluctuations & Flicker | EN 61000-3-3 | Criterion A | ||||
| EMC Immunity | EN 55035, EN 61000-6-2, EN 61204-3 | |||||
| Electrostatic Discharge (ESD) | IEC 61000-4-2, Level 3: Air Discharge: ±8kV, Level 2: Contact Discharge: ±4kV | Criterion A | ||||
| Radio-Frequency, Continuous Radiated Disturbance |
IEC 61000-4-3, Level 3: 80~2700MHz, 10V/m | Criterion A | ||||
| Electrical Fast Transient (EFT) | IEC 61000-4-4, Level 3: ±2kV | Criterion A | ||||
| Surge | IEC 61000-4-5, Level 4: L-N: ±2kV, L-E (Ground): ±4kV | Criterion A | ||||
| Conducted Disturbances, Induced by RF Fields | IEC 61000-4-6, Level 3: 0.15~80MHz, 10V | Criterion A | ||||
| Power Frequency Magnetic Field | IEC 61000-4-8, Level 4: 30A/m | Criterion A | ||||
| Voltage Dips | IEC/EN 61000-4-11, Dip: 30% Reduction IEC/EN 61000-4-11, Dip >95% Reduction |
Criterion A | ||||
| Voltage Interruptions | IEC/EN 61000-4-11, >95% Reduction | Criterion B | ||||
| Application Note Link | LFM200S Series App Notes | |||||
Selection Table
| MODEL NUMBER | OUTPUT VOLTAGE | OUTPUT CURRENT | RIPPLE & NOISE NOTE1 | VOLTAGE ACCURACY NOTE2 | VOLTAGE ADJ. RANGE | LINE REGULATION NOTE3 | LOAD REGULATION NOTE4 | % EFF. (Typ.) NOTE5 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| With Fan NOTE6 | With Conduction Cooling NOTE7 | |||||||||
| Baseplate | Cover | |||||||||
| LFM200S120 |
12 Vdc |
16.67 A | 10.83 A | 14.17 A | 150 mV | ±1% | 11.4-12.6 V | ±0.2% | ±0.5% | 93% |
|
LFM200S150 |
15 Vdc |
13.33 A | 8.66 A | 11.33 A | 150 mV | ±1% | 14.25-15.75 V | ±0.2% | ±0.5% | 93% |
| LFM200S240 |
24 Vdc |
8.33 A | 5.41 A | 7.08 A | 200 mV | ±1% | 22.8-25.2 V | ±0.2% | ±0.5% | 94% |
| LFM200S280 |
28 Vdc |
7.14 A | 4.64 A | 6.07 A | 200 mV | ±1% | 26.6-29.4 V | ±0.2% | ±0.5% | 94% |
| LFM200S300 |
30 Vdc |
6.66 A | 4.33 A | 5.67 A | 200 mV | ±1% |
28.5-31.5 V |
±0.2% | ±0.5% | 94% |
| LFM200S360 |
36 Vdc |
5.55 A | 3.61 A | 4.72 A | 200 mV | ±1% |
34.2-37.8 V |
±0.2% | ±0.5% | 94% |
| LFM200S480 |
48 Vdc |
4.16 A | 2.71 A | 3.54 A | 200 mV | ±1% | 45.6-50.4 V | ±0.2% | ±0.5% | 94% |
| LFM200S540 |
3.7 A |
5.56 A | 2.41 A | 3.15 A | 200 mV | ±1% | 51.3-56.7 V | ±0.2% | ±0.5% | 93% |
|
NOTE: |
|
|||||||||
PART NUMBER
| SERIES | NUMBER OF OUTPUTS | NOMINAL OUTPUT VOLTAGE | TYPE | MOUNTING INSERTS |
|---|---|---|---|---|
| LFM200 | O | XX | X | -YZ |
| LFM200 |
S：Single |
120 : 12Vdc |
B：With Baseplate C：With Cover |
Blank：Through Hole C0：Threaded Hole |
| Part Number Example: LFM200S120C-C0: With Cover 200W, Single 12Vdc Output, Threaded Hole LFM200S240B: With Baseplate 200W, Single 24Vdc Output, Through Hole |
||||

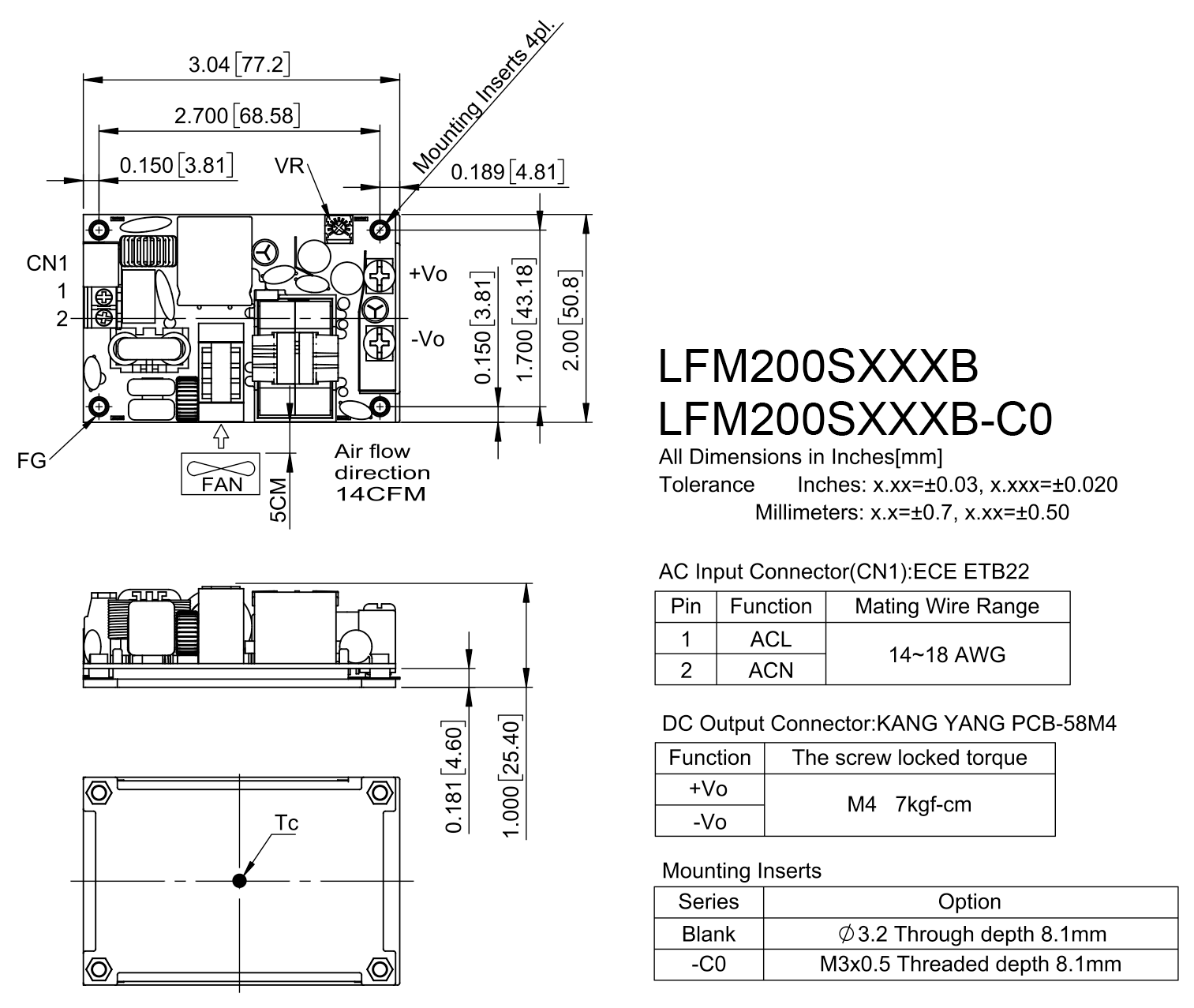

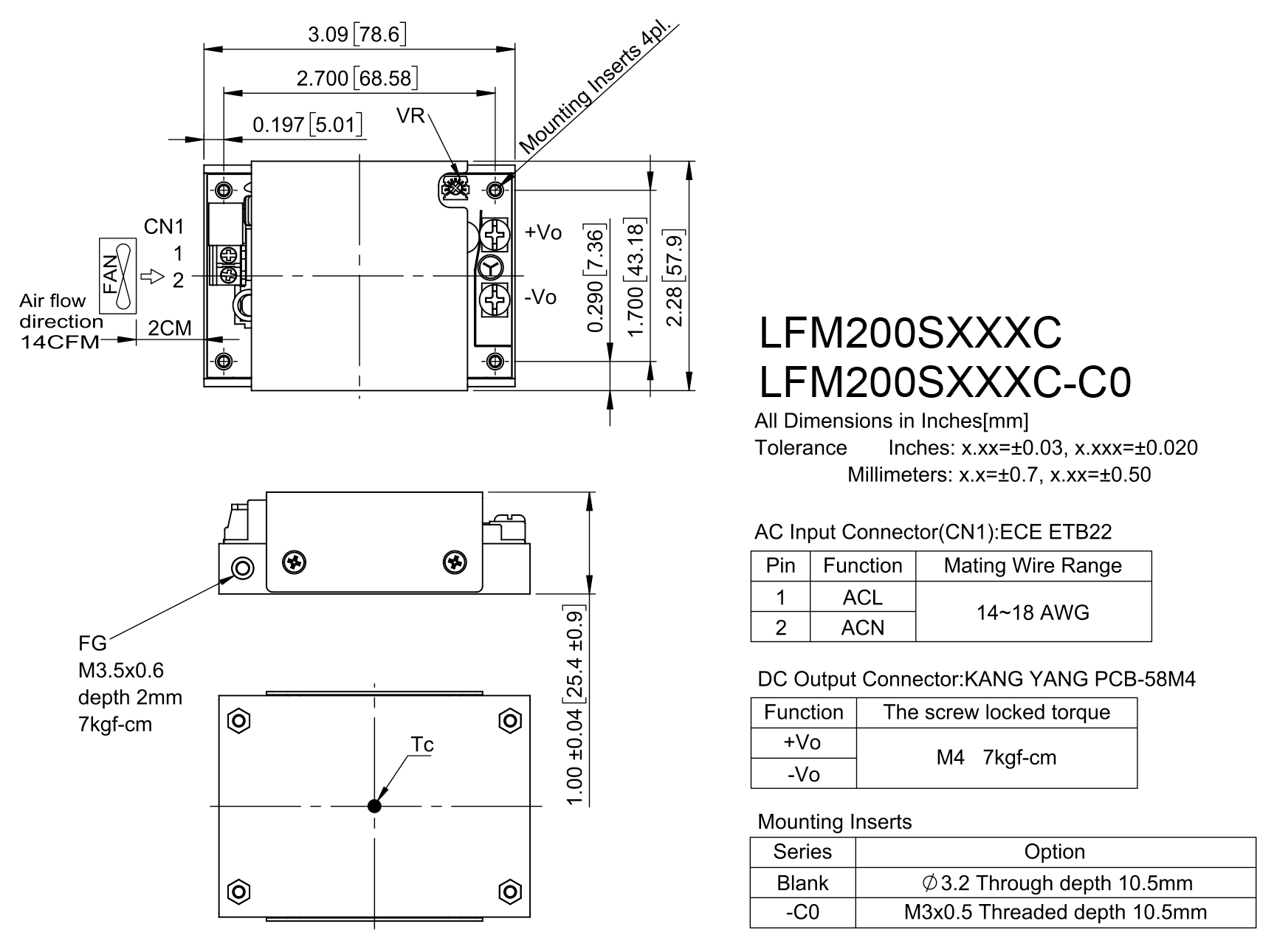

Technical Drawings
