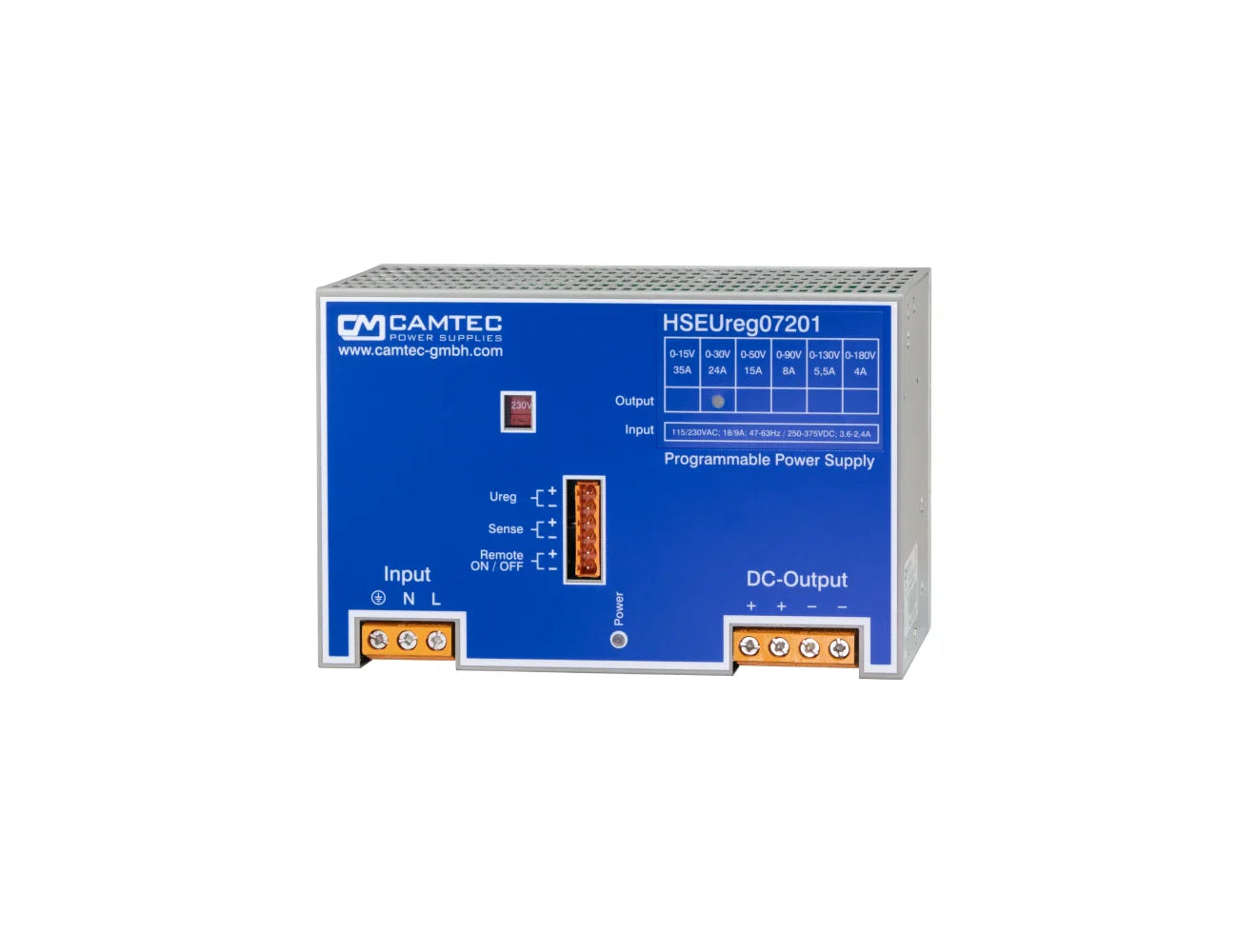

Camtec HSEUREG07201 SERIES Laboratory Power Supply
The Camtec HSEUREG07201 Series Laboratory Power Supply delivers 720W of precision, reliability, and versatility for demanding industrial and laboratory applications. Designed for automated test benches, galvanic systems, and complex DC-drive environments, this German-engineered power supply combines robust performance with energy efficiency up t...
Read MoreThe Camtec HSEUREG07201 Series Laboratory Power Supply delivers 720W of precision, reliability, and versatility for demanding industrial and laboratory applications. Designed for automated test benches, galvanic systems, and complex DC-drive environments, this German-engineered power supply combines robust performance with energy efficiency up to 90%.
Key features include real-time voltage and current programming, rapid response times (<1ms), and advanced protection systems, such as overvoltage and continuous short-circuit protection. The device supports N+1 parallel operation for scalability and features a soft-start function to prevent inrush currents. Its Sense Mode compensates for voltage drops across long load lines, ensuring consistent and precise power delivery.
Available with output voltage models ranging from 0-15Vdc to 0-180Vdc and current ratings up to 35A, the HSEUREG07201 Series offers flexibility for diverse power needs. Compliant with rigorous safety and EMC standards (EN61010-1, EN62368-1, EN55032 Class B), this power supply guarantees safe and reliable operation. Trust the Camtec HSEUREG07201 Series for high-performance power solutions in your most critical applications.
Show Less
Features
- 720W voltage 0-Vmax programmable laboratory power supply
- Save 0–Umax programming

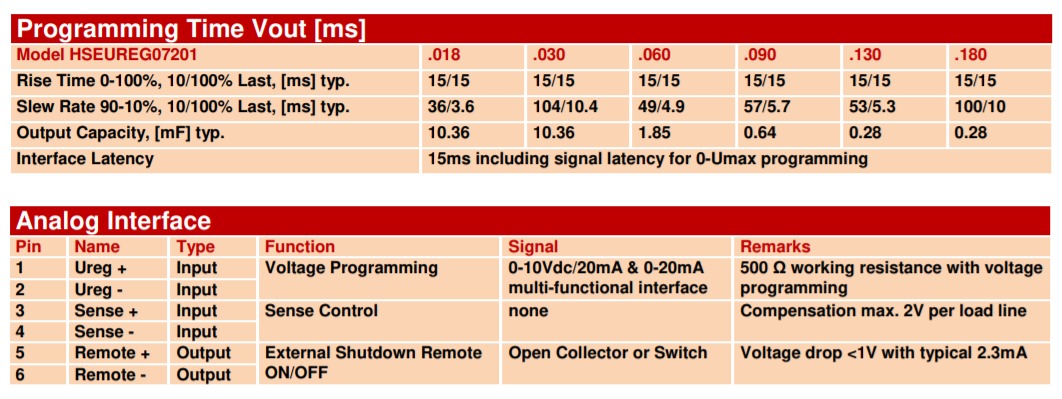

- Multi interface 0-10V & 0-20mA
- Sense & Shutdown (remote ON/OFF)
- N+1 parallel operation
- Natural Convection
- Precise dynamic response on load change
- Designed for long life under full stress
- Strong input filters
- High reliability
- shock & vibration proof
- EMC meets CE norm class B
- Over Voltage and continuous short circuit protection
Specifications
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 90..132Vac / 184..265Vac |
| Frequency | 47-63Hz |
| DC Input Voltage | 250…375Vdc |
| Sense function | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Remote Shutdown | protective electrical separation ≤60Vdc |
| Analogue Interface | see table, protective electrical separation ≤60Vdc, working impedance = 500Ω |
| Pmax (average) | 720W continuous and ca. 792-924W power boost for max. 60s (see Power Boost above) |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% Interface |
| Latency Interface | 15ms including signal latency for 0-Umax programming |
| Load regulation | < ± 0.2% 0-100% |
| Response Load Change | Response Load Change |
| Base Load | None |
| Efficiency 230Vac | 90% typical |
| Short Circuit Protection | Continuous |
| Idling-proof | Yes |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | > 40ms 230Vac |
| Inrush Current | < 162A (230Vac) @25°C |
| MCB (Miniature Circuit Breaker) | 16A curve C (need to connect 2 units to a single 16A curve-B MCB? use our ESB101.33 limiter!) |
| Soft Start | 100ms typical |
| RELIABILITY | |
|---|---|
| Isolation Path | > 8mm |
| Input / Output | Galvanic insulated |
| MTBF | 400000h (IEC61709) |
| ROHS | 2011/65/EG confirmed |
| REACH | EG No. 1907/2006 confirmed |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Operating Temp | - 25°C…+70°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x200x114,5mm |
| Weight | 3000g |
| Screw Terminals (In/Out) | AWG20...AWG6 , 0.5...16mm² (76A @ 40°C) |
Selection Table
| MODEL | HSEUREG07201.015T | HSEUREG07201.030T | HSEUREG07201.050T |
|---|---|---|---|
| Rated DC Voltage | 0-15V | 0-30V | 0-50V |
| Overvoltage Protection | 18Vdc | 35Vdc | 59Vdc |
| Rated DC Current | 35.0A | 24.0A | 15.0A |
| Rated DC Current | 35.0A | 24.0A | 15.0A |
| Power Boost -25...+60°C <1min | 38.5A | 26.4A | 16.5A |
| Max. DC Current +70°C | 26.3A | 18.0A | 11.3A |
| Ripple Peak 230Vac 20MHz | 40mVpp | 50mVpp | 100mVpp |
| MODEL | HSEUREG07201.090T | HSEUREG07201.130T | HSEUREG07201.180T |
|---|---|---|---|
| Rated DC Voltage | 0-90V | 0-130V | 0-180V |
| Overvoltage Protection | 105Vdc | 150Vdc | 210Vdc |
| Rated DC Current | 8.0A | 5.5A | 4.0A |
| Power Boost -25...+60°C <1min | 8.8A | 6.1A | 4.4A |
| Max. DC Current +70°C | 6.0A | 4.1A | 3.0A |
| Ripple Peak 230Vac 20MHz | 150mVpp | 200mVpp | 300mVpp |
Optional Coating (option C): We offer the USEUIreg-series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 . Ordering Information: ad extension C to the type number: HSEUREG07201.015TC

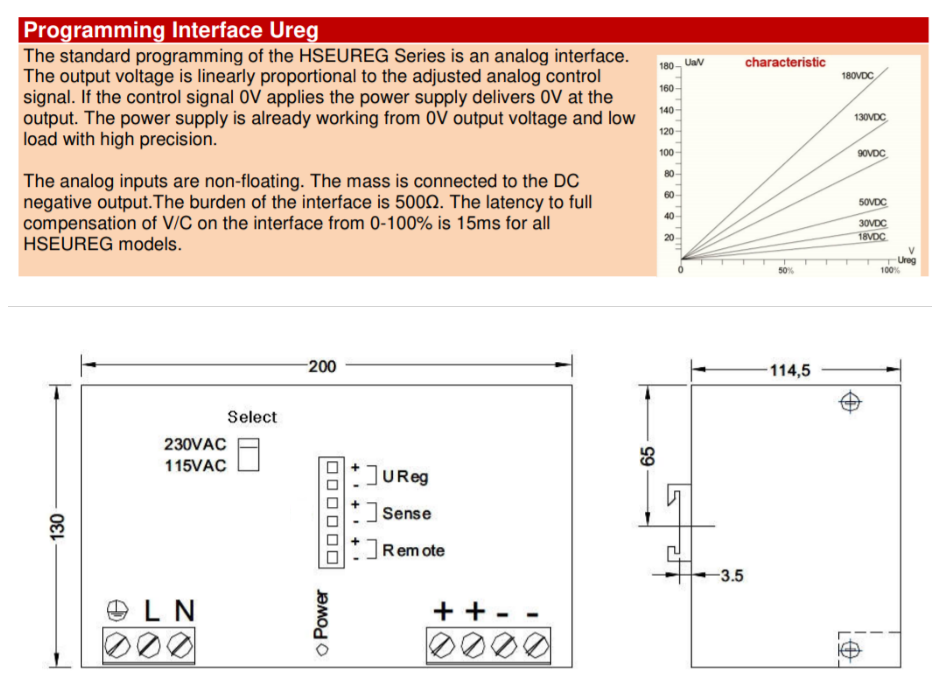

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
