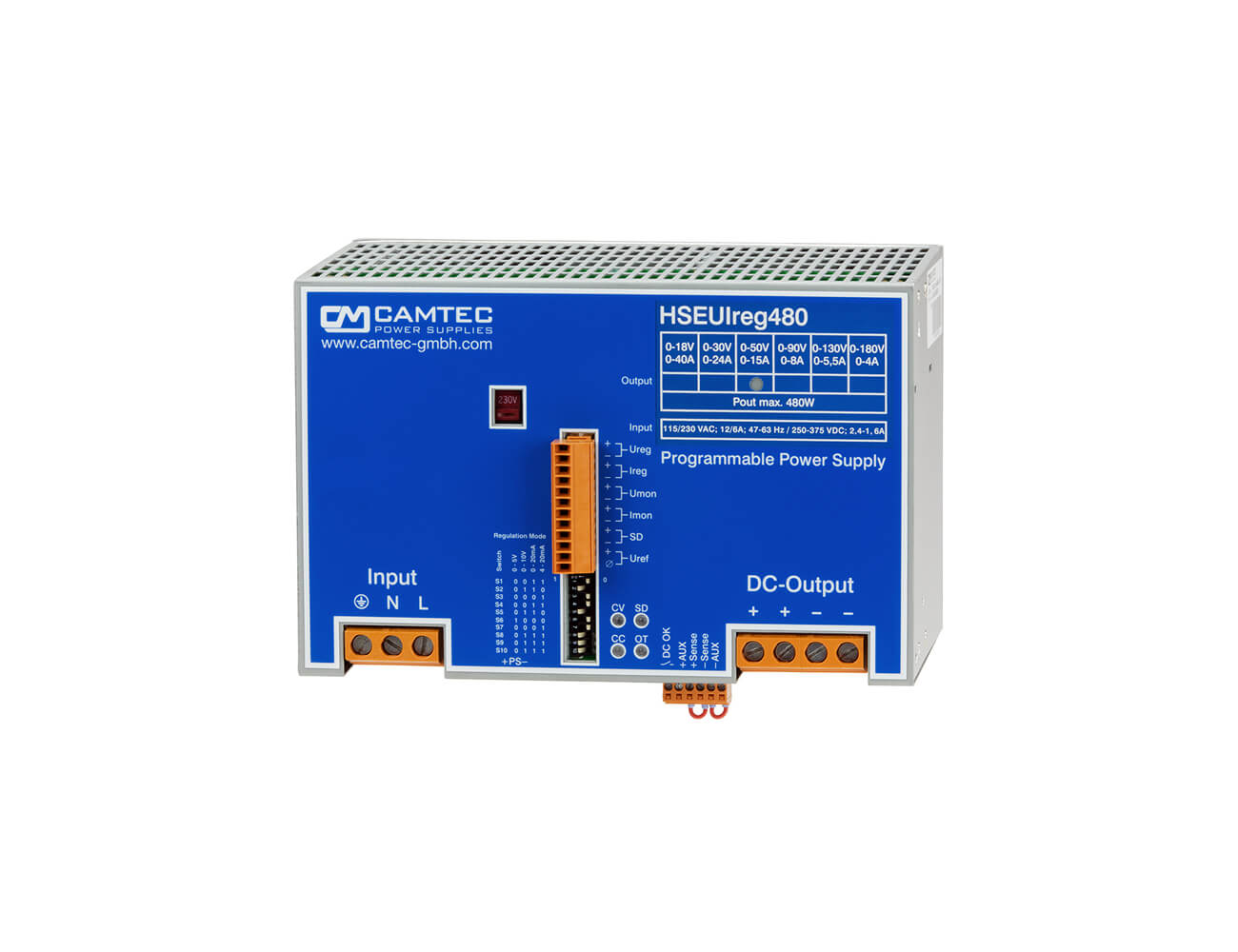

Camtec HSEUIREG04801 SERIES Laboratory Power Supply
The Camtec HSEUiREG04801 Series Laboratory Power Supply is a high-performance, precision-engineered power solution designed for demanding laboratory and industrial applications. Delivering up to 480W of power with an efficiency of up to 90%, this DIN-rail-mounted unit offers exceptional reliability and adaptability. Ideal for automation, testing...
Read MoreThe Camtec HSEUiREG04801 Series Laboratory Power Supply is a high-performance, precision-engineered power solution designed for demanding laboratory and industrial applications. Delivering up to 480W of power with an efficiency of up to 90%, this DIN-rail-mounted unit offers exceptional reliability and adaptability. Ideal for automation, testing, and research environments, it provides stable and precise power under dynamic load conditions.
Key features include real-time voltage and current programming, low noise and ripple, and advanced load regulation with response times of less than 1ms. Equipped with galvanic isolation, a Power Good Relay, and external shutdown capability, the HSEUiREG04801 ensures enhanced safety and monitoring. Its innovative Sense Mode compensates for voltage drops in long load lines, providing exact voltage at the load terminals.
With output voltage options from 0–240Vdc and programmable currents from 0–40A, this power supply supports parallel and series operation for scalable power solutions. Fully compliant with international safety and EMC standards (EN61010-1, EN62368-1, EN55032 Class B), it guarantees long-lasting performance. Choose the Camtec HSEUiREG04801 for precise, efficient, and versatile power supply needs in your laboratory or industrial projects.
Show Less
Features
- 480W Programmable Power Supply
- Current and voltage programmable
- DIN Rail 35mm & wall mount. Metal housing
- 90% efficiency . Natural convection
- -25°C...+60°C full output power
- Continuous short circuit protected
- Overload (OVP) & low voltage protected
- Soft start & auto-recovery
- Electronic inrush current limiter 13.8Apeak
- Analogue interface 0-5Vdc/0-10Vdc/0-20mA/4-20mA
- Real time output monitoring of voltage and current
- External shutdown. Sense control
- Series & parallel operation
- High reliability. Shock & vibration proof
- EMI/EMS EN61000-6-2.3. EN55022 class B

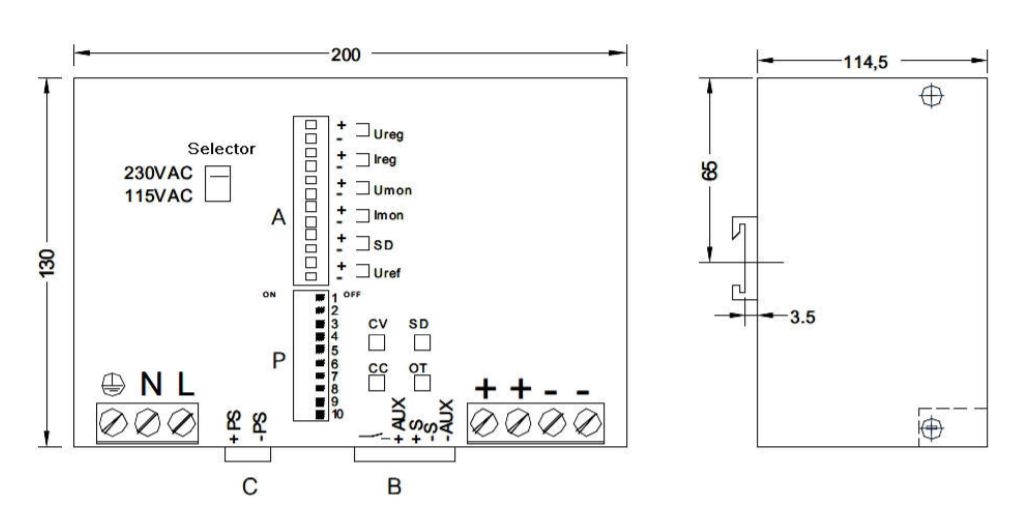

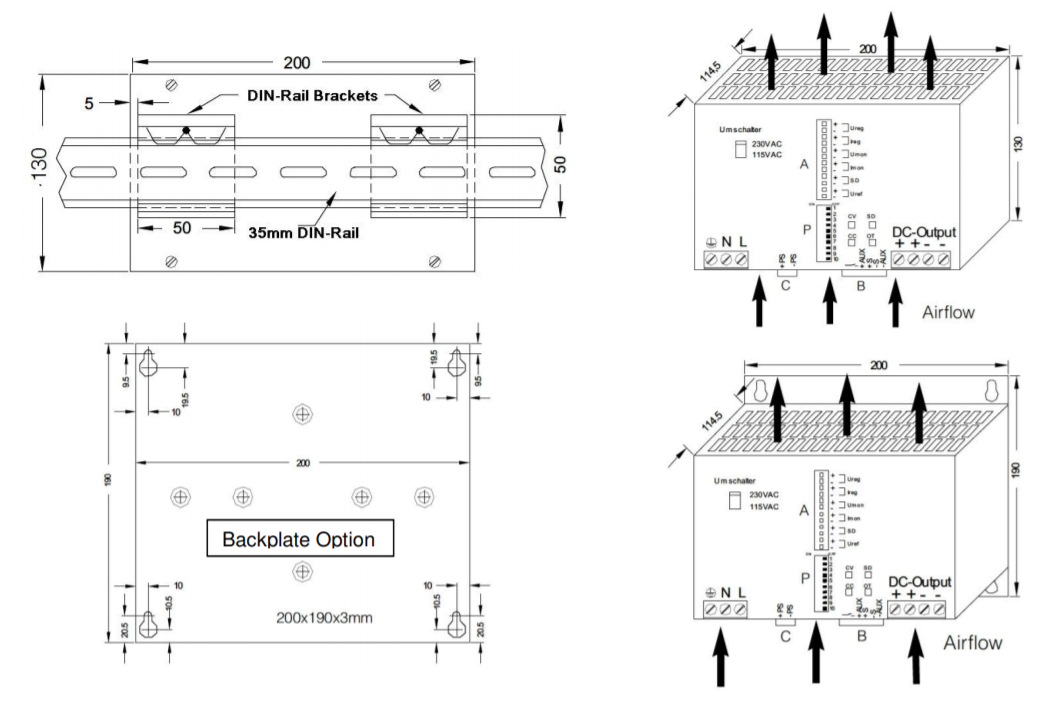

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
