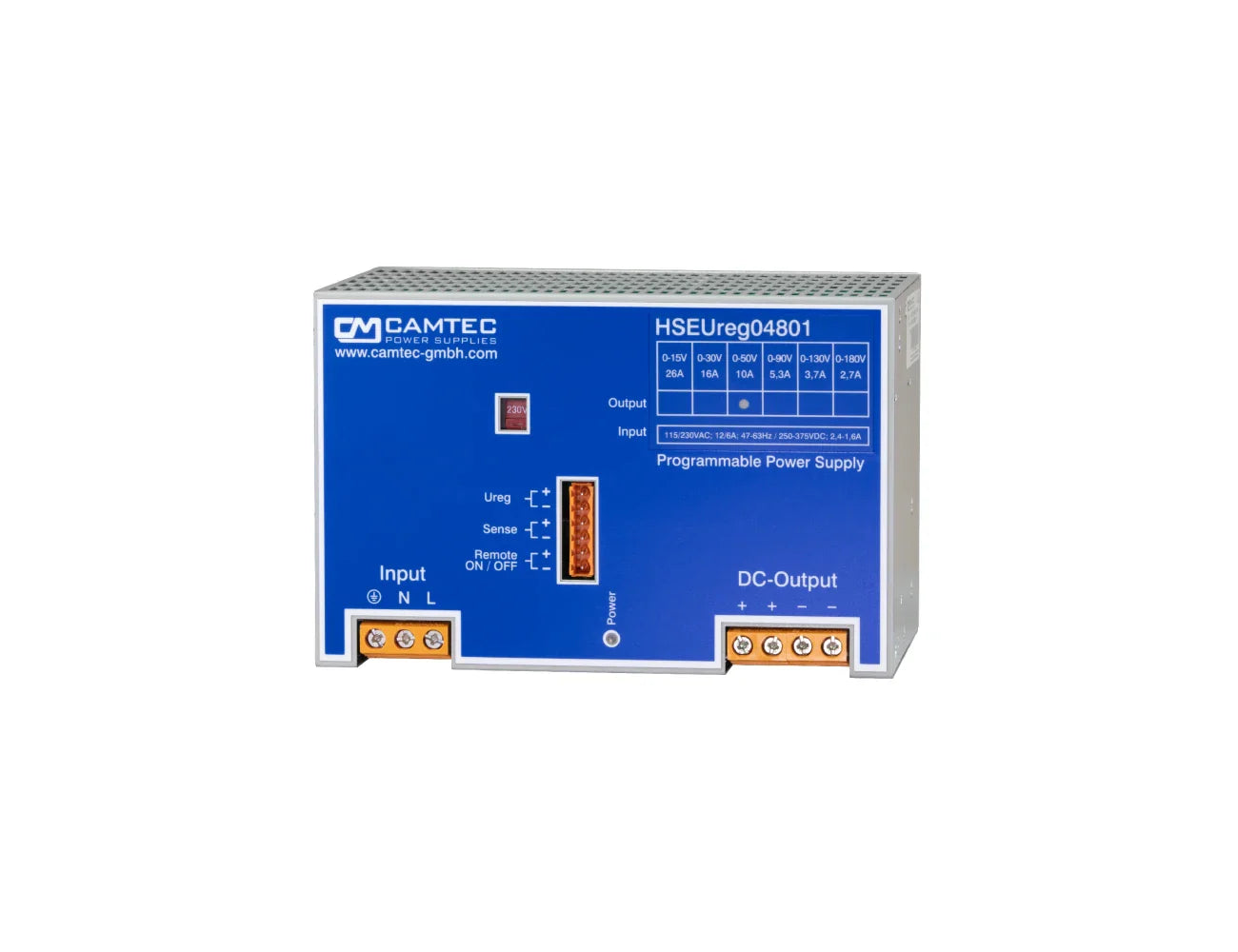

Camtec HSEUREG04801 SERIES Laboratory Power Supply
The Camtec HSEUREG04801 Series Laboratory Power Supply is a compact, high-precision, 480W power solution designed for demanding industrial and laboratory applications. Engineered in Germany, this DIN-rail-mounted power supply provides efficient performance with an energy efficiency of up to 90%. It is ideal for applications such as galvanic systems, professional DC drives, test benches, and complex industrial automation setups.
Read More
Features
- 480W voltage 0-Vmax programmable laboratory power supply
- Save 0–Umax programming
- Multi interface 0-10V & 0-20mA
- Sense & Shutdown (remote ON/OFF)
- N+1 parallel operation
- Natural Convection
Specifications
Selection Table

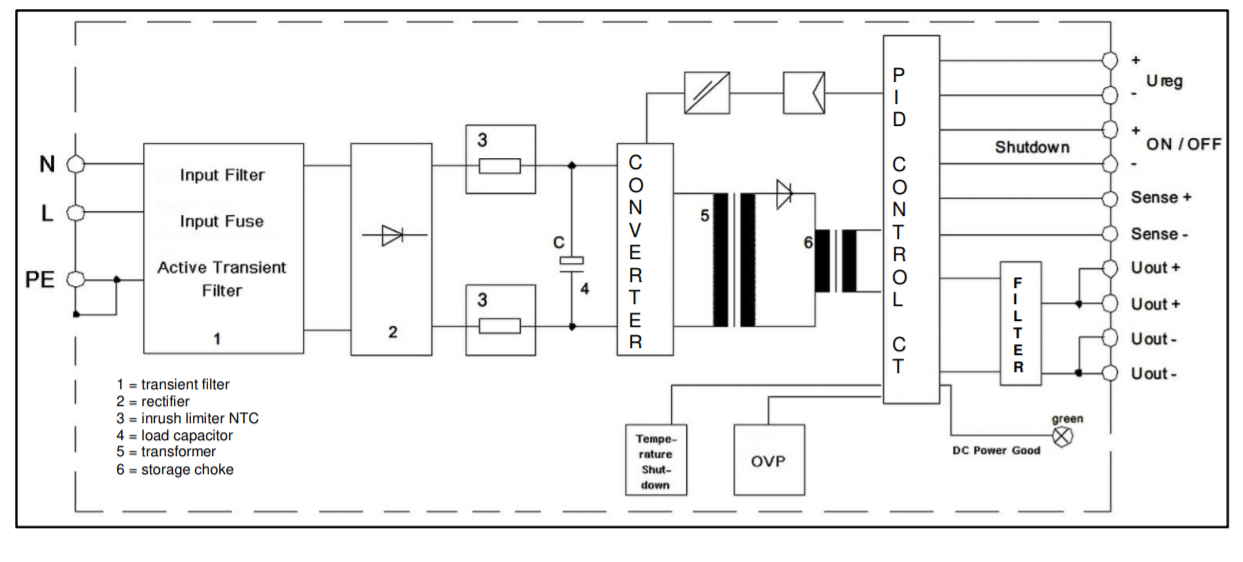

Technical Illustrations
Downloads
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 90..132Vac / 184..265Vac |
| Frequency | 47-63Hz |
| DC Input Voltage | 250…375Vdc |
| Input Rating | 115Vac<8.8A , 230Vac<4.3A 250Vdc<2.4A 375Vdc<1.6A |
| DC Input Voltage | 250…375Vdc |
| Sense function | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Remote Shutdown | Protective electrical separation ≤60Vdc |

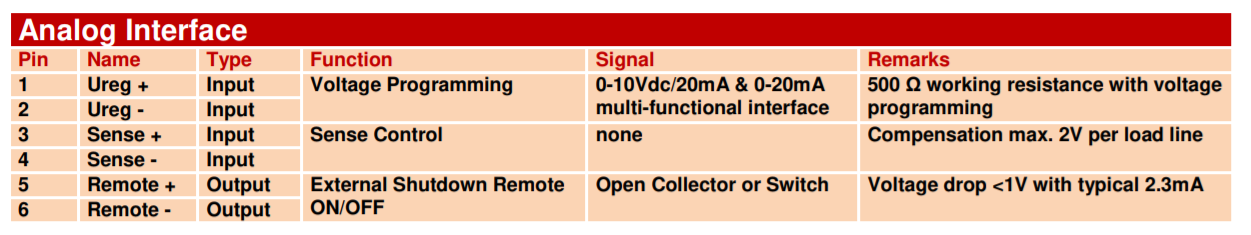

| Analogue Interface | see table, protective electrical separation ≤60Vdc, working impedance = 500Ω |
| Pmax (average) | 480W continuous and ca. 528-540W bower boost for max. 60s (see Power Boost above) |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% Interface |

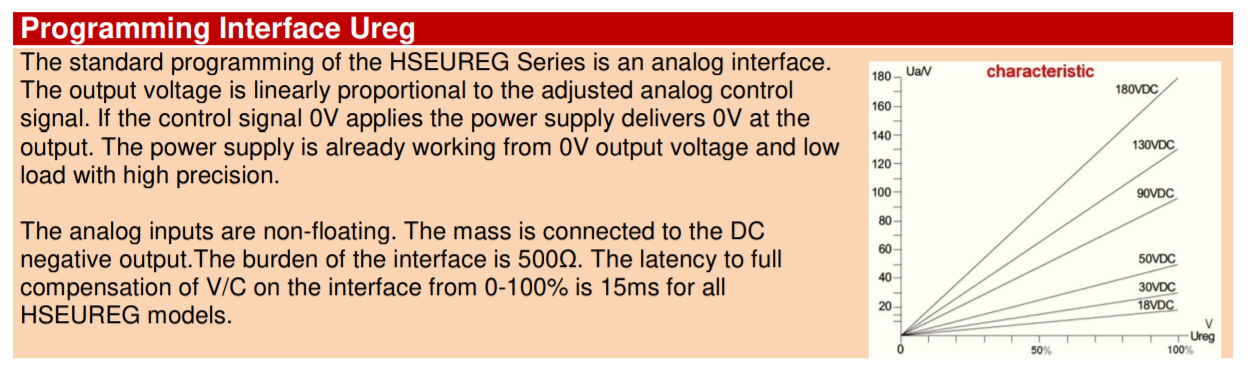

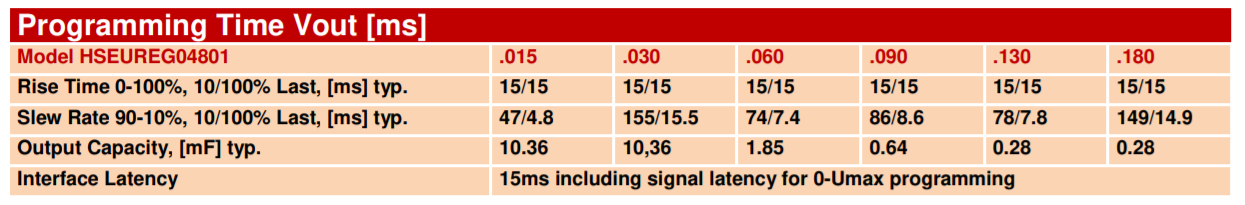

| Latency Interface | 15ms including signal latency for 0-Umax programming |
| Load regulation | < ± 0.2% 0-100% |
| Response Load Change | <1ms 10-100%, 100-10% |
| Base Load | None |
| Base Load | None |
| Efficiency 230Vac | 90% typical |
| Short Circuit Protection | Continuous |
| Idling-proof | Yes |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | > 50ms 230Vac |
| Inrush Current | < 81A (230Vac) @25°C |
| MCB (Miniature Circuit Breaker) | 16A curve B (need to connect 2-3 units to a single 16A MCB? use our ESB101.33 limiter!) |
| Soft Start | 100ms typical |
| Isolation Path | > 8mm |
| Input / Output | Galvanic insulated |
| Meantime By Failure (MTBF) | 400000h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| REACH | EG No. 1907/2006 confirmed |
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| ROHS | 2011/65/EG confirmed |
| MECHANICAL | |
|---|---|

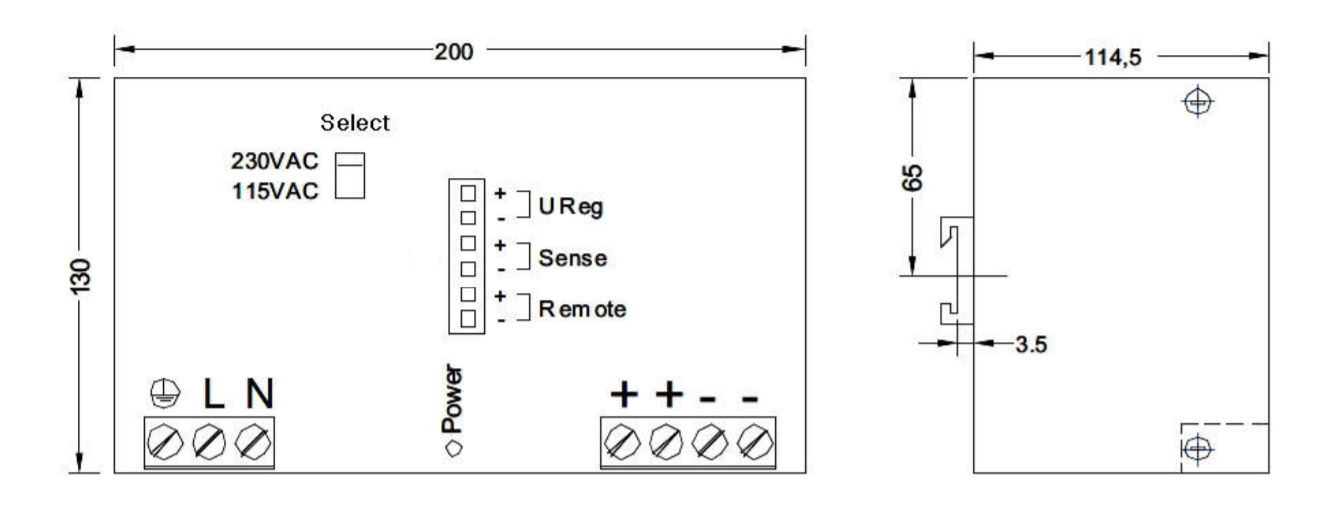

| Dimensions (HxWxD) | 130x200x114,5mm |
| Weight | 2900g |
| Screw Terminals (In/Out) | AWG20...AWG6 , 0.5...16mm² (76A @ 40°C) |
| MODEL | HSEUREG04801.015T | HSEUREG04801.030T | HSEUREG04801.050T |
|---|---|---|---|
| Rated DC Voltage | 0-15V | 0-30V | 0-50V |
| Overvoltage Protection | 18Vdc | 35Vdc | 59Vdc |
| Rated DC Current | 26.0A | 16.0A | 10.0A |
| Power Boost -25...+60°C <1min. | 28.6A | 17.6A | 11.0A |
| Max. DC Current +70°C | 19.5A | 12.0A | 7.5A |
| Ripple Peak 230Vac 20MHz | 40mVpp | 50mVpp | 100mVpp |
| MODEL | HSEUREG04801.090T | HSEUREG04801.130T | HSEUREG04801.180T |
|---|---|---|---|
| Rated DC Voltage | 0-90V | 0-130V | 0-180V |
| Overvoltage Protection | 105Vdc | 150Vdc | 210Vdc |
| Rated DC Current | 5.3A | 3.7A | 2.7A |
| Power Boost -25...+60°C <1min. | 5.8A | 4.1A | 3.0A |
| Max. DC Current +70°C | 4.0A | 2.8A | 2.0A |
| Ripple Peak 230Vac 20MHz | 150mVpp | 200mVpp | 300mVpp |
| OPTIONS | |
|---|---|
| Screw Terminal Plug | Optional Plug for the interface, 2 poles LS5,08 180°cabling, |
| ADTW201 | Optional DC-repeater 1:1 with no losses for save interface separation >60Vdc |
| Protective Coating | Ask for technical support and quotation |
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 90..132Vac / 184..265Vac |
| Frequency | 47-63Hz |
| DC Input Voltage | 250…375Vdc |
| Input Rating | 115Vac<8.8A , 230Vac<4.3A 250Vdc<2.4A 375Vdc<1.6A |
| DC Input Voltage | 250…375Vdc |
| Sense function | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Remote Shutdown | Protective electrical separation ≤60Vdc |
| Analogue Interface | see table, protective electrical separation ≤60Vdc, working impedance = 500Ω |
| Pmax (average) | 480W continuous and ca. 528-540W bower boost for max. 60s (see Power Boost above) |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% Interface |
| Latency Interface | 15ms including signal latency for 0-Umax programming |
| Load regulation | < ± 0.2% 0-100% |
| Response Load Change | <1ms 10-100%, 100-10% |
| Base Load | None |
| Base Load | None |
| Efficiency 230Vac | 90% typical |
| Short Circuit Protection | Continuous |
| Idling-proof | Yes |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | > 50ms 230Vac |
| Inrush Current | < 81A (230Vac) @25°C |
| MCB (Miniature Circuit Breaker) | 16A curve B (need to connect 2-3 units to a single 16A MCB? use our ESB101.33 limiter!) |
| Soft Start | 100ms typical |
| Isolation Path | > 8mm |
| Input / Output | Galvanic insulated |
| Meantime By Failure (MTBF) | 400000h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| REACH | EG No. 1907/2006 confirmed |
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| ROHS | 2011/65/EG confirmed |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x200x114,5mm |
| Weight | 2900g |
| Screw Terminals (In/Out) | AWG20...AWG6 , 0.5...16mm² (76A @ 40°C) |
| MODEL | HSEUREG04801.015T | HSEUREG04801.030T | HSEUREG04801.050T |
|---|---|---|---|
| Rated DC Voltage | 0-15V | 0-30V | 0-50V |
| Overvoltage Protection | 18Vdc | 35Vdc | 59Vdc |
| Rated DC Current | 26.0A | 16.0A | 10.0A |
| Power Boost -25...+60°C <1min. | 28.6A | 17.6A | 11.0A |
| Max. DC Current +70°C | 19.5A | 12.0A | 7.5A |
| Ripple Peak 230Vac 20MHz | 40mVpp | 50mVpp | 100mVpp |
| MODEL | HSEUREG04801.090T | HSEUREG04801.130T | HSEUREG04801.180T |
|---|---|---|---|
| Rated DC Voltage | 0-90V | 0-130V | 0-180V |
| Overvoltage Protection | 105Vdc | 150Vdc | 210Vdc |
| Rated DC Current | 5.3A | 3.7A | 2.7A |
| Power Boost -25...+60°C <1min. | 5.8A | 4.1A | 3.0A |
| Max. DC Current +70°C | 4.0A | 2.8A | 2.0A |
| Ripple Peak 230Vac 20MHz | 150mVpp | 200mVpp | 300mVpp |
| OPTIONS | |
|---|---|
| Screw Terminal Plug | Optional Plug for the interface, 2 poles LS5,08 180°cabling, |
| ADTW201 | Optional DC-repeater 1:1 with no losses for save interface separation >60Vdc |
| Protective Coating | Ask for technical support and quotation |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage Range (Vdc) | Output Current Range (A) | ||
|---|---|---|---|---|---|
|
HSEUREG04801.015(R2) | 90..132Vac / 184..265Vac | 0 - 15Vdc | 26A | |
|
|
HSEUREG04801.030(R2) | 90..132Vac / 184..265Vac | 0 - 30Vdc | 16A | |
|
|
HSEUREG04801.050(R2) | 90..132Vac / 184..265Vac | 0 - 50Vdc | 10A | |
|
|
HSEUREG04801.090(R2) | 90..132Vac / 184..265Vac | 0 – 90Vdc | 5.3A | |
|
|
HSEUREG04801.130(R2) | 90..132Vac / 184..265Vac | 0 – 130Vdc | 3.7A | |
|
|
HSEUREG04801.180(R2) | 90..132Vac / 184..265Vac | 0 – 180Vdc | 2.7A |
