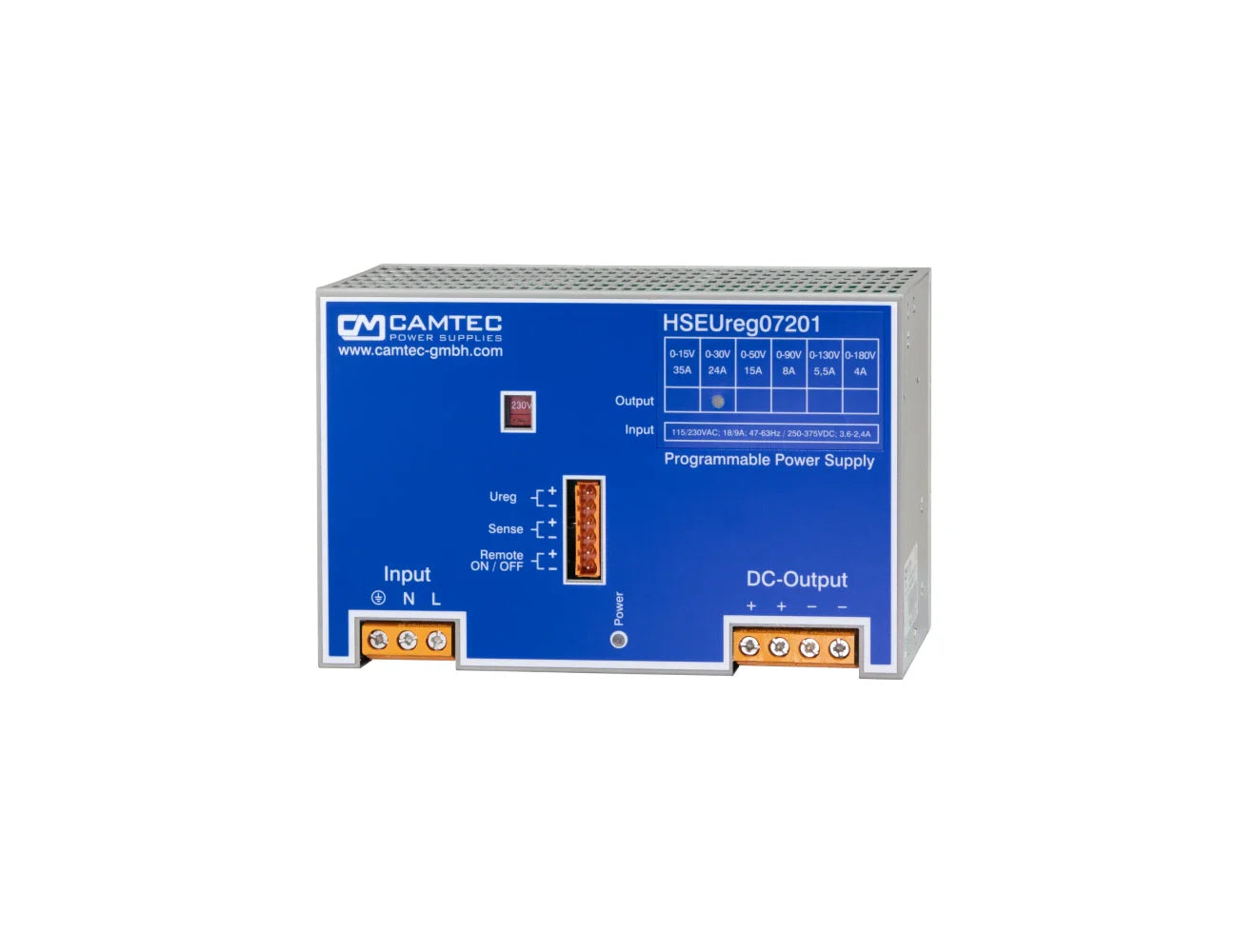

Camtec HSEUIREG07201 SERIES Laboratory Power Supply
The Camtec HSEUiREG07201 Series Laboratory Power Supply is a high-precision, 720W power solution tailored for demanding industrial and laboratory environments. With an efficiency of up to 90%, this German-engineered power supply is ideal for applications requiring real-time voltage and current programming, such as testing automation, research, a...
Read MoreThe Camtec HSEUiREG07201 Series Laboratory Power Supply is a high-precision, 720W power solution tailored for demanding industrial and laboratory environments. With an efficiency of up to 90%, this German-engineered power supply is ideal for applications requiring real-time voltage and current programming, such as testing automation, research, and precision manufacturing.
This power supply offers exceptional performance, featuring quick response to dynamic load changes (<1ms), low noise and ripple, and advanced safety measures, including overvoltage protection, thermal shutdown with auto-recovery, and galvanic isolation. Its robust design supports parallel and series operation, enabling scalable solutions for diverse power needs.
The HSEUiREG07201 Series includes real-time monitoring for voltage and current, along with a sense mode to compensate for voltage drops up to 2V per load line. Additional options, such as a PowerSink for fast down-programming and USB digital interfaces, ensure flexibility and adaptability.
Compliant with strict safety and EMC standards (EN61010-1, EN62368-1, EN55032 Class B), the HSEUiREG07201 guarantees reliable and precise operation. Choose this power supply for cutting-edge performance and uncompromising reliability in laboratory and industrial applications.
Show Less
Features
- 720W Programmable Power Supply
- Current and voltage programmable
- Thermal shutdown
- -25°C...+60°C full output power
- Natural convection
- Continuous short circuit protected
- Overload (OVP) & low voltage protected
- Soft start & auto-recovery
- Analogue interface 0-5Vdc/0-10Vdc/0-20mA/4-20mA
- Real time output monitoring of voltage and current
- External shutdown
- Series & parallel operation
- DIN Rail 35mm & wall mount
Specifications
| GENERAL | |
|---|---|
| AC Input Voltage | 90~132Vac / 85~265Vac |
| Frequency | 47-63Hz. |
| DC Input Voltage | 250-375Vdc. |
| AC Input Rating | 115Vac<13,2A 230Vac<6,5A |
| DC Input Rating | 250Vdc<3,6A 375Vdc<2,4A |
| Pmax | 720W continuous |
| Operation failure relay | Yes, break contact (fig.4), protective electrical separation ≤60Vdc |
| Sense function | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Remote Shutdown | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Analogue Interface | Yes, protective electrical separation ≤60Vdc |
| Digital Interface | Yes, available option (incl. Software), protective electrical separation ≤400Vdc |
| Accuracy | < ± 1.5% interface |
| Load regulation | < ± 0.05% 0-100% |
| Slew Rate | 15ms rise time 0V...Umax |
| Response Load Change | <1ms 10-100%, 100-10% |
| Base Load | None |
| Efficiency 230Vac | 90% typical |
| Short Circuit Protection | Continuous |
| Idling-proof | Yes, continuous |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | >40ms 230Vac |
| Inrush Current | <9,8Aeff < 13.8Apeak (230Vac) active inrush current limiter |
| Softstart | 100ms typical |
| Isolation Path | > 8mm |
| Input / Output | Galvanic insulated 3000Vac |
| Meantime By Failure (MTBF) | 400000h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Derating | +60°C...+70°C 2.5%/°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x200x114,5mm |
| Weight | 3000g |
| Screw Terminals (In/Out) | AWG20...AWG6 , 0,5...16mm² |
Selection Table
| MODEL NUMBER | HSEUiREG07201.18T | HSEUiREG07201.30T | HSEUiREG07201.50T | HSEUiREG07201.60T |
|---|---|---|---|---|
| Rated DC Voltage | 0...18V | 0...30V | 0...50V | 0…60V |
| Overvoltage Protection | 22Vdc | 35Vdc | 59Vdc | 70Vdc |
| Max. DC Current -25°C...+60°C | 0...40A | 0...30A | 0...18A | 0…15A |
| Max. DC Current +70°C | 0...30A | 0...22,5A | 0...13,5A | 0…11,2A |
| Ripple Peak 230Vac 20MHz PP | 40mV | 40mV | 100mV | 120mV |
| MODEL NUMBER | HSEUiREG07201.90T | HSEUiREG07201.130T | HSEUiREG07201.180T | HSEUiREG07201.240T |
|---|---|---|---|---|
| Rated DC Voltage | 0...90V | 0...130V | 0...180V | 0...240V |
| Overvoltage Protection | 105Vdc | 150Vdc | 210Vdc | 280Vdc |
| Max. DC Current -25°C...+60°C | 0...10A | 0...7A | 0...5A | 0...3,8A |
| Max. DC Current +70°C | 0...7,5A | 0...5,3A | 0...3.8A | 0...2,9A |
| Ripple Peak 230Vac 20MHz PP | 150mV | 200mV | 300mV | 400mV |
| ORDERING | Options |
|---|---|
| Option | USB 2.0 Interface, UI.Drive Software, XP/W7/W8 ADTW201, DC-repeater PS200 external, 200W Power Sink Wall Mount Kit |
| BUILT-IN 5W POWER SINK | Add "PS" to model number, eg HSEUIreg07201.18TPS |

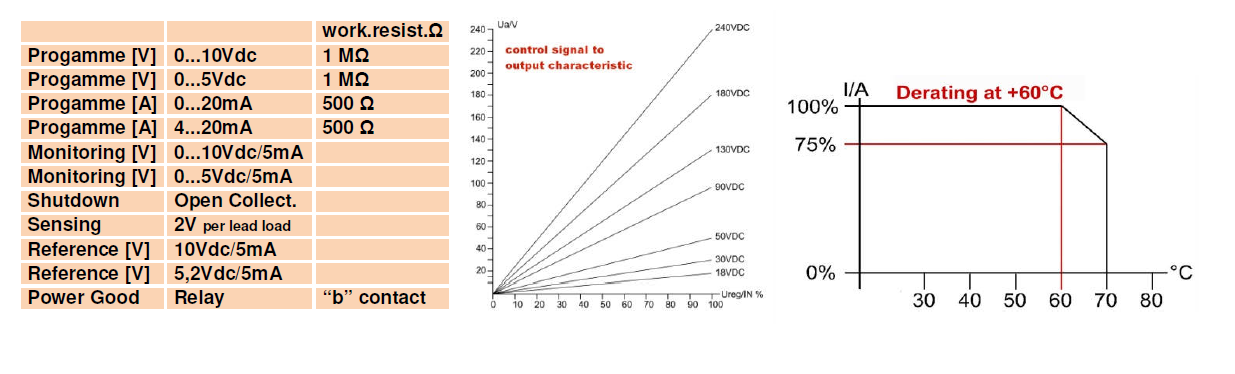

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
