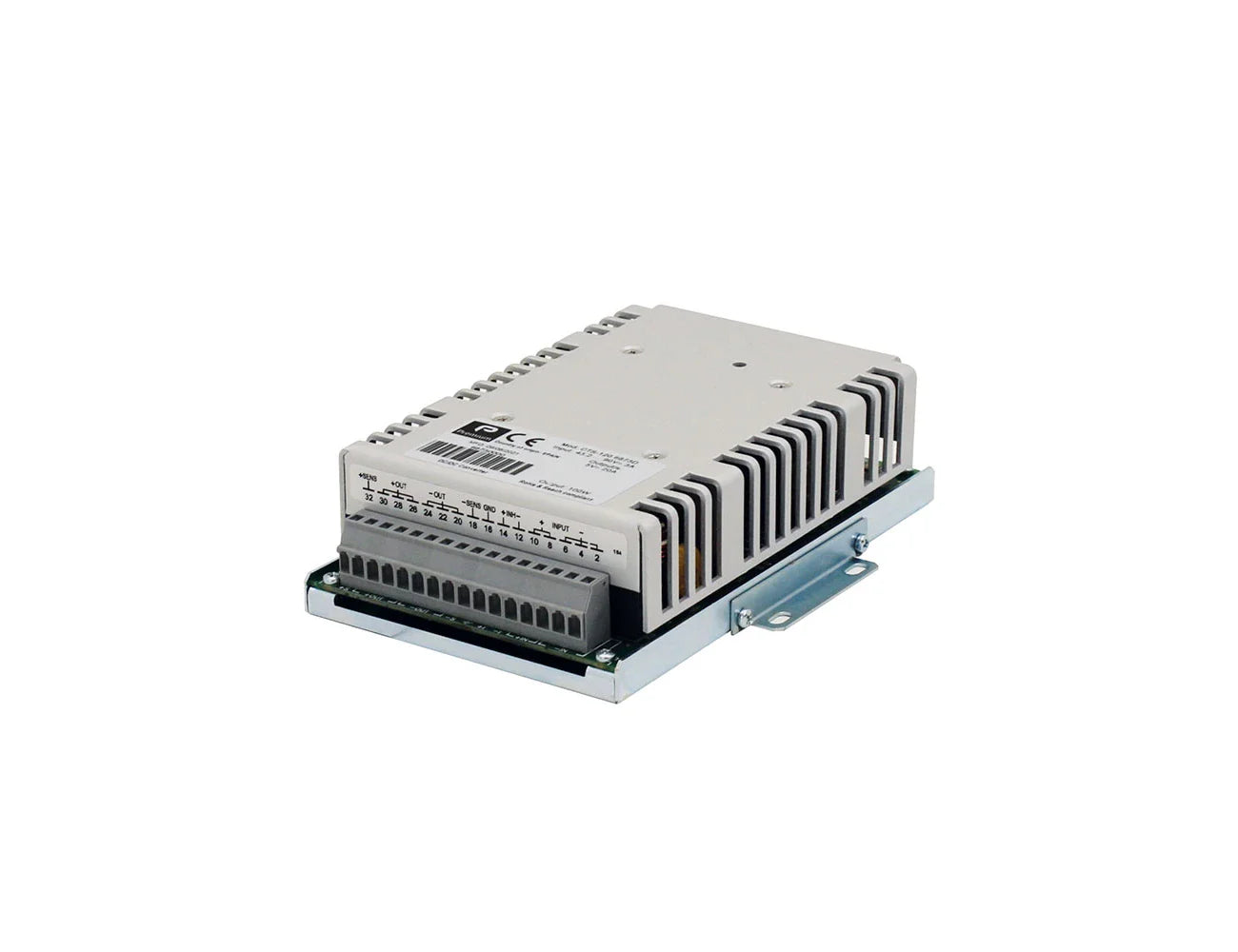

Premium CRS-120 SERIES DC/DC Converter
The Premium CRS-120 Series DC/DC Converter is a compact and reliable power solution designed for industrial and railway applications. With an output range of 100–140W, it offers efficient and stable power conversion for critical systems operating in demanding environments. Key features include high input-output isolation, adjustable output volta...
Read MoreThe Premium CRS-120 Series DC/DC Converter is a compact and reliable power solution designed for industrial and railway applications. With an output range of 100–140W, it offers efficient and stable power conversion for critical systems operating in demanding environments.
Key features include high input-output isolation, adjustable output voltage, and remote sensing for precision power delivery. With an efficiency of up to 89%, the CRS-120 minimises energy loss while ensuring optimal performance. Its robust design supports a wide range of input voltages, from 9V to 275V, and output voltages from 5V to 48V, making it highly versatile. Advanced protections against overload, reverse polarity, and input under-voltage ensure reliable and safe operation.
Built for durability, the CRS-120 operates within a temperature range of -40°C to 60°C at full load and features a Eurocard 3U form factor for easy integration into existing systems. With a lifespan exceeding 500,000 hours, it is a dependable choice for long-term, mission-critical applications.
The Premium CRS-120 Series DC/DC Converter is the perfect solution for industries requiring adaptable, efficient, and reliable power solutions.
Show Less
Features
- High input-output isolation
- Standard size Eurocard 3U
- Adjustable output voltage
- Remote sensing
- Input voltage OK LED
- Output voltage presence LED
- Remote inhibit
- Efficiency up to 89%
Specifications

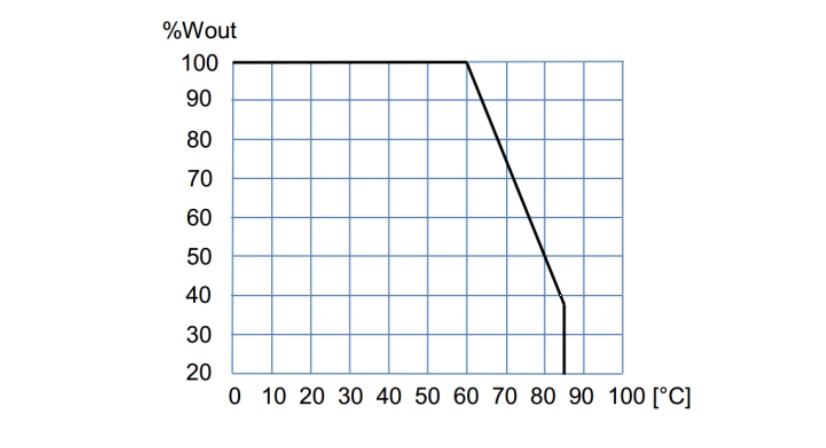

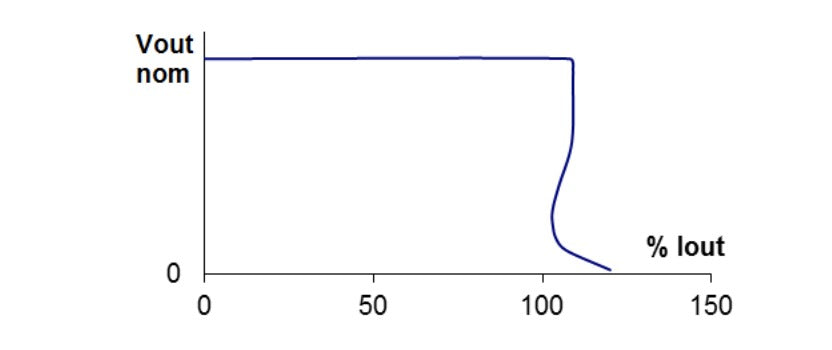

| INPUT | |
|---|---|
| Voltage range | See selection table |
| Undervoltage shutdown | 55% to 60% Vi nom |
| Max allowed input ripple | 15% Vin nom (VRMS at 100Hz) |
| OUTPUT | |
|---|---|
| Output Voltage | See selection table. |
| Output voltage adjustment | -10% ... +15% Vo nom -10% ... +25% Vo nom for 12V output models |
| Line regulation (Io = nom) | < 0,2 % (Io = nom) |
| Load regulation (Vin = nom) | < 0,2 % (Vin = nom; Io: 0…100%) |
| Ripple | < 50 mVpp |
| Noise (BW = 20MHz) | < 100 mVpp |
| ENVIRONMENTAL | |
|---|---|
| StorageTemperature | -40°C ... 85°C |
| Operating temperature range at Io= 100% | -25°C ... 60°C (-40°C ... 60°C, see note-1) |
| Operating temperature range at Io=50% | -25ºC ... 80ºC(-40°C … 80ºC, see note-1) |
| Maximum Relative humidity | 95% with no condensation |
| MTBF | 500.000h @ 40°C according to IEC61709 |
| EMC | |
|---|---|
| Emission | EN61000-6-3 |
| Immunity | EN61000-6-2 |
| SAFETY | |
|---|---|
| Safety | EN60950-1, EN62368-1 |
| Dielectric strength Input/Output | 3000Vac, 4200Vdc 1min |
| Dielectric strength Input / Earth | 1500Vac, 2100Vdc 1min |
| Dielectric strength Output / Earth | 1500Vac, 2100Vdc 1min |
| MECHANICAL | |
|---|---|
| Approximate weight | 430g |
| Dimensions | 100 x 160 x 38.5mm |
| CONTROL | |
|---|---|
| Remote inhibit range | 5V ... 24V |
| Remote sense | < 0.3V per pole |
| PROTECTIONS | |
|---|---|
| Against overloads and short-circuits | Current limiting |
| Against reverse input voltage | Input fuse |
| Against input under-voltage | Under-voltage lock-out |
| Against Input over-currents | Input fuse |
Selection Table
| PART NUMBER | POWER (W) | INPUT (V) | INPUT RANGE (V) | OUTPUT (V) | OUTPUT CURRENT (A) | EFFICIENCY(%) |
|---|---|---|---|---|---|---|
| CRS-120-6761 | 100 | 12 | 9 - 15 | 5 | 20 | 78 |
| CRS-120-6762 | 100 | 12 | 9 - 15 | 12 | 8,3 | 83 |
| CRS-120-6763 | 120 | 12 | 9 - 15 | 24 | 5 | 84 |
| CRS-120-6764 | 120 | 12 | 9 - 15 | 48 | 2,5 | 85 |
| CRS-120-6765 | 100 | 24 | 18 - 30 | 5 | 20 | 78 |
| CRS-120-6766 | 120 | 24 | 18 - 30 | 12 | 10 | 83 |
| CRS-120-6767 | 120 | 24 | 18 - 30 | 24 | 5 | 84 |
| CRS-120-6768 | 120 | 24 | 18 - 30 | 48 | 2.5 | 85 |
| CRS-120-6769 | 100 | 48 | 36 - 72 | 5 | 20 | 79 |
| CRS-120-6770 | 120 | 48 | 36 - 72 | 12 | 10 | 84 |
| CRS-120-6771 | 140 | 48 | 36 - 72 | 24 | 5,83 | 86 |
| CRS-120-6772 | 140 | 48 | 36 - 72 | 48 | 2,92 | 88 |
| CRS-120-6773 | 100 | 72 | 50,4 - 90 | 5 | 20 | 79 |
| CRS-120-6774 | 120 | 72 | 50,4 - 90 | 12 | 10 | 84 |
| CRS-120-6775 | 140 | 72 | 50,4 - 90 | 24 | 5,83 | 86 |
| CRS-120-6776 | 140 | 72 | 50,4 - 90 | 48 | 2,92 | 88 |
| CRS-120-6777 | 100 | 110 | 77 - 144 | 5 | 36 | 80 |
| CRS-120-6778 | 120 | 110 | 77 - 144 | 12 | 20 | 85 |
| CRS-120-6779 | 140 | 110 | 77 - 144 | 24 | 5,83 | 87 |
| CRS-120-6780 | 140 | 110 | 77 - 144 | 48 | 2,92 | 89 |
| CRS-120-6781 | 100 | 220 | 156 - 275 | 5 | 20 | 80 |
| CRS-120-6782 | 120 | 220 | 156 - 275 | 12 | 10 | 85 |
| CRS-120-6783 | 140 | 220 | 156 - 275 | 24 | 5,83 | 87 |
| CRS-120-6784 | 140 | 220 | 156 - 275 | 48 | 2,92 | 89 |

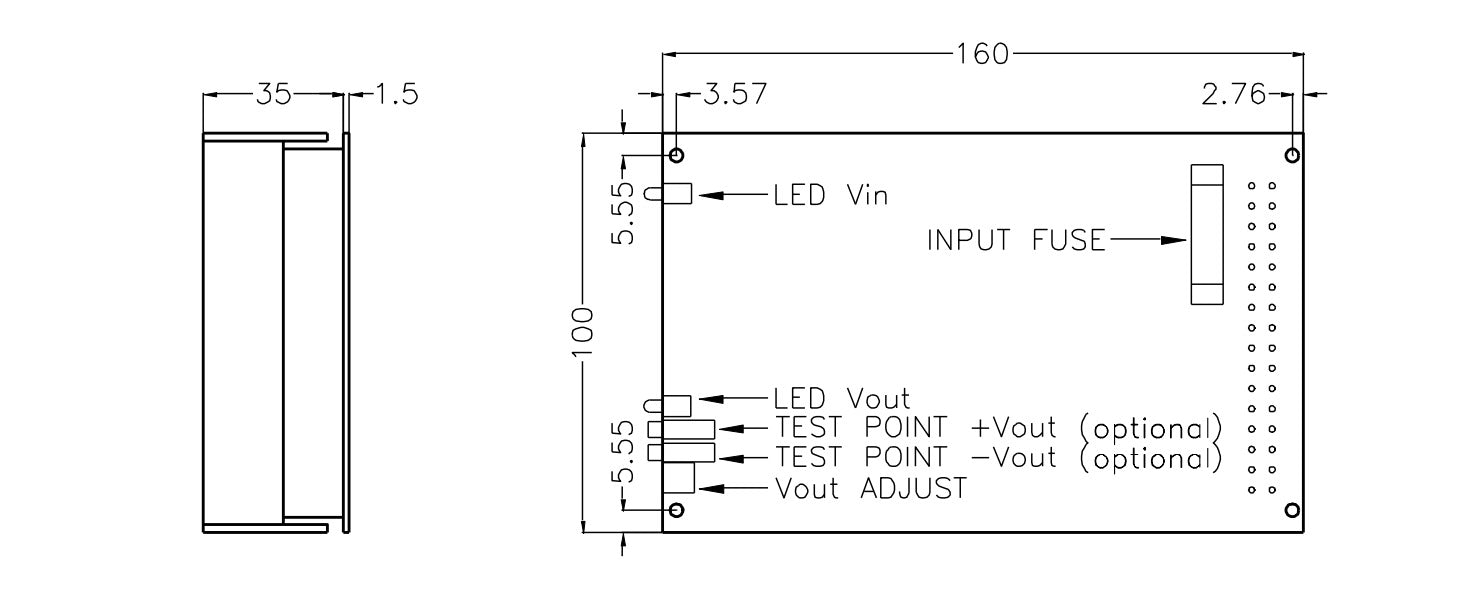

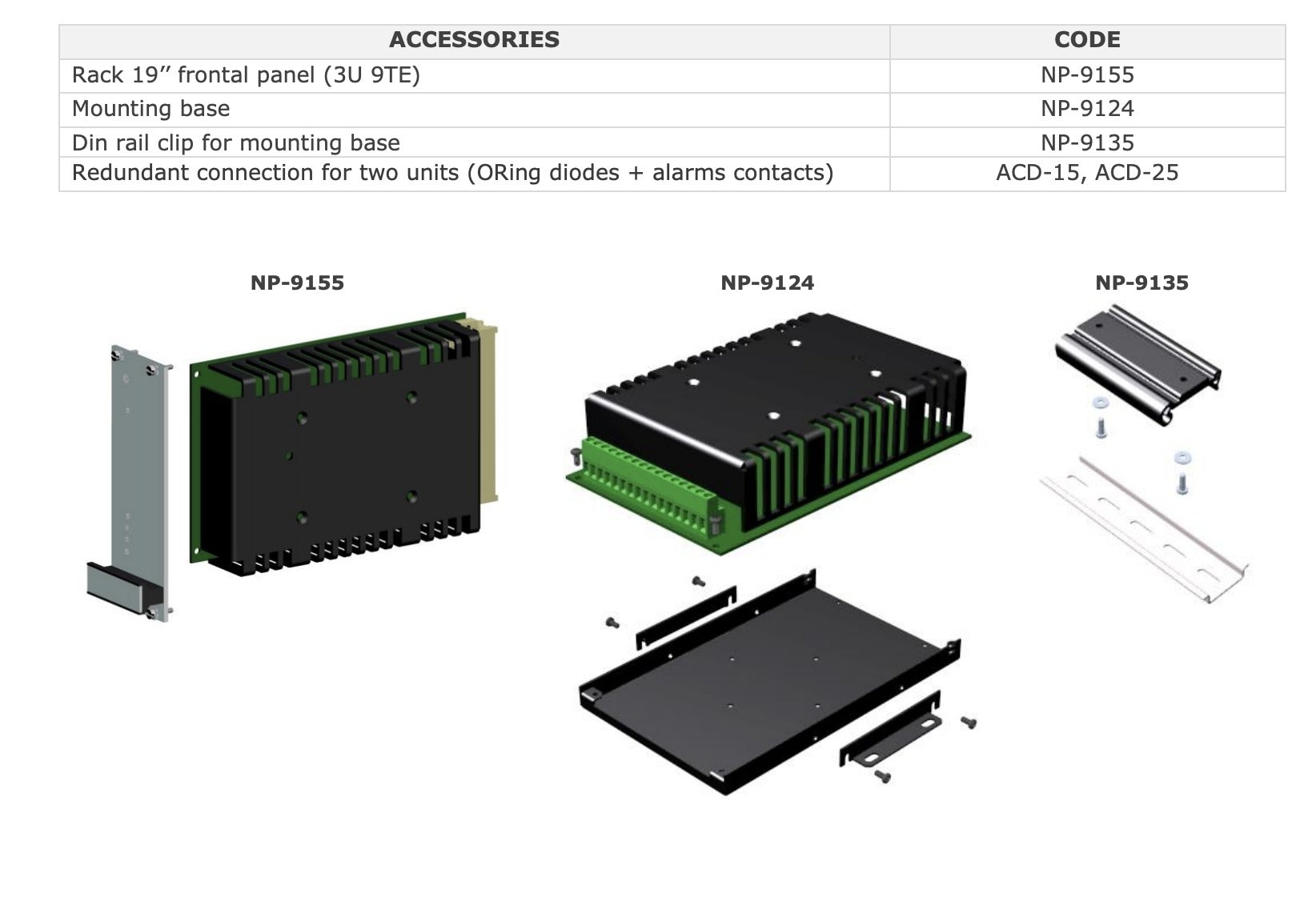

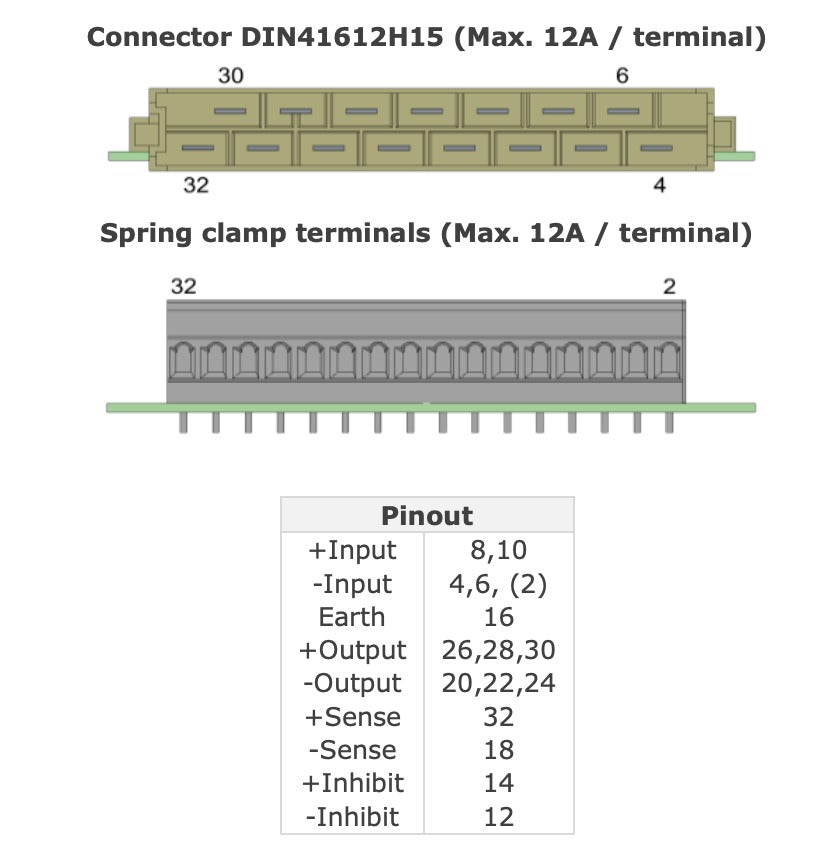

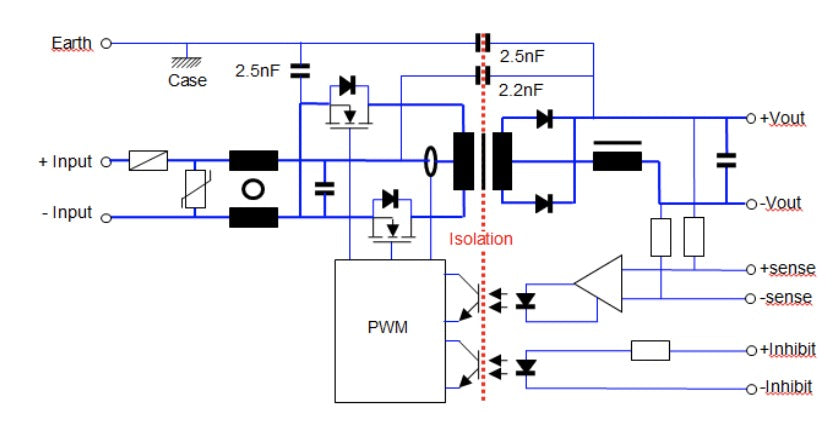

Technical Drawings
