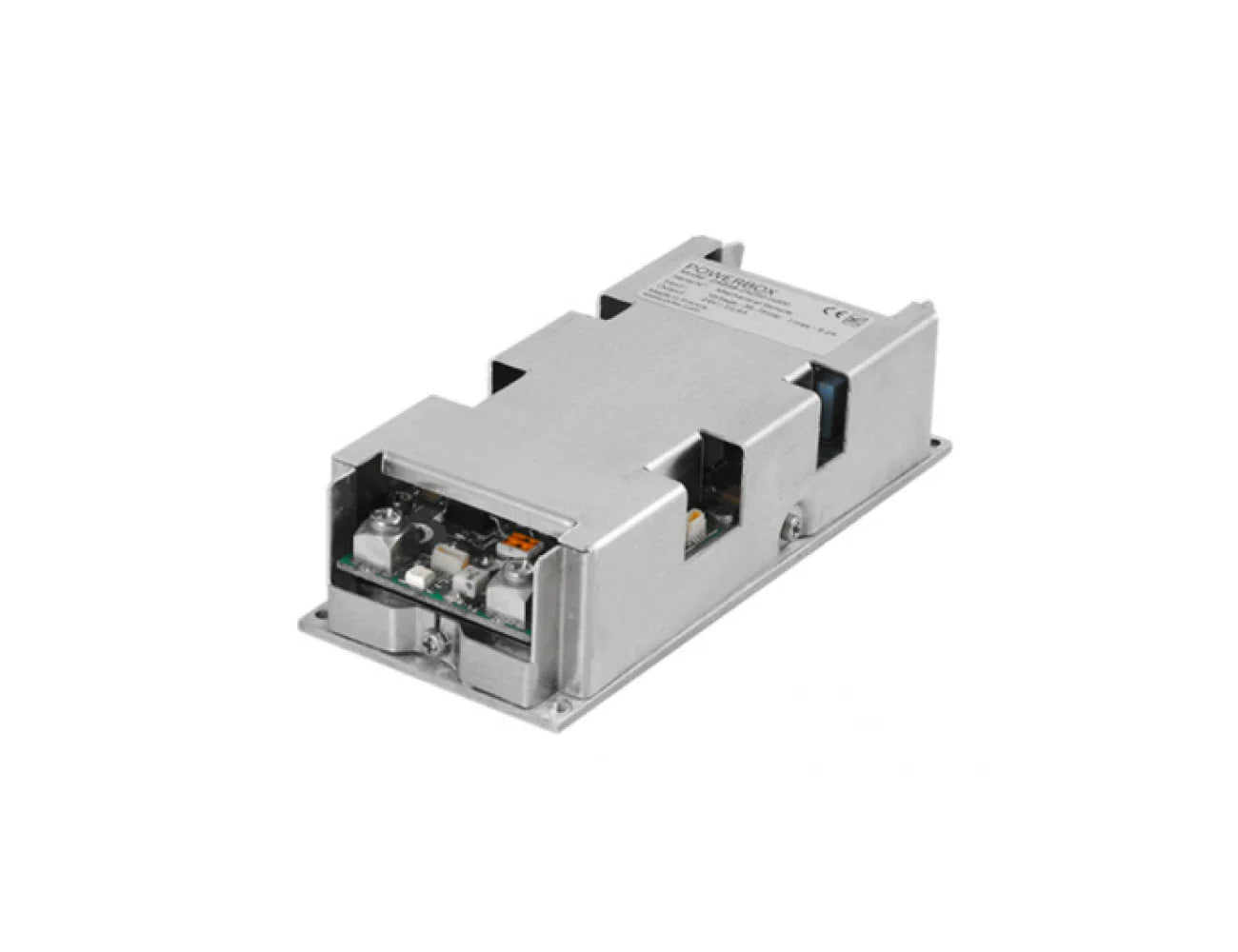

PRBX DAA Defense Line Series DC/DC Converter
The PRBX DAA Defense Line Series DC/DC Converter is a reliable and versatile solution for defense, industrial, and transportation applications. Delivering up to 500W of power, it ensures efficient and stable operation in demanding environments. Key features include a wide input voltage range and multiple output voltage options, providing flexibi...
Read MoreThe PRBX DAA Defense Line Series DC/DC Converter is a reliable and versatile solution for defense, industrial, and transportation applications. Delivering up to 500W of power, it ensures efficient and stable operation in demanding environments.
Key features include a wide input voltage range and multiple output voltage options, providing flexibility for diverse application needs. The DAA Series is built with advanced protection features, including overvoltage, overcurrent, and thermal safeguards, ensuring safe and dependable performance. Fully compliant with MIL-STD-461 and EN50155 standards, it meets stringent military and railway requirements for low electromagnetic interference and durability.
Encased in a rugged design, this converter is engineered to withstand extreme temperatures, shock, and vibration, making it suitable for mission-critical applications. Its compact size and high power density optimize space in systems with limited room, while its durable construction ensures long-lasting reliability.
The PRBX DAA Series DC/DC Converter is the ideal choice for compact, efficient, and dependable power conversion in challenging environments.
Show Less
Features
- Defense dc converter
- 24. 48. 72. 110VDC in
- Output from 3V3 to 48VDC
- Input filtering EN55022 & transient protection
- Reverse polarity protection
- Several outputs. Parallel or series operations up to several kWs
- MILSTD1275. 461. 810. 704 options
- Safety IEC/EN60950-1
- ROHS lead-free-solder compliant
Specifications
| ELECTRICAL DATA | |
|---|---|
| Input voltage | See Find The Right Model Table |
| Input fuse | Protects against damages in case of a failure. |
| Input transient protection | Yes |
| Input reverse polarity | A diode placed internally |
| Parallel/series | Possible. |
| Redundant operation | Oring diodes are required to ensure proper N+1 operation (included with optional N+1 bus bar). |
| Hold-up time | Limited hold-up time. |
| Output current limitation | Continously protected against short-circuit. |
| Thermal considerations | Baseplate which should not exceed 100°C. |
| Thermal protection | OTP protection, automatic restart. |
| Primary inhibit | Remote on/off. |
| Output voltage adj. | Yes |
| Sense lines | Enables compensation of voltage drop. V1, total drop <0.5, negative line drop <0.25 |
| Power good | Green LED. |
| Paralleling signal | Yes. |
| GENERAL | |
|---|---|
| Electric strength | Input to earth 1500Vrms. Input to output 3000Vrms. Output to earth 500Vrms |
| Insulation resistance | >100Mohms |
| OPTIONS | |
|---|---|
| Heatsink (H) | The unit is built as standard with a aluminum baseplate as described in the mechanical data. The converter can be delivered with a 15mm heatsink |
| Ruggedized (M) | The unit can be ruggedized to meet MIL-STD810E, MIL-STD461E CE102. M option with 12 and 24Vin will comply with MIL STD 1275A on DAA and DBB only. |
| –40°C operation (T) | The thermal grade of the components comply with low ambient temperature. |
| Conformal coating (V) | During manufacturing process components and pcb are covered with an acrylic coating to address high level of ambient humidity application. |
| ENVIRONMENTAL | |
|---|---|
| Damp heat | MIL STD 810 Proc. 507-2 |
| Shock | MIL STD 810 Proc. 516.3 |
| Vibrations | MIL STD 810 Proc. 514-5 |
| STANDARDS | |
|---|---|
| Safety standards | Built to meet IEC60950-1, EN60950-1. |
| Railway application | Designed to meet EN50155, EN50121 |
| Electromagnetic immunity | |
| Supply surge | EN50155. |
| Direct transients | EN50155 |
| Surges | EN61000-4-5. |
| Electrostatic discharge | EN61000-4-2. |
| Fast transients/burst | EN61000-4-4 |

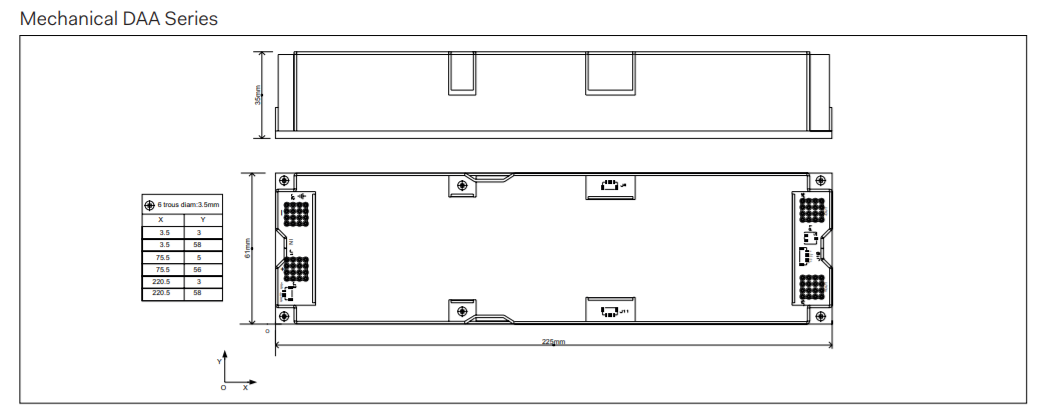

Technical Drawings
