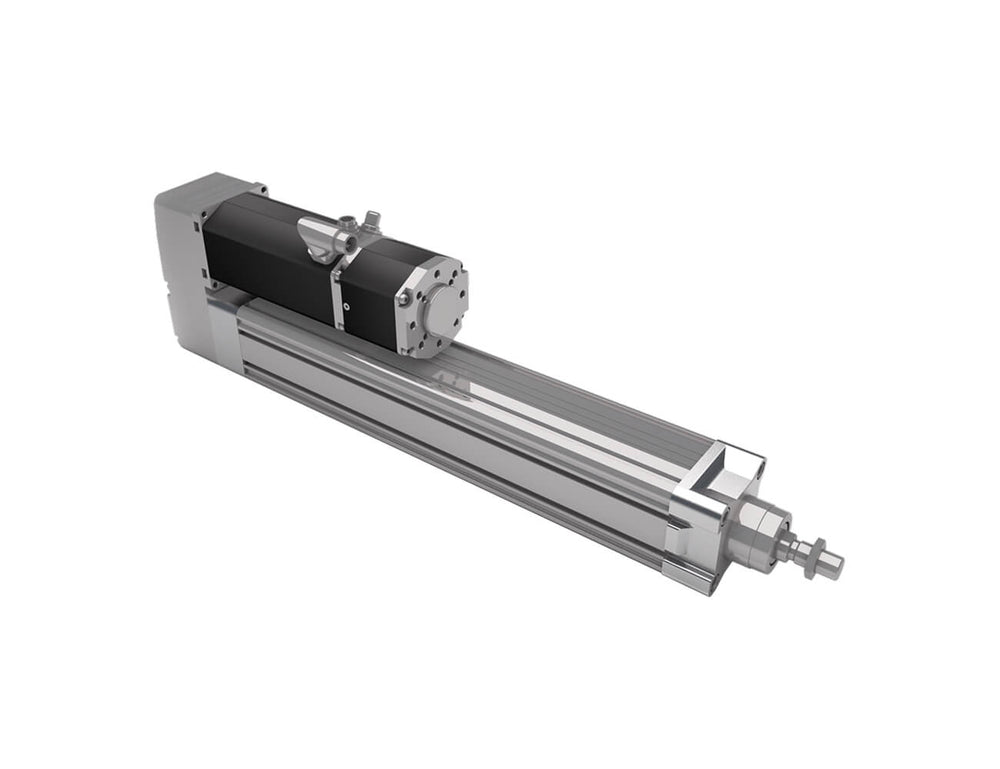

Dunkermotoren CASM-63-BG75 CASM Electric Cylinder
The Dunkermotoren CASM-63-BG75 Electric Cylinder is a powerful and high-performance linear motion solution, designed to handle demanding industrial applications with precision and reliability. With stroke lengths up to 800 mm and peak forces reaching 1885 N, this electric cylinder is a versatile replacement for pneumatic cylinders in automation,...
Read MoreThe Dunkermotoren CASM-63-BG75 Electric Cylinder is a powerful and high-performance linear motion solution, designed to handle demanding industrial applications with precision and reliability. With stroke lengths up to 800 mm and peak forces reaching 1885 N, this electric cylinder is a versatile replacement for pneumatic cylinders in automation, robotics, and material handling systems.
Key features include high-efficiency ball and lead screw options for optimal force and speed configurations, a twist-protected thrust rod for enhanced stability, and in-line or parallel motor setups for flexible integration. The CASM-63 is powered by the BG75x75 brushless DC motor, offering high efficiency, low noise, and maintenance-free operation. With nominal voltages from 40 V to 48 V, it supports diverse industrial requirements. Multiple BUS interfaces, including CANopen, enable advanced connectivity and control.
This electric cylinder ensures precise motion control with repeatability as fine as ±0.01 mm (ball screw version) and supports dynamic operation with accelerations up to 6 m/s². Its compact design and IP54 protection make it ideal for challenging environments and space-limited setups.
Show Less
Features
- Motor Type: BG 75x75
- Nominal Voltage: 40-48VDC
- Nominal Current: 12.7A
- Constant Force: 292~692N
Selection Table
| Data | CASM-63 | |||
|---|---|---|---|---|
| Motor type | BG 75x75 | |||
| Nominal voltage | VDC | 40-48 | ||
| Nominal current | A | 12.7 | ||
| Peak current (2 sec.) | A | 50 | ||
| Spindle version | - | LS | BN | BF |
| Spindle pitch | mm | 4 | 10 | 20 |
| Constant force | N | 692 | 583 | 292 |
| Peak force | N | 1000 | 1885 | 942 |
| Max. traverse speed | mm/s | 70 | 530 | 1060 |
| Max. acceleration | m/s² | 1 | 6 | |
| Repeatability | mm | +/- 0.07 | +/- 0.01 | |
| Lifetime L₁₀ | km | 100 | Siehe Diagramm | |
| Stroke length | mm | 100 / 200 / 300 / 400 / 500 / 800 | ||
| LS: Lead screw/ Not applicable for motions on mechanical stop. BS / BN: Ball screw | ||||
