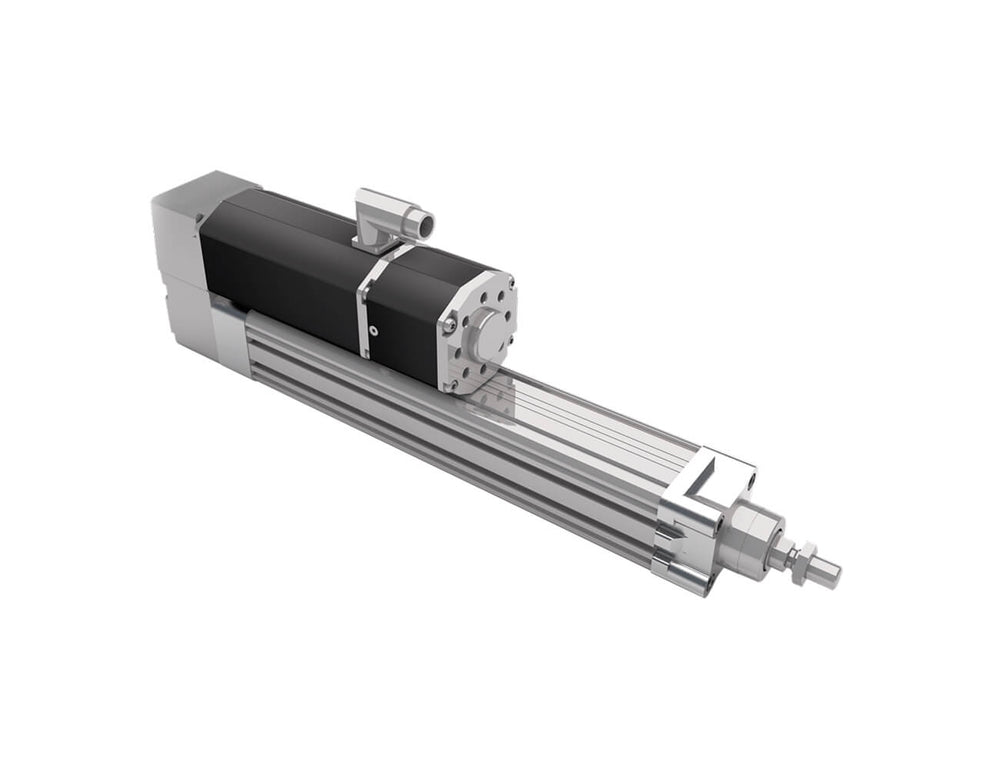

Dunkermotoren CASM-40 CASM Electric Cylinder
The Dunkermotoren CASM-40-BG75 Electric Cylinder is a robust and high-performance linear motion solution, capable of handling demanding industrial applications with precision and reliability. With stroke lengths up to 600mm and peak forces reaching 2375N, this electric cylinder is ideal for automation, robotics, and material handling systems. Ke...
Read MoreThe Dunkermotoren CASM-40-BG75 Electric Cylinder is a robust and high-performance linear motion solution, capable of handling demanding industrial applications with precision and reliability. With stroke lengths up to 600mm and peak forces reaching 2375N, this electric cylinder is ideal for automation, robotics, and material handling systems.
Key features include lead and ball screw options for optimal force and speed configurations, a twist-protected thrust rod for enhanced stability, and in-line or parallel motor setups for flexible integration. The CASM-40 is powered by the BG75x75 brushless DC motor, delivering high efficiency, low noise, and maintenance-free operation. With nominal voltages from 40V to 48V, it supports diverse industrial requirements. Multiple BUS interfaces, including CANopen, enable convenient connectivity and advanced control.
This electric cylinder offers precise motion control with repeatability as fine as ±0.01mm (ball screw version) and supports dynamic operation with accelerations up to 6m/s². Its compact design and IP54 protection make it suitable for space-limited and challenging environments.
For industries requiring powerful and adaptable linear motion solutions, the Dunkermotoren CASM-40-BG75 Electric Cylinder delivers exceptional performance and reliability.
Show Less
Features
- Nominal Voltage: 40-48VDC
- Nominal Current: 7A~12.7A
- Constant Force: 198N~1020N
Selection Table
| Data | CASM-40 | ||||||
|---|---|---|---|---|---|---|---|
| Motor type | BG 65Sx50 | BG 75x75 | |||||
| Nominal voltage | VDC | 40-48 | 40-48 | ||||
| Nominal current | A | 7 | 12.7 | ||||
| Peak current (2 sec.) | A | 20 | 50 | ||||
| Spindle version | - | LS | BS | BN | LS | BS | BN |
| Spindle pitch | mm | 2.5 | 5 | 12.7 | 2.5 | 5 | 12.7 |
| Constant force | N | 465 | 440 | 198 | 600 | 1020 | 459 |
| Peak force | N | 600 | 1170 | 526 | 600 | 2375 | 1484 |
| Max. traverse speed | mm/s | 70 | 300 | 825 | 70 | 300 | 825 |
| Max. acceleration | m/s² | 1 | 6 | 1 | 6 | ||
| Repeatability | mm | +/- 0.07 | +/- 0.01 | +/- 0.07 | +/- 0.01 | ||
| Lifetime L₁₀ | km | 100 | Siehe Diagramm | 100 | Siehe Diagramm | ||
| Stroke length | mm | 100 / 200 / 300 / 400 / 500 / 600 | |||||
LS: Lead screw/ Not applicable for motions on mechanical stop. BS / BN: Ball screw
