AC/DC Power Supplies

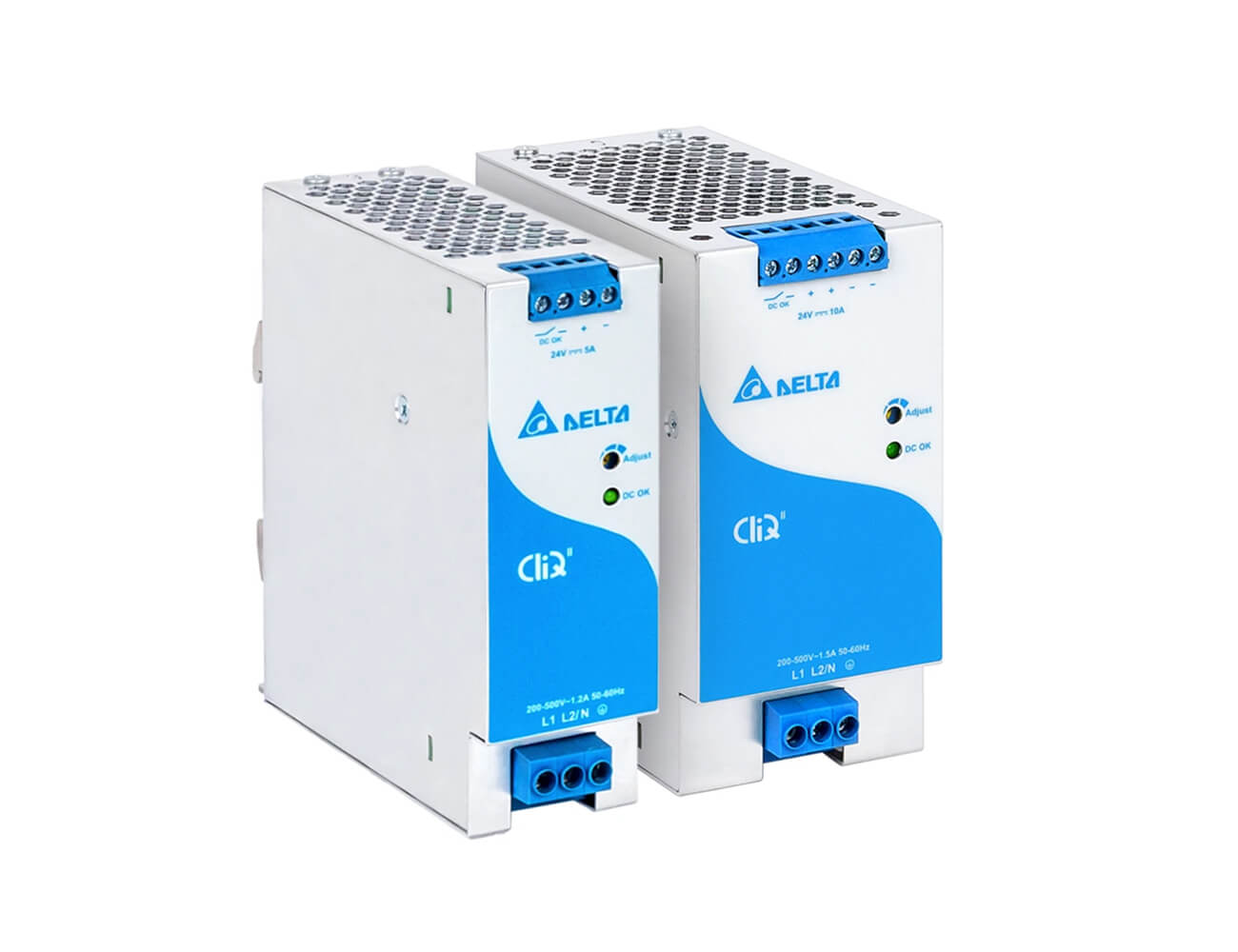

Delta Electronics CliQ II DRP 24V 2PH SERIES AC/DC Power Supply

The DRP 24V 2PH Series by Delta Electronics offers a compact, high-efficiency AC/DC DIN rail power supply designed for flexibility with single or two-phase input options. Encased in durable, corrosion-resistant aluminum and is available in 120W and 240W rated models. This series boasts a power boost function, overload protection, and a broad ope...

Read More

The DRP 24V 2PH Series by Delta Electronics offers a compact, high-efficiency AC/DC DIN rail power supply designed for flexibility with single or two-phase input options. Encased in durable, corrosion-resistant aluminum and is available in 120W and 240W rated models. This series boasts a power boost function, overload protection, and a broad operating temperature range. The built-in DC OK Contact and conformal PCB coating protect against harsh industrial environments, ensuring reliability and performance longevity.

Show Less
Unit Price
—
or send a quick enquiry about this product only
Delta Electronics DRP 24V 2PH SERIES AC/DC Power Supply
Features
  • Designed for 2 of 3-Phase system with wide input range of 2 x 180-550Vac (or 254-750Vdc)
  • Compact and corrosion resistant aluminium casing
  • High Efficiency > 90.0%
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Wide operating temperature range from -30°C to +70°C
  • Built-in DC OK contact
  • Conformal coating on PCBA to protect against chemical and dust pollutants

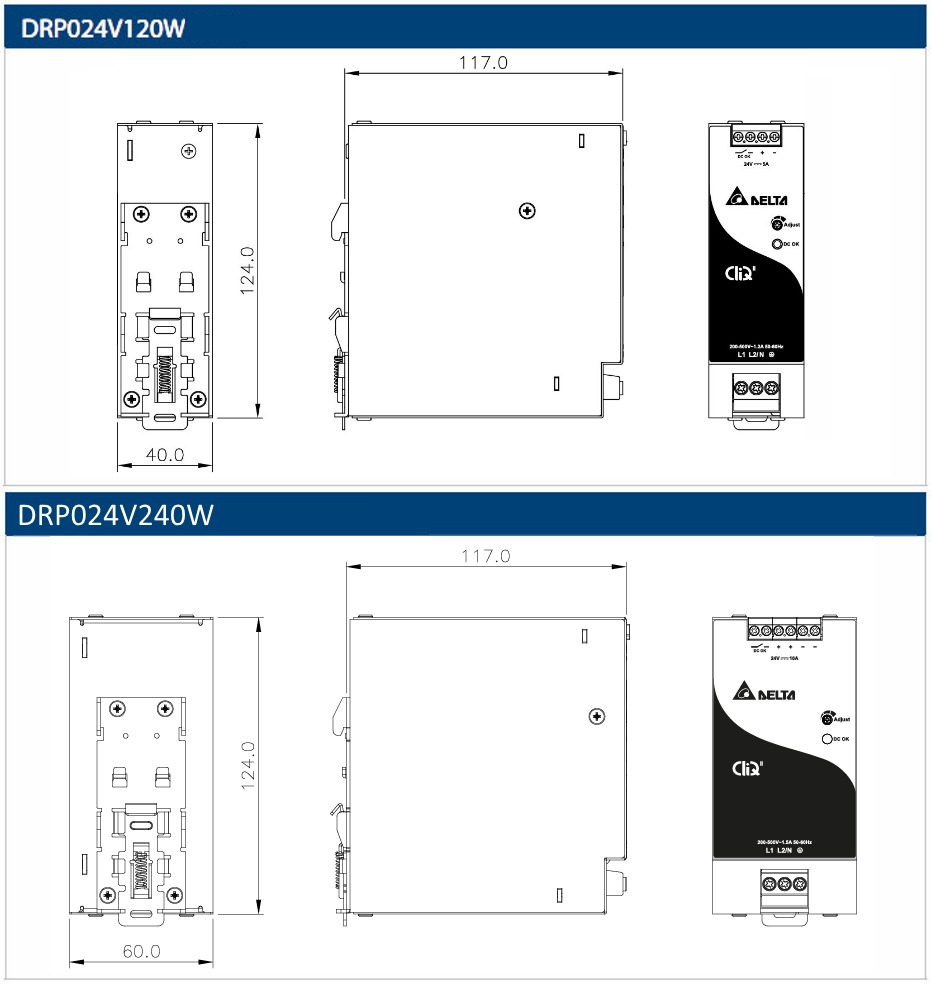

Technical Drawings
Downloads
Datasheet_DRP-24V120W2BN.pdf
Datasheet_DRP-24V240W2BN.pdf
