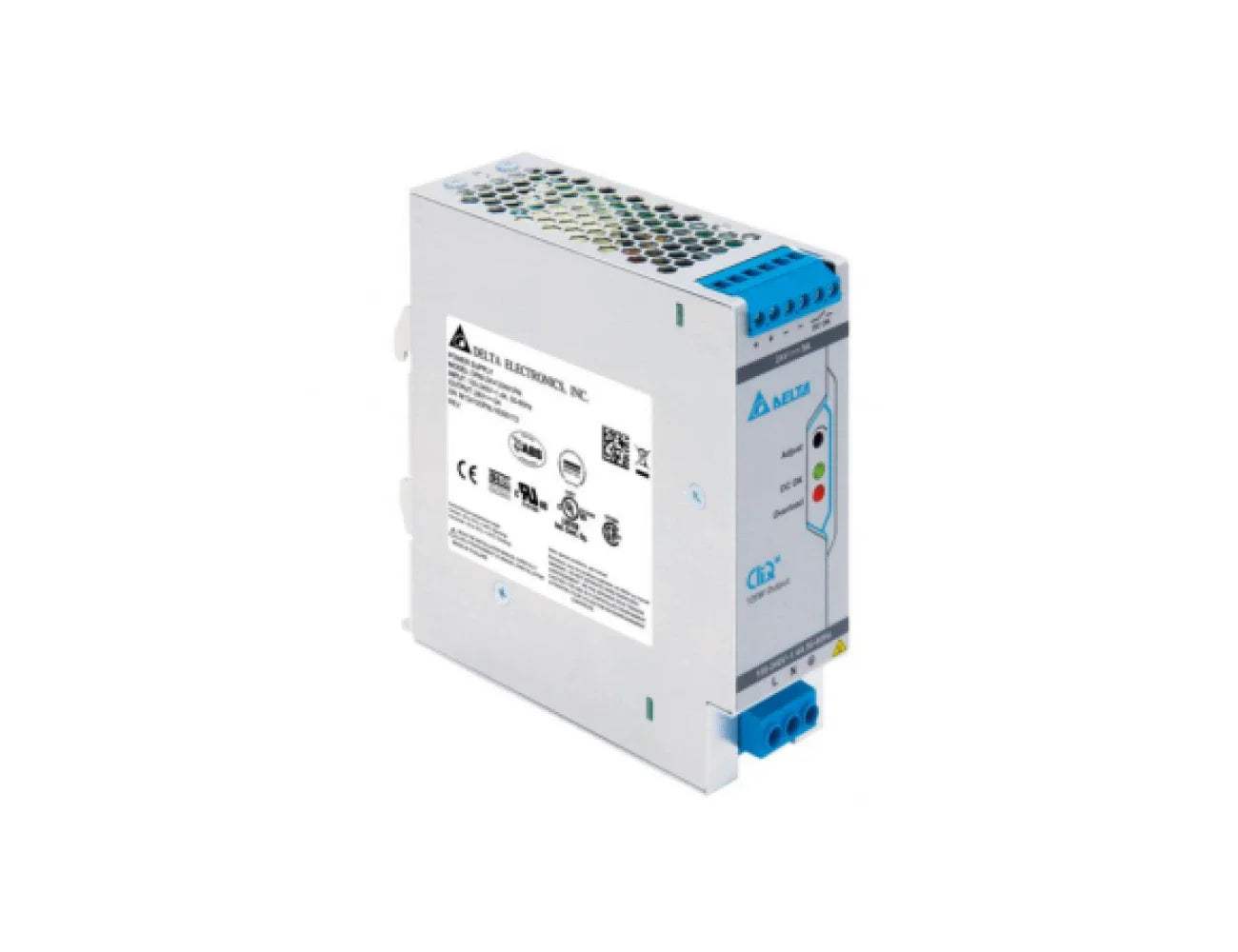

Delta Electronics CliQ DRM Series DIN Rail AC/DC Power Supply
Delta's CLIQ DRM series integrates active PFC for up to 92% efficiency. It is designed to deliver full power from -25°C to +60°C and withstand maritime applications, evidenced by DNV GL and ABS approvals. A standout feature is the 150% Power Boost for 7 seconds, critical in maritime and other demanding industrial applications. Advanced Power Boo...
Read MoreDelta's CLIQ DRM series integrates active PFC for up to 92% efficiency. It is designed to deliver full power from -25°C to +60°C and withstand maritime applications, evidenced by DNV GL and ABS approvals. A standout feature is the 150% Power Boost for 7 seconds, critical in maritime and other demanding industrial applications. Advanced Power Boost technology detects inrush current from a faulty load, ensuring other system components continue to operate, improving system reliability and protecting key system components.
Show Less
Features
- 24Vdc, 80W & 960W
- Universal AC input voltage range
- Built-in active PFC with up to 92% efficiency
- Full power from -25°C to +60°C @ 5000m
- Power Boost of 150% up to 7 seconds
- Advanced Power Boost (APB) 2013 protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection
- DNV GL and ABS approval for maritime applications
- DC OK Contact and LED indicator for DC OK/ Overload
- Conformal coating on PCBAs to protect against common dust and chemical pollutants
Specifications
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Model | DRM-24V80W1PN | DRM-24V120W1PN | DRM-24V240W1PN | DRM-24V480W1PN | DRM-24V960W1PN | ||||||||||||||||||||||||||||||||||||||||||||
| Output Voltage | 24Vdc | 24Vdc | 24Vdc | 24Vdc | 24Vdc | ||||||||||||||||||||||||||||||||||||||||||||
| Output Voltage Range | 24V - 28Vdc | 24V - 28Vdc | 24V - 28Vdc | 24V - 28Vdc | 24V - 28Vdc | ||||||||||||||||||||||||||||||||||||||||||||
| Output Current | 3.4A | 5A | 10A | 20A | 40A | ||||||||||||||||||||||||||||||||||||||||||||
| Output Power | 82W | 120W | 240W | 480W | 960W | ||||||||||||||||||||||||||||||||||||||||||||
| Line Regulation, Max | 10mV | 20mV | 10mV | 10mV | 10mV | ||||||||||||||||||||||||||||||||||||||||||||
|
Load Regulation 0-100% load, Max |
100mV | 100mV | 100mV | 100mV |
50mV single mode 1000mV parallel mode |
||||||||||||||||||||||||||||||||||||||||||||
| PARD (20MHz), Max | 50mVpp | 50mVpp | 50mVpp | 50mVpp | 100mVpp | ||||||||||||||||||||||||||||||||||||||||||||
|
Start-up Time Max, @230Vac |
330ms | 750ms |
340ms |
1000ms |
800ms |
||||||||||||||||||||||||||||||||||||||||||||
|
Hold-up Time Max at 230Vac |
118ms | 90ms | 46ms | 43ms | 24ms | ||||||||||||||||||||||||||||||||||||||||||||
|
Dynamic Response |
± 5% Max. @ 0-100% load |
± 5% Max. @ 0-100% load |
± 5% Max. @ 0-100% load |
± 5% Max. @ 0-100% load |
± 5% Max. @ 0-100% load |
||||||||||||||||||||||||||||||||||||||||||||
|
Max start-up with Capacitive Loads |
8,000µF | 10,000µF | 10,000µF | 20,000µF | 40,000µF | ||||||||||||||||||||||||||||||||||||||||||||
|
Rise Time
|
15ms | 20ms | 100ms | 100ms | 75ms | ||||||||||||||||||||||||||||||||||||||||||||
|
Parallel & Series Connection |
Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| INPUT | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Model | DRM-24V80W1PN | DRM-24V120W1PN | DRM-24V240W1PN | DRM-24V480W1PN | DRM-24V960W1PN | |||||||||
| Input Voltage | " | " | 85–276Vac, 88-375Vdc | " | Vac only | |||||||||
| Input Frequency | " | " | 50-60Hz | " | " | |||||||||
|
Input Current at 230Vac |
0.44A | 0.60A | 1.16A | 2.29A | 4.50A | |||||||||
|
Efficiency 100% Load at 230Vac |
> 91% | > 92% | > 94% | > 94% | >95.98% | |||||||||
|
Max Inrush at 230Vac |
13.0A | 13.0A | 10A | 13A | 20A | |||||||||
|
Power Factor at 230Vac |
0.89 Typ. | 0.93 Typ. | 0.95 Typ. | 0.95 Typ. | 0.96 Typ. | |||||||||
|
Leakage Current at 264Vac |
< 0.36mA / 0.95mA | < 0.46mA / 1.08mA | < 0.74mA / 1.29mA | < 0.80mA / 2.00mA | < 1.18mA / 2.82mA | |||||||||
|
Max Power Dissipation at 230Vac |
< 7.81W Typ | < 9.27W Typ | <17.5W Max | <34.0W Max | <54.8W Max | |||||||||
| ENVIRONMENTAL | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Model | DRM-24V80W1PN | DRM-24V120W1PN | DRM-24V240W1PN | DRM-24V480W1PN | DRM-24V960W1PN | |||||||||
| Operating Temperature |
-25°C to +70°C (Cold start -40°C) |
-25°C to +70°C (Cold start -40°C) |
-25°C to +70°C (Cold start -40°C) |
-25°C to +70°C (Cold start -40°C) |
-25°C to +70°C (Cold start -40°C) |
|||||||||
| Storage Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | |||||||||
|
Mounting Derating Derate power 2.5%/°C |
Vertical: > 60°C Horizontal: > 50°C |
Vertical: > 60°C Horizontal: > 50°C |
Vertical: > 60°C Horizontal: > 50°C |
Vertical: > 60°C Horizontal: > 40°C |
Vertical: > 60°C Input: If < 90Vac, > 55°C de-rate1.67%/°C Horizontal: > 40°C de-rate 1.67%/°C Input: If < 90Vac, > 35°C de-rate |
|||||||||
| Operating Humidity | 5 to 95% RH (Non-Condensing) | 5 to 95% RH (Non-Condensing) | 5 to 95% RH (Non-Condensing) | 5 to 95% RH (Non-Condensing) | 5 to 95% RH (Non-Condensing) | |||||||||
|
Shock Test (Non-Operating) |
IEC60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total | IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak);60 min per axis for all X, Y, Z direction | IEC60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total | IEC60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total | IEC60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total | |||||||||
|
Vibration Test (Non-Operating) |
IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions | IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1,000 times per direction, 6,000 times in total | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions | |||||||||
| Operating Altitude |
0 to 5,000 Meters for ITE application 0 to 2,500 Meters for Industrial application |
0 to 5,000 Meters for ITE application 0 to 2,500 Meters for Industrial application |
0 to 5,000 Meters for ITE application 0 to 2,500 Meters for Industrial application |
0 to 5,000 Meters for ITE application 0 to 2,500 Meters for Industrial application |
0 to 5,000 Meters for ITE application 0 to 2,500 Meters for Industrial application |
|||||||||
| Pollution Degree | 2 | 2 | 2 | 2 | 2 | |||||||||
| Bump Test (Operating) | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total | na | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total | |||||||||
| Over Voltage Category | na | na | III : According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) | III : According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) | III : According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) | |||||||||
| SAFETY | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical Safety | SIQ: EN 60950-1, EN 61558-1, EN 61558-2-16, EN 61010-1, EN 61010-2-201 UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395) CB scheme: IEC 60950-1, IEC 61558-1, IEC 61558-2-16, IEC 61010-1, IEC 61010-2-201 | ||||||||||||||||||||||||||||||||||||||||||||||||
| CE | In conformance with EMC Directive 2014/30/EU (only AC input) and Low Voltage Directive 2014/35/EU | ||||||||||||||||||||||||||||||||||||||||||||||||
| Galvanic Isolation |
4.54KVac: Input / Output 2.5KVac: Input / PE 4.54KVac: Input / DC OK relay contact (Recommend to connect DC OK pins together with output pins.) 1.5KVac: Output / PE 0.5KVac: Output / DC OK relay contact 1.5KVac: DC OK relay contact / PE |
||||||||||||||||||||||||||||||||||||||||||||||||
| Industrial Control Equipment | UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355) CSA: CSA C22.2 No. 107.1-01 (File No. 181564) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical Equipments of Machines | EN 60204-1 (over voltage category III) | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Electrical Equipment for Use in Electrical Power Installations |
EN 50178 / IEC 62103 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Safety Entry Low Voltage | PELV (EN 60204-1), SELV (EN 60950-1) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Maritime | DNV GL: Germanischer Lloyd classified ABS: American Bureau for Shipping PDA Environmental category: C, EMC2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Material and Parts | RoHS Directive 2011/65/EU Compliant (EN 50581) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation Resistance | > 5MOhm: Input to Output, 500Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMC | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Emission | Generic Standards: EN 61000-6-3 CISPR 22, EN 55022, CISPR 11, EN 55011, FCC Title 47: Class B | ||||||||||||||||||||||||||||||||||||||||||||||||
| Immunity | Generic Standards: EN 55024, EN 61000-6-2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Harmonic Current Emissions | IEC/EN 61000-3-2, Class A | ||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage Fluctuation and Flicker | IEC/EN 61000-3-3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Component Power Supply for General Use | EN 61204-3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| PROTECTIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overvoltage | 28.8 – 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Overload/Overcurrent | >150% of rated load current, Constant current limit, Auto- Recovery when the fault is removed | ||||||||||||||||||||||||||||||||||||||||||||||||
| Over Temperature | < 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Degree of Protection | IP20 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Protection against shock | Class 1 with PE (Primary Earth) connection | ||||||||||||||||||||||||||||||||||||||||||||||||
| RELIABILITY | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Model | DRM-24V80W1PN | DRM-24V120W1PN | DRM-24V240W1PN | DRM-24V480W1PN | DRM-24V960W1PN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| (as per Telcordia SR-332)
I/P: 100Vac, Ta: 25°C |
2,164,300 hrs. O/P: 24V, 3.4A |
1,831,000 hrs. O/P: 24V 5A |
1,476,000 hrs. O/P: 24V,10A |
778,800 hrs. O/P: 24V, 20A, |
513,800 hrs, O/P: 24V, 40A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Model | DRM-24V80W1PN | DRM-24V120W1PN | DRM-24V240W1PN | DRM-24V480W1PN | DRM-24V960W1PN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Case Cover | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 124 x 32 x 102 mm | 124 x 40 x 117 mm | 124 x 60 x 117 mm | 124 x 82 x 127 mm | 124 x 125 x 133.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 0.50 kg | 0.63 kg | 0.94 kg | 1.40 kg | 2.87 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Indicator |
Green LED (DC OK) and Red LED (Overload) |
Green LED (DC OK) and Red LED (Overload) |
Green LED (DC OK) and Red LED (Overload) |
Green LED (DC OK) and Red LED (Overload) |
Green LED (DC OK) and Red LED (Overload) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling System | Convection | Convection | Convection | Convection | Convection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

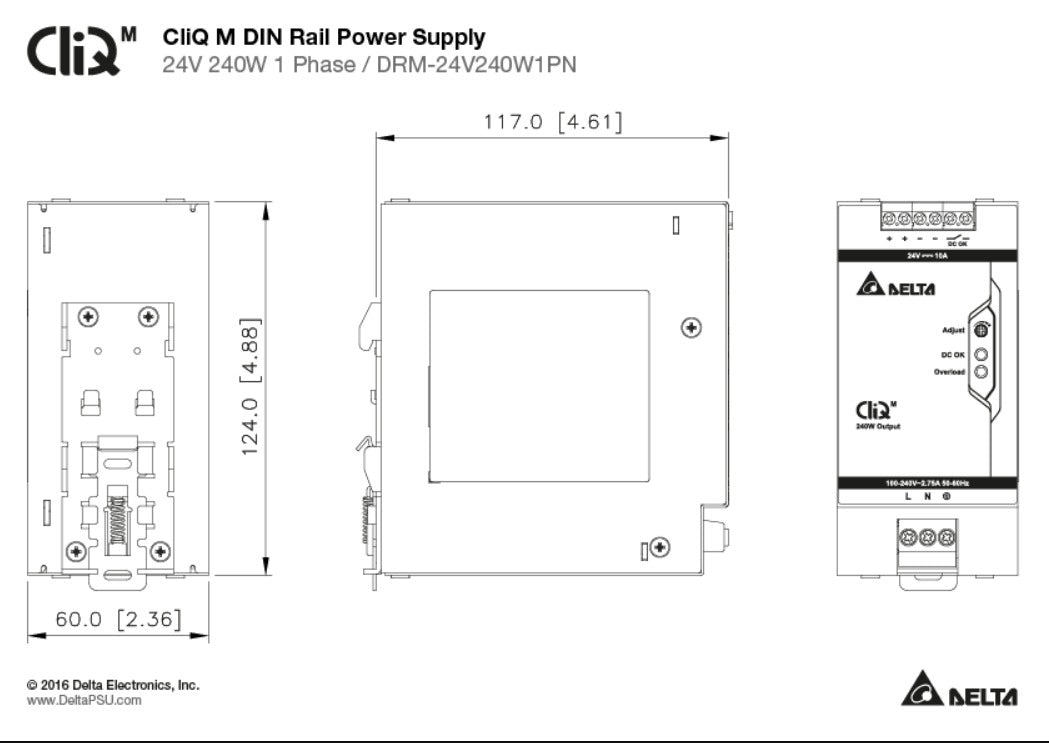

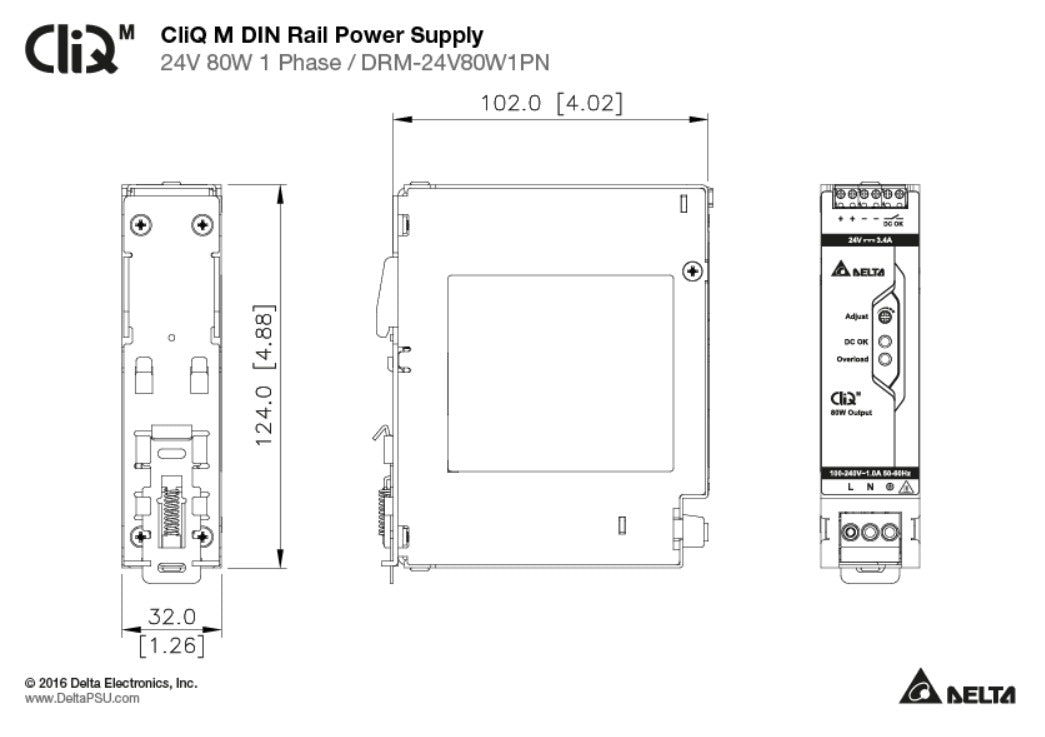

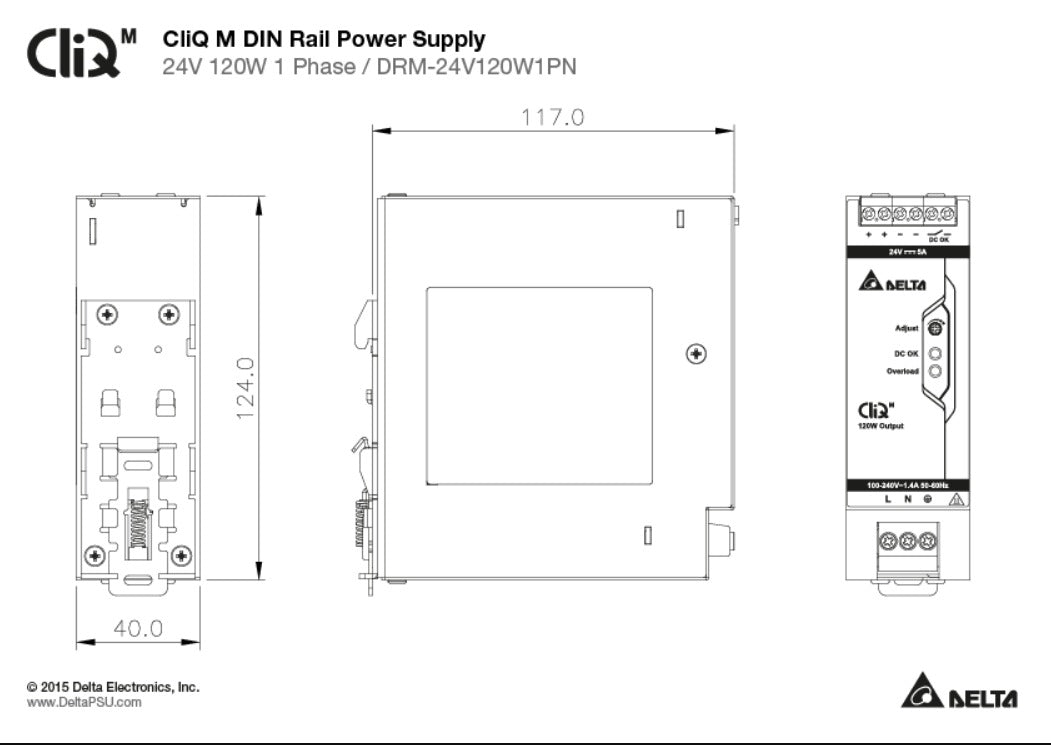

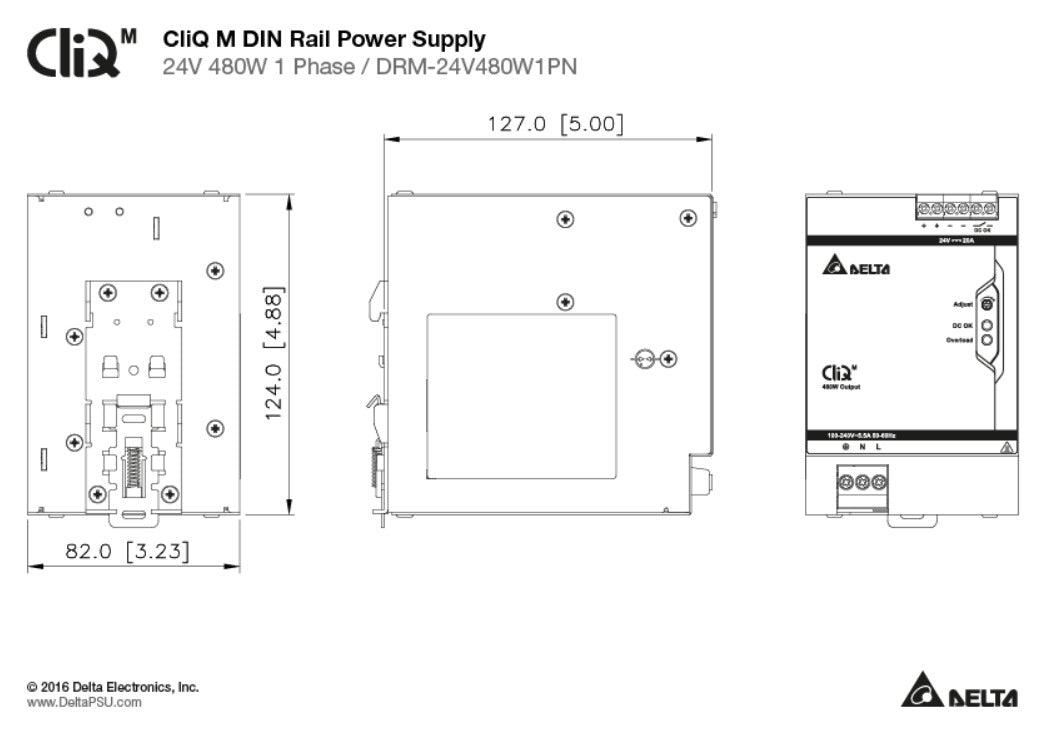

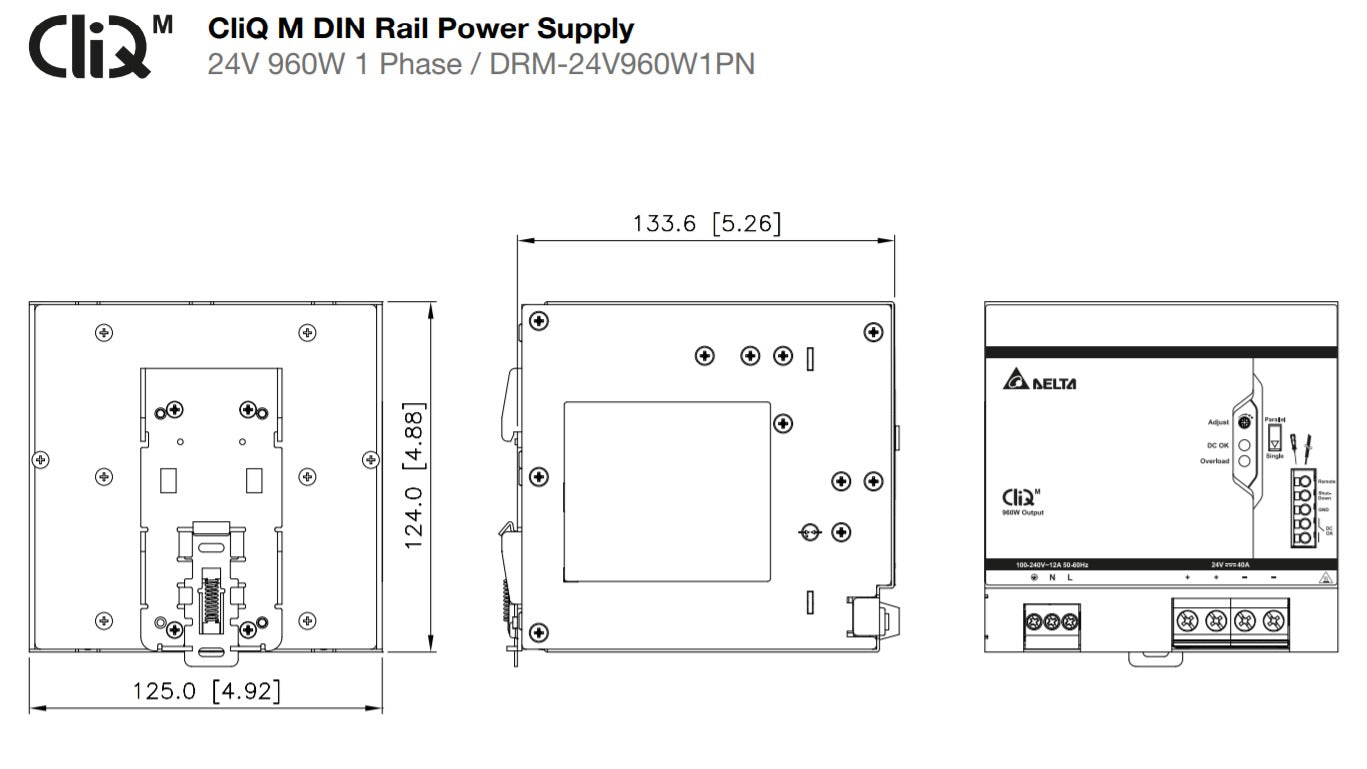

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
