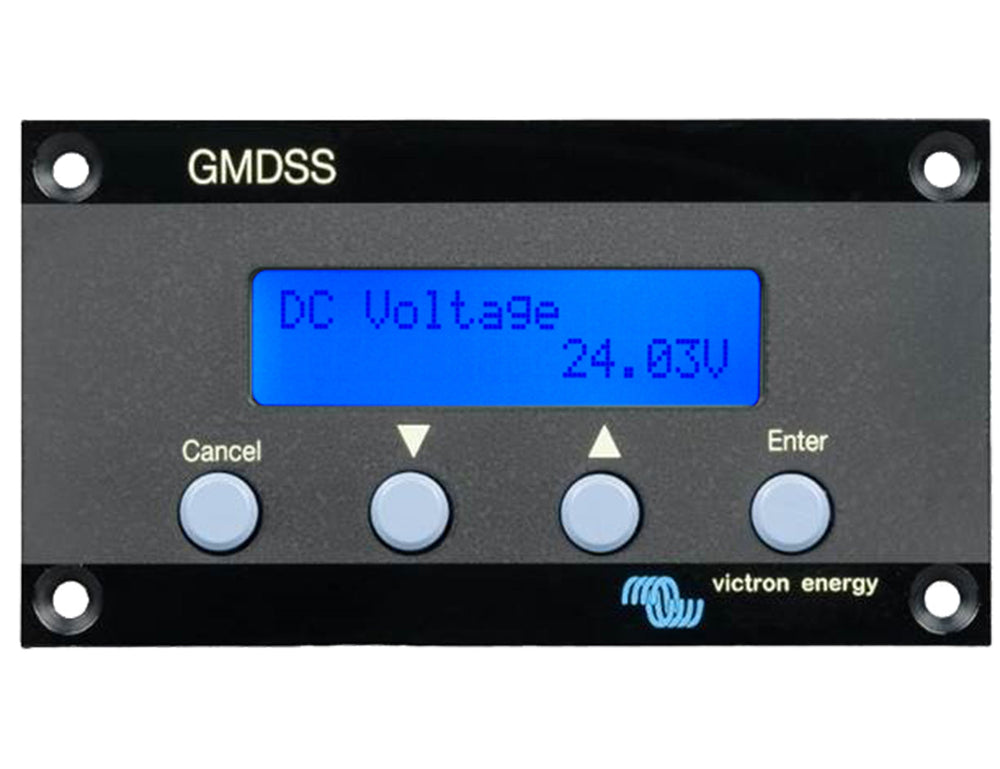

Victron VE.Net GMDSS Panel
The Victron VE.Net GMDSS Panel puts battery status and alarms for a Global Maritime Distress and Safety System (GMDSS) battery bank at the operator position, where they are needed. It gives the crew a live view of battery condition and a clear audible and visual warning when the GMDSS DC supply needs attention. The panel is the remote display fo...
Read MoreThe Victron VE.Net GMDSS Panel puts battery status and alarms for a Global Maritime Distress and Safety System (GMDSS) battery bank at the operator position, where they are needed. It gives the crew a live view of battery condition and a clear audible and visual warning when the GMDSS DC supply needs attention.
The panel is the remote display for the Skylla-TG 24/30 and 24/50 GMDSS battery chargers, which are supplied without a panel. One standard UTP cable links the charger to the panel and carries both data and power, so no separate supply is needed at the mounting location. Battery capacity, charged voltage detection and charge efficiency are set from the panel, so state of charge readings match the installed battery bank.
Low voltage, high voltage and charger failure alarms are always active and cannot be disabled, while low state of charge and current alarms can be enabled as required. A potential-free relay contact lets the panel signal an external alarm or monitoring system. The panel suits commercial vessels, workboats and offshore craft that carry GMDSS radio equipment.
Pair the panel with a Skylla-TG GMDSS charger to complete a monitored GMDSS DC supply. Powerbox Pacific provides local engineering support and technical guidance for Victron Energy marine installations.
Show Less
Features
- Live battery voltage, current, state of charge, consumed Ah and time-to-go at the operator position
- Low voltage, high voltage and charger failure alarms always active and cannot be disabled
- Optional low state of charge, low current and high current alarms with adjustable set and clear levels
- Audible alarm, flashing display and normally closed potential-free relay (3A / 30Vdc / 250Vac) on any active alarm
- Powered over the VE.Net UTP cable from the charger: 9–35Vdc supply, up to 25m cable run
- User and installer access levels with OEM lockout to protect alarm and battery settings
- Adjustable battery capacity, charged voltage and charge efficiency factor for accurate state of charge
- Standard 120 x 65mm front panel with four-screw mounting and cut-out template supplied
- Operating temperature range: −20 to +50°C
