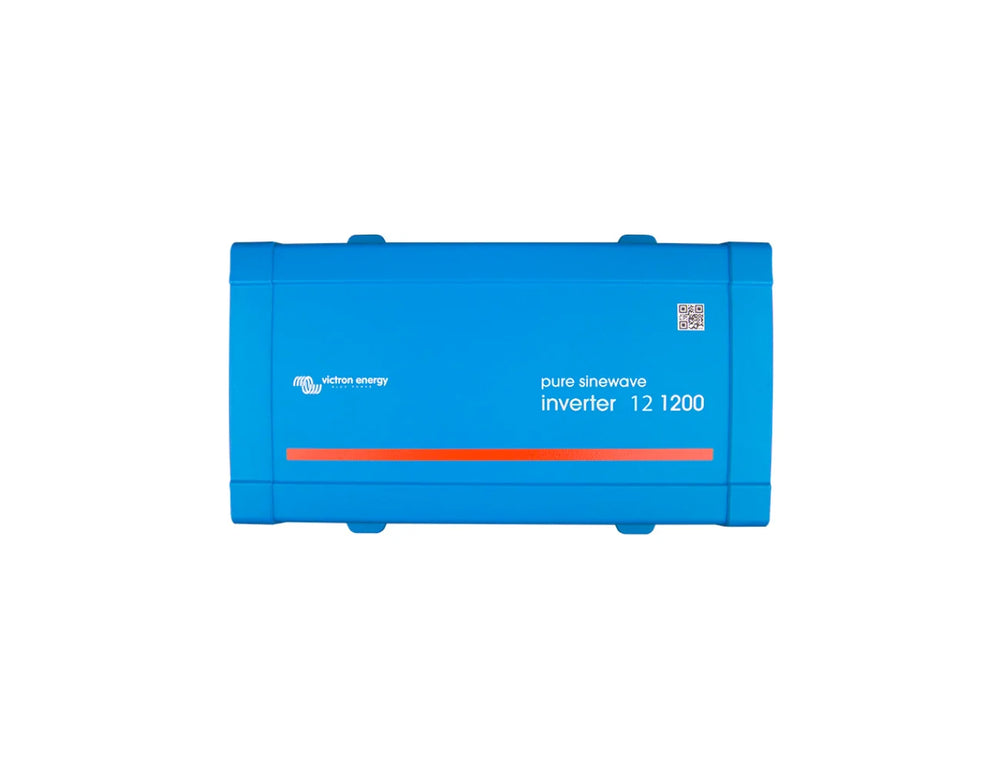

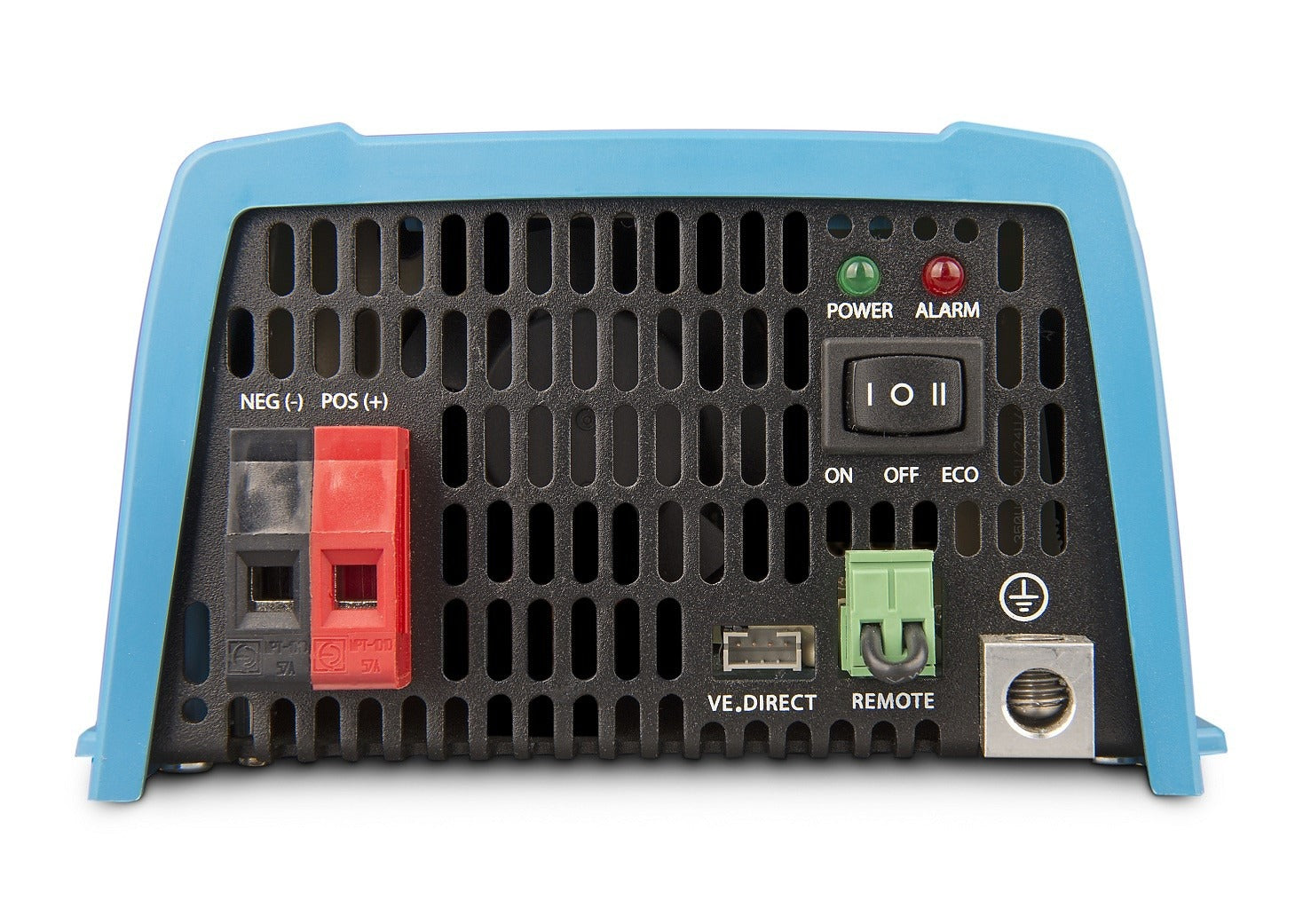

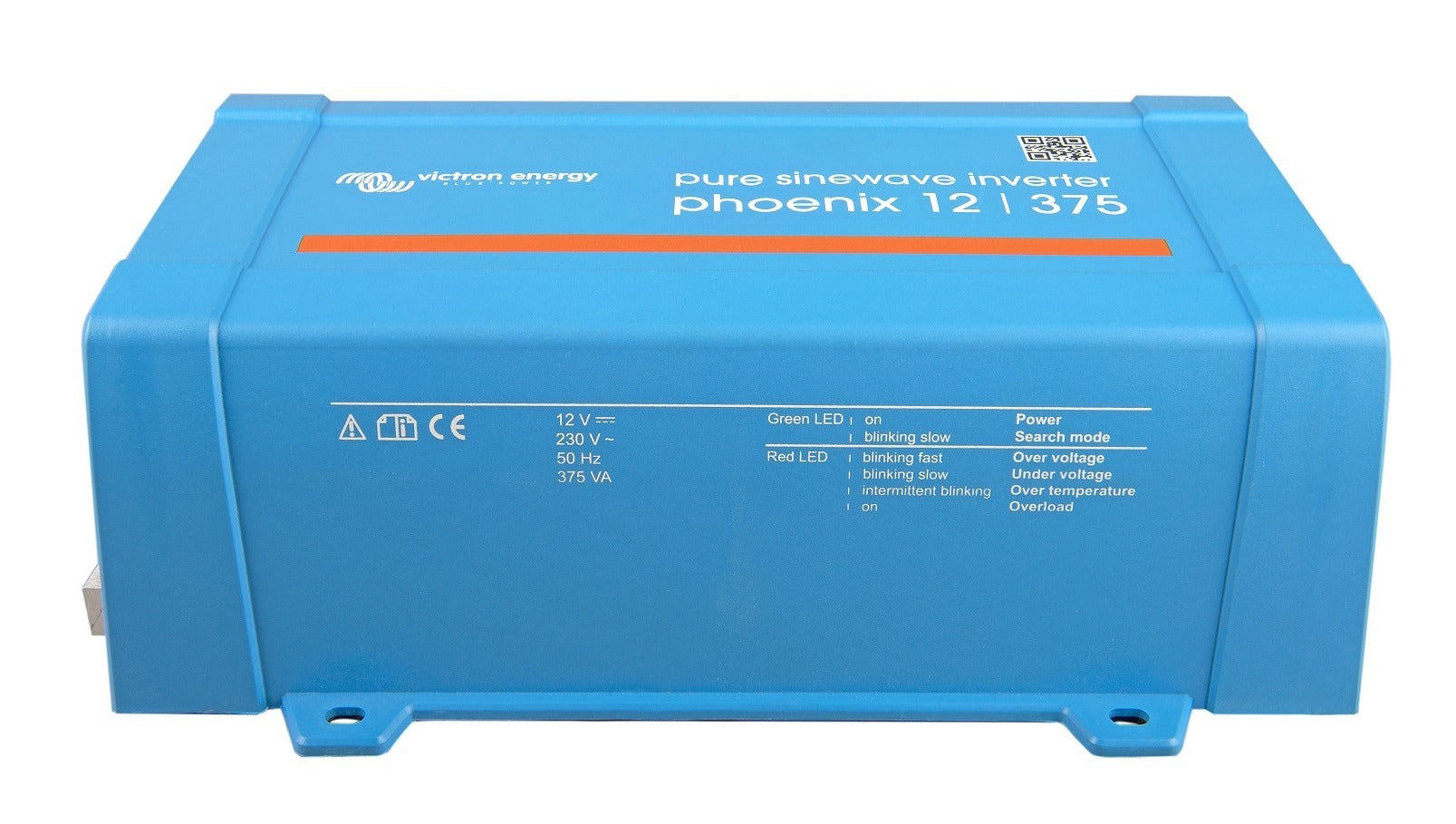

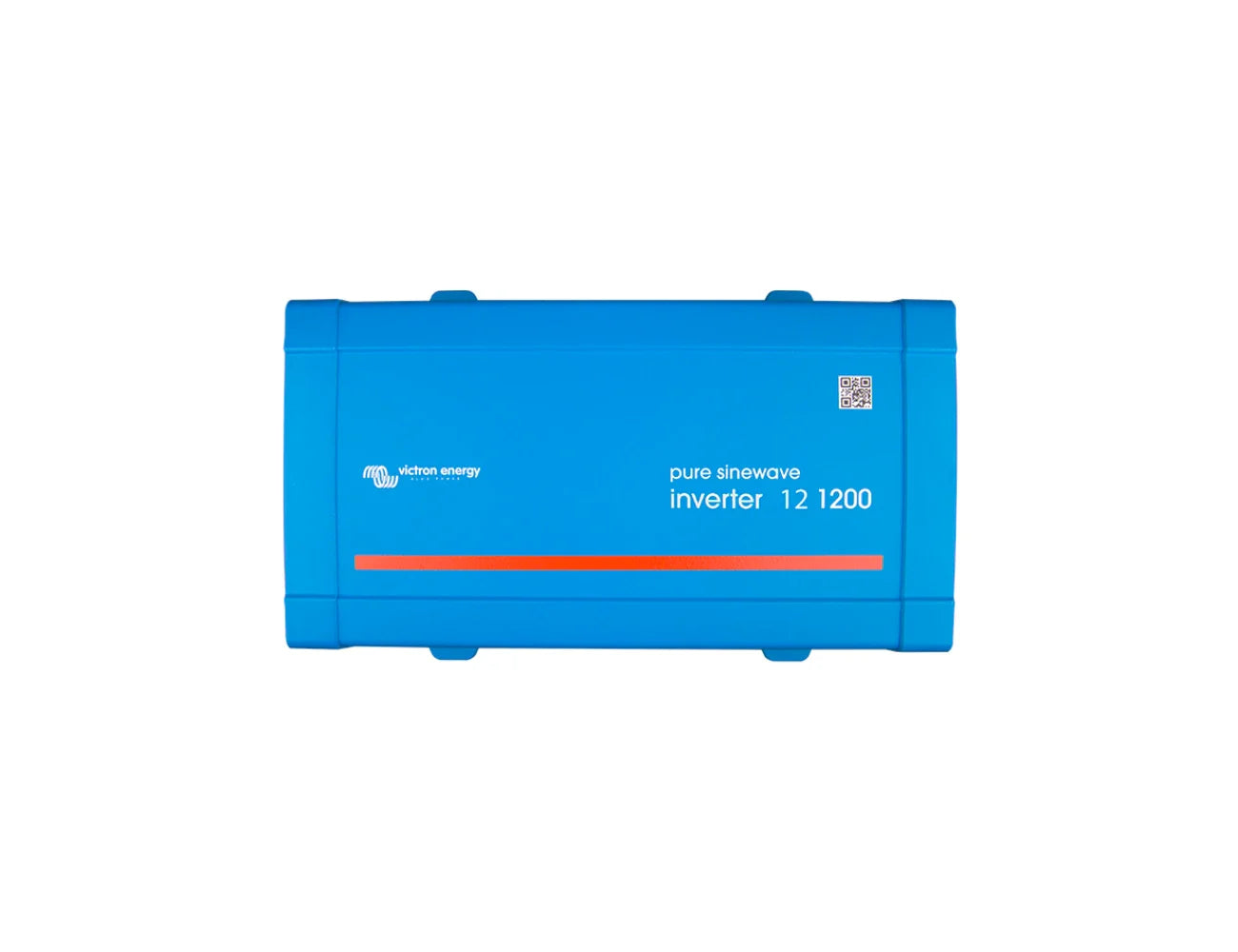

Victron PHOENIX-VE-DIRECT DC/AC Inverter
The Victron Phoenix VE.Direct Inverter offers high-performance power conversion in a compact and durable design. With proven reliability, advanced features, and easy configurability, this inverter is ideal for powering sensitive electronics, tools, and appliances in off-grid, mobile, or backup systems. Applications:The Phoenix VE.Direct Inverter...
Read MoreThe Victron Phoenix VE.Direct Inverter offers high-performance power conversion in a compact and durable design. With proven reliability, advanced features, and easy configurability, this inverter is ideal for powering sensitive electronics, tools, and appliances in off-grid, mobile, or backup systems.
Applications:
The Phoenix VE.Direct Inverter is ideal for:
- Off-grid systems powering sensitive electronics in remote locations.
- Mobile applications in vehicles, RVs, and boats.
- Backup power systems for homes or small businesses.
Why Choose the Victron Phoenix VE.Direct Inverter?
Combining efficiency, versatility, and advanced monitoring capabilities, the Phoenix VE.Direct Inverter delivers dependable power conversion for a range of applications. Its compact design and configurable settings make it a favourite for users seeking reliability and control.
Features
- Proven Reliability: Built with a robust full-bridge design and toroidal transformer for long-term durability and consistent performance.
- High Start-Up Power: Easily handles inrush currents for demanding loads such as LED lights, halogen lamps, and power tools.
- VE.Direct Communication Port: Enables convenient monitoring and configuration via a computer or mobile device using the VictronConnect app.
- Fully Configurable Settings: Adjust alarm levels, cut-off voltages, output voltage, frequency (50/60Hz), and ECO mode via Bluetooth or USB.
- ECO Mode for Energy Savings: Automatically switches to standby when the load drops below a preset threshold, reducing power consumption.
- Wide Range of Models: Available in 250VA to 1200VA configurations with options for 12V, 24V, and 48V systems.
- Automatic Transfer Switch Compatibility: Works with the Filax Automatic Transfer Switch for simple switchover to another AC source.
- Compact and Lightweight: Designed for easy installation and portability.
Specifications
| INPUT | |
|---|---|
| Input DC Voltage | 12Vdc: 9.2 - 17V 24Vdc: 18.4 - 34V 48Vdc: 36.8 - 62V |
| DC low shutdown (adjustable) | 9.3V, 18.6V, 37.2V |
| DC low restart and alarm (adjustable) | 10.9V, 21.8V, 43.6V |
| Battery charge detect (adjustable) | 14V, 28V, 56V |
| OUTPUT | |
|---|---|
| Output voltage | 230Vac or 120Vac +/- 3% |
| Output Frequency | 50Hz or 60Hz +/- 0,1% |
| Output power | 180VA,375VA, 500VA, 800VA See selection table |
| Efficiency | 87% - 91% Typically |
| BATTERY MANAGEMENT | |
|---|---|
| Battery Alarm | An excessively high or low battery voltage is indicated by an audible and visual alarm, and a relay for remote signalling. |
| BMV Battery Monitor | Features advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. The software includes complex calculation algorithms to exactly determine the state of change of the battery. The BMV selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery. |
| ACCESSORIES | |
|---|---|
| Remote on-off | Yes |
| Automatic transfer switch | Filax . |
| VE Direct Bluetooth Smart Dongle | Must be ordered separately |
| PROTECTION | |
|---|---|
| Input | Battery voltage too high Battery voltage too low DC ripple too high |
| Output | Output short circuit Output overload |
| Temperature | Temperature too high |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | EN-IEC 60335-1 / EN-IEC62109-1 |
| EMC | EN55014-1, EN55014-2, EN61000-6-1, EN61000~6~2, EN61000-6-3 |
| Automotive Directive | ECE R10-4 |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -40 to +65°C (fan assisted cooling) Derate 1.25% per °C above 40 °C |
| Humidity | Max 95% (non condensing) |
| MECHANICAL | |
|---|---|
| Material & Colour | Steel chassis and plastic cover (Blue Ral 5012) |
| Battery connection | Screw terminals |
| Maximum cable cross section | 250VA ~ 500VA: 10mm/AWG8 800VA: 25mm/AWG4 |
| AC outlet | AU/NZ (AS/NZS 3112) |
| Protection category | IP 21 |
| Dimensions & Weight | 250VA: 86 x 165 x 260mm, 2.4kg 375VA:;86 x 165 x 260mm, 3kg 500VA: 86 x 172 x 275mm, 3.9kg 500VA, 12V: 105 x 230 x 325mm, 5.5kg 800VA, 24V-48V: 105 x 216 x 305mm, 5.5kg |
Selection Table
| MODEL DESCRIPTION | DC INPUT RANGE | ZERO LOAD INPUT POWER | OUTPUT POWER 25°C | OUTPUT POWER 25°C/40°C | PEAK POWER |
|---|---|---|---|---|---|
| Phoenix Inverter 12/250 230V VE.Direct AU/NZ | 9.2 - 17V | 4.2W | 250VA | 200/175W | 400W |
| Phoenix Inverter 12/375 230V VE.Direct AU/NZ | 9.2 - 17V | 5.6W | 375VA | 300/260W | 700W |
| Phoenix Inverter 12/500 230V VE.Direct AU/NZ | 9.2 - 17V | 6W | 500VA | 400/350W | 900W |
| Phoenix Inverter 12/800 230V VE.Direct AU/NZ | 9.2 - 17V | 6.5W | 800VA | 650/560W | 1500W |
| Phoenix Inverter 24/250 230V VE.Direct AU/NZ | 18.4 - 34V | 5.2W | 250VA | 200/175W | 400W |
| Phoenix Inverter 24/375 230V VE.Direct AU/NZ | 18.4 - 34V | 6.1W | 375VA | 300/260W | 700W |
| Phoenix Inverter 24/500 230V VE.Direct AU/NZ | 18.4 - 34V | 6.5W | 500VA | 400/350W | 900W |
| Phoenix Inverter 24/800 230V VE.Direct AU/NZ | 18.4 - 34V | 7W | 800VA | 650/560W | 1500W |
| Phoenix Inverter 48/250 230V VE.Direct AU/NZ | 36.8 - 62V | 7.9W | 250VA | 200/175W | 400W |
| Phoenix Inverter 48/375 230V VE.Direct AU/NZ | 36.8 - 62V | 8.5W | 375VA | 300/260W | 700W |
| Phoenix Inverter 48/500 230V VE.Direct AU/NZ | 36.8 - 68V | 9W | 500VA | 400/350W | 900W |
| Phoenix Inverter 48/800 230V VE.Direct AU/NZ | 36.8 - 62V | 9.5W | 800VA | 650/560W | 1500W |
Technical Drawings
