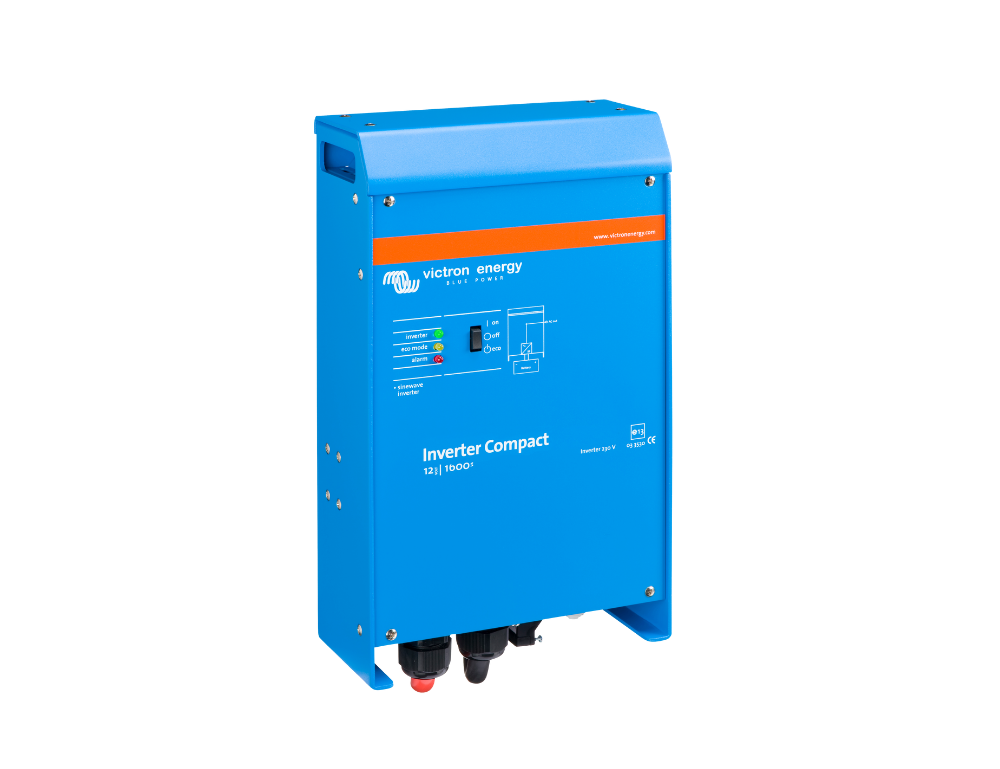

Victron Inverter Compact Series DC/AC Inverter
The Victron Inverter Compact Series DC/AC Inverter offers reliable, high-quality power conversion, making it the perfect choice for professional and consumer applications. With its compact design, superior efficiency, and advanced features, the Phoenix Series ensures uninterrupted power for demanding loads in off-grid, mobile, or backup systems....
Read MoreThe Victron Inverter Compact Series DC/AC Inverter offers reliable, high-quality power conversion, making it the perfect choice for professional and consumer applications. With its compact design, superior efficiency, and advanced features, the Phoenix Series ensures uninterrupted power for demanding loads in off-grid, mobile, or backup systems.

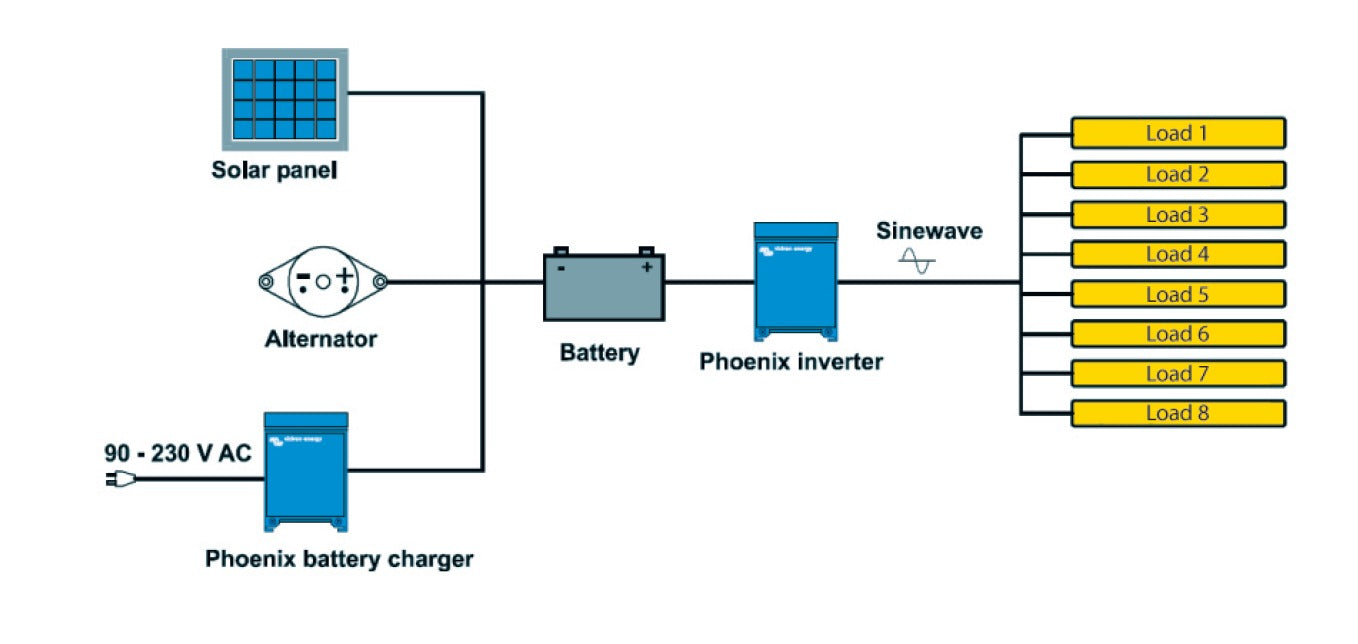

Applications:
The Phoenix Series Inverter is ideal for:
- Off-Grid Systems: Powering homes, remote locations, and cabins with clean, reliable energy.
- Mobile Applications: Supporting power needs in RVs, trucks, and boats.
Backup Power Systems: Ensuring uninterrupted power for essential loads during outages.
- Industrial Applications: Providing robust performance for demanding industrial equipment.
Why Choose the Victron Phoenix Series?
Engineered for versatility and reliability, the Phoenix Series combines advanced technology with a rugged design to deliver dependable power conversion. Whether you're powering sensitive electronics or heavy-duty appliances, the Phoenix Series is built to perform under any conditions.
Features
- True Sine Wave Output: Ensures compatibility with sensitive electronics and appliances for smooth and reliable operation.
- SinusMax Technology: Delivers exceptional start-up power for challenging loads, such as compressors and electric motors.
- Parallel and Three-Phase Capability: Scale up power by connecting up to six units in parallel or three-phase configurations, achieving outputs of up to 30 kVA.
- High Efficiency: Achieves up to 95% efficiency, reducing energy losses and operating costs.
- Wide Range of Models: Available in power ratings from 1200 VA to 5000 VA, with options for 12V, 24V, and 48V systems.
- Customisable Settings: VE.Bus port allows monitoring and configuration of parameters such as output voltage, frequency, and alarm conditions via VictronConnect or VEConfigure software.
- Rugged and Durable Design: Built to withstand harsh environments with fan-assisted cooling and robust protections.
- Remote Monitoring: Integrates with GX devices and the VRM portal for local and remote system monitoring.
Specifications
| GENERAL | |
|---|---|
| Input Voltage | 12Vdc: 9.5-17Vdc 24Vdc: 19-33Vdc 48Vdc: 38-66Vdc |
| Output voltage | 230Vac +/- 2% Can be adjusted to 240Vac |
| Output Frequency | 50Hz +/- 0,1% Can be adjusted to 60 Hz |
| Crest factor | 3:1 non linear load |
| Parallel and 3-phase operation | Yes |
| Programmable relay | Can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230 V / 4 A DC rating: 4 A up to 35 VDC, 1A up to 60VDC |
| Remote on-off | Yes |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| PROTECTION | |
|---|---|
| Protection Key | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 V AC on inverter output g) input voltage ripple too high |
| STANDARDS | |
|---|---|
| Safety | EN60335-1 |
| Emission Immunity | EN55014-1, EN55014-2 |

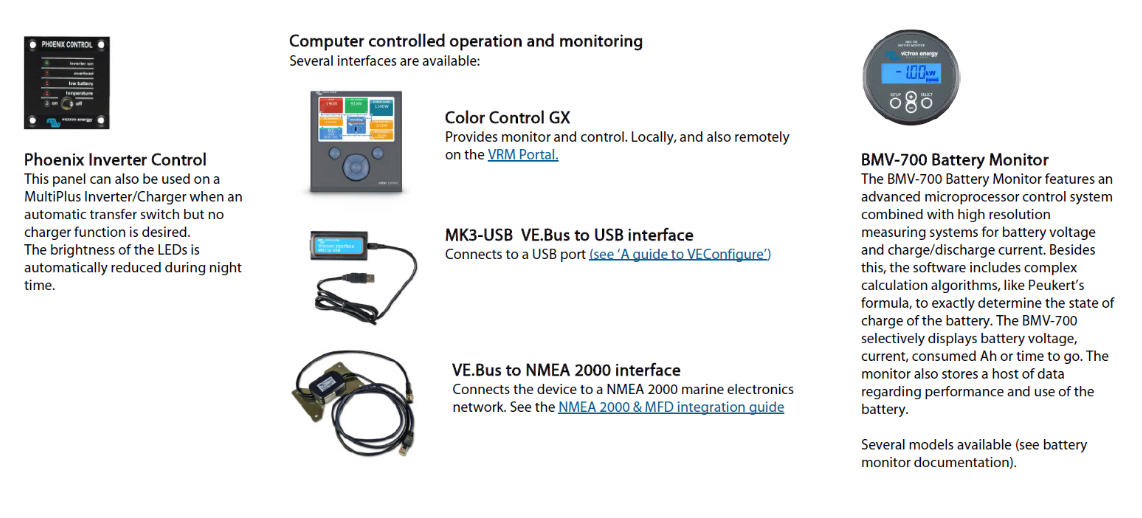

| OPTIONS | |
|---|---|
| Phoenix Inverter Control | This panel can also be used on a MultiPlus Inverter/Charger when an automatic transfer switch but no charger function is desired. The brightness of the LEDs is automatically reduced during night time. |
| Color Control GX | Provides monitor and control. Locally, and also remotely on the VRM Portal. |
| MK3-USB VE.Bus to USB interface | Connects to a USB port |
| VE.Bus to NMEA 2000 interface | Connects the device to a NMEA 2000 marine electronics network. |
| BMV-700 Battery Monitor | The BMV-700 Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms, like Peukert’s formula, to exactly determine the state of charge of the battery. The BMV-700 selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery. |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -40 to +50°C (fan assisted cooling) |
| Humidity | Max 95% (non condensing) |
| MECHANICAL | |
|---|---|
| Material | Aluminium (Blue Ral 5012) |
| Protection category | IP 21 |
| Battery connections | 1200 - 1600VA: battery cables of 1.5 meter included 2000 - 3000VA: M8 bolts 5000VA: 2+2 M8 bolts |
| 230 V AC-connection | 1200 - 1600VA: G-ST18i plug 2000 - 3000VA: Spring-clamp 5000VA: Screw terminals |
| Dimensions | 1200 - 1600VA: 375x214x110 mm 2000VA: 520x255x125 mm 3000VA: 362x258x218 mm 5000VA: 444x328x240 mm |
| Weight | 1200 - 1600VA: 10kg 2000VA: 12kg 3000VA: 18kg 5000VA: 30kg |
Selection Table
| PHOENIX INVERTER | C12/1200 C24/1200 |
C12/1600 C24/1600 |
C12/2000 C24/2000 |
12/3000 24/3000 48/3000 |
24/5000 48/5000 |
|---|---|---|---|---|---|
| Cont. output power at 25ºC | 1200 VA | 1600 VA | 2000 VA | 3000 VA | 5000 VA |
| Cont. output power at 25ºC | 1000 W | 1300 W | 1600 W | 2400 W | 4000 W |
| Cont. output power at 40ºC | 900 W | 1200 W | 1450 W | 2200 W | 3700 W |
| Cont. output power at 65ºC | 600 W | 800 W | 1000 W | 1700 W | 3000 W |
| Peak power | 2400 W | 3000 W | 4000 W | 6000 W | 10000 W |
| Max. efficiency 12/ 24 /48 V | 92 / 94 / 94 % | 92 / 94 / 94 % | 92 / 92 % | 93 / 94 / 95% | 94 / 95 % |
| Zero load power 12 / 24 / 48 V | 8 / 10 / 12 W | 8 / 10 / 12 W | 9 / 11 W | 20 / 20 / 25 W | 30 / 35 W |
| Zero load power in AES mode | 5 / 8 / 10 W | 5 / 8 / 10 W | 7 / 9 W | 15 / 15 / 20 W | 25 / 30 W |
| Zero load power in Search mode | 2 / 3 / 4 W | 2 / 3 / 4 W | 3 / 4 W | 8 / 10 / 12 W | 10 / 15 W |
Technical Drawings
