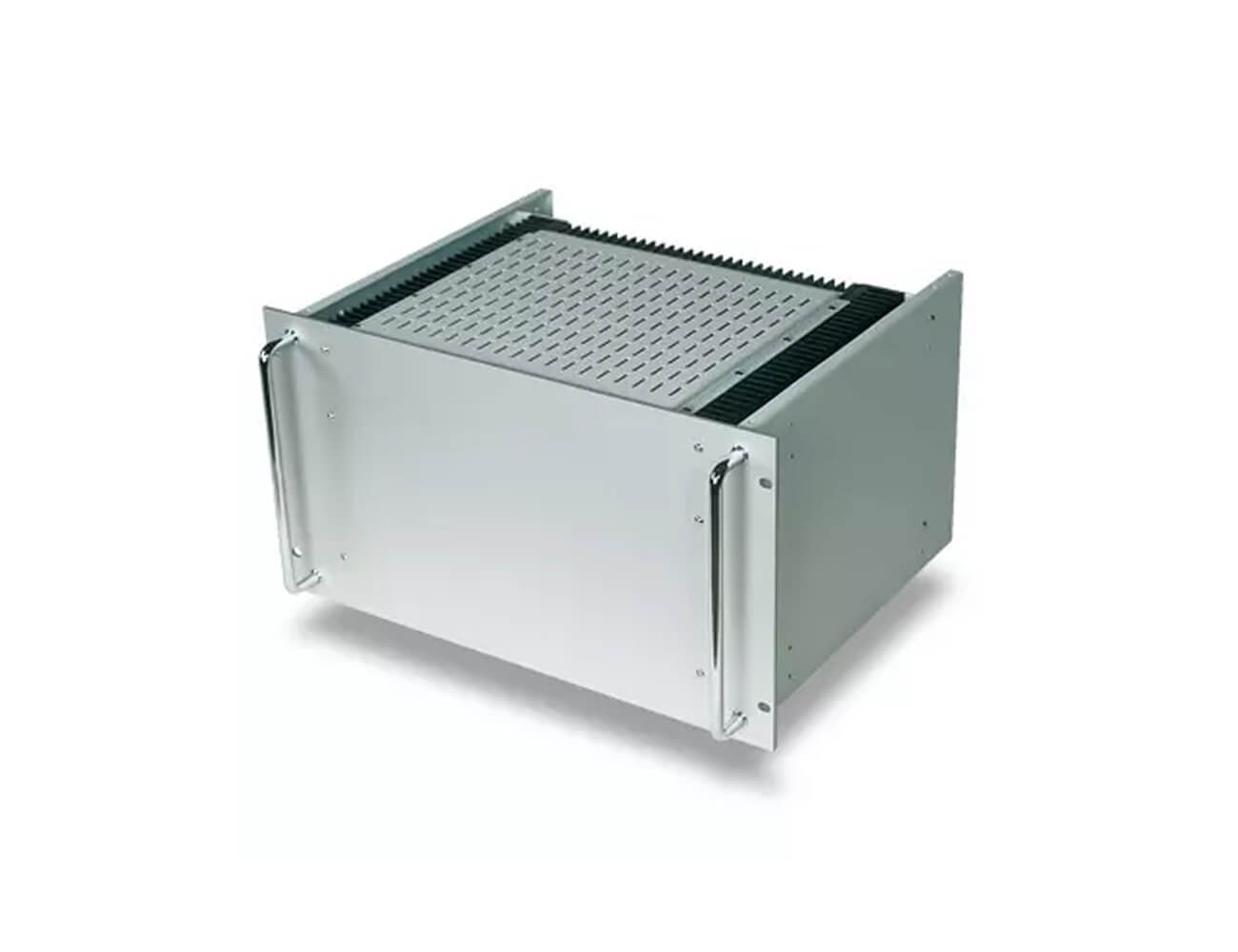

Schaefer C5600A-SERIES AC/DC Power Supply
The Schaefer C5600A Series is a high-power AC/DC power supply for industrial applications, providing output power from 4.5kW to 6kW. This series supports a wide range of industrial voltage outputs, from as low as 5Vdc to 400Vdc, with fan-assisted cooling to ensure reliable performance in demanding environments. Designed for flexibility, the C560...
Read MoreThe Schaefer C5600A Series is a high-power AC/DC power supply for industrial applications, providing output power from 4.5kW to 6kW. This series supports a wide range of industrial voltage outputs, from as low as 5Vdc to 400Vdc, with fan-assisted cooling to ensure reliable performance in demanding environments. Designed for flexibility, the C5600A Series can be mounted within a 19" cabinet or on a wall-mountable plate to suit various industrial requirements. With several options for monitoring, control, and additional environmental protection, the C5600A Series is well-suited for high-demand sectors such as Renewable Energy, Utilities, Mining, and Heavy Industry.
Show Lessor send a quick enquiry about this product only
Features
- Industrial Grade AC/DC Power Supply
- High Output Power: 4.5kW - 6kW
- AC Input: 1-Phase and 3-Phase Models
- Wide Range of DC outputs 5, 9, 12, 15, 24, 28, 48, 60, 110, 200, 220, 400
- Flexible mounting via 19" plug-in module or wall plate
- Multiple units can be easily installed for high power / redundant installations.
Specifications
| INPUT | |
|---|---|
| Input voltage | 1ph 115/230Vac 3ph 200/400/480Vac See selection table Units will turn off with under or over input voltage. |
| No-load input | 30W typical |
| Inrush current | 3-phase AC input limited by thermister |
| Switch on time | <1s typical. |
| Input Options | See selection table for details Option i: Inrush current limiting Option ie: Electronic inrush current limiting Option sd: Reverse polarity protection for DC input by input by series diode Option ad: Reverse polarity protection for DC input by anti parallel diode Option au: Auto-ranging |
| PROGRAMMING | |
|---|---|
| Programming of output voltage from 0 to 100 % | eu1: by external signal, 0 - 10 V eu2: by external signal, 4 - 20 mA eu3: by 270° potentiometer eu4: by 10 turn potentiometer |
| Programming of output current from 0 to 100 % | ei1: by external signal, 0 - 10 V ei2: by external signal, 4 - 20 mA ei3: by 270° potentiometer ei4: by 10 turn potentiometer |
| Isolating ampliï¬Âer for programming | lso: Programming signal is galvanically isolated from any potentials of the power supply. |
| Programming via | rs: RS232 (external) can: CAN Bus (external) |
| OUTPUT | |
|---|---|
| Output voltage | Voltage range; 4.5 - 400Vdc See selection table |
| Output power | 4.5kW to 6kW See selection table. |
| Ripple & noise | <1% + 30mVpp |
| Line regulation | 0.1% (±10%) |
| Load regulation | 0.2% typical, load step 10-90% |
| Load transient | 6% typical, load step 10-90% |
| Response time | 10ms typical ±1% |
| Temp coefficient | 0.02% per °C typical. |
| Holdup time | 10mS at 220VAC typical |
| Turn on rise time | 300mS typical (soft start) |
| Remote sense | standard for all series up to 150 V output, except for battery chargers; up to 10 % of Unom for output < 60 VDC, up to 6 V for output > 60 VDC |
| Overload protection | Current limited at 105%–110% of full load. |
| Overvoltage protection | OVP switches off module with automatic return to operation; after 5 seconds, the unit will remain latched off |
| Efficiency | 80 - 95% typical |
| Output Options | See selection table for details Option dd: Decoupling Diode for redundant / parallel operation Option cs: Active Current Sharing Option csi: Current sharing interrupt (cs included) Option icsi: Current sharing interrupt (csi included), galvanically isolated Option h1: Inhibit by external closing contact, signal referred to input Option h2: Inhibit by voltage signal, signal referred to output Option h3: Inhibit by closing contact, signal referred to output Option rco: Reducing current limiting at over temperature Option rd: Reverse polarity protection for DC output |
| Signal Options | See selection table for details Option pr: input voltage supervision (power ok) incl. relay contacts Option dr: output voltage supervision (DC ok) incl. relay contacts Option cf: charger / converter fail supervision incl. relay contacts Option ac: AC ok for inverter including relay contacts |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -20°C to +75°C (optional -40 to 75°C) |
| Load derating | Derate 2.5% per °C, from +55°C to 75°C |
| Cooling | F: Fan - for increased airflow |
| Storage temperature | -40°C to +85°C |
| Humidity | Up to 95% RH, non-condensing |
| Environment Options | See selection table for details Option t: Tropical protection Option c: Extended temperature range Option ms: Increased mechanical strength |
| STANDARDS | |
|---|---|
| EMI standards | acc. to EN61000-6-4 class A, optionally class B |
| Immunity standards | acc. to EN61000-6-2 |
| Safety / Construction | acc. to EN60950-1 / EN50178 |
| Protection category | IP20 acc. to EN60529 NEMA or others on request |
| MTBF | approx 700Khrs at 40°C acc. to MIL-HDBK-217E (notice 1) |
| MECHANICAL | |
|---|---|
| Mechanics | High power modules are constructed in 19" format |
| Dimensions | See Technical illustration |
| Mechanical Options | Option w: Wall Mounting |
Selection Table
|
INPUT 115Vac ± 20% |
OUTPUT AMPS |
INPUT 230Vac +15% - 20% |
INPUT 3x200Vac +15% - 20% |
INPUT 3x400Vac +15% - 20% |
INPUT 3x480Vac +15% - 20% |
OUTPUT AMPS |
COOLING
|
OUTPUT VOLTAGE |
VOLTAGE ADJUSTMENT |
|---|---|---|---|---|---|---|---|---|---|
| C5660 | 400 | C5680 | C5660V | C5680V | C5690V | 400 | F | 5 | 4.5 - 5.5 |
| C5661 | 380 | C5681 | C5661V | C5681V | C5691V | 400 | F | 9 | 8 - 10 |
| C5662 | 310 | C5682 | C5662V | C5682V | C5692V | 400 | F | 12 | 11-13 |
| C5663 | 265 | C5683 | C5663V | C5683V | C5693V | 375 | F | 15 | 14-16 |
| C5664 | 170 | C5684 | C5664V | C5684V | C5694V | 230 | F | 24 | 23-26 |
| C5665 | 150 | C5685 | C5665V | C5685V | C5695V | 200 | F | 28 | 26-30 |
| C5669 | 80 | C5689 | C5669V | C5689V | C5699V | 110 | F | 48 | 45 - 55 |
| C5666 | 65 | C5686 | C5666V | C5686V | C5696V | 88 | F | 60 | 58 - 68 |
| C5667 | 35 | C5687 | C5667V | C5687V | C5697V | 46 | F | 110 | 100-130 |
| C5667J | 22 | C5687J | C5667VJ | C5687VJ | C5697VJ | 30 | F | 200 | 190-200 |
| C5668 | 18 | C5688 | C5668V | C5688V | C5698V | 24 | F | 220 | 200-250 |
| C5668J | 11 | C5688J | C5668VJ | C5688VJ | C5698VJ | 15 | F | 400 | 380-400 |
| INPUT OPTIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Option “i” | Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “ie” | Electronic inrush current limiting : An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart.. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “sd” | Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency.. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “ad” | Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “au” | Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection. | ||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT OPTIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Option “dd” | Decoupling diode:A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “cs” | Active current sharing:An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “csi” | Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “icsi” | Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “h1” | Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “h2” | Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “h3” | Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “rco” | Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified). | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option "rd" | Reverse polarity protection for DC output: by reverse diode with external fuse. | ||||||||||||||||||||||||||||||||||||||||||||||||
| SIGNAL OPTIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Option “pr” | input voltage supervision (power ok) incl. relay contacts: A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “dr” | output voltage supervision (DC ok) incl. relay contacts: A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “cf” | charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option “ac” | AC ok for inverter including relay contacts: A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication | ||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL OPTIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Option "t" | Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option "c" | Extended temperature range:The circuit is designed and tested for operation at an ambient temperature as low as –40 °C. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Option "ms" | Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration. | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL OPTIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

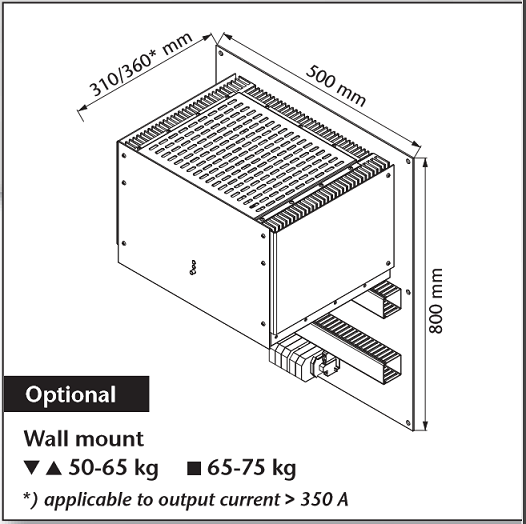

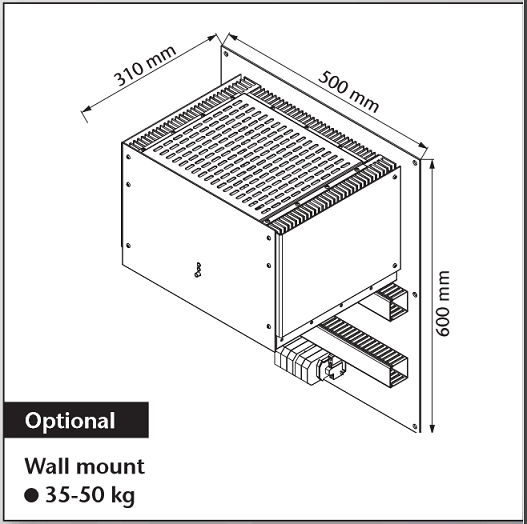

| Option "w" | Wall mounting:Modules, which have the wall mount option, are typically fixed to a structure or within a cabinet. Depending on the size of the module, this may be done with a flat or angled plate (see photo). The load connections are typically through a terminal block. Should the application not require a pluggable module / rack solution, wall mounting presents an alternative option for the customer to choose from. | ||||||||||||||||||||||||||||||||||||||||||||||||

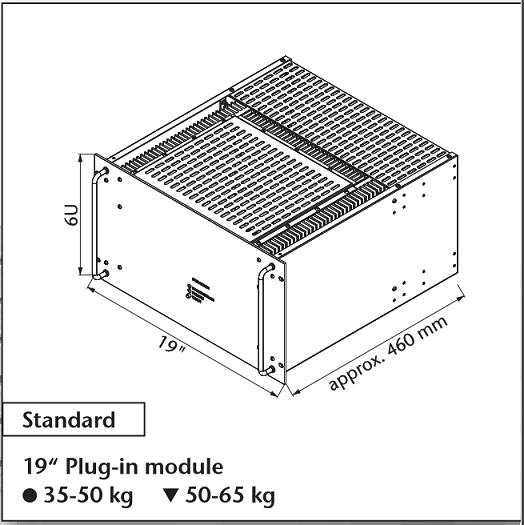

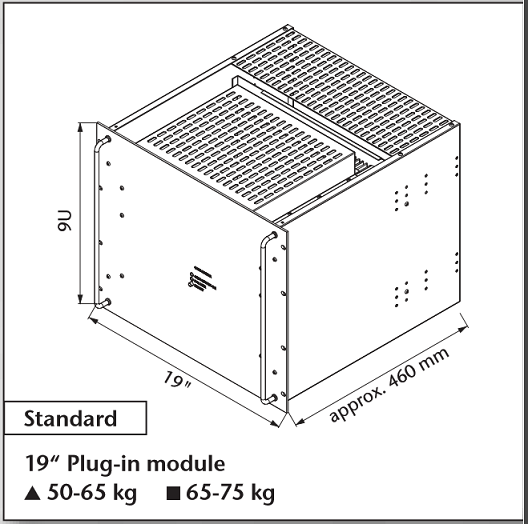

Technical Drawings
