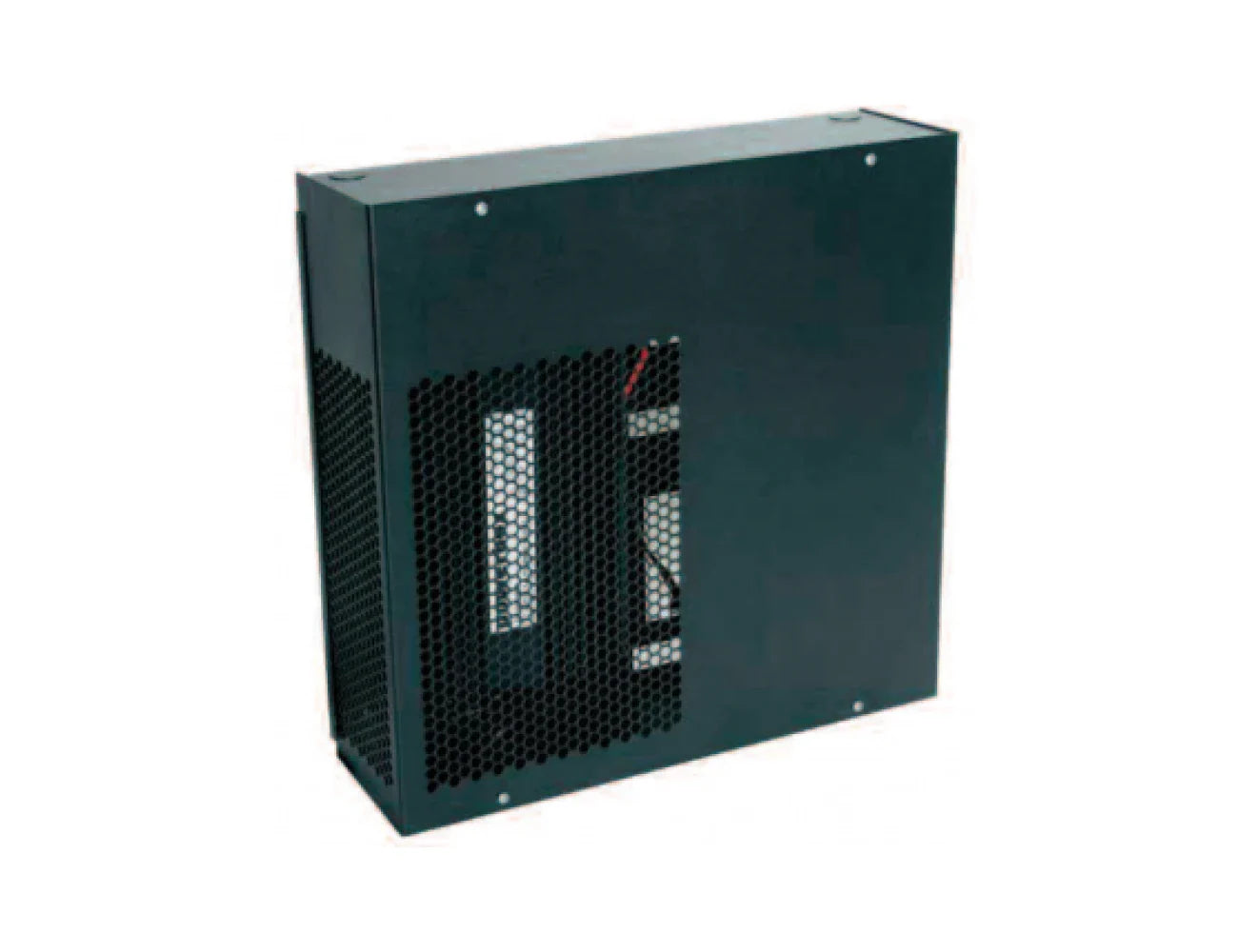

Powerbox WMBB C-S-D Wall Box / Security Enclosure
Ensure the safety of your battery chargers with the WMBB-C-S Enclosure - a robust security cabinet designed for industrial applications. This wall-mountable enclosure boasts a vented design, tamper switch, and flexible GPO cutouts, accommodating chargers like PBB2S, PB256, and PB251A, along with batteries ranging from 7Ah to 17Ah. With dimensions of 375 x 362 x 111.5mm, it offers ample space for secure storage. Explore its specifications for seamless integration into your setup and trust in its sturdy construction to safeguard your critical equipment.
Features
- Wall-mounted security enclosure for 12V and 24V battery systems.
- Supports PBB2S, PB256, PB356 and PB251A DC-UPS / Offline Battery Charger Series.
- Pre-fitted dual tamper switches for enhanced intrusion protection.
- Compatible with 7Ah to 17Ah batteries, including dual 7Ah setup.
- Includes 2 x GPO cut-outs, DIN rail for mounting Jackfuse PDU, and flexible power supply brackets.
- Compact powder coated steel cabinet, 375 x 362 x 111.5 mm, with venting.
| MECHANICAL | |||
|---|---|---|---|
| Power Supply | Includes mounting brackets suitable for Powerbox's range of specialised security DC-UPS / Battery Chargers including: PBB2S, PB256, PB356 and PB251A / -H Series | ||
| Battery Configurations |
Enclosure designed to support the following battery configurations: 1 x 12V 7Ah (150x65x101mm); 1 x 12V 12Ah (155x98x101mm); 1 x 12V 17Ah (181x76x176mm); 2 x 12V 7Ah (150x65x101mm) |
||
| Battery Cable |
Includes wiring harness for installation of 1 x 7Ah 12V battery |
||
| Din Rail |
Pre-drilled mounting holes & din rail provided for load distribution & equipment (suitable for Jackfuse Power Distribution Modules) |
||
| GPO Cutouts |
Flexible installation via 2 x GPO Cutouts (138 x 85mm) |
||
| Tamper Switch |
Tamper switch (pn. 29-1001-01) included (x2). |
||
| Dimensions | 375 x 362 x 115.5mm (LxWxH) | ||
| Weight | <3.5 Kg | ||
| Mounting | Wall Mounting (via 4 x 5.0mm Diameter Mounting Holes) | ||
| MECHANICAL | |||
|---|---|---|---|
| Power Supply | Includes mounting brackets suitable for Powerbox's range of specialised security DC-UPS / Battery Chargers including: PBB2S, PB256, PB356 and PB251A / -H Series | ||
| Battery Configurations |
Enclosure designed to support the following battery configurations: 1 x 12V 7Ah (150x65x101mm); 1 x 12V 12Ah (155x98x101mm); 1 x 12V 17Ah (181x76x176mm); 2 x 12V 7Ah (150x65x101mm) |
||
| Battery Cable |
Includes wiring harness for installation of 1 x 7Ah 12V battery |
||
| Din Rail |
Pre-drilled mounting holes & din rail provided for load distribution & equipment (suitable for Jackfuse Power Distribution Modules) |
||
| GPO Cutouts |
Flexible installation via 2 x GPO Cutouts (138 x 85mm) |
||
| Tamper Switch |
Tamper switch (pn. 29-1001-01) included (x2). |
||
| Dimensions | 375 x 362 x 115.5mm (LxWxH) | ||
| Weight | <3.5 Kg | ||
| Mounting | Wall Mounting (via 4 x 5.0mm Diameter Mounting Holes) | ||
Find the Right Model
| Model Number | ||
|---|---|---|
|
WMBB C-S-D |
Need help finding the right product model?
