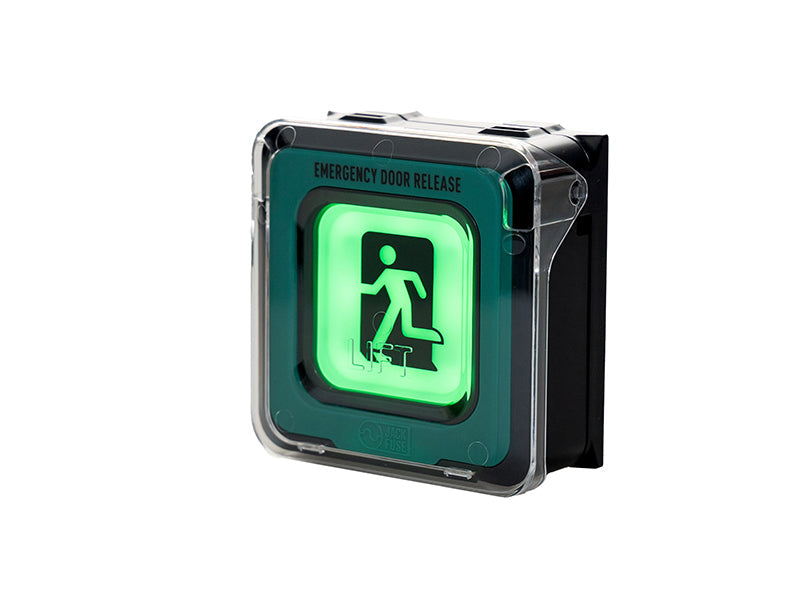

Jack Fuse Electronic Break Glass (EBG)

The Jack Fuse Electronic Break Glass (EBG) redefines emergency door release functionality with a unique combination of local, remote, and automatic reset options. Designed for high-security and remotely managed facilities, it eliminates the need for manual resets, significantly reducing response time, labour costs, and unnecessary door unlock du...

Read More

The Jack Fuse Electronic Break Glass (EBG) redefines emergency door release functionality with a unique combination of local, remote, and automatic reset options. Designed for high-security and remotely managed facilities, it eliminates the need for manual resets, significantly reducing response time, labour costs, and unnecessary door unlock duration after activation.

The EBG is ideal for:
• Emergency door release
• Electric locks and automatic doors
• New access control installations and retrofits
• Remote facilities and managed buildings
• High-security and unmanned sites

Key features include:
• Automatic, remote and local reset
• Lift-up activation guard
• LED status indication and activation sounder
• Adjustable brightness and volume
• Case and wall tamper detection
• Local override switch
• Dual SPDT relay outputs
• Standard footprint for simple retrofit

With visual and audible feedback, a lift-up activation guard, tamper protection, and standard mounting footprints, the EBG is an ideal solution for both new installations and retrofits. Its dual relay outputs enable direct interface with electric locks, auto doors, and access control systems, while optional override functions support service and maintenance workflows.

The EBG enhances both security and efficiency in access-controlled environments, offering a modern, self-managed upgrade to traditional break glass units.

Show Less

Model:
Unit Price
—
or send a quick enquiry about this product only
Features
  • Automatic, Remote & Local Reset Options: Reset can occur via lock power cycle, remote control voltage, or local button. All reset methods can be combined for added flexibility.
  • Integrated Audible & Visual Feedback: Activation triggers an LED status indicator and internal sounder, both with adjustable brightness and volume.
  • Tamper Protection & Lift-Up Guard: Case and wall tamper switches plus a hinged guard protect against accidental or unauthorised activation.
  • Dual Relay Outputs: Includes two 3A SPDT (Form C) relays for seamless integration with electric locks, auto doors, and control panels.
  • Universal Mounting Compatibility: Compatible with standard square break glass footprints. Optional surface-mount back box available for hardwired installations.
  • Low Power Operation with Fail-Safe Design: Operates at 12V or 24VDC and defaults to lock release on power failure, ensuring life safety compliance.
Specifications
TECHNICAL SPECIFICATIONS
Conductor size – relays and common terminal 2.5mm² (22–12AWG)
Conductor size – Tamper Terminal 1.5mm² (26–14AWG)
Relay Contact Max Current  3A
Relay Contact Configuration SPDT (1 Form C) X 2
Tamper Contact  NC 1A max
Operating voltage 12 & 24Vdc* - Fail safe**
Power 55mA @ 12Vdc (red LED + sounder on)
Dimensions 86 x 86 x 40mm (with guard)
Operations 40,000 (actuator presses)
Primary materials Polycarbonate, Polyamide 46, fibreglass
Colour Charcoal with green facia
RoHS Compliant
AUS/NZ (RCM-EMC) 61000.6.3 Compliant
Notes

*Built in low power setting to help performance even when lock voltage falls below 12Vdc.

**On power fail the EBG will deactivate and release lock power.



Selection Table
ORDERING CODES
EBG-C

Electronic Break Glass with guard.

Includes: Case plus facia and PCB attached with 4 x M3 self-tapping screws; Running man actuator; Base with tamper bracket attached; Transparent activation cover; 2 X 10mm M3 T10 security machine screws; 2 X 35mm M3.5 machine screws for back box and wall box mounting

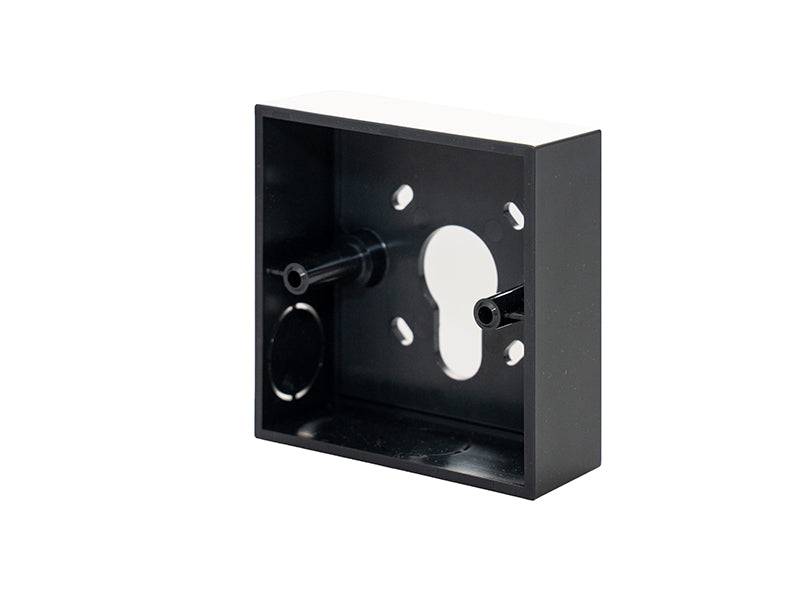

EBG-MB-C Surface mounting back box for EBG-C with conduit knockouts
Mini-FRI-12 Relay for auto door/gate interface 12Vdc
Mini-FRI-24 Relay for auto door/gate interface 24Vdc
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs
The core unit is the EBG-C Electronic Break Glass with guard, supplied with the running man actuator, mounting base with tamper bracket, transparent activation cover, 2 x M3 T10 security screws and 2 x 35mm M3.5 machine screws for back box and wall box mounting. Add the EBG-MB-C surface mounting back box (with conduit knockouts) for hard surface installations, and a Mini-FRI-12 or Mini-FRI-24 relay where the break glass needs to interface with a 12Vdc or 24Vdc automatic door or gate. Custom colours, branding and wording are available on request via sales@powerbox.co.nz.
The Jack Fuse EBG offers three reset methods that can be combined on the same unit. Automatic reset uses the door lock power to energise the EBG, so it resets the next time lock power is cycled by a card read, exit button or access schedule change. Remote reset uses a dedicated control voltage, shared across all EBG units in a facility and switched by a button, key switch or system relay. Local reset uses a concealed reset button. This removes the need for break glass reset keys and costly call-outs to re-secure a door after activation.
The EBG operates on 12Vdc or 24Vdc and draws 55mA at 12Vdc with the red LED and sounder on. It provides two 3A SPDT (1 Form C) relay contacts plus a 1A normally closed tamper contact. Relay and common terminals accept conductors up to 2.5mm² (22–12AWG) and the tamper terminal up to 1.5mm² (26–14AWG). A built-in low power setting maintains performance even when lock voltage falls below 12Vdc.
Yes. The EBG is a fail-safe design: on power failure it deactivates and releases lock power, so the door unlocks. Its two 3A SPDT relays switch lock power directly and can signal the access control panel, and a status monitoring output lets high-security facilities use system logic to check EBG status and reset automatically after a set time period or at a set time of day. It suits electric locks, automatic doors and access-controlled doors in both new installations and retrofits.

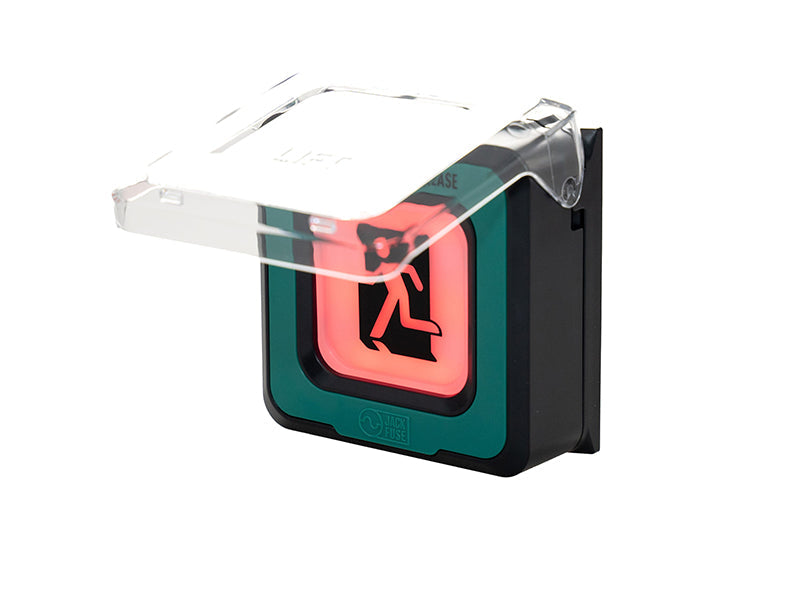

The back-lit facia changes from green to red on activation, and an activation sounder of approximately 80dB gives audible confirmation, with both brightness and volume adjustable to suit the site. A removable lift-up activation guard prevents accidental presses, while case and wall tamper switches flag attempts to remove or interfere with the unit. Together, this feedback discourages nuisance activations and reduces the time doors are left unlocked unnecessarily.
The Jack Fuse EBG is designed for emergency door release on electric locks and automatic doors, including high-security sites, remote facilities, and managed and unmanaged buildings across New Zealand and Australia. It delivers the most value wherever sending a technician to manually reset a traditional break glass is slow or costly, because the door can be re-secured remotely or automatically instead of being left unlocked until someone attends.
The EBG is compliant with AS/NZS 61000.6.3 EMC emission requirements under the RCM scheme and is RoHS compliant. Its fail-safe operation releases lock power if supply is lost, supporting emergency egress. Installers should confirm the complete door release arrangement against the project's building code and fire engineering requirements, and Powerbox can supply compliance documentation on request via sales@powerbox.co.nz.
In most cases, yes. The EBG uses the same mounting hole pattern as traditional square break glass units and fits existing break glass bases and square recessed electrical wall boxes, so no new holes are required. When wired for automatic reset from the existing lock supply, in most cases no new cables are needed either. The slightly larger base covers old paint edges, the unit measures 86 x 86 x 40mm with guard and is rated for 40,000 actuator presses, and the EBG-MB-C back box is available for surface mounting on hard surfaces.
