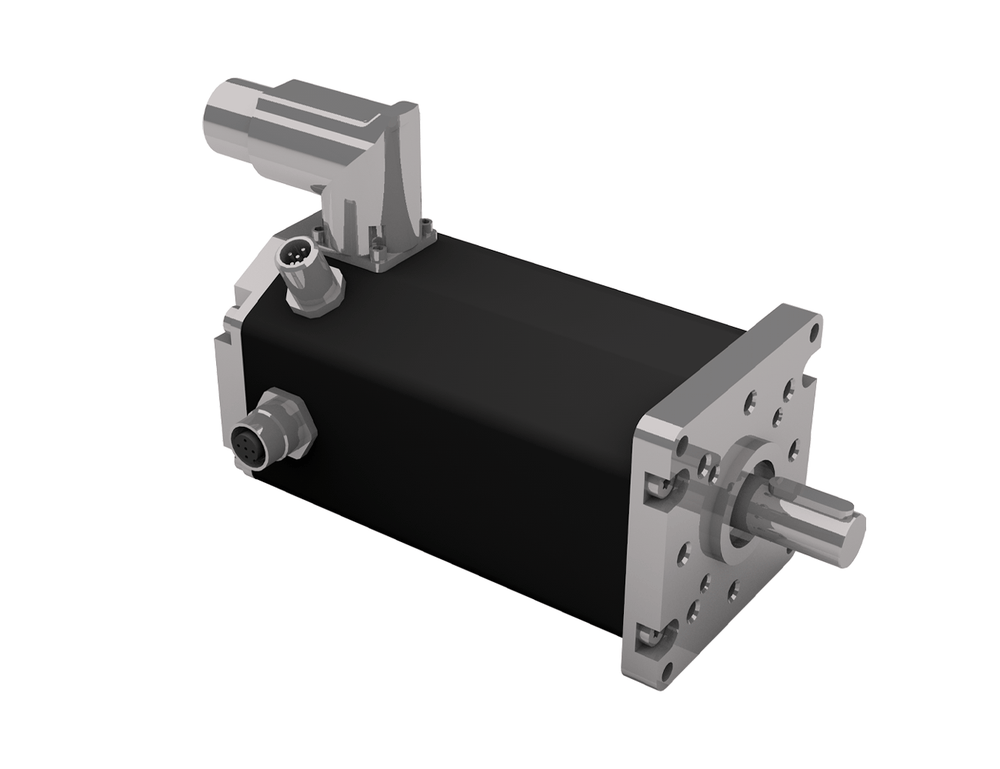

Dunkermotoren BG 75 dPro CO/IO Brushless DC Motor
The Dunkermotoren BG 75 dPro CO/IO is a 3-phase EC motor with an integrated 4Q servo controller featuring field-oriented control (FOC) and sinusoidal vector control. The integrated magnetic encoder MR 1 with 4096 cpr enables high positioning accuracy and an extended usable speed range. Available in BG 75x25, BG 75x50, and BG 75x75 stack lengths ...
Read MoreThe Dunkermotoren BG 75 dPro CO/IO is a 3-phase EC motor with an integrated 4Q servo controller featuring field-oriented control (FOC) and sinusoidal vector control. The integrated magnetic encoder MR 1 with 4096 cpr enables high positioning accuracy and an extended usable speed range. Available in BG 75x25, BG 75x50, and BG 75x75 stack lengths with 12 Vdc, 24 Vdc, and 48 Vdc supply options, the series delivers continuous output power up to 807 W (thermally connected) and peak output power up to 1,317 W.
Control is via CANopen (CO) or stand-alone IO mode through digital and analogue inputs, with full CiA 402 compatibility. Features include 5 configurable digital inputs, 1 analogue input, 3 digital outputs, brake output, S-ramp, interpolation, SSI version available, Safe Torque Off (STO) version available, freely programmable logic, oscilloscope software, Smart Diagnostics, and a ballast circuit. Protection class reaches IP65 for supply voltages above 36 V.
The modular system supports planetary gearboxes (PLG 60 LN, PLG 63, PLG 75, PLG 80 LB), angular gearboxes (SG 120, STG 65, KG 120), hub gearboxes (NG 250, NG 500), and brakes and encoders (E 90 R, E 310 R, RE 30, AE 38).
Show Less
Features
- 3-phase EC motor with integrated 4Q servo controller.
- Field-oriented control (FOC) with sinusoidal vector control.
- Integrated magnetic encoder MR 1 with 4096 cpr.
- Control via CANopen (CO) or stand-alone IO mode.
- Fully CiA 402 compatible.
- 5 configurable digital inputs, 1 analogue input, 3 digital outputs.
- S-ramp, interpolation, and SSI version available.
- Safe Torque Off (STO) version available.
- Freely programmable with oscilloscope software and Smart Diagnostics.
- Protection class up to IP65 (>36 V supply).
Specifications
| BG 75 dPro CO/IO Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| Parameter | Units | BG 75x25 12V |
BG 75x25 24V |
BG 75x25 48V |
BG 75x50 24V |
BG 75x50 48V |
BG 75x75 24V |
BG 75x75 48V |
| Nominal voltage | VDC | 12 | 24 | 48 | 24 | 48 | 24 | 48 |
| Nominal current (thermally connected / insulated) |
A* | 32.6 / 25.1 | 17.9 / 14.0 | 9.2 / 7.2 | 29.9 / 22.1 | 15.6 / 11.5 | 36.3 / 22.0 | 18.9 / 13.0 |
| Nominal torque (thermally connected / insulated) |
Nm* | 0.95 / 0.66 | 1.02 / 0.72 | 1.05 / 0.74 | 1.65 / 1.11 | 1.78 / 1.18 | 2.10 / 1.15 | 2.39 / 1.49 |
| Nominal speed (thermally connected / insulated) |
rpm* | 3170 / 3640 | 3370 / 3850 | 3390 / 3950 | 3580 / 4040 | 3530 / 4020 | 3460 / 3900 | 3230 / 3650 |
| Maximum torque | Nm** | 1.36 | 2.26 | 3.01 | 2.76 | 5.21 | 3.12 | 6.15 |
| No load speed | rpm* | 4450 | 4680 | 4840 | 4460 | 4390 | 3990 | 3850 |
| Nominal output power (thermally connected / insulated) |
W** | 314 / 251 | 360 / 290 | 371 / 304 | 620 / 468 | 658 / 497 | 760 / 470 | 807 / 570 |
| Maximum output power | W | 363 | 501 | 528 | 812 | 1026 | 951 | 1317 |
| Torque constant | Nm A⁻¹*** | 0.033 | 0.067 | 0.137 | 0.063 | 0.129 | 0.062 | 0.14 |
| Peak current | A** | 40.9 | 32.6 | 33.6 | 41.7 | 35.9 | 46.8 | 36.7 |
| Voltage range | VDC | 3...58 | 3...58 | 3...58 | 3...58 | 3...58 | 3...58 | 3...58 |
| Rotor inertia | gcm² | 240 | 240 | 240 | 437 | 437 | 652 | 652 |
| Weight of motor | kg | 1.6 | 1.6 | 1.6 | 2.5 | 2.5 | 2.8 | 2.8 |
|
*) Δϑw = 100 K; **) ϑR = 20°C; ***) at nominal point; ****) limited by software; 1) see thermally connected/insulated note
|
||||||||
