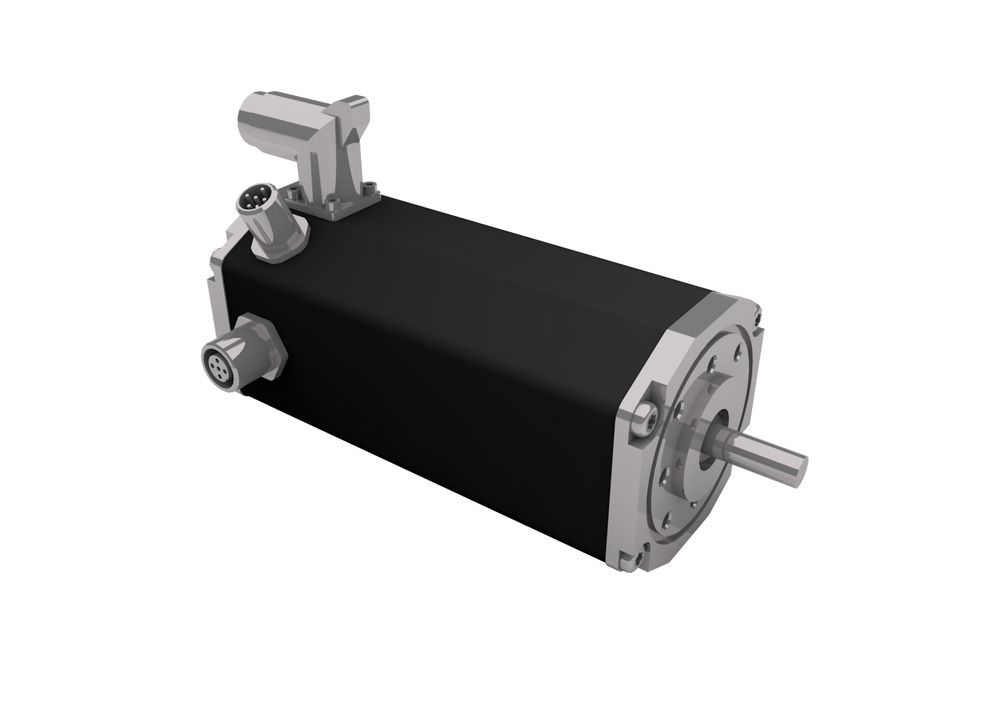

Dunkermotoren BG 66 dPro CO/IO Brushless DC Motor
The Dunkermotoren BG 66 dPro CO/IO is a 3-phase EC motor with an integrated 4Q servo controller featuring field-oriented control (FOC) and sinusoidal vector control. The integrated magnetic encoder MR 1 with 4096 cpr enables high positioning accuracy, an extended usable speed range, and excellent control characteristics. Available in BG 66x25, B...
Read MoreThe Dunkermotoren BG 66 dPro CO/IO is a 3-phase EC motor with an integrated 4Q servo controller featuring field-oriented control (FOC) and sinusoidal vector control. The integrated magnetic encoder MR 1 with 4096 cpr enables high positioning accuracy, an extended usable speed range, and excellent control characteristics. Available in BG 66x25, BG 66x50, and BG 66x75 stack lengths with 12 Vdc, 24 Vdc, and 48 Vdc supply options, the series delivers continuous output power up to 482 W (thermally connected) and peak output power up to 732 W.
Control is via CANopen (CO) or stand-alone IO mode through digital and analogue inputs. Fully CiA 402 compatible, with 5 configurable digital inputs, 1 analogue input, and 3 digital outputs. Features include S-ramp, interpolation, SSI version available, Safe Torque Off (STO) version available, freely programmable logic, operating hours counter, ballast circuit, Smart Diagnostics, and EPLAN Data Portal support. Protection class reaches IP65 for supply voltages above 36 V.
Compatible with planetary gearboxes (PLG 52 EB/HT, PLG 60, PLG 60 LB, PLG 60 LN, PLG 63 EP/HT, PLG 75 EP/HT, PLG 80 LB), angular gearboxes (SG 80, SG 120, STG 65), hub gearboxes (NG 250), and brakes and encoders (E 90 R, E 100 R, E 105 A, E 310 R, RE 30 TI, AE 38).
Show Less
Features
- 3-phase EC motor with integrated 4Q servo controller.
- Field-oriented control (FOC) with sinusoidal vector control.
- Integrated magnetic encoder MR 1 with 4096 cpr for high positioning accuracy.
- Control via CANopen (CO) or stand-alone IO mode.
- Fully CiA 402 compatible.
- 5 configurable digital inputs, 1 analogue input, 3 digital outputs.
- S-ramp, interpolation, and SSI version available.
- Safe Torque Off (STO) version available.
- Freely programmable with oscilloscope software and Smart Diagnostics.
- Protection class up to IP65 (>36 V supply). EPLAN Data Portal support.
Specifications
| BG 66 dPro CO/IO Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Parameter | Units | BG 66x25 12V |
BG 66x25 24V |
BG 66x25 48V |
BG 66x50 24V |
BG 66x50 48V |
BG 66x75 48V |
| Nominal voltage | VDC | 12 | 24 | 48 | 24 | 48 | 48 |
| Nominal current (thermally connected / insulated) |
A* | 14.0 / 13.5 | 11.3 / 8.0 | 5.4 / 4 | 14.0 / 11.2 | 8.3 / 5.8 | 11.9 / 7.1 |
| Nominal torque (thermally connected / insulated) |
Nm* | 0.33 / 0.31 | 0.62 / 0.40 | 0.62 / 0.42 | 0.83 / 0.61 | 1.04 / 0.65 | 1.46 / 0.77 |
| Nominal speed (thermally connected / insulated) |
rpm* | 3900 / 4030 | 3300 / 3820 | 3170 / 3660 | 3200 / 3530 | 3030 / 3500 | 3160 / 3690 |
| Maximum torque | Nm** | 0.77 | 1 | 1.03 | 1.85 | 2.05 | 3.06 |
| No load speed | rpm* | 4700 | 4620 | 4380 | 3800 | 3780 | 3750 |
| Nominal output power (thermally connected / insulated) |
W** | 135 / 129 | 213 / 159 | 206 / 159 | 277 / 226 | 330 / 238 | 482 / 296 |
| Maximum output power | W | 224 | 269 | 277 | 446 | 485 | 732 |
| Torque constant | Nm A⁻¹*** | 0.025 | 0.064 | 0.14 | 0.071 | 0.13 | 0.13 |
| Peak current | A** | 27 | 16.5 | 7.75 | 26 | 13.6 | 20.1 |
| Voltage range (power) | VDC | 3…58 | 3…58 | 3…58 | 3…58 | 3…58 | 3…58 |
| Rotor inertia | gcm² | 70 | 70 | 70 | 129 | 129 | 188 |
| Weight of motor | kg | 1.08 | 1.2 | 1.2 | 1.65 | 1.65 | 2.1 |
|
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point; 1) see thermally connected/insulated note
|
|||||||
