Dunkermotoren AE65 Absolute Encoder

Name: Dunkermotoren AE65 Absolute Encoder
Brand: Powerbox Pacific
SKU: AE65
Availability: OutOfStock

The Dunkermotoren AE65 is an absolute encoder that reports true shaft position the moment the drive powers up, so the axis is referenced immediately — with no homing move or reference run at start-up.It sits inside the motor’s own profile housing rather than mounting as a separate unit, and feeds position to the internal Dunkermotoren controller...

It sits inside the motor’s own profile housing rather than mounting as a separate unit, and feeds position to the internal Dunkermotoren controller. Its opto-mechanical counter retains the turn count through power cycles, so a machine restarts exactly where it stopped.

It integrates with the BG 66 and BG 75 motors, building absolute position feedback into the drive from the outset rather than adding it as a separate component later.

It suits positioning and motion-control tasks that must come up already referenced and hold their count through shutdowns — automated machinery and handling systems where a homing cycle at every restart isn’t acceptable.

Show Less

Select model number

or send a quick enquiry about this product only

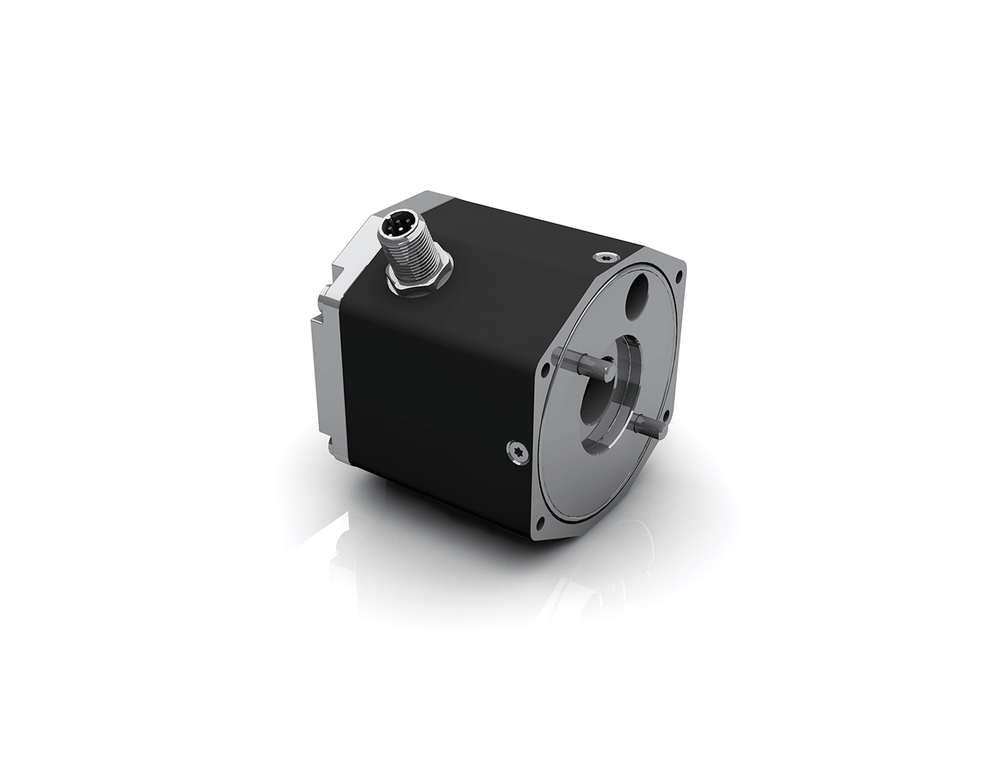

Dunkermotoren AE65 absolute encoder integrated in BG brushless DC motor housing with M12 connector.

Features

Absolute feedback means the drive knows true shaft position the moment it powers up — no homing move at start-up
12 Bit multiturn counting tracks revolutions as well as shaft angle, so position is preserved over multi-turn travel
Opto-mechanical counter buffering retains the turn count through power cycles, so the machine restarts where it stopped
13 Bit singleturn resolution with ±7" repeatability supports tight, repeatable positioning on precision axes
SSI output feeds the internal Dunkermotoren controller directly, keeping feedback wiring inside the drive
Built into the motor’s profile housing — IP 65 protection without adding an external enclosure or extra length

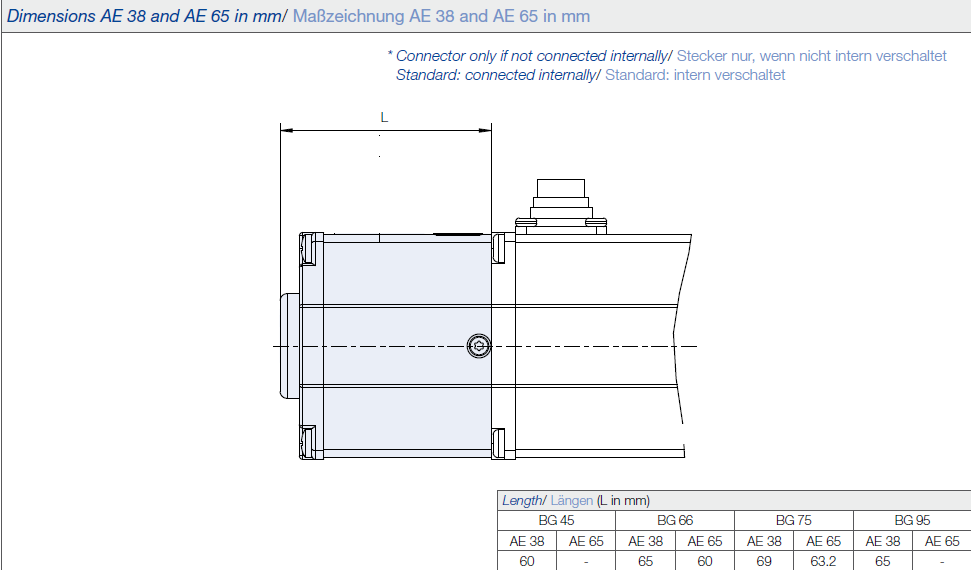

Technical Drawings

Downloads

dunkermotoren-ae-65-absolute-encoder-datasheet.pdf

Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs

What makes the AE65 an “absolute” encoder, and why does it matter?

The AE65 reports true shaft position the instant the drive powers up, so the axis is referenced immediately — no homing move or reference run at start-up, unlike an incremental encoder that only counts change from power-on.

How does the AE65 keep its position count without power?

The AE65 uses an opto-mechanical multiturn counter that retains the turn count through power cycles, so the machine restarts exactly where it stopped.

What resolution does the AE65 provide?

The AE65 provides 13 Bit singleturn and 12 Bit multiturn resolution, giving fine position measurement within each turn and across multiple turns.

Which motors is the AE65 compatible with?

The AE65 integrates with the Dunkermotoren BG 66 and BG 75 brushless DC motor series; per the datasheet it is not offered on the BG 45 or BG 95 frames.

How does the AE65 connect to the drive?

The AE65 outputs over SSI directly to the internal Dunkermotoren motor controller, keeping the feedback wiring inside the motor rather than running to an external interface.

What positioning accuracy does the AE65 offer?

The AE65 has a repeatability of ±7 arcseconds (±7"), so it returns to the same commanded position very consistently. The datasheet specifies this as repeatability rather than absolute accuracy.

How is the AE65 protected inside the motor?

The AE65 is integrated within the motor's profile housing, protecting it without a separate enclosure or added external length.

How do I select or order the AE65?

The AE65 is the integrated absolute-feedback option on the BG 66 and BG 75 motor frames. For selection help or to confirm the right configuration for your Australian or New Zealand installation, contact Powerbox at sales@powerbox.com.au.
