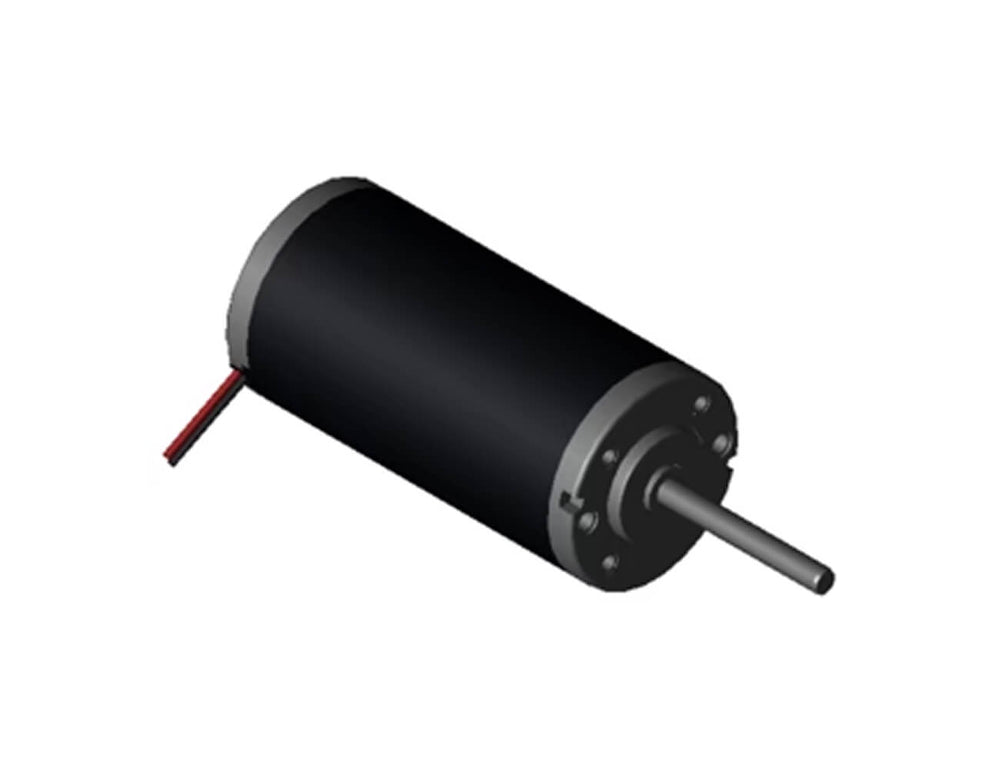

Dunkermotoren GR42 SERIES Brushed DC Motor
The Dunkermotoren GR42 Series Brushed DC Motor is a compact and efficient solution, delivering continuous power outputs up to 21W with peak performance reaching 38W. Designed for diverse applications, this series is ideal for automation systems, small machinery, and precision tools requiring reliable and precise motion control. Key features incl...
Read MoreThe Dunkermotoren GR42 Series Brushed DC Motor is a compact and efficient solution, delivering continuous power outputs up to 21W with peak performance reaching 38W. Designed for diverse applications, this series is ideal for automation systems, small machinery, and precision tools requiring reliable and precise motion control.
Key features include mechanical commutation with a multi-bar commutator for extended operational life and standard ball-bearing construction for durability. With nominal voltages ranging from 12V to 40V, the GR42 Series accommodates varied power supply requirements. Customisation options include shaft configurations, enhanced protection up to IP67, and reduced cogging torque versions for specific application needs. Modular compatibility with Dunkermotoren’s gearboxes, controllers, encoders, and brakes ensures tailored solutions for diverse use cases.
The GR42 Series offers high efficiency, low noise, and vibration resistance, making it suitable for demanding environments where performance and adaptability are critical. Its compact design supports easy integration into space-constrained setups.
For automation, tools, or machinery, the Dunkermotoren GR42 Series delivers the reliability and precision you need.
Show Less
Features
- Nominal Voltage: 12~40VDC
- Stack Length: x25mm~x40mm
- Nominal Torque: 0.038~0.057Nm
- Nominal Speed: 2500~3600rpm
- Nominal Output Power: 3.04~10.27W
- Modular compatibility with optional gearboxes, controllers, encoders, and brakes
Selection Table
| DATA | UNITS | GR 42x25 | GR 42x40 | ||||
|---|---|---|---|---|---|---|---|
| Nominal voltage | VDC | 12 | 24 | 40 | 12 | 24 | 40 |
| Stack length | mm | x25 | x25 | x25 | x40 | x40 | x40 |
| Nominal current | A | 1.9 | 0.86 | 0.55 | 2.7 | 1.2 | 0.8 |
| Nominal torque | Nm | 0.039 | 0.038 | 0.039 | 0.053 | 0.057 | 0.057 |
| Nominal speed | rpm | 3450 | 3600 | 3700 | 3750 | 3100 | 3400 |
| Stall torque | Nm | 0.19 | 0.2 | 0.216 | 0.319 | 0.33 | 0.356 |
| Maximum torque | Nm | 0.19 | 0.2 | 0.216 | 0.319 | 0.33 | 0.356 |
| No load speed | rpm | 4350 | 4200 | 4400 | 4550 | 3800 | 3950 |
| Nominal output power | W | 14.1 | 14.3 | 15.1 | 20.8 | 18.5 | 20.3 |
| Maximum output power | W | 21.6 | 22.1 | 25 | 37.95 | 32.3 | 36.6 |
| Torque constant | Nm A-1 | 0.0253 | 0.0514 | 0.081 | 0.0247 | 0.0584 | 0.0913 |
| Terminal Resistance | Ω | 1.54 | 5.95 | 14.5 | 0.91 | 4.2 | 10.1 |
| Terminal inductance | mH | 1.8 | 8.9 | 18.9 | 1 | 5.1 | 15.7 |
| Starting current | A | 7.8 | 4 | 2.76 | 13.2 | 5.68 | 3.97 |
| No load current | A | 0.34 | 0.17 | 0.11 | 0.44 | 0.18 | 0.12 |
| Demagnetisation current | A | ≥ 14 | ≥ 6.5 | ≥ 4.1 | ≥ 24 | ≥ 10.5 | ≥ 6.3 |
| Rotor inertia | gcm2 | 71 | 71 | 71 | 110 | 110 | 110 |
| Weight of motor | kg | 0.39 | 0.39 | 0.39 | 0.49 | 0.49 | 0.49 |
| External controller | Model | BGE 5510 dPro, BGE 6005 A | BGE 5510 dPro, BGE 6005 A | ||||
| Encoder | Model | RE 20, RE 30 (TI), RE 56 (TI) | RE 20, RE 30 (TI), RE 56 (TI) | ||||
| Brakes | Model | E 38 R | E 38 R | ||||
| Magnetic pulse encoder | Model | ME 52, MG 2 | ME 52, MG 2 | ||||
| Planetary gearbox | Model | PLG 32, PLG 42 K, PLG 42 S, PLG 52 EB/HT | PLG 32, PLG 42 K, PLG 42 S, PLG 52 EB/HT | ||||
| Right-angle gearbox | Model | SG 45, SG 62 | SG 45, SG 62 | ||||
| IP Cover | Model | IP54 cover | IP54 cover | ||||
