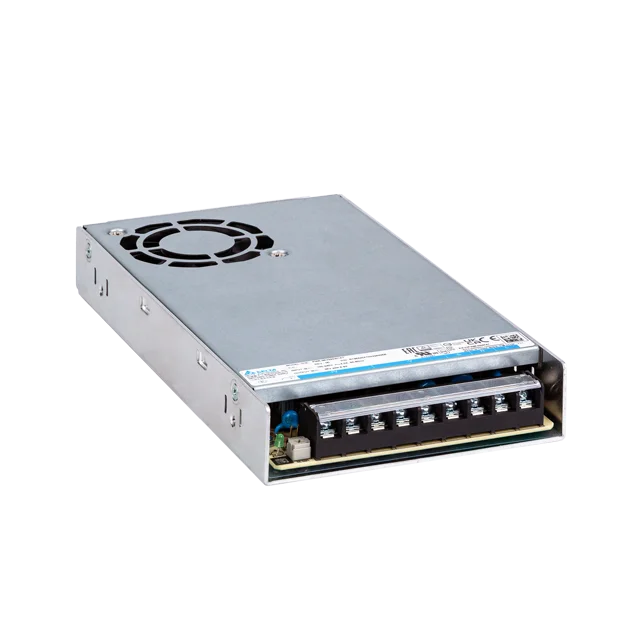

Delta PMR 320W Series Panel Mount AC/DC Power Supply
The Delta PMR 320W Series is a compact panel mount AC/DC power supply range designed for industrial and household applications where low-profile installation, reliable performance and wide operating temperature capability are required. The series accepts a universal 90-264Vac input range, or 127-375Vdc input, and is available in 12Vdc, 24Vdc, 36...
Read MoreThe Delta PMR 320W Series is a compact panel mount AC/DC power supply range designed for industrial and household applications where low-profile installation, reliable performance and wide operating temperature capability are required. The series accepts a universal 90-264Vac input range, or 127-375Vdc input, and is available in 12Vdc, 24Vdc, 36Vdc and 48Vdc single output models. Built-in active PFC, force cooling and a 30mm low-profile enclosed chassis make the PMR series well suited to installations with limited space.
PMR 320W models operate from -40°C to +70°C, with power de-rating above 50°C and below 100Vac. The series includes adjustable output voltage, DC OK LED indication, terminal block connection, and protection functions for overvoltage, overload/overcurrent, overtemperature and short circuit. Certifications and compliance listed in the datasheet include EN 62368-1, EN 60335-1, EN 61558-1/-2-16, UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC 62368-1, CE and UKCA.
Show Less
Features
- Input voltage range: 90-264Vac nominal operation with 127-375Vdc DC input support.
- Output voltage: Available in 12Vdc, 24Vdc, 36Vdc and 48Vdc single output models.
- Output current: Up to 26.7A depending on model.
- Output power: 320.4W to 321.6W max. depending on model.
- Efficiency: Up to 92.0% typ. at 100% load, 230Vac depending on model.
- Active PFC with IEC/EN 61000-3-2 Class A and Class D harmonic current compliance.
- Compact 1U low-profile design with 30mm height.
- Force cooling with built-in fan.
- Wide operating temperature range from -40°C to +70°C.
- Protections: overvoltage, overload/overcurrent, overtemperature and short circuit.
- Terminal block connection with green DC OK LED indicator.
Specifications
| INPUT RATINGS/CHARACTERISTICS | ||||
|---|---|---|---|---|
| Model Number | PMR-12V320W1AT | PMR-24V320W1AT | PMR-36V320W1AT | PMR-48V320W1AT |
| Nominal Input Voltage | 100-240 Vac | |||
| Input Voltage Range | 90-264 Vac | |||
| Nominal Input Frequency | 50-60 Hz | |||
| Input Frequency Range | 47-63 Hz | |||
| DC Input Voltage Range*¹ | 127-375 Vdc | |||
| Input Current | 3.8 A typ. @ 115 Vac, 1.8 A typ. @ 230 Vac |
|||
| Efficiency at 100% Load @230Vac | 90.5% typ. | 91.0% typ. | 91.5% typ. | 92.0% typ. |
| No Load Power Consumption | 0.5 W max. @ 230 Vac | |||
| Max Inrush Current (Cold Start) | 50 A typ. @ 230 Vac | |||
| Power Factor at 100% Load | > 0.96 @ 115 Vac & > 0.93 @ 230 Vac | |||
| Leakage Current | 0.5 mA typ. @ 240 Vac | |||
| *1 Power Supply can operate at DC Input voltage, please connect +pole to L, -pole to N and PE terminal to an earth wire or to the machine ground. | ||||
| OUTPUT RATINGS/CHARACTERISTICS*² | ||||
|---|---|---|---|---|
| Model Number | PMR-12V320W1AT | PMR-24V320W1AT | PMR-36V320W1AT | PMR-48V320W1AT |
| Nominal Output Voltage | 12 Vdc | 24 Vdc | 36 Vdc | 48 Vdc |
| Factory Set Point Tolerance | 12 Vdc ± 1% | 24 Vdc ± 1% | 36 Vdc ± 1% | 48 Vdc ± 1% |
| Output Voltage Adjustment Range | 10.8-13.2 Vdc | 21.6-26.4 Vdc | 32.4-39.6 Vdc | 43.2-52.8 Vdc |
| Output Current | 0-26.7 A | 0-13.4 A | 0-8.9 A | 0-6.7 A |
| Output Power | 320.4 W Max. | 321.6 W Max. | 320.4 W Max. | 321.6 W Max. |
| Line Regulation | ± 0.5% typ. @ 115 Vac & 230 Vac | |||
| Load Regulation | ±0.5% typ. | |||
| PARD*³ (20MHz) | < 150 mVpp @ 0°C to 70°C 450 mVpp typ. @ -30°C to 0°C |
< 150 mVpp @ 0°C to 70°C 450 mVpp typ. @ -30°C to 0°C |
< 200 mVpp @ 0°C to 70°C 600 mVpp typ. @ -30°C to 0°C |
< 200 mVpp @ 0°C to 70°C 600 mVpp typ. @ -30°C to 0°C |
| Rise Time | 30 ms typ. @ 115 Vac & 230 Vac | |||
| Start-up Time | 500 ms typ. @ 115 Vac & 230 Vac | |||
| Hold-up Time | 16 ms typ. @ 115 Vac & 230 Vac | |||
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 115 & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz) |
|||
| Start-up with Capacitive Loads | 8,000 µF Max | 8,000 µF Max | 6,000 µF Max | 5,000 µF Max |
| *2 For power de-rating from > 50°C to 70°C, see power de-rating on page 3. *3 PARD is measured with an AC coupling mode, and in parallel to end terminal with 0.1µF ceramic capacitor & 47µF electrolytic capacitor. PSU need to burn in > 5 minutes when AMB ≤ 0°C |
||||
| MECHANICAL | ||||
|---|---|---|---|---|
| Model Number | PMR-12V320W1AT | PMR-24V320W1AT | PMR-36V320W1AT | PMR-48V320W1AT |
| Case Chassis | Aluminum | |||
| Case Cover | SGCC | |||
| Dimensions (L x W x H) | 215 x 115 x 30 mm (8.46 x 4.53 x 1.18 inch) | |||
| Unit Weight | 0.643 kg (1.42 lb) | |||
| Indicator | Green LED (DC OK) | |||
| Cooling System | Force Cooling | |||
| Terminal | M3.5 x 9 Pins (Rated 300 V / 20 A) | |||
| Wire | AWG 18-12 Current rating can refer to page 6 “Wire AWG Table” |
|||
| ENVIRONMENT | |||||
|---|---|---|---|---|---|
| Model Number | PMR-12V320W1AT | PMR-24V320W1AT | PMR-36V320W1AT | PMR-48V320W1AT | |
| Surrounding Air Temperature |
Operating Storage |
-40°C to +70°C -40°C to +85°C |
|||
| Power De-rating | > 50°C de-rate power by 2% / °C < 100Vac de-rate power by 1% / V (90% load @ 90 Vac) |
||||
| Operating Humidity | 20 to 90% (Non-Condensing) | ||||
| Operating Altitude | 0 to 5,000 Meters (0 to 16,400 ft) | ||||
| Shock Test |
Non-Operating Operating |
IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11 ms, 3 shocks for each 3 directions IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions. |
|||
| Vibration |
Non-Operating Operating |
IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @19.6 m/s2 (2G); 10 min per cycle, 60 min for each axis (X,Y,Z) |
|||
| Over Voltage Category | II (Compliance to EN 62477-1 OVC III with 2000 meters altitude) | ||||
| Pollution Degree | 3 | ||||
| RELIABILITY DATA | ||||
|---|---|---|---|---|
| Model Number | PMR-12V320W1AT | PMR-24V320W1AT | PMR-36V320W1AT | PMR-48V320W1AT |
| MTBF | > 700,000 hrs as per Telcordia SR-332 I/P: 230 Vac, O/P: 100% Load, Ta: 25°C) | |||
| Expected Cap Life Time | 10 years (230 Vac, 50% load @ 40°C) | |||
| SAFETY STANDARDS/DIRECTIVES | ||||
|---|---|---|---|---|
| Model Number | PMR-12V320W1AT | PMR-24V320W1AT | PMR-36V320W1AT | PMR-48V320W1AT |
| Safety Entry Low Voltage | SELV | |||
| Electrical Safety |
TUV Bauart |
EN 62368-1, EN 60335-1, EN 61558-1/-2-16 UL 62368-1, and CAN/CSA C22.2 No. 62368-1 IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16 TP TC 004/2011 CNS 14336-1 GB 4943.1 IS 13252(Part 1) |
||
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU | |||
| UKCA | In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016 | |||
| Galvanic Isolation | Input to Output | 4.0 KVac | ||
| Input to Ground | 2.0 KVac | |||
| Output to Ground | 1.25 KVac | |||
| EMC*⁵ | ||||
|---|---|---|---|---|
| Emissions (CE & RE) | CISPR 32, EN/BS EN 55032, KS C 9832, AS/NZS CISPR32, EN/BS EN 61000-6-4 Compliance to FCC Title 47, EN/BS EN 55014-1 , EN/BS EN 61000-6-3 : Class B |
|||
| Immunity | EN/BS EN 55035, KS C 9835, EN/BS EN 61000-6-2 & Compliance to EN/ BS EN 55014-2 , EN/BS EN 61000-6-1 | |||
| Electrostatic Discharge | IEC 61000-4-2 |
Level 4 Criteria A¹⁾ Air Discharge: 15 kV Contact Discharge: 8 kV |
||
| Radiated Field | IEC 61000-4-3 | Level 3 Criteria A¹⁾ 80 MHz – 1 GHz, 10 V/M, 80% Modulation (1 kHz) 1.4 GHz – 2 GHz, 3 V/M, 80% Modulation (1 kHz) 2 GHz – 2.7 GHz, 1 V/M, 80% Modulation (1 kHz) |
||
| Electrical Fast Transient / Burst | IEC 61000-4-4 | Level 3 Criteria A¹⁾ 2 kV | ||
| Surge | IEC 61000-4-5 | Level 4 Criteria A¹⁾ Common Mode⁴⁾: 4 kV Differential Mode⁵⁾: 2 kV |
||
| Conducted | IEC 61000-4-6 | Level 3 Criteria A¹⁾ 150 kHz-80 MHz, 10 Vrms |
||
| Power Frequency Magnetic Fields | IEC 61000-4-8 | Level 4 Criteria A¹⁾ 30 A/Meter | ||
| Voltage Dips and Interruptions | IEC 61000-4-11 | 0% residual; 1 cycle, Criteria B²⁾ 40% residual; 10 cycle, Criteria C³⁾ 70% residual; 25 cycle, Criteria C³⁾ |
||
| Harmonic Current Emission | IEC/EN/BS EN 61000-3-2, Class A & Class D | |||
| Voltage Fluctuation and Flicker | IEC/EN/BS EN 61000-3-3 | |||
| Voltage Sag ImmunitySEMI F47 – 0706 | 80% of 200 Vac 70% of 200 Vac 50% of 200 Vac |
160 Vac, 1000 ms 140 Vac, 500 ms 100 Vac, 200 ms |
Criteria A¹⁾ Criteria A¹⁾ Criteria A¹⁾ |
|
|
1) Criteria A: Normal performance within the specification limits |
||||
Selection Table
| MODEL NUMBER | INPUT VOLTAGE RANGE | RATED OUTPUT VOLTAGE | RATED OUTPUT CURRENT |
|---|---|---|---|
| PMR-12V320W1AT | 90-264 Vac (127-375 Vdc) |
12Vdc | 26.7 A |
| PMR-24V320W1AT | 24Vdc | 13.4 A | |
| PMR-36V320W1AT | 36Vdc | 8.9 A | |
| PMR-48V320W1AT | 48Vdc | 6.7 A |

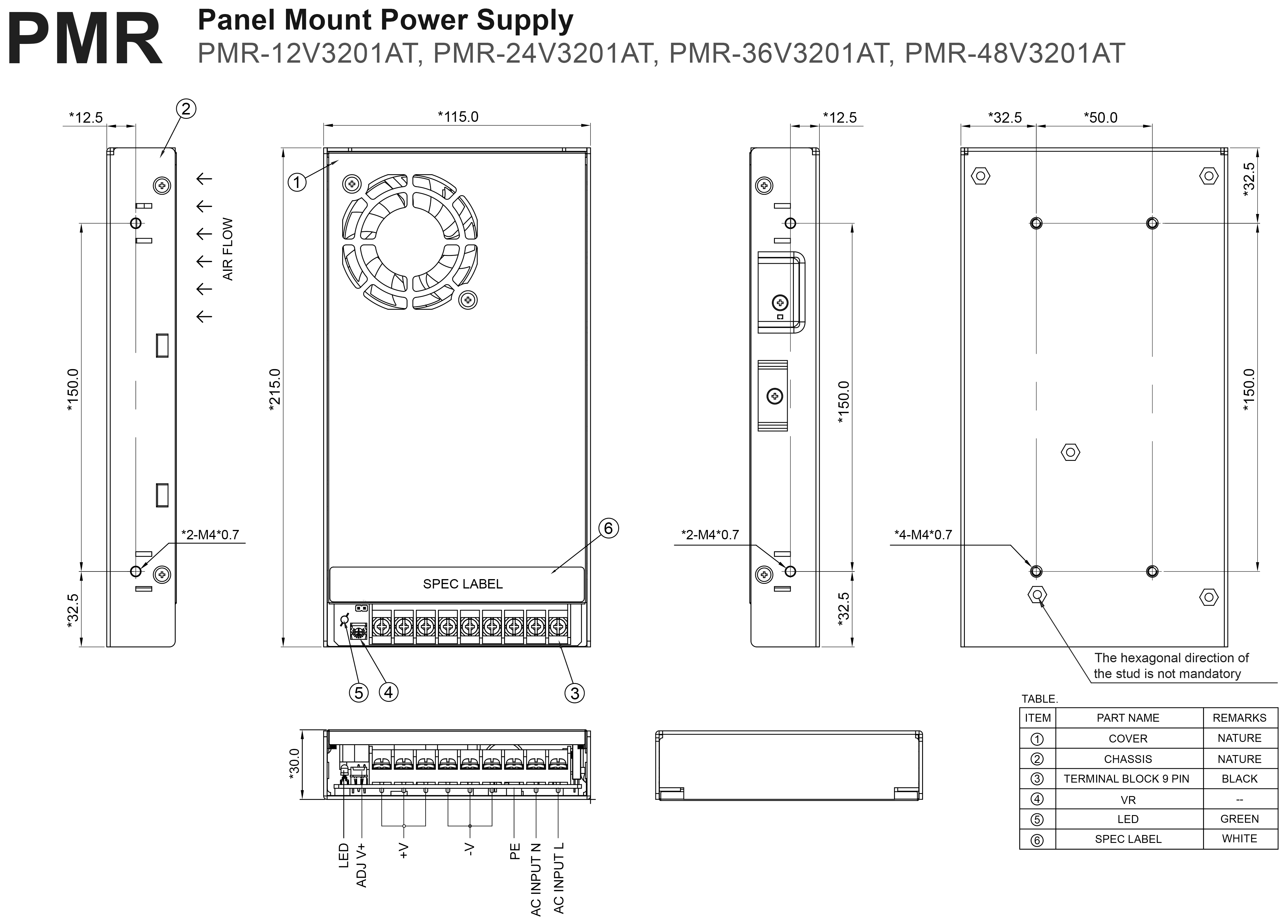

Technical Drawings
