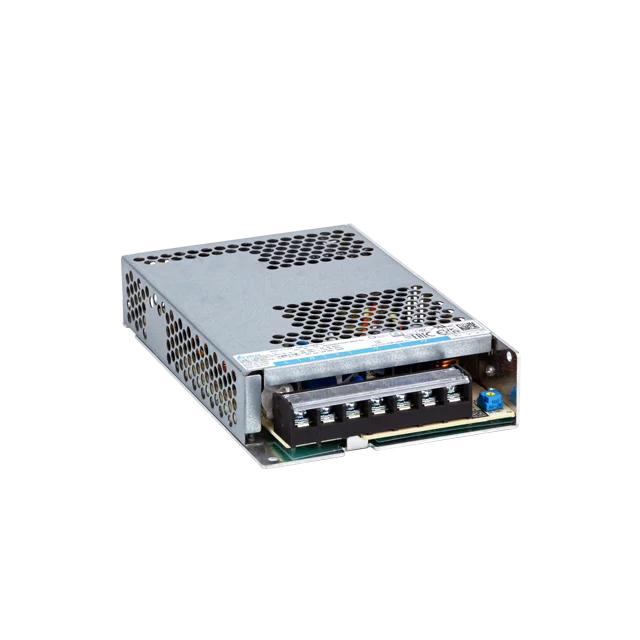

Delta PMR 240W Series Panel Mount AC/DC Power Supply
The Delta PMR 240W Series is a compact panel mount AC/DC power supply range designed for industrial and household applications where low-profile installation, reliable performance and wide operating temperature capability are required. The series accepts a universal 90-264Vac input range, or 127-375Vdc input, and is available in 12Vdc, 24Vdc, 36...
Read MoreThe Delta PMR 240W Series is a compact panel mount AC/DC power supply range designed for industrial and household applications where low-profile installation, reliable performance and wide operating temperature capability are required. The series accepts a universal 90-264Vac input range, or 127-375Vdc input, and is available in 12Vdc, 24Vdc, 36Vdc and 48Vdc single output models. Built-in active PFC, convection cooling and a 30mm low-profile enclosed chassis make the PMR series well suited to installations with limited space.
PMR 240W models operate from -40°C to +70°C, with power de-rating above 50°C and below 100Vac. The series includes adjustable output voltage, DC OK LED indication, terminal block connection, and protection functions for overvoltage, overload/overcurrent, overtemperature and short circuit. Certifications and compliance listed in the datasheet include EN 62368-1, EN 60335-1, EN 61558-1/-2-16, UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC 62368-1, CE and UKCA.
Show Less
Features
- Input voltage range: 90-264Vac nominal operation with 127-375Vdc DC input support.
- Output voltage: Available in 12Vdc, 24Vdc, 36Vdc and 48Vdc single output models.
- Output current: Up to 20.0A depending on model.
- Output power: 240.0W to 241.2W max. depending on model.
- Efficiency: Up to 93.0% typ. at 100% load, 230Vac depending on model.
- Active PFC with IEC/EN 61000-3-2 Class A and Class D harmonic current compliance.
- Compact 1U low-profile design with 30mm height.
- Convection cooling for fanless operation.
- Wide operating temperature range from -40°C to +70°C.
- Protections: overvoltage, overload/overcurrent, overtemperature and short circuit.
- Terminal block connection with green DC OK LED indicator.
Specifications
| INPUT RATINGS/CHARACTERISTICS | ||||
|---|---|---|---|---|
| Model Number | PMR-12V240W1AT | PMR-24V240W1AT | PMR-36V240W1AT | PMR-48V240W1AT |
| Nominal Input Voltage | 100-240 Vac | |||
| Input Voltage Range | 90-264 Vac | |||
| Nominal Input Frequency | 50-60 Hz | |||
| Input Frequency Range | 47-63 Hz | |||
| DC Input Voltage Range*¹ | 127-375 Vdc | |||
| Input Current | 2.5 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac | |||
| Efficiency at 100% Load @230Vac | 91.0% typ. | 93.0% typ. | 93.0% typ. | 93.0% typ. |
| No Load Power Consumption | 0.3 W typ. @ 230 Vac |
0.5 W typ. @ 230 Vac |
0.5 W typ. @ 230 Vac |
0.5 W typ. @ 230 Vac |
| Max Inrush Current (Cold Start) | 50 A typ. @ 230 Vac | |||
| Power Factor at 100% Load | > 0.96 @ 115 Vac & > 0.93 @ 230 Vac | |||
| Leakage Current | < 1.2 mA @ 240 Vac | |||
| *1 Power Supply can operate at DC Input voltage, please connect +pole to L, -pole to N and PE terminal to an earth wire or to the machine ground. | ||||
| OUTPUT RATINGS/CHARACTERISTICS*² | ||||
|---|---|---|---|---|
| Model Number | PMR-12V240W1AT | PMR-24V240W1AT | PMR-36V240W1AT | PMR-48V240W1AT |
| Nominal Output Voltage | 12 Vdc | 24 Vdc | 36 Vdc | 48 Vdc |
| Factory Set Point Tolerance | 12 Vdc ± 1% | 24 Vdc ± 1% | 36 Vdc ± 1% | 48 Vdc ± 1% |
| Output Voltage Adjustment Range | 10.8-13.2 Vdc | 21.6-26.4 Vdc | 32.4-39.6 Vdc | 43.2-52.8 Vdc |
| Output Current | 0-20.0 A | 0-10.0 A | 0-6.7 A | 0-5.0 A |
| Output Power | 240.0 W Max. | 240.0 W Max. | 241.2 W Max. | 240.0 W Max. |
| Line Regulation | ± 0.5% typ. @ 115 Vac & 230 Vac | |||
| Load Regulation | ±0.5% typ. | |||
| PARD*³ (20MHz) | < 150 mVpp @ 0°C to 70°C 450 mVpp typ. @ -30°C to 0°C |
< 200 mVpp @ 0°C to 70°C 600 mVpp typ. @ -30°C to 0°C |
||
| Rise Time | 30 ms typ. @ 115 Vac & 230 Vac | |||
| Start-up Time | 500 ms typ. @ 115 Vac & 230 Vac | |||
| Hold-up Time | 16 ms typ. @ 115 Vac & 230 Vac | |||
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 115 & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz) |
|||
| Start-up with Capacitive Loads | 8,000 µF Max | 8,000 µF Max | 6,000 µF Max | 5,000 µF Max |
| *2 For power de-rating from > 50°C to 70°C, see power de-rating on page 3. *3 PARD is measured with an AC coupling mode, and in parallel to end terminal with 0.1µF ceramic capacitor & 47µF electrolytic capacitor. PSU need to burn in > 5 minutes when AMB ≤ 0℃ |
||||
| MECHANICAL | ||||
|---|---|---|---|---|
| Model Number | PMR-12V240W1AT | PMR-24V240W1AT | PMR-36V240W1AT | PMR-48V240W1AT |
| Case Chassis | Aluminum | |||
| Case Cover | SGCC | |||
| Dimensions (L x W x H) | 159 x 97 x 30 mm (6.26 x 3.82 x 1.18 inch) | |||
| Unit Weight | 0.45 kg (0.992 lb) | |||
| Indicator | Green LED (DC OK) | |||
| Cooling System | Convection | |||
| Terminal | M3.5 x 9 Pins (Rated 300 V / 20 A) | |||
| Wire | AWG 18-12 Current rating can refer to page 6 “Wire AWG Table” |
|||
| ENVIRONMENT | |||||
|---|---|---|---|---|---|
| Model Number |
PMR-12V240W1AT | PMR-24V240W1AT | PMR-36V240W1AT | PMR-48V240W1AT | |
| Surrounding Air Temperature | Operating | -40°C to +70°C | |||
| Storage | -40°C to +85°C | ||||
| Power De-rating | > 50°C de-rate power by 2% / °C < 100 Vac de-rate power by 1% / V (90% load @ 90 Vac) |
||||
| Operating Humidity | 20 to 90% (Non-Condensing) | ||||
| Operating Altitude | 0 to 5,000 Meters (0 to 16,400 ft) | ||||
| Shock Test |
Non-Operating
|
IEC 60068-2-27, Half Sine Wave: 50G for 11 ms, 3 shocks each 3 directions IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions. |
|||
| Vibration |
Non-Operating
|
IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @19.6 m/s2(2G); 10 min per cycle, 60 min for each axis (X,Y,Z) |
|||
| Over Voltage Category | II (Compliance to EN 62477-1 OVC III with 2000 meters altitude) | ||||
| Pollution Degree | 3 | ||||
| PROTECTIONS | ||||
|---|---|---|---|---|
| Model Number | PMR-12V240W1AT | PMR-24V240W1AT | PMR-36V240W1AT | PMR-48V240W1AT |
| Overvoltage | 13.2 V - 16.8 V SELV Output, Latch Mode |
26.4 V - 33.6 V SELV Output, Latch Mode |
39.6 V - 48.6 V SELV Output, Latch Mode |
52.8 V - 64.8 V SELV Output, Latch Mode |
| Overload / Overcurrent | 110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery) | |||
| Over Temperature | Latch Mode | |||
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed) |
|||
| Protection Against Shock | Class I with PE*4 connection | |||
| *4 PE: Protection Earth | ||||
| RELIABILITY DATA | ||||
|---|---|---|---|---|
| Model Number | PMR-12V240W1AT | PMR-24V240W1AT | PMR-36V240W1AT | PMR-48V240W1AT |
| MTBF | > 700,000 hrs as per Telcordia SR-332 I/P: 115 Vac & 230 Vac, O/P: 100% Load, Ta: 25°C) |
|||
| Expected Cap Life Time | 10 years (115 Vac & 230 Vac, 50% load @ 40°C) | |||
| SAFETY STANDARDS/DIRECTIVES | |||||
|---|---|---|---|---|---|
| Model Number |
PMR-12V240W1AT | PMR-24V240W1AT | PMR-36V240W1AT | PMR-48V240W1AT | |
| Safety Entry Low Voltage | SELV | ||||
| Electrical Safety | TUV Bauart | EN 62368-1, EN 60335-1, EN 61558-1/-2-16 | |||
| UL/cUL | UL 62368-1, and CAN/CSA C22.2 No. 62368-1 | ||||
| CB scheme | IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16 | ||||
| EAC | TP TC 004/2011 | ||||
| BSMI | CNS 15598-1 | ||||
| CCC | GB 4943.1 | ||||
| BIS | IS 13252(Part 1) | ||||
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU | ||||
| UKCA | In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016 | ||||
| Galvanic Isolation | Input to Output | 4.0 KVac | |||
| Input to Ground | 2.0 KVac | ||||
| Output to Ground | 1.25 KVac | ||||
| EMC*⁵ | ||||
|---|---|---|---|---|
| Emissions (CE & RE) | CISPR 32, EN/BS EN 55032, KS C 9832, AS/NZS CISPR32, EN/BS EN 61000-6-4 Compliance to FCC Title 47, EN/BS EN 55014-1, EN/BS 61000-6-3: Class B |
|||
| Immunity | EN/BS EN 55035, KS C 9835, EN/BS EN 61000-6-2 & Compliance to EN/BS EN 55014-2, EN/BS EN 61000-6-1 | |||
| Electrostatic Discharge | IEC 61000-4-2 | Level 4 Criteria A¹⁾ Air Discharge: 15 kV Contact Discharge: 8 kV |
||
| Radiated Field | IEC 61000-4-3 | Level 3 Criteria A¹⁾ 80 MHz – 1 GHz, 10 V/M, 80% Modulation (1 kHz) 1.4 GHz – 2 GHz, 3 V/M, 80% Modulation (1 kHz) 2 GHz – 2.7 GHz, 1 V/M, 80% Modulation (1 kHz) |
||
| Electrical Fast Transient / Burst | IEC 61000-4-4 | Level 3 Criteria A¹⁾) 2 kV | ||
| Surge | IEC 61000-4-5 | Level 4 Criteria A¹⁾ Common Mode⁴⁾: 4 kV Differential Mode⁵⁾: 2 kV |
||
| Conducted | IEC 61000-4-6 | Level 3 Criteria A¹⁾) 150 kHz – 80 MHz, 20 Vrms |
||
| Power Frequency Magnetic Fields | IEC 61000-4-8 | Level 4 Criteria A¹⁾ 30 A/Meter | ||
| Voltage Dips and Interruptions | IEC 61000-4-11 | 0% residual; 1 cycle, Criteria B²⁾ 40% residual; 10 cycle, Criteria C³⁾ 70% residual; 25 cycle, Criteria C³⁾ |
||
| Harmonic Current Emission | IEC/EN/BS EN 61000-3-2, Class A & Class D | |||
| Voltage Fluctuation and Flicker | IEC/EN/BS EN 61000-3-3 | |||
| Voltage Sag ImmunitySEMI F47 – 0706 | 80% of 200 Vac 70% of 200 Vac 50% of 200 Vac |
160 Vac, 1000 ms 140 Vac, 500 ms 100 Vac, 200 ms |
Criteria A¹⁾ Criteria A¹⁾ Criteria A¹⁾ |
|
|
1) Criteria A: Normal performance within the specification limits
|
||||
Selection Table
| MODEL NUMBER | INPUT VOLTAGE RANGE | RATED OUTPUT VOLTAGE | RATED OUTPUT CURRENT |
|---|---|---|---|
| PMR-12V240W1AT | 90-264 Vac (127-375 Vdc) |
12Vdc | 20.0 A |
| PMR-24V240W1AT | 90-264 Vac (127-375 Vdc) |
24Vdc | 10.0 A |
| PMR-36V240W1AT | 90-264 Vac (127-375 Vdc) |
36Vdc | 6.7 A |
| PMR-48V240W1AT | 90-264 Vac (127-375 Vdc) |
48Vdc | 5.0 A |

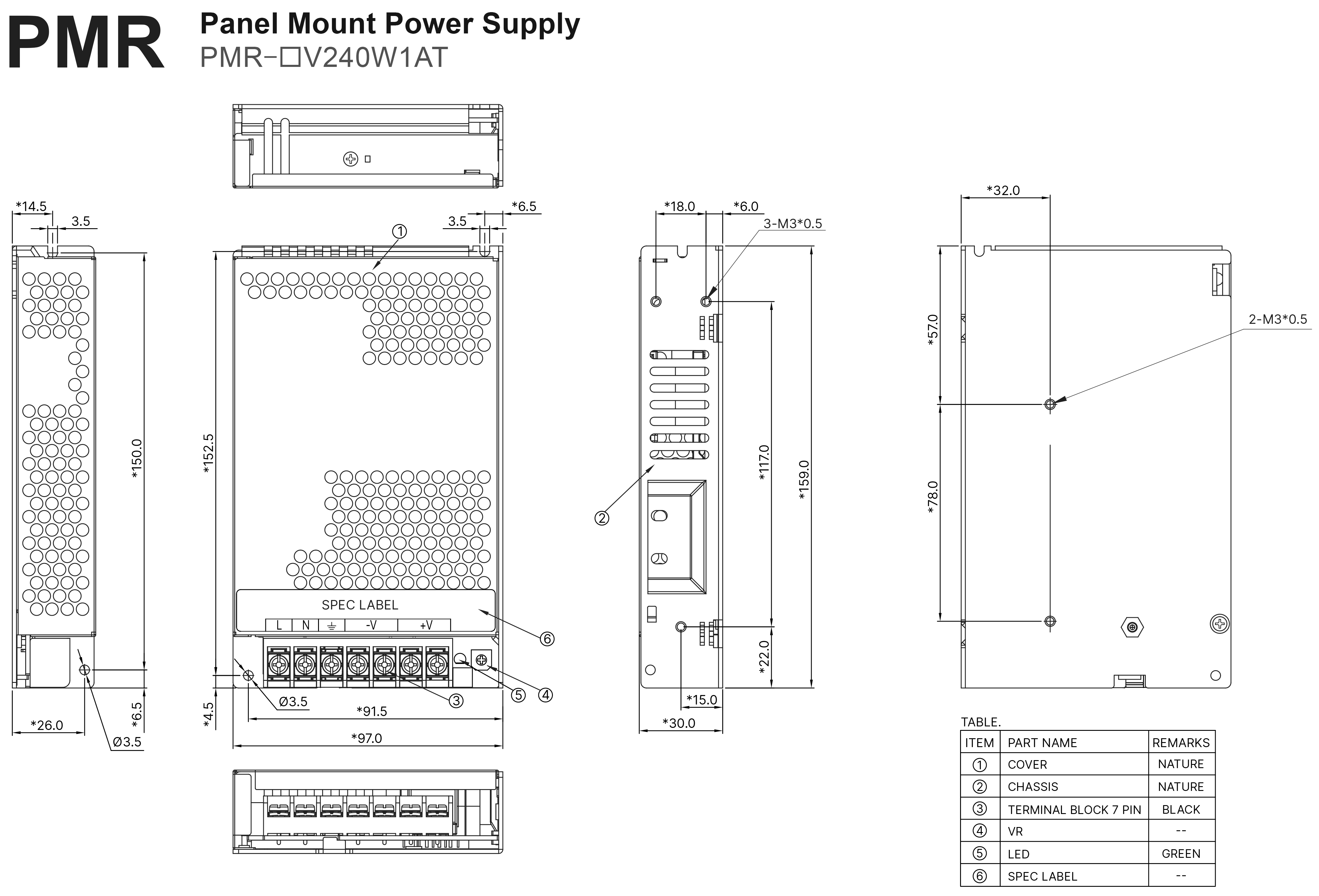

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
