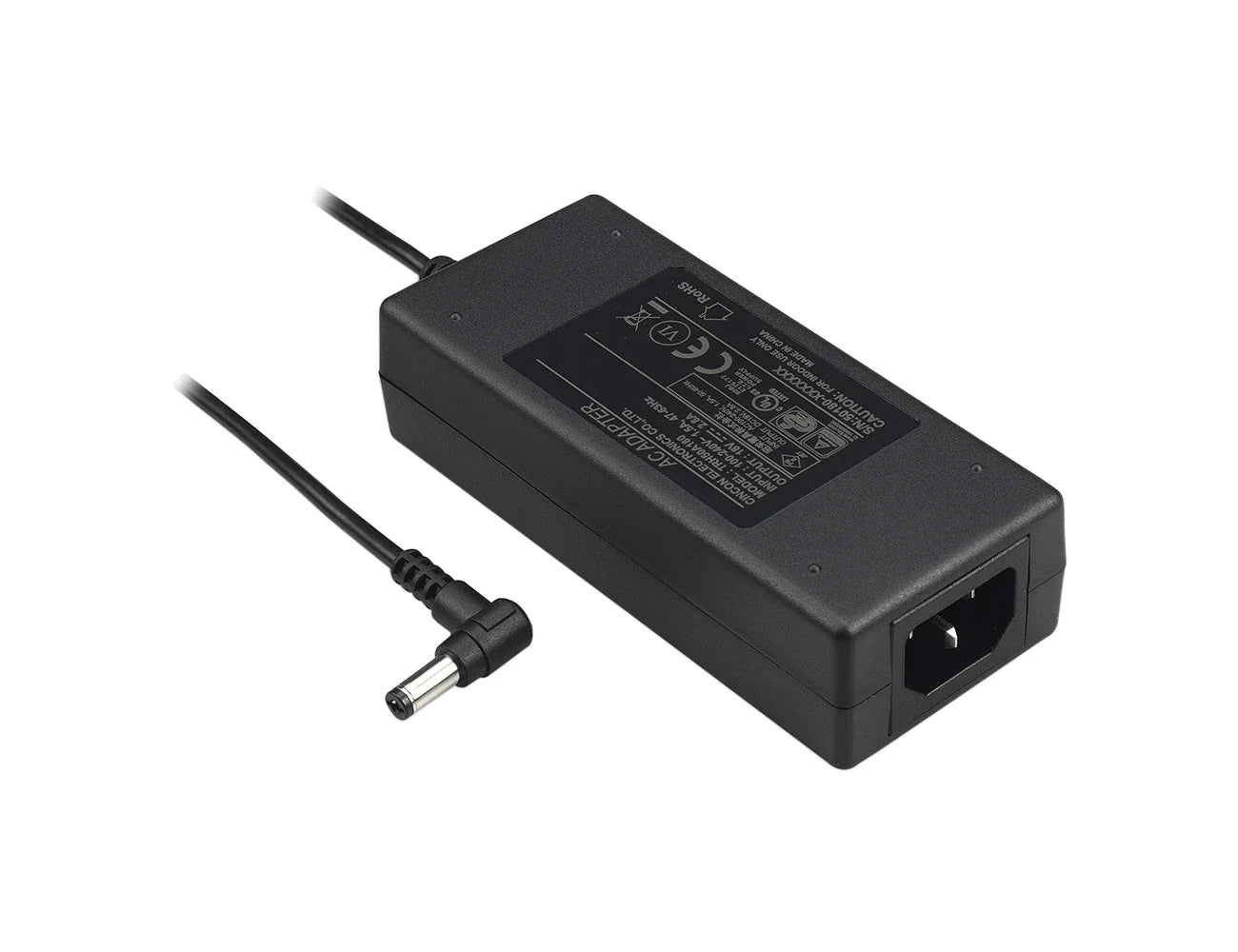

Cincon TRH50A-SERIES AC/DC Power Supply
The Cincon TRH50A Series AC/DC Power Supply is a compact and energy-efficient solution, delivering a reliable 50W output across a range of voltage configurations from 12V to 48V. Designed for desktop applications, this series is ideal for industrial, IT, and telecommunications environments requiring dependable and cost-effective power systems. K...
Read MoreThe Cincon TRH50A Series AC/DC Power Supply is a compact and energy-efficient solution, delivering a reliable 50W output across a range of voltage configurations from 12V to 48V. Designed for desktop applications, this series is ideal for industrial, IT, and telecommunications environments requiring dependable and cost-effective power systems.
Key features include a universal input voltage range (90–264VAC) and efficiency ratings of up to 89%, ensuring minimal energy loss and optimised performance. Advanced protection mechanisms such as continuous short circuit, over-voltage, and over-current protection enhance operational safety, while compliance with CoC Tier 2 and DOE Level VI standards ensures eco-friendly operation with low standby power consumption (<150mW).
The TRH50A Series supports reliable performance in diverse conditions, with an operating altitude of up to 5000m and a wide temperature range (-20°C to 70°C). Its lightweight (300g) and compact design (120 x 52 x 31 mm) allow for easy integration into space-constrained setups. Certified to IEC/EN/UL 62368-1 safety standards and EMC emission standards, this power supply guarantees compliance with global regulations.
Show Less
Features
- 50W Desktop Power Supply
- Australian / New Zealand Approved
- Regulatory Compliance Mark RCM: AS/NZS4417
- Safety: Certificate of Approval ESO160362
- Energy Efficiency: GEMS Determination 2014
- Meets CoC Tier 2 & DoE Level VI
- Meets EN55022 Class B and CISPR/FCC Class B
- Over Voltage Protection
- Continuous Short Circuit Protection
- No load Power Consumption <150mW
- Cable Length options
- Connector options
Specifications
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage range | 90 to 264Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 47 to 63Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input current | 1.2A max | ||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush current | Cold start @25C 100Amax @240Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Leakage current | 3.5mA max. | ||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT | |
|---|---|
| Output voltage | See Selection Table Factory preset, not adjustable |
| Voltage set-point | +/-2% |
| Ripple and noise | 1% p-p max |
| Hold-up time | 8ms typ @ 115Vac |
| Load regulation | +/-2 to +/-3% (60% to 100% load |
| Line regulation | +/-1% max 100Vac to 240Vac at full load. |
| Temperature Coefficient | +/- 0.05%/C |
| Switching Frequency | Typical. 65KHz |
| Efficiency | Typical. 89% |
| MTBF | MIL-HDBK217F, GB at 25C/115Vac 200Khrs min |
| PROTECTION | |
|---|---|
| Short circuit protection | Continuous (Auto recovery) |
| Over voltage protection | TVS Component to Clamp |
| Isolation | Input to Output 4,242Vdc |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -20°C to +70°C |

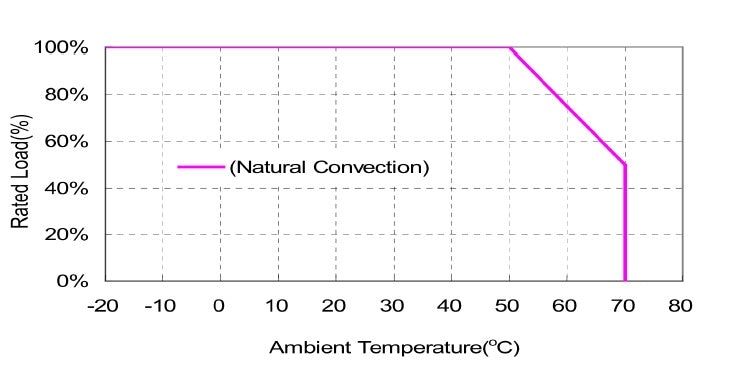

| Derating | See Derating Curve |
| Cooling | Natural Convection |
| Storage temperature | -20°C to +85°C |
| Humidity | 93% RH max. Non condensing |
| Altitude | 5,000m |
| STANDARDS AND APPROVALS | |
|---|---|
| Australian Approvals | RCM - Regulatory Compliance Mark, AS/NZS4417 |
| Safety | Certificate of Conformity: ESV210053 Equipment class: Level 3 Equipment sub-type: Power Supply Relevant Standard: AS/NZS 62368.1: 2022 Protection against electric shock: Class I Type of operation: For use with audio, video, or information technology equipment only. EESS Registration: E2021035721 |
| EMC | EN55032:2015+A11:2020 Class B, FCC Part 15 Class B EN61000-6-3, EN61000-3-2, EN61000-3-3 EN55024, EN61204-3, EN61000-6-1 |
| Energy Efficiency | GEMS Determination 2014, External Power Supplies High Efficiency 2014 (Mark VI) DoE Level VI, CoC V5 Tier 2 |
| MECHANICAL | |
|---|---|
| Dimensions | 120 x 52 x 31mm |
| Weight | 300g |
| AC inlet | IEC320/C14 |
| Output connector | Right angle, hollow barrel connector 2.5mm inside diameter; 5.5mm outside diameter; 9.5mm length center positive polarity. Output connector options available |
| DC cord length | 720mm with ferrite core Output cord options available |
Selection Table
| MODEL NUMBER | OUTPUT VOLTAGE | OUTPUT CURRENT | OUTPUT POWER |
|---|---|---|---|
| TRH50A120-21E11-VI | 12Vdc | 4.2A | 50W |
| TRH50A150-21E11-VI | 15Vdc | 3.36A | 50W |
| TRH50A180-21E11-VI | 18Vdc | 2.8A | 50W |
| TRH50A190-21E11-VI | 19Vdc | 2.65A | 50W |
| TRH50A240-21E11-VI | 24Vdc | 2.1A | 50W |
| TRH50A280-21E11-VI | 28Vdc | 1.8A | 50W |
| TRH50A360-21E11-VI | 36Vdc | 1.4A | 50W |
| TRH50A480-21E11-VI | 48Vdc | 1.05A | 50W |

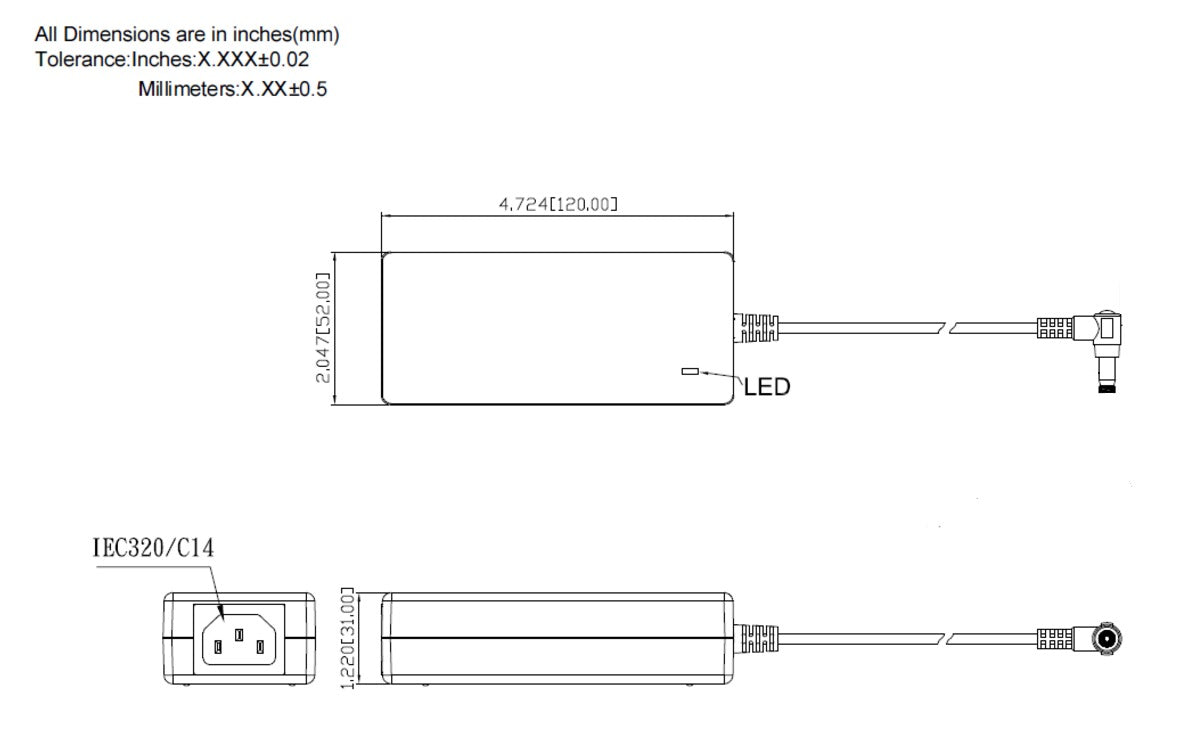

Technical Drawings
