Cincon CQB100-110S-CM/DIN Series DC/DC Converter

The Cincon CQB100-110S Series is a high-performance 100W isolated DC/DC converter designed for demanding railway, industrial, and high-voltage DC applications. Featuring a wide 3:1 input range of 66–160VDC (110VDC nominal), this quarter-brick module delivers tightly regulated output voltages with efficiency up to 92%. Built for reliability in ha...

Read More

The Cincon CQB100-110S Series is a high-performance 100W isolated DC/DC converter designed for demanding railway, industrial, and high-voltage DC applications. Featuring a wide 3:1 input range of 66–160VDC (110VDC nominal), this quarter-brick module delivers tightly regulated output voltages with efficiency up to 92%.

Built for reliability in harsh environments, the CQB100-110S Series incorporates remote ON/OFF control, continuous short circuit protection, over-voltage and over-current protection, and over-temperature shutdown. With compliance to EN50155 (with external circuits), this converter is well-suited for railway and transportation systems.

Housed in an industry-standard quarter brick package with an aluminium baseplate, the CQB100-110S provides compact, rugged power conversion for mission-critical systems across Australia and New Zealand.

Show Less

Unit Price
or send a quick enquiry about this product only

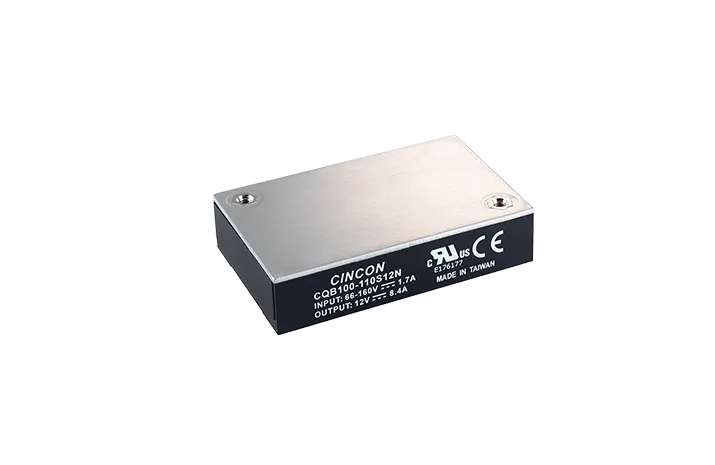

CINCON_CQB100W-110S_Series
Features
  • Input Voltage Range 66-160Vdc (110Vdc nominal, 3:1 input range)
  • Output Voltage Options: 12Vdc and 24Vdc
  • Output Current: up to 8.4A
  • Switching Frequency 200kHz (typ.)
  • Load Regulation ±0.2% max.
  • Over Voltage Protection (115–140% Vo nom.)
  • Remote ON/OFF: Positive logic (default) and Negative logic (N-suffix variants)
  • Operating Temperature Range -40°C to +100°C (case temperature)
  • Storage Temperature -55°C to +105°C
Specifications
INPUT SPECIFICATIONS
Input Voltage Range 110V 66-160V
Input Surge Voltage (100ms max.) 180Vdc max.
Under Voltage Lockout

Power Up
Power Down

62V
56V

Positive Logic Remote On/Off:
Logic Compatibility Open Collector ref to -Input
Module ON
Module OFF
> 3.5Vdc to 75Vdc or Open Circuit
< 1.8Vdc
Input Filter PI Type
OUTPUT SPECIFICATIONS
Voltage Accuracy ±1.5% max.
Transient Response: 25% Step Load Change <200u sec.
External Trim Adj. Range ±10%
Ripple & Noise, 20MHz BW *(note 3)

<500us

  12V

60mV RMS, 150mV pk-pk max

  24V

100mV RMS, 240mV pk-pk max.

Temperature Coefficient ±0.03%/°C
Short Circuit Protection  Continuous
Line Regulation *(note 1)  ±0.03%/°C max.
Short Circuit Protection Continuous
Line Regulation *(note1) ±0.2% max.
Load Regulation *(note2) ±0.2% max.
Over Voltage Protection Trip Range, %Vo Nom. 115-140%
Current Limit 110%-180% Nominal Output
Start up Time 45ms typ.
*Please Refer to The Notes Table Below
GENERAL SPECIFICATIONS
Efficiency See Table
Isolation Voltage Input/Output 2250Vdc min.
Input/Case 2250Vdc min.
Output/Case 1500Vdc min.
Isolation Resistance

10⁷ Ohm min.

Isolation Capacitance

1000pF typ.

Switching Frequency 200KHz typ.
Operating Case Temperature -40℃ to 100℃
Storage Temperature -55℃ to +105℃
Thermal Shutdown, Case Temp. 105℃ typ.
Humidity 95% RH max. Non Condensing
MTBF MIL-HDBK-217F, GB, 25℃, Full Load TBD hrs typ.
Safety UL60950-1 2nd(Basic insulation), Approval
EMC *(note 7) meet EN50155(EN50121-3-2) with external filter
Shock/Vibration meet EN50155(EN61373)
Environmental  meet EN50155(EN60068-2-1)
Dimensions 2.28×1.45x0.50 inches (57.9x36.8×12.7 mm)
Case Material Aluminum Base-plate with Plastic Case
Weight 61.5g
NOTES
1. Measured from high line to low line.
2. Measured from full load to zero load.
3. Output ripple and noise measured with 10uF tantalum and 1uF ceramic capacitor across output.
4. Suffix "N" to the model number with negative logic remote on/off
Module on: < 1.8Vdc
Module off: >3.5Vdc to 75Vdc or Open Circuit
5. Suffix “-C” to the model number with clear mounting insert (3.2mm DIA.).
6. An external input capacitor 120uF for all models are recommended to reduce input ripple voltage.
7. Design meet EN50155 and RIA12 refer to Application Note
Selection Table
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT INPUT CURRENT % EFF. CAPACITOR LOAD MAX
MIN. MAX. NO LOAD FULL LOAD
CQB100-110S12-CM 66-160 Vdc 12 Vdc 0 mA 8.4 A 40 mA 993 mA 92 8800µF
CQB100-110S12-DIN 66-160 Vdc 12 Vdc 0 mA 8.4 A 40 mA 993 mA 92 8800µF
CQB100-110S24-CM 66-160 Vdc 24 Vdc 0 mA 4.2 A 60 mA 1030 mA 91 1500µF
CQB100-110S24-DIN 66-160 Vdc 24 Vdc 0 mA 4.2 A 60 mA 1030 mA 91 1500µF
CQB100-110S12N-CM 66-160 Vdc 12 Vdc 0 mA 8.4 A 40 mA 993 mA 92 8800µF
CQB100-110S12N-DIN 66-160 Vdc 12 Vdc 0 mA 8.4 A 40 mA 993 mA 92 8800µF
CQB100-110S24N-CM 66-160 Vdc 24 Vdc 0 mA 4.2 A 60 mA 1030 mA 91 1500µF
CQB100-110S24N-DIN 66-160 Vdc 24 Vdc 0 mA 4.2 A 60 mA 1030 mA 91 1500µF
NOTE: 1. Nominal input voltage 110 Vdc



Technical Drawings

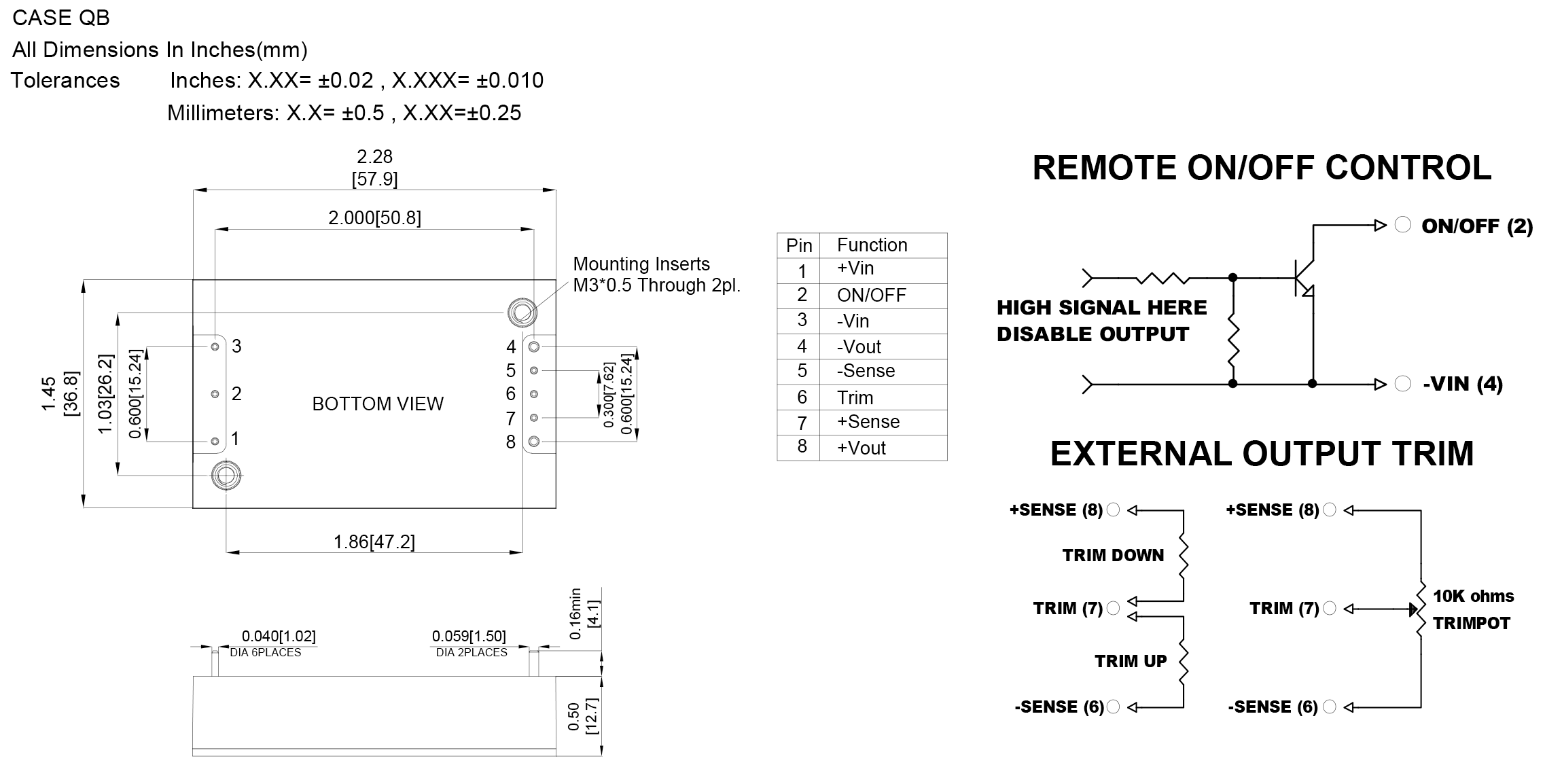

GA_Drawing_CQB100-110S_Series
Downloads
CQB100-110S_Series_Datasheet.pdf
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
