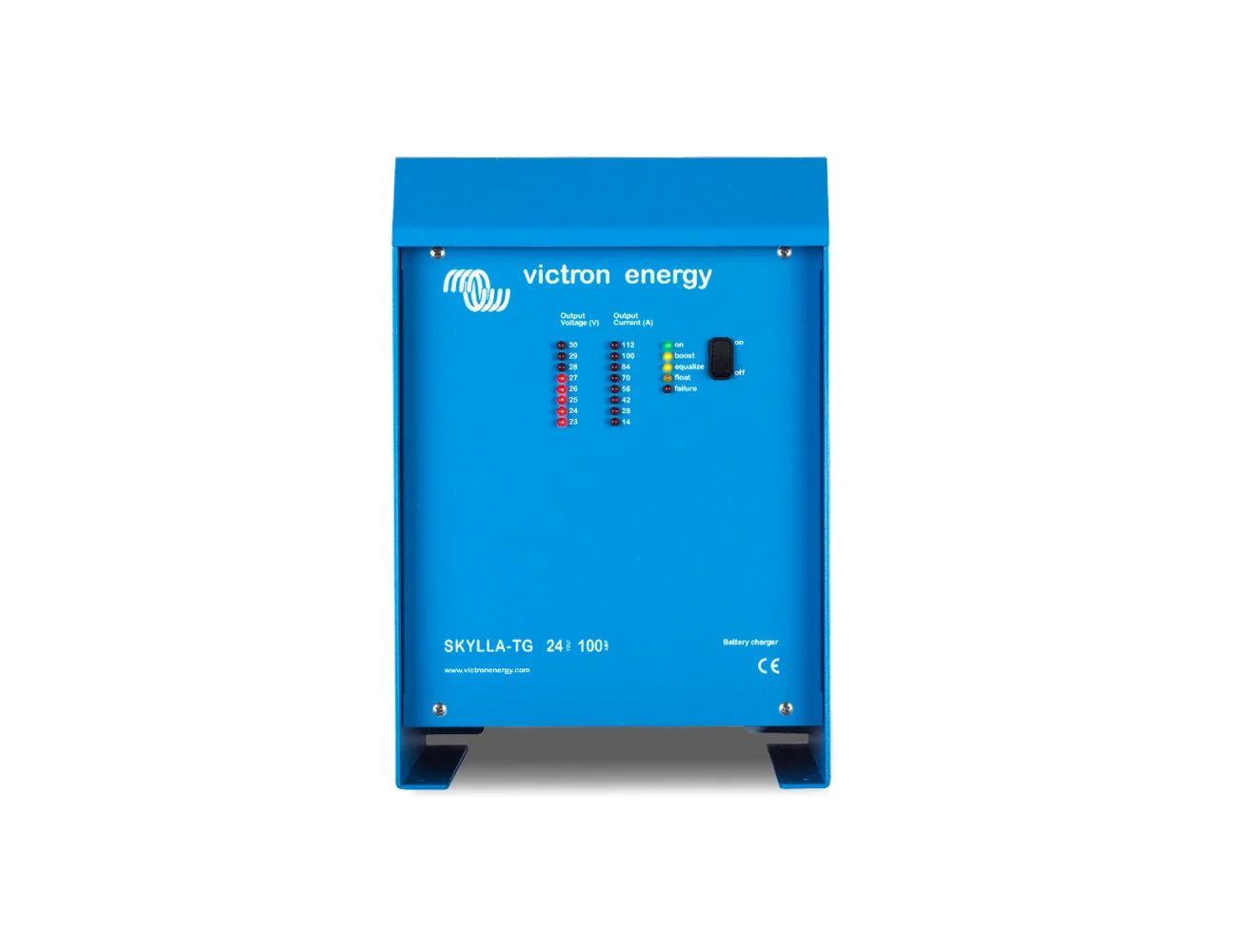

Victron SKYLLA TG SERIES Battery Charger
The Victron Skylla TG Series Battery Charger delivers precision charging for a wide range of battery types, ensuring long-term reliability and performance. With its advanced features and rugged design, the Skylla TG series is perfect for marine, industrial, and automotive applications where dependable power is critical. Applications:The Skylla T...
Read MoreThe Victron Skylla TG Series Battery Charger delivers precision charging for a wide range of battery types, ensuring long-term reliability and performance. With its advanced features and rugged design, the Skylla TG series is perfect for marine, industrial, and automotive applications where dependable power is critical.
Applications:
The Skylla TG Series is ideal for:
- Marine environments, ensuring consistent power for navigation and onboard systems.
Industrial applications requiring stable and efficient battery management.
- Automotive and mobile setups needing precise charging for multiple battery banks.
Why Choose the Victron Skylla TG Series?
Combining advanced charging technology, rugged reliability, and versatile features, the Victron Skylla TG Series is the ultimate solution for professional battery management. Whether for marine or industrial use, it delivers the performance and dependability you can trust.
Features
- Precise Charging for Any Battery Type: Adjustable charge voltage ensures optimal charging for sealed or unsealed batteries, preventing overcharging and extending battery life.
- Three-Step Charging Process: Microprocessor-controlled IUoUo charging delivers faster and more efficient charging compared to conventional methods.
- Dual Outputs (24V Models): Provides a main charging output and a secondary isolated output (up to 4A) for maintaining starter batteries.
- Temperature Compensation: Includes a battery temperature sensor to prevent overcharging by reducing charge voltage as battery temperature increases.
- Voltage Sensing: Compensates for cable resistance to ensure the battery receives accurate charging voltage.
- DC and AC Supply Compatibility: Operates with AC or DC input (excluding 3-phase models), enhancing versatility for various power setups.
- Power Supply Capability: Stable output voltage allows the charger to function as a reliable power supply when needed.
Specifications
| INPUT | |
|---|---|
| Input voltage | 1ph: 185-264Vac, 3ph: 320-450Vac 180-400Vdc |
| Input frequency | 45 - 65Hz |
| Power factor | 1 |
| BATTERY CHARGING OUTPUT | |
|---|---|
| Battery Charging | Optimum absorption charge and float charge voltages for Flooded Lead-acid, Gel-Cell or AGM batteries. Selectable by dip switch |
| Absorption Charge voltage | 28.5Vdc and 57Vdc See selection table |
| Float Charge voltage | 26.5Vdc and 53Vdc See selection table |
| Two Outputs | Two outputs to charge 2 battery banks (24V models only). The TG chargers feature 2 isolated outputs. The second output is limited to approx 4A and with a slightly lower output voltage. It is intended to top up a starter battery See selection table |
| Total output ammeter | Yes. |
| Charge characteristic | Accurately controls the charging in 3 steps. Charges more rapidly than other processes |
| Temperature sensor | Battery temperature sensor supplied. When connected charge voltage will automatically decrease with increasing battery temperature. |
| Battery Monitor | The BMV 600S battery monitor features an advanced control and measuring system for battery voltage and charge/discharge current. The battery monitor selectively displays battery voltage, current, consumed AH or time to go |
| Skylla Control | The Skylla Control allows you to alter the charge current and see the system status |
| Charger switch | A remote on-off switch |
| Remote alarm | Potential free contacts 60V / 1A (1 x NO & 1 x NC) |
| PROTECTION | |
|---|---|
| Short circuit | Yes. output short circuit protection |
| Battery connection | Yes, battery reverse polarity detection |
| Battery voltage | Yes, battery voltage too high |
| Over temperature | Yes, temperature too high protection |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | EN60335-1, EN60335-2-29. |
| Emission | EN55014, EN61000-3-2 |
| Immunity | EN55014-2, EN61000-3-3 |
| C-tick | AS/NZS CISPR11: Group 1, Class A. |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -20°C to 60°C. |
| Derating | Full load up to 40C ambient, Output will reduce to approximately 80% of nominal at 50C and 60% of nominal at 60C |
| Cooling | Temperature and current controlled fan. |
| Humidity | 95% max (non condensing). |
| MECHANICAL | |
|---|---|
| AC connection | Screw-clamp 2-5mm² (AWG 6) |
| Battery connection | M8 studs |
| Protection category | IP21. |
| Material & colour | Aluminum epoxy powder coated cases (blue RAL 5012), Stainless steel fixings |
| Size & Weight | 24/30TG-24/50TG: 365x250x147mm, 5.5Kg 24/50TG 3Phase: 365x250x257mm, 13Kg 24/80TG: 365x250x257mm, 10Kg 24/100TG: 365x250x257mm, 10Kg 24/100TG 3Phase: 515x260x265mm, 23Kg 48/25TG: 365x250x147mm, 5.5Kg 48/50TG: 365x250x257mm, 10Kg |
Selection Table
| MODEL DESCRIPTION | ABSORPTION CHARGE VOLTAGE | FLOAT CHARGE VOLTAGE | OUTPUT CURRENT | BATTERY CONNECTION | RECOMMENDED BATTERY SIZE |
|---|---|---|---|---|---|
| Skylla-TG 24/30(1+1) 230V | 28.5V | 26.5V | 30A | M8 Studs | 150-500Ah |
| Skylla-TG 24/50(1+1) 230V | 28.5V | 26.5V | 50A | M8 Studs | 150-500Ah |
| Skylla-TG 24/50(1+1) 3-Phase 400V | 28.5V | 26.5V | 50A | M8 Studs | 250-500Ah |
| Skylla-TG 24/80(1+1) 230V | 28.5V | 26.5V | 80A | M8 Studs | 400-800Ah |
| Skylla-TG 24/100(1+1) 230V | 28.5V | 26.5V | 100A | M8 Studs | 500-1000Ah |
| Skylla TG 24/100 3-Phase | 28.55V | 26.5V | 100A | M8 Studs | 500-1000Ah |
| Skylla-TG 48/25(1) 230V | 57V | 53V | 25A | M8 Studs | 125-250Ah |
| Skylla-TG 48/50(1) 230V | 57V | 53V | 50A | M8 Studs | 250-500Ah |

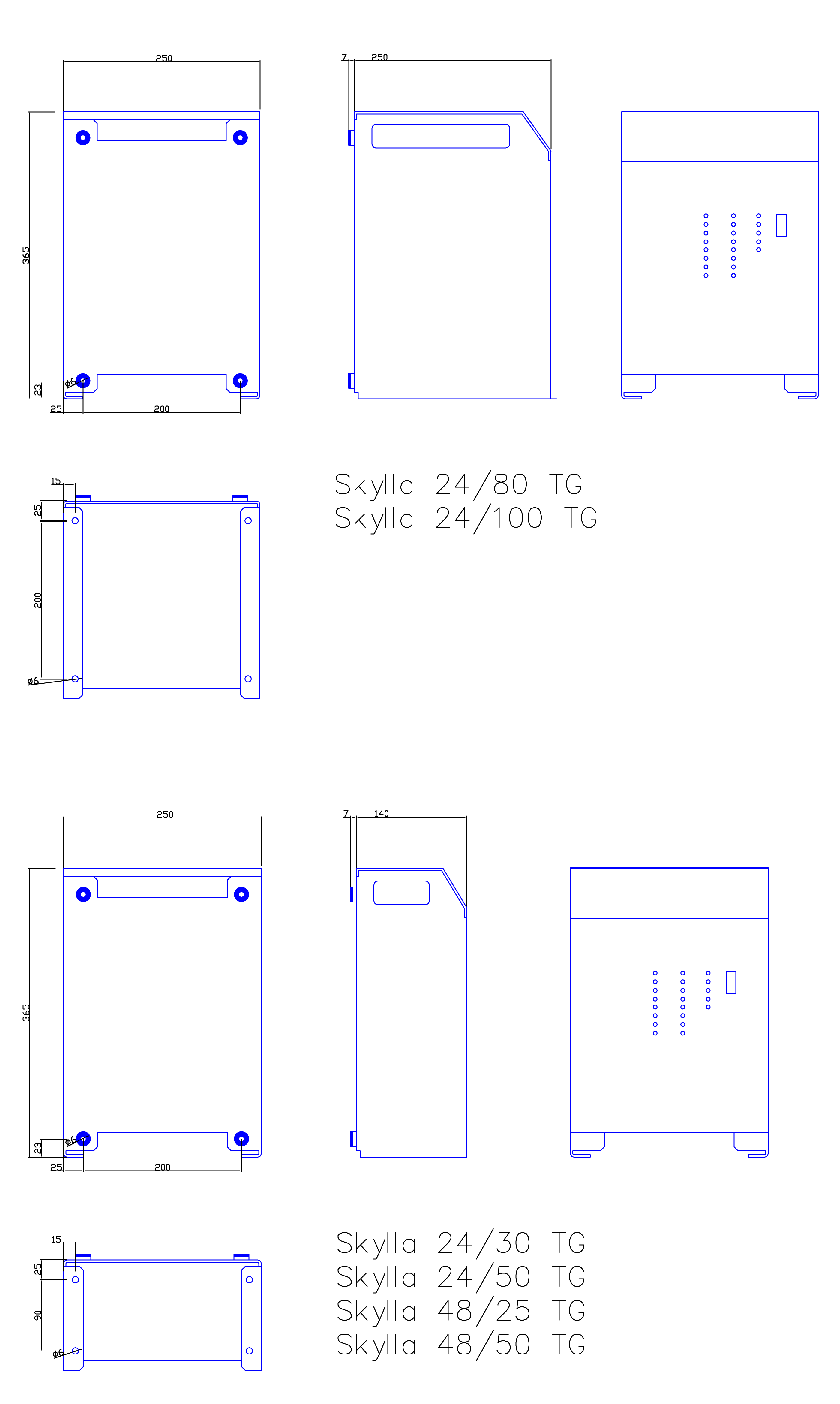

Technical Drawings
