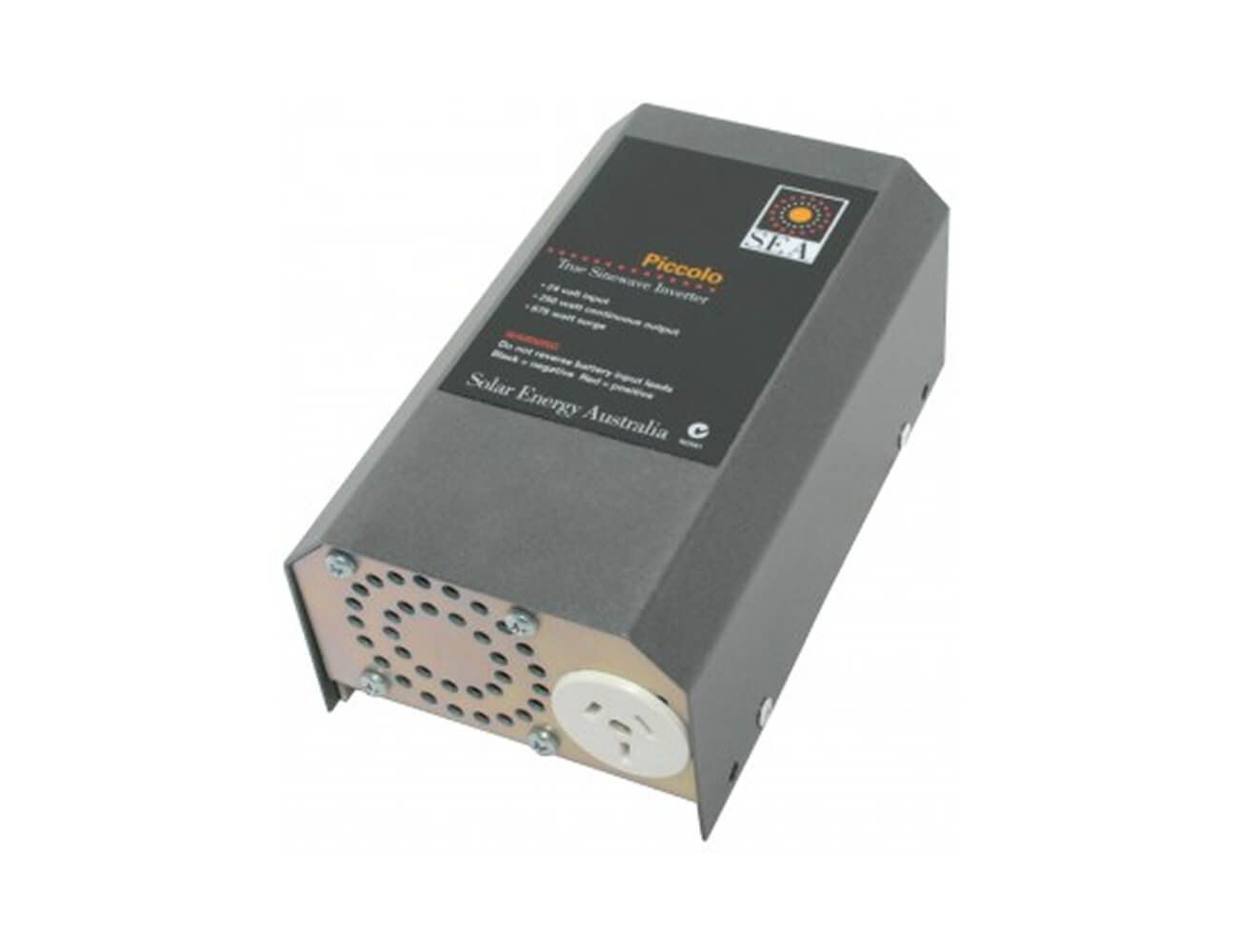

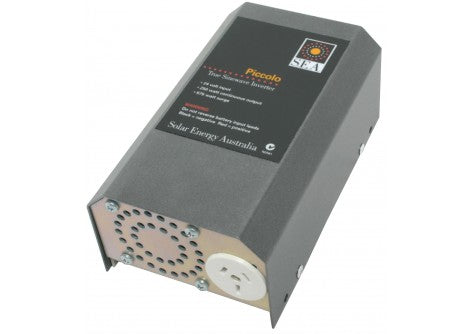

Powerbox PBSP PICOLO SERIES DC/AC Inverter
The Powerbox PBSP Piccolo Series DC/AC Inverter is a compact and efficient power solution, delivering true sinewave AC output for sensitive electronics and industrial applications. Designed with advanced protection features and high efficiency, it is ideal for off-grid setups, telecommunications, and mobile power solutions. Key features include ...
Read MoreThe Powerbox PBSP Piccolo Series DC/AC Inverter is a compact and efficient power solution, delivering true sinewave AC output for sensitive electronics and industrial applications. Designed with advanced protection features and high efficiency, it is ideal for off-grid setups, telecommunications, and mobile power solutions.
Key features include dynamic low voltage control, intelligent overload and short circuit protection, and an isolated output for enhanced safety. With up to 90% peak efficiency and total harmonic distortion (THD) under 1.2%, the PBSP Piccolo Series ensures reliable performance and clean power delivery. Its robust, powder-coated aluminum chassis enhances durability, while the lightweight and compact design makes it easy to integrate into any system.
The PBSP Piccolo Series complies with AS/NZS CISPR14 and EMC standards, ensuring reliable operation and minimal interference. Suitable for a wide range of environments, it operates efficiently between 0°C and 50°C.
The Powerbox PBSP Piccolo Series is your dependable choice for DC/AC conversion, delivering clean and efficient power wherever you need it.
Show Less
Features
- 150W - 250W
- DC/AC Inverter
- Dynamic Battery Low Voltage Control
- Intelligent Overload & S/C Protection
- THD <1.2%
- Isolated Output
- Applications: Motorhomes - Caravans - Boating - Electricity Utility
Specifications
| INPUT | |
|---|---|
| Input voltage | PBSP-12R: 12Vdc, (10.5 - 16V) PBSP-24S: 24Vdc (21 - 32V) |
| No load power draw | PBSP-12R: < 2VA PBSP-24S: <2.5VA |
| STANDARDS AND APPROVALS | |
|---|---|
| Toroidal transformer | IEC742 |
| C-tick | AS/NZS CISPR14, AS/NZS 1044 |
| EMC standards | Complies to CE rules |
| OUTPUT | |
|---|---|
| Output Voltage | 230Vac ±5% |
| Output Frequency | 50Hz ±0.5% |
| Waveform | True sinewave <4% THD |
| Rated power | PBSP-12R: 150VA PBSP-24S: 250VA |
| THD | <1.2% |
| Overload capability | Max. 250%. |
| Peak efficiency | 90% |
| ENVIRONMENTAL | |
|---|---|
| Temperature range | 0°C to 50°C, derate above 30°C |
| Humidity | 95% humidity, not condensing |
| MECHANICAL | |
|---|---|
| AC outlet | 3 pin socket |
| Battery leads | 1 metre |
| Dimensions | 110x75x190mm |
| Weight | PBSP-12R: 1.8 kg PBSP-24S: 2.5 kg |
| Chassis | Powder coated aluminium |
Selection Table
| MODEL NUMBER | DC INPUT | POWER RATING |
PEAK POWER |
|---|---|---|---|
| PBSP-12R | 10.5–16V | 150W | 375W |
| PBSP-24S | 21–32V | 250W | 625W |

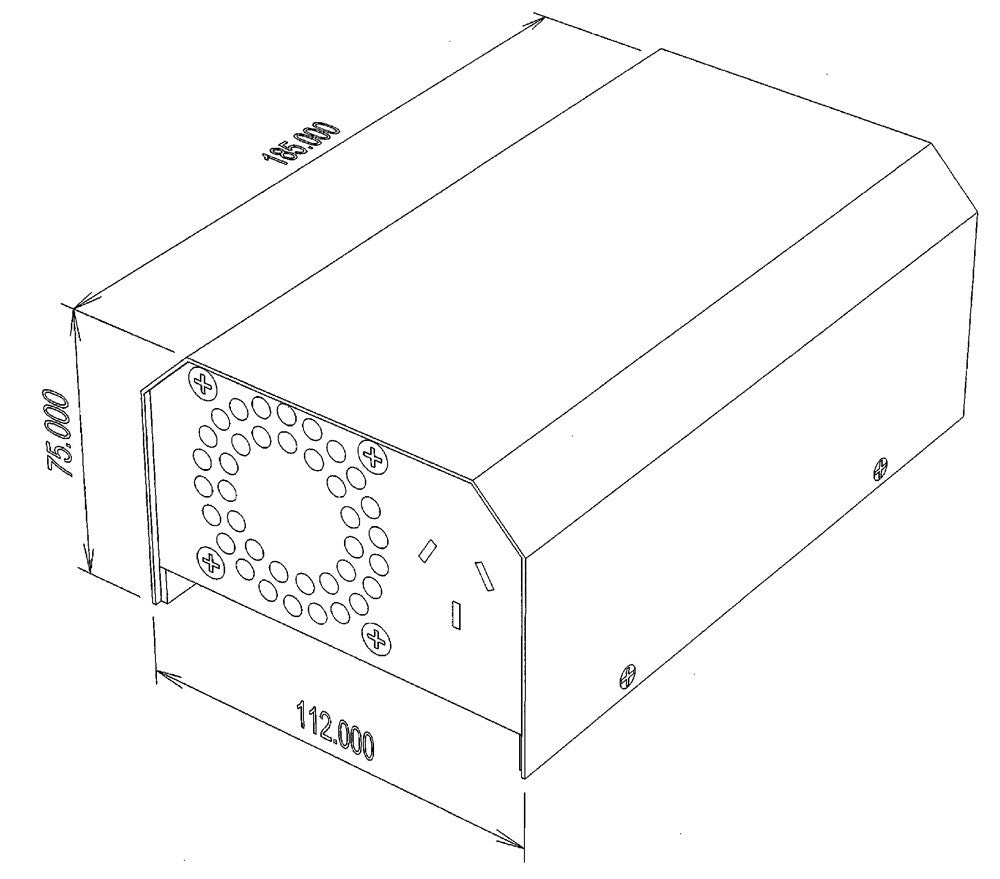

Technical Drawings
