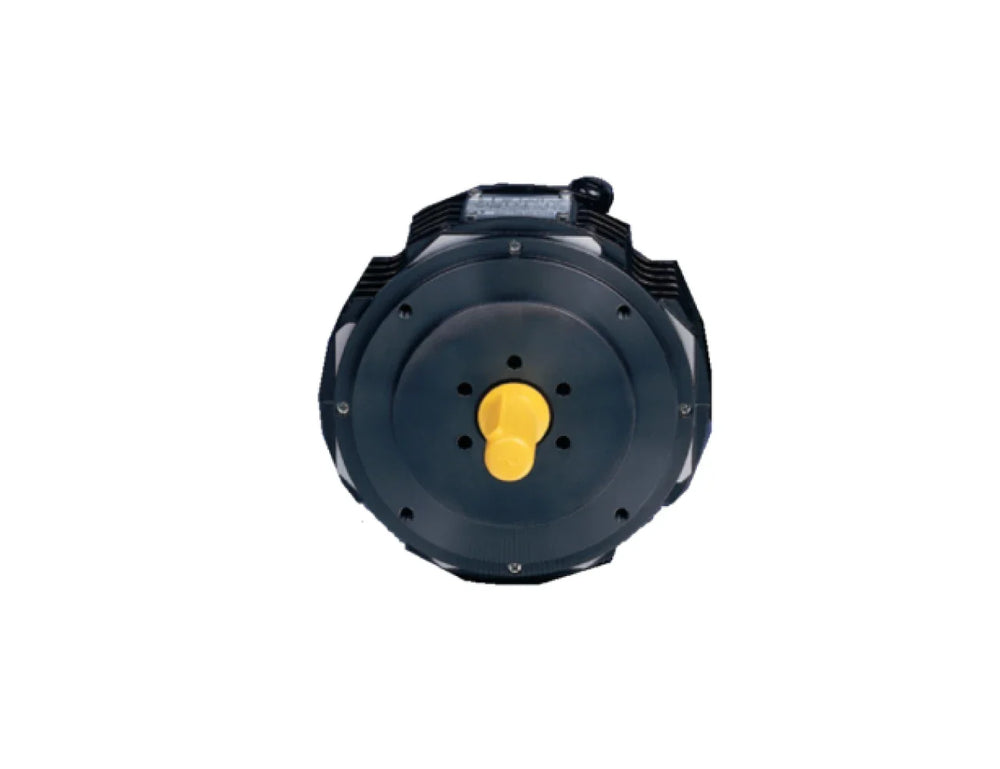

Mavilor MSS Series DC Servo Motor

The Mavilor MSS Series DC Servo Motor is an industry-leading solution engineered for high-response servo applications. Featuring an axial air gap dish armature, this series offers smooth, non-cogging torque, making it ideal for tasks demanding high precision and control. Delivering acceleration torques up to 10 times the rated torque, the MSS Se...

Read More

The Mavilor MSS Series DC Servo Motor is an industry-leading solution engineered for high-response servo applications. Featuring an axial air gap dish armature, this series offers smooth, non-cogging torque, making it ideal for tasks demanding high precision and control.

Delivering acceleration torques up to 10 times the rated torque, the MSS Series ensures unparalleled responsiveness for dynamic motion control. With a compact length and a 20% increase in power-to-weight and power-to-volume ratios compared to earlier designs, it provides exceptional performance in space-constrained environments. Rated for speeds up to 6,000 rpm, the MSS Series enables efficient and precise velocity control.

Key features include an ironless rotor design for extended brush life and high efficiency. Optional integrations, such as tachometers and fail-safe holding brakes, enhance adaptability for diverse industrial applications.

Applications for the MSS Series include robotics, CNC machinery, automated assembly systems, and laboratory automation, where high acceleration, compact size, and reliability are critical.

The Mavilor MSS Series DC Servo Motor combines advanced engineering with exceptional performance, making it a top choice for engineers and system integrators seeking reliable, high-speed servo solutions.

Show Less
Unit Price
—
or send a quick enquiry about this product only
Mavilor MSS Series DC Servo Motor
Features
  • Rated Speed: 3,000rpm
  • Rated Voltage: 39.4Vdc~224Vdc +/-5%
  • Rated Current: 6.5~21A
  • Rated Output Power: 190.3W~4,274W
  • Rated Torque: 0.6~13.6Ncm
  • Efficiency: 74~91%
Selection Table
MSS Series
  Symbols Units MSS-2 MSS-4 MSS-6 MSS-8 MSS-12 MSS-22 MSS-35 MSS-45
RATED SPEED n rpm 3000 3000 3000 3000 3000 3000 3000 3000
RATED VOLTAGE 5% U V 39.4 67 67.8 89.7 106.7 181 200 224
RATED CURRENT I A 6.5 7.8 10.7 10.7 14 16 19.5 21
RATED OUTPUT POWER (1) P W 190.3 397 575 805 1240 2573 3525 4274
EFFICIENCY   % 74 76 80 84 83 89 90 91
RATED TORQUE T Nm 0.6 1.26 1.83 2.56 3.95 8.19 11.23 13.6
MAXIMUM TORQUE (2) Tmax Nm 3.6 7.58 11 15.38 23.7 49.14 67.38 81.6
MAXIMUM SPEED (3) n max rpm 7000 6000 6000 5000 4500 4000 4000 4000
EMF CONSTANT 5% KE V/1000 rpm 10.4 18 19 26.3 30.85 55.6 62.53 70
TORQUE CONSTANT 5% KT Nm/A 0.099 0.172 0.181 0.251 0.295 0.53 0.597 0.668
FRICTION TORQUE TF Nm 0.03 0.05 0.05 0.06 0.09 0.09 0.11 0.11
DAMPING CONSTANT KD Nm/1000 rpm 0.003 0.009 0.018 0.021 0.02 0.05 0.1 0.11
TERMINAL RESISTANCE (25C) R   1 1.25 0.75 0.82 0.75 0.67 0.51 0.51
ARMATURE INDUCTANCE L µH <102 <130 <120 <150 <200 <250 <300 <300
INERTIA J kg m2 10-3 0.15 0.37 0.4 0.82 1.7 5.1 8.5 8.5
MECHANICAL TIME CONSTANT M ms 14.38 15 9 10.17 14 11.6 11.6 9.3
TRANSITORY POWER PS kW/s 89 155 300 288 330 473 534 783
THERMAL TIME CONSTANT ROTOR TO HOUSING AC s 170 180 190 200 300 360 650 650
THERMAL TIME CONSTANT (1) HOUSING TO AMBIENT CA s 1700 1750 1800 2000 2700 3000 4000 4000
THERMAL RESISTANCE ROTOR TO HOUSING RAC C/W 0.8 0.5 0.5 0.5 0.3 0.2 0.13 0.15
THERMAL RESISTANCE (1) HOUSING TO AMBIENT RCA C/W 0.5 0.3 0.4 0.4 0.3 0.2 0.14 0.15
RADIAL LOAD (at mid-length of shaft) FR N 200 200 300 300 500 600 700 700
AXIAL LOAD FA N 150 200 200 200 250 400 400 400
MASS (Only motor. No options) M kg 3.3 4.5 5.8 8 10 16 22 24
(1) With an aluminium heat sink plate 300x300x10       400x400x10     500x500x10
(2) For an S3 cycle 3     3.5 4   7 10
(3) Maximum speed in continuous service. During a very short time (r.p.m.) 9000       6000     4500
ALL CHARACTERISTICS MEASURED AT 40 DEGREES CELSIUS AMBIENT
TEMPERATURE EXCEPT TERMINAL RESISTANCE (25 DEGREES CELSIUS)
