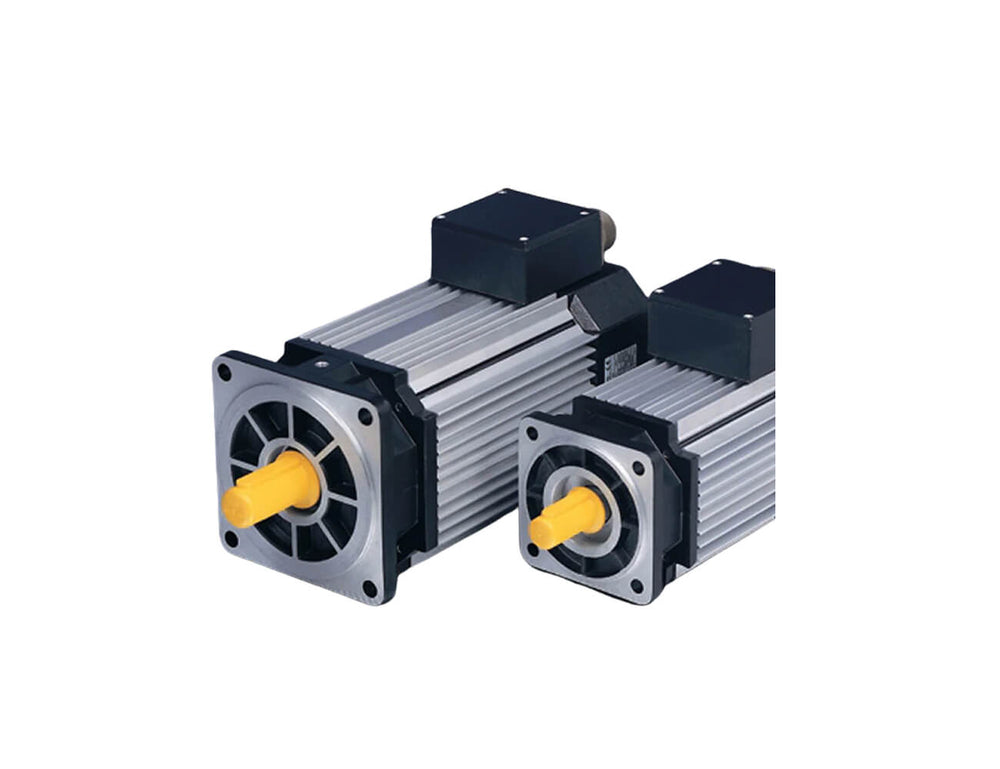

Mavilor BLS/BLT 141 SERIES AC Servo Motor
The Mavilor BLS/BLT 141 Series AC Servo Motor is a robust and efficient solution designed for demanding industrial environments. With advanced brushless technology and precision feedback systems, it provides reliable, high-performance motion control for applications that require consistent power and accuracy. Key features include a stall torque ...
Read MoreThe Mavilor BLS/BLT 141 Series AC Servo Motor is a robust and efficient solution designed for demanding industrial environments. With advanced brushless technology and precision feedback systems, it provides reliable, high-performance motion control for applications that require consistent power and accuracy.
Key features include a stall torque of up to 13.6 Nm and a peak torque of up to 54.4 Nm, delivering exceptional power for high-load tasks. Operating at a maximum speed of 6,500 rpm, this motor ensures smooth and responsive performance in challenging high-speed applications. Its compatibility with sinusoidal and trapezoidal current waveforms allows seamless integration into a wide range of systems.
The BLS Series is equipped with a resolver, providing precise position and speed feedback for high-accuracy tasks, while the BLT Series incorporates Hall Effect sensors for effective synchronisation. Optional accessories such as a fail-safe holding brake and encoder compatibility enable tailored configurations to meet specific operational requirements.
Applications include heavy-duty robotics, CNC machinery, automated assembly systems, and industrial processes requiring reliable torque and precise control under demanding conditions.
The Mavilor BLS/BLT 141 Series AC Servo Motor combines superior torque capabilities, adaptability, and efficiency, making it a trusted choice for engineers and system integrators seeking high-performance motion control solutions.
Show Less
Features
- Nominal speed: 6500 r.p.m
- Stall torque: 13.6Nm (+/-10%)
- Stall current:7.01 - 13.6A (+/-10%)
- Peak Torque (+/-10%) - 54.4 Nm
- Torque-weight ratio - 1.3 Nm/kg
