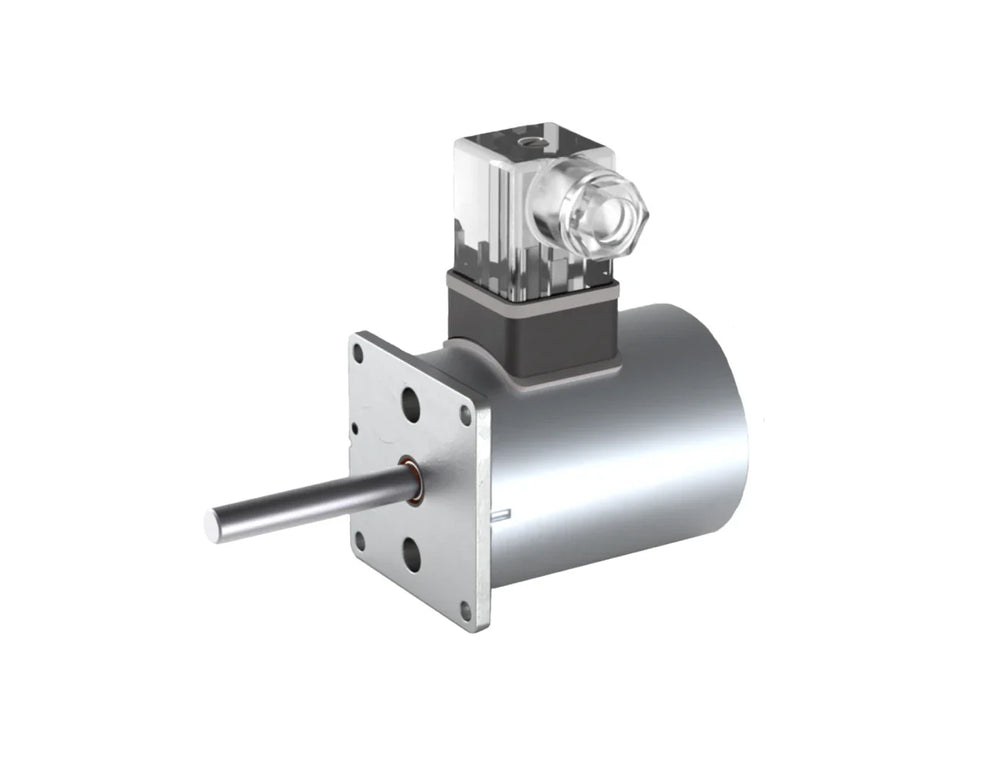

Kendrion Mono Bistable Solenoid
The Kendrion Mono-Bistable Rotary Solenoid series is a versatile, high-performance solution for applications requiring rapid and precise rotary motion. Designed for efficiency and durability, these solenoids are ideal for sorting systems, hatches, gates, and other industrial processes where reliability and speed are critical. Applications:The Ke...
Read MoreThe Kendrion Mono-Bistable Rotary Solenoid series is a versatile, high-performance solution for applications requiring rapid and precise rotary motion. Designed for efficiency and durability, these solenoids are ideal for sorting systems, hatches, gates, and other industrial processes where reliability and speed are critical.
Applications:
The Kendrion Mono-Bistable Rotary Solenoids are perfectly suited for:
Sorting Systems: Reliable and precise rotary motion for high-speed sorting tasks in logistics and automation.
Access Control: Effective for operating hatches, gates, or blinds in machine-building and transportation.
Industrial Automation: Space-saving solution that simplifies system designs while enhancing functionality.
Technical Specifications:
Size Options: Ø50 mm to Ø80 mm
Rotation Angle: Up to 40°
Holding Torque: Up to 1.0 Nm (bistable), up to 0.4 Nm (monostable, power on)
Switching Time: 10-20 ms
Power: 60-120 W
Protection Class: IP50 standard, upgradeable to IP65 with additional housing
Supply Voltage: 24-48 V DC
Kendrion Mono-Bistable Rotary Solenoids offer unmatched reliability, speed, and efficiency for industrial motion control.
Show Less
Features
- Dual-Functionality: Available in both monostable and bistable configurations for diverse application needs.
- High-Speed Switching: Achieves switching times as low as 10 milliseconds, enabling fast and responsive operations.
- Energy Efficient: Power is required only during switching, minimizing energy consumption and reducing operational costs.
- Long Service Life: Engineered for over 100 million cycles with low wear, thanks to permanent magnetic holding and ball bearings.
- Customisable Design: Modular platform allows easy adaptation to specific customer requirements, including optional Hall sensor integration.
- Durable Construction: Integrated stop mechanism and protection class up to IP65 (with additional housing) ensure reliability in demanding environments.
