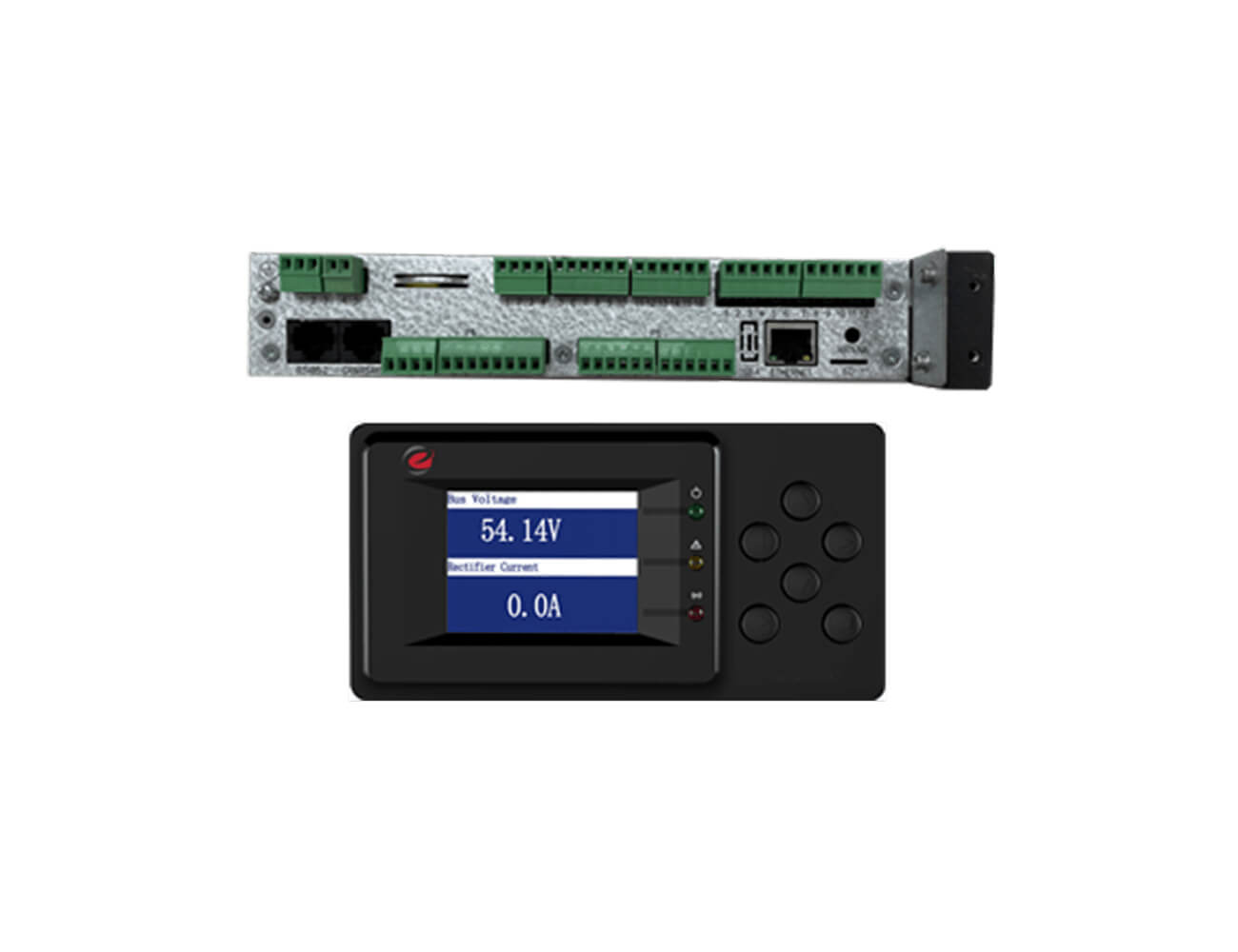

Enetek Power SMU01L Site Management Monitoring
The Enetek Power SMU01L Site Management Monitoring system provides comprehensive oversight and control for energy management in various settings. It offers real-time monitoring and data analysis to optimise site performance and ensure efficient power usage. Its user-friendly interface and advanced features enable effective management and mainten...
Read MoreThe Enetek Power SMU01L Site Management Monitoring system provides comprehensive oversight and control for energy management in various settings. It offers real-time monitoring and data analysis to optimise site performance and ensure efficient power usage. Its user-friendly interface and advanced features enable effective management and maintenance, enhancing overall operational efficiency.
Show Less
Features
- Control and Management
- Alarm/Data Logging
- Multiple Language Options
- Intelligent Energy Saving Management
- Comprehensive Battery Management
- Multiple LVD Controls
- Fast Charge Control with Timer
- Site Information Management
- 2.8" LCD Display with 6 Keys
- RS485/USB Connectivity
- Web-Based Configuration
- TCP/IP and SNMP Interface
- 1 x SD Slot
- 1 x Wireless GSM Interface Slot (Optional)
Specifications
| MODEL | Compatibility |
|---|---|
| Enetek SMU01L | Enetek's range of rectifier solutions |
| SPECIFICATIONS | |
|---|---|
| Input Voltage Range / Power | 18Vdc to 60Vdc @ 27W |
| Display | 2.8” LCD |
| User Interface | 3 x LED, 6 x user buttons |
| Communication Interface | USB, RS485, TCP/IP (Modbus), SNMP |
| Operating Temperature Range | -40 to +75°C |
| Storage Temperature Range | -40 to +85°C |
| Relative Humidity | Operating: 0%-95% non-condensing; Storage: 0%-99% non-condensing |
| MTBF | >300,000hrs (Ambient temp of 25°C |
| Weight | < 0.5kg |
| Dimensions | 108(W) x 220(D) x 43(H) mm |
| LCD Unit: 170(W) x 15(D) x 89(H) mm |
| SYSTEM INTERFACE | |
|---|---|
| 1 x Voltage sensing (expansion module available) | 6 x Digital inputs (expansion module available) |
| 2 x Current sensing (expansion module available) | 6 x Digital outputs (expansion module available) |
| 2 x Temperature sensing (expansion module available) | Battery mid-point measurement |
| Up to 2 x LVD | Load/battery fuse monitoring |
| SYSTEM FEATURES | |
|---|---|
| AC voltage measurement (via optional module) | User configurable alarms and settings |
| Alarm grouping and alarm mapping | Auxiliary input and load monitoring |
| Alarm Logs (> 10,000 events) | User profile configuration |
| Data logs (> 10,000 logs) | Multi languages Option |
| Site information and management | Up to 3 levels of password settings |
| BATTERY FEATURES | |
|---|---|
| Battery temperature measurement | Low voltage disconnection |
| Temperature compensated charging | High/low battery voltage |
| Automatic float/boost charging | High/low battery temperature |
| Automatic battery capacity test | Optional 24-point measurement |
| RECTIFIER FEATURES | |
|---|---|
| Individual rectifier information | Efficiency management (intelligent energy management) |
| Rectifier current, temperature and status monitoring | Remote control including voltage adjustment |
| Active current sharing | Overload monitoring |
| Power limit walk-in | Module position addressing |
| CONTROL and MONITORING | |
|---|---|
| Local management through LCD, 3 x LED and 6 x user buttons | Full monitoring and control functions can be accessed locally through the use of the 6 user buttons |
| DESIGN STANDARDS (SAFETY) |
|---|
| EN60950-1 |
| DESIGN STANDARDS (EMC) |
|---|
| EN61000-6-4-2/-4/-5 |
| DESIGN STANDARDS (OTHERS) |
|---|
| CE, RoHS compliant |
*Due to continuous product development, specifications are subject to change without prior notice
