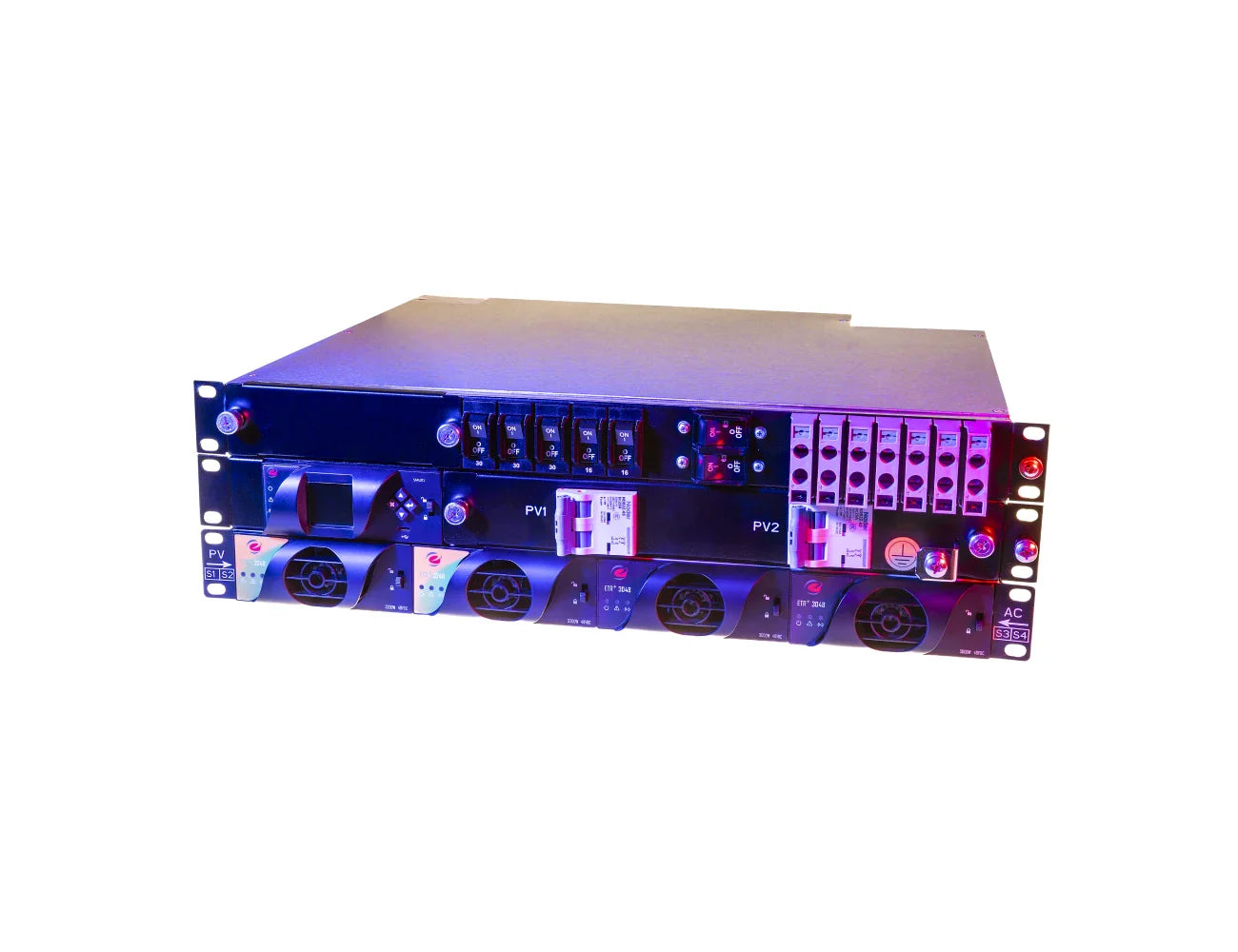

EneteK MODUFLEX HYBRID POWER CORE 9U (24KW RECTIFIER + 12.8KW SOLAR)
The Enetek Moduflex Hybrid Power Core 9U further extends capabilities with a 24kW rectifier and 12.8kW solar converter, designed for complex energy systems needing high power outputs. It shares the high-efficiency standards and modular design of the Moduflex line, enabling efficient energy management and integration in a variety of settings, from industrial to telecom. The unit's comprehensive design ensures it operates effectively across a wide temperature range and meets rigorous safety and performance standards.
Specifications
Downloads
| MODEL | Capacity Range |
|---|---|
| Enetek Moduflex Hybrid Power Core 9U (24kW) | 24kW Rectifier + 12.8kW Solar |
| INPUT SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mains Input | 1-Phase 230Vac; 3-Phase 400Vac+N (Y) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Power Factor | ≥ 0.99 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 45Hz to 65Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| THD | < 5% (50% to 100% load) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input Protections (Module Level) | Soft Start | ||||||||||||||||||||||||||||||||||||||||||||||||
| Surge Protection | |||||||||||||||||||||||||||||||||||||||||||||||||
| Overvoltage Protection | |||||||||||||||||||||||||||||||||||||||||||||||||
| PV Input | |||||||||||||||||||||||||||||||||||||||||||||||||
| Solar Input | 85 Vdc to 430Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input from Solar Array | 4 x Connectors (20A) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input Isolation | 4 x 25A 2P MCB | ||||||||||||||||||||||||||||||||||||||||||||||||
| Surge Protection | Included | ||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Output Voltage | 48.0Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output Power | 24kW Rectifier +12.8kW Solar | ||||||||||||||||||||||||||||||||||||||||||||||||
| Peak Efficiency | 97% | ||||||||||||||||||||||||||||||||||||||||||||||||
| BATTERY DISTRIBUTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery Low Voltage Disconnect | BLVD @ 500A | ||||||||||||||||||||||||||||||||||||||||||||||||
| Battery Distribution | 4 x 27mm width 80A-125A 1P MCB (Configurable) | ||||||||||||||||||||||||||||||||||||||||||||||||
| LOAD DISTRIBUTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load Low Voltage Disconnect | LLVD is optional | ||||||||||||||||||||||||||||||||||||||||||||||||
| Load Distribution | 12 x 18m width 6A-63A 1P MCB (Configurable) | ||||||||||||||||||||||||||||||||||||||||||||||||
| CONTROLLER and RECTIFIER TYPE | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rectifier Module | ETR+ Rectifier and ETS+ Solar Converter modules | ||||||||||||||||||||||||||||||||||||||||||||||||
| Controller Module | SMU01 (refer to datasheet) | ||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Temperature Range | -20°C to +75°C (de-rates above 55°C) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature Range | -40°C to +70°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Relative Humidity | Operating: 5% to 98% RH non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage: 0% to 98% RH non-condensing | |||||||||||||||||||||||||||||||||||||||||||||||||
| Acoustic Noise | <58dB @ full load, 40°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| PHYSICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions WxDxH | 482 x 390 x 400 (mm) (9U) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | ~25kg (excluding Rectifier and Solar Converter modules) | ||||||||||||||||||||||||||||||||||||||||||||||||
| DESIGN STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical Safety | EN/IEC62368-1 | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMC | EN55022/CISPR22 Class B, EN61000-4-2/-3/-4/-5/-11 | ||||||||||||||||||||||||||||||||||||||||||||||||
* Due to continuous product development, specifications are subject to change without prior notice
