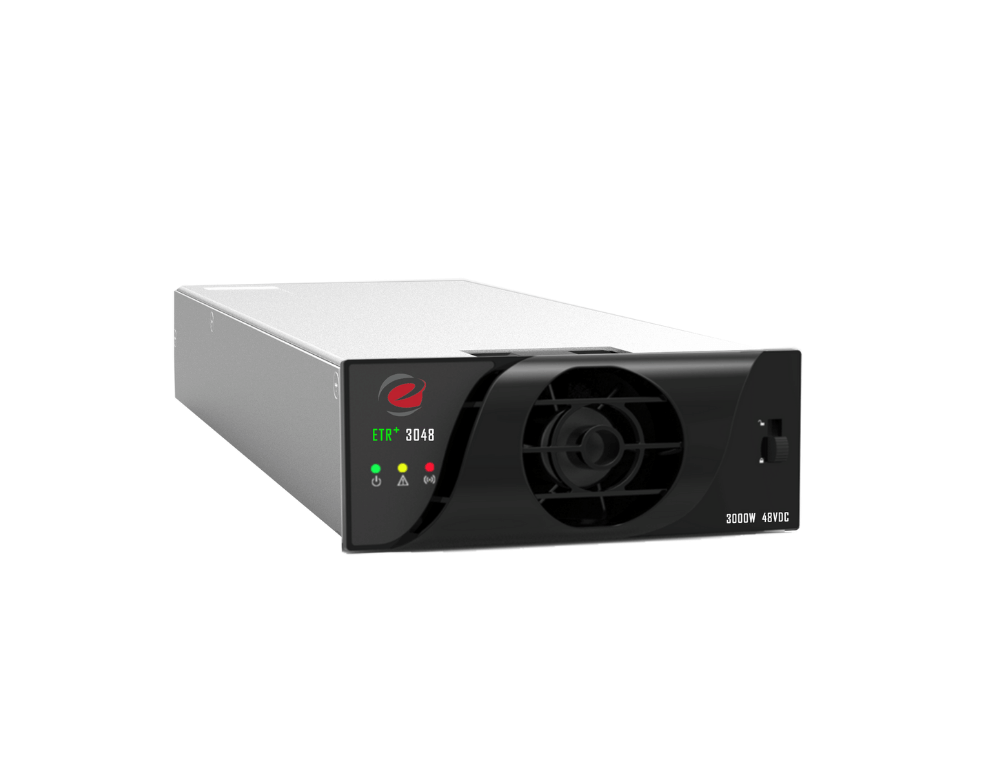

Enetek Power ETR+3048 Rectifier Module
The Enatel Energy RM3048HE Rectifier Module is a high-efficiency 3kW solution designed to deliver reliable 48V DC power for modern telecommunications and ICT networks. Engineered for performance, it features industry-leading power density and scalability, making it ideal for demanding applications requiring space-saving, reliable power solutions...
Read MoreThe Enatel Energy RM3048HE Rectifier Module is a high-efficiency 3kW solution designed to deliver reliable 48V DC power for modern telecommunications and ICT networks. Engineered for performance, it features industry-leading power density and scalability, making it ideal for demanding applications requiring space-saving, reliable power solutions.
Key features include a peak efficiency of over 96% to reduce energy losses and costs, a modular hot-plug design for seamless system integration or expansion, and forced-air cooling for optimal thermal performance. Built to rigorous New Zealand manufacturing standards, the RM3048HE ensures unmatched durability and process integrity.
This rectifier offers a wide AC input range (85-300V) and robust DC output (43-60V), supporting configurations of up to 36kW in a 3RU shelf. Its advanced conversion technology and compact size maximise rack utilisation while maintaining high reliability.
The Enatel Energy RM3048HE Rectifier Module is the ideal choice for power-critical telecommunications and ICT applications requiring efficiency, scalability, and superior reliability.
Show Less
Features
- 2kW to 3kW 48V DC Modular Rectifier
- High-Efficiency Conversion
- High Power Density for Space Optimisation
- Hot-Swappable Modular Design
- Unobstructed Front-to-Back Airflow
- Wide Input Voltage Range
- Outstanding EMC Performance
- Wide Temperature Range for Versatile Applications
- Compliant with Stringent Global Standards
Specifications
| CAPACITY | |
|---|---|
| Capacity | 3000W |
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage Range (AC) | 85Vac to 305Vac (Nominal @ 185Vac to 275Vac) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage Range (DC) | 100Vdc to 305Vdc (Nominal @ 210Vdc to 275Vdc) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 45Hz to 66Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum Input Current | Max 19.2Arms @ 185Vac (full load) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Power Factor | >0.99 @ rated input and ≥50% load | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input Protection | Varistors for transient protection, Mains Fuse for both input lines | ||||||||||||||||||||||||||||||||||||||||||||||||
| Shutdown @ > 305Vac with hysteresis | |||||||||||||||||||||||||||||||||||||||||||||||||
| DC OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage | 53.5Vdc (adjustable 43Vdc to 58Vdc) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output Power (Maximum) | 3000W @ nominal input | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output Current (Maximum) | 62.5A @ 48Vdc with nominal input | ||||||||||||||||||||||||||||||||||||||||||||||||
| Peak Efficiency | 97% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Current Sharing | <= ±5% of max current from 20% to 100% load | ||||||||||||||||||||||||||||||||||||||||||||||||
| Static Voltage Regulation | ±0.6% from 10% to 100% load | ||||||||||||||||||||||||||||||||||||||||||||||||
| Dynamic Voltage Regulation | ±5% for 10%-90% or 90%-10% load variation, regulation time <50ms | ||||||||||||||||||||||||||||||||||||||||||||||||
| Hold Up Time | >20ms; output voltage >43.5Vdc @ 1500W | ||||||||||||||||||||||||||||||||||||||||||||||||
| Ripple and Noise | <150mVp-p, 20MHz bandwidth | ||||||||||||||||||||||||||||||||||||||||||||||||
| <2mVrms psophometric | |||||||||||||||||||||||||||||||||||||||||||||||||
| Output Protection | Overvoltage shutdown; hot plug-in, inrush current limiting; high temperature protection; short circuit proof | ||||||||||||||||||||||||||||||||||||||||||||||||
| CONTROL and MONITORING | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rectifier Alarm and Signaling | High & low mains shutdown, high temperature shutdown, rectifier failure, overvoltage shutdown, fan failure, communication failure | ||||||||||||||||||||||||||||||||||||||||||||||||
| Visual Indications | High & low mains shutdown, high temperature shutdown, rectifier failure, overvoltage shutdown, fan failure, communication failure | ||||||||||||||||||||||||||||||||||||||||||||||||
| Alarms - RED | |||||||||||||||||||||||||||||||||||||||||||||||||
| Warning - YELLOW | |||||||||||||||||||||||||||||||||||||||||||||||||
| Normal operation - GREEN | |||||||||||||||||||||||||||||||||||||||||||||||||
| OTHER SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Isolation | Input to Output: 3.0kVac, Input to Earth: 1.5kVac, Output to Earth: 0.5kVdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling | Fan-cooled, front to back airflow | ||||||||||||||||||||||||||||||||||||||||||||||||
| Fan Speed | Regulated by temperature and output power | ||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF | > 300,000 hrs @ 25°C | ||||||||||||||||||||||||||||||||||||||||||||||||
Storage: 0% to 99% RH non-condensing
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Temperature Range | -40°C to +75°C (de-rates above 55°C) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature Range | -40°C to +85°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Relative Humidity | Operating: 5% to 95% RH non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||
| Acoustic Noise | |||||||||||||||||||||||||||||||||||||||||||||||||
| PHYSICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions WxDxH (mm) | 109 x 310.5 x 41 (1U) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1.7 | ||||||||||||||||||||||||||||||||||||||||||||||||
| DESIGN STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical Safety | EN/IEC62368-1 | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMC | EN55022/CISPR22 Class B, EN61000-6-1/-2/-3/-4 | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC Harmonics / AC Flicker & Fluctions | EN61000-3-2 / EN61000-3-3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Others | CE, RoHS compliant | ||||||||||||||||||||||||||||||||||||||||||||||||
* Due to continuous product development, specifications are subject to change without prior notice
