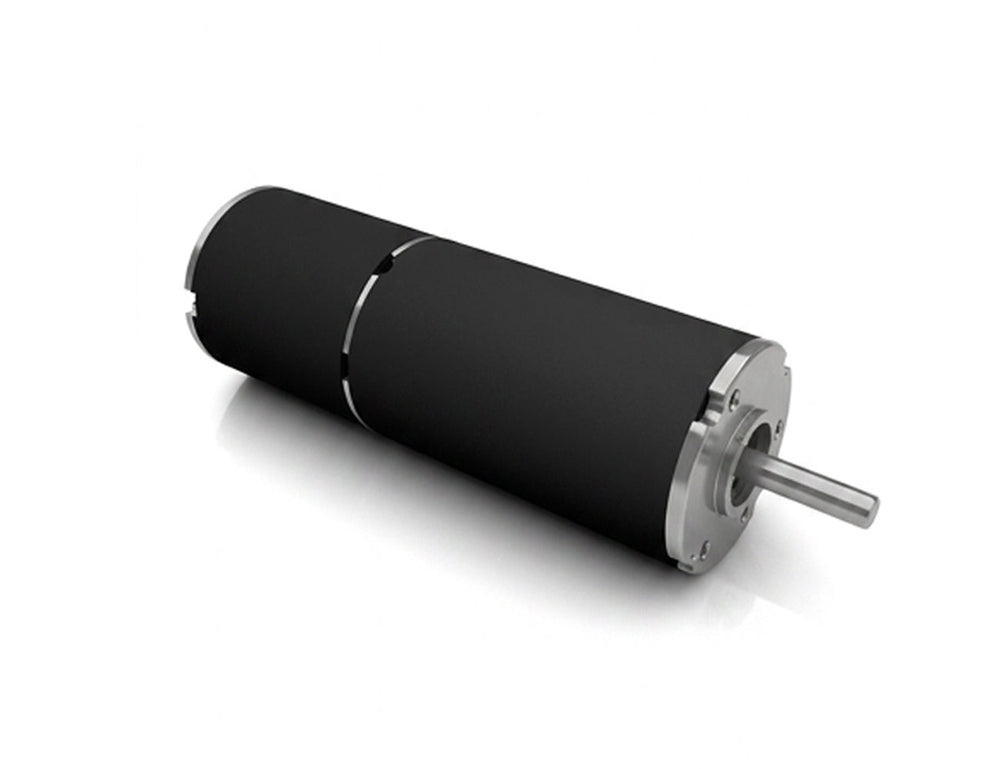

Dunkermotoren BGA 22 dGo Brushless DC Motor

The Dunkermotoren BGA 22 dGo is a 3-phase BLDC motor with high-quality rare-earth magnets and integrated commutation electronics, designed for compact motion applications that need high power density and strong overload capability. Its coreless construction helps eliminate cogging torque while also supporting low-noise operation and a weight-opt...

Read More

The Dunkermotoren BGA 22 dGo is a 3-phase BLDC motor with high-quality rare-earth magnets and integrated commutation electronics, designed for compact motion applications that need high power density and strong overload capability. Its coreless construction helps eliminate cogging torque while also supporting low-noise operation and a weight-optimised motor design.

The motor series is supplied with DC voltage via 2 wires and is available in different control variants. Depending on the version, it can be configured as a 2-/3-wire version with reversible polarity or as a 6-wire version with inputs for start/stop, clockwise/counter-clockwise rotation, and speed setpoint control via PWM 500-5000 Hz or analogue 0-10 V. A pulse output for speed signal is also available.

The BGA 22 dGo series is offered in supply voltage versions from 6Vdc to 24Vdc and includes integrated 18 cpr feedback with protection class up to IP40. The series delivers continuous output power up to 23.8 W and peak output power up to 236 W, and is part of Dunkermotoren’s modular system for matched motion components.

Show Less
Unit Price
—
or send a quick enquiry about this product only

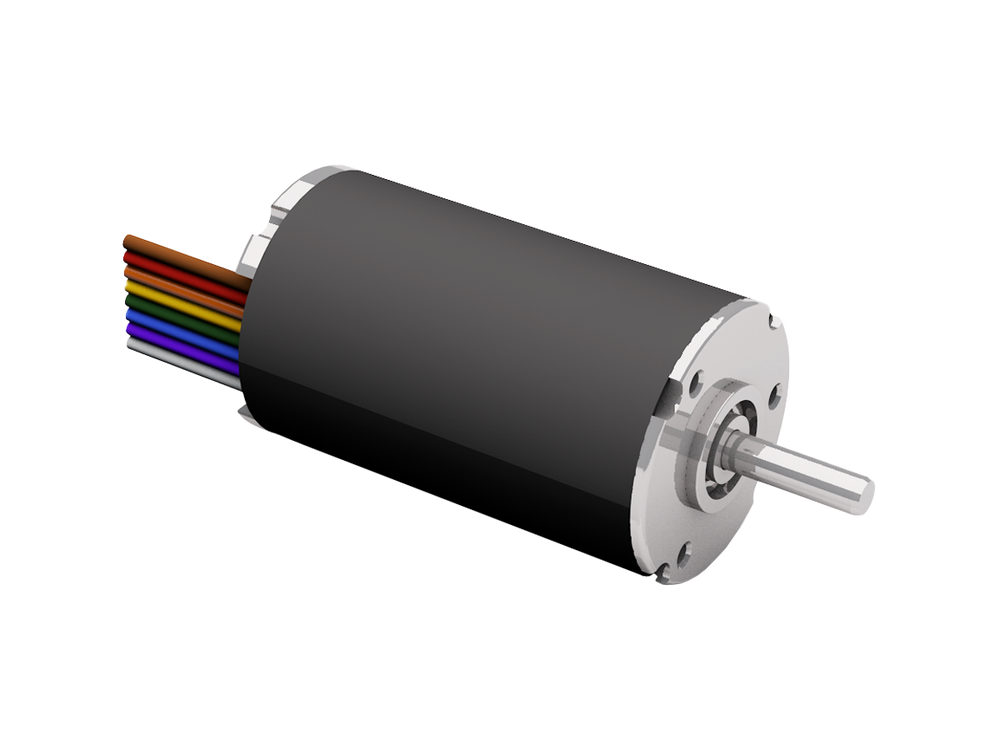

  • BGA22x22
  • Dunkermotoren BGA 22 dGo Brushless DC Motor
  • BGA22x22
  • Dunkermotoren BGA 22 dGo Brushless DC Motor
Features
  • 3-phase BLDC motor with high-quality rare-earth magnets and integrated commutation electronics.
  • Coreless design with no cogging torque.
  • High power density and overload capability.
  • Low noise level.
  • DC voltage supplied via 2 wires.
  • 2-/3-wire reversible-polarity versions and 6-wire control versions available.
  • Inputs available for start/stop, CW/CCW and speed set via PWM 500-5000 Hz or analogue 0-10V on control versions.
  • Pulse output for speed signal.
  • Integrated 18 cpr feedback.
  • Supply voltage versions from 6Vdc to 24Vdc.
  • Protection class up to IP40.
Specifications
BGA 22x22 dGo Specifications
Parameter Units BGA 22x22
6V		 BGA 22x22
12V		 BGA 22x22
12V		 BGA 22x22
12V		 BGA 22x22
24V		 BGA 22x22
24V
Nominal voltage Vdc 6 12 12 12 24 24
Nominal current A* 2.08 0.94 2.12 2.66 0.96 1.27
Nominal Torque Nm* 0.02 0.0182 0.0193 0.0168 0.0174 0.0173
Nominal speed rpm* 2990 2950 8940 13120 8820 13160
Stall torque Nm** 0.059 0.054 0.072 0.051 0.107 0.109
No load speed rpm* 5500 5330 11030 14550 10700 14490
Nominal output power W** 6.2 5.6 18 23 16 23.8
Maximum output power W** 34 30 132 220 119 236
Torque constant Nm A⁻¹ 0.011 0.0223 0.0105 0.008 0.022 0.0162
Peark current A** 8 8 8 8 8 8
Rotor inertia gcm² 15
Weight of motor kg 0.065
For projects 50 pieces on; *) Δϑw = 100 K; **) ϑR = 20°C
*Not available as 2-/3 wire-version
