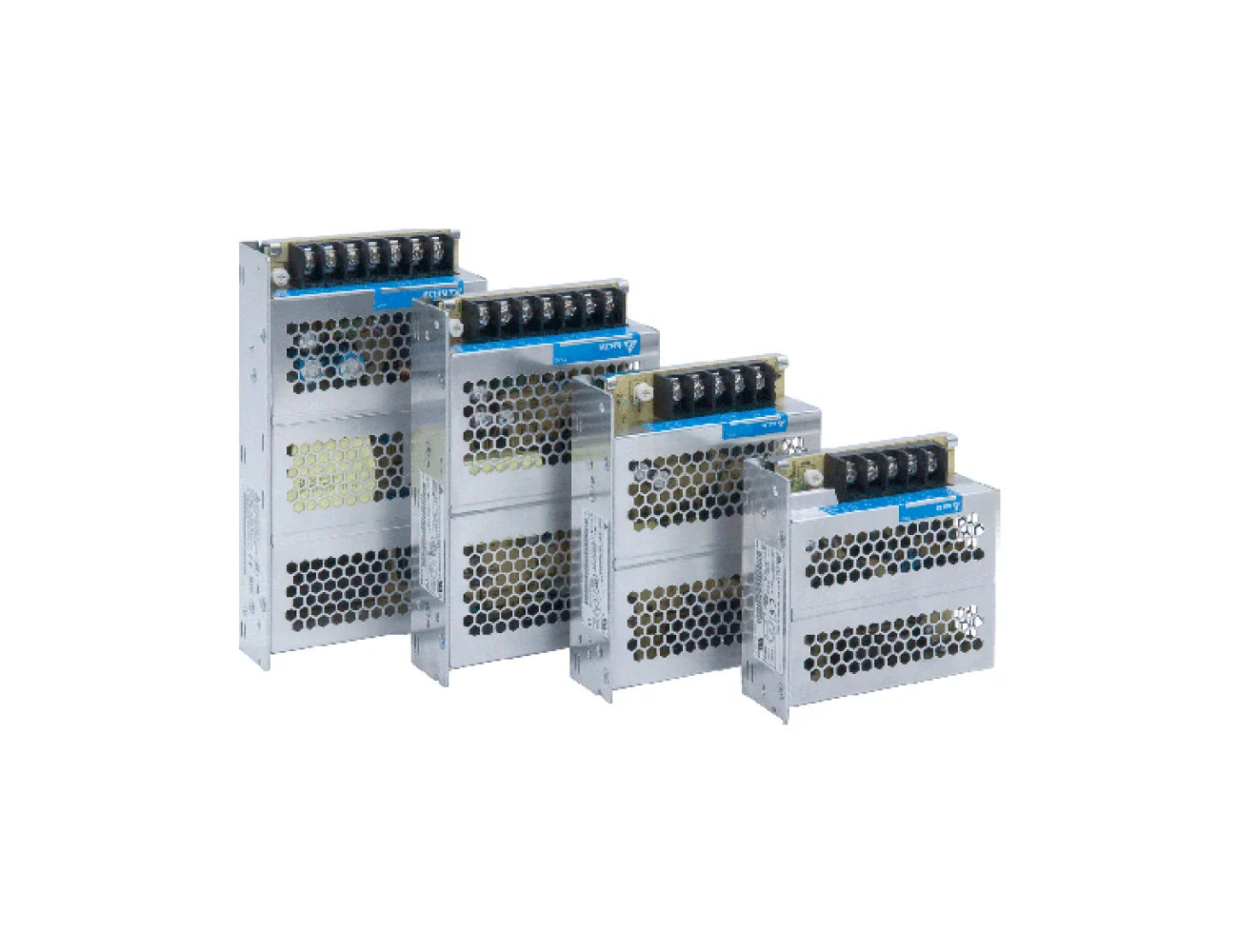

Delta Electronics PMC SERIES AC/DC Power Supply
Delta's PMC Series provides panel-mounted AC/DC power supplies ranging from 35W to 150W. Designed with a corrosion-resistant aluminum chassis, these supplies are engineered for industrial control applications, boasting a harmonic IEC/EN 61000-3-2 Class A compliance and EMI EN55022 Class B. They operate efficiently between -10 to +70C, ensuring r...
Read MoreDelta's PMC Series provides panel-mounted AC/DC power supplies ranging from 35W to 150W. Designed with a corrosion-resistant aluminum chassis, these supplies are engineered for industrial control applications, boasting a harmonic IEC/EN 61000-3-2 Class A compliance and EMI EN55022 Class B. They operate efficiently between -10 to +70C, ensuring reliability with an MTBF of 700,000 hrs. The PMC series stands out for its robust design, making it suitable for harsh industrial environments.
**Note - limited stock of some models still available**
Features
- 35W to 150W
- Panel Mounted
- Corrosion Resistant
- Aluminum Chassis
- Harmonic IEC/EN 61000-3-2 Class A
- Safety IEC/EN/UL 60950-1
- EMI EN55022 Class B
- Op Temp -10 to +70C
- MTBF 700000 hrs
- Industrial Control
Specifications
| INPUT | |
|---|---|
| Input voltage | 85-264Vac (DC input range 125-375Vdc) |
| Input frequency | 47-63Hz |
| Input Current | PMC35: 0.5A @ 230Vac PMC50: 0.7A @ 230Vac PMC75: 1.0A @ 230Vac PMC100: 1.1A @ 230Vac PMC150: 2.0A @ 230Vac |
| Leakage current | <1mA @ 240Vac |
| OUTPUT | ||
|---|---|---|
| Output Voltage | 12Vdc | 24Vdc |
| Voltage Range | 12V - 11-14Vdc | 24V - 22-28Vdc |
| Output Current | See Selection Table. | |
| Output Power | See Selection Table. | |
| Hold-up time | > 80ms @230Vac. | |
| Line regulation | <0.5% typ. (@ 85-264VAc input, 100% load) | |
| Load regulation | <1% typ. (@ 85-264VAc input, 0-100% load) | |
| Efficiency | > 85.0% | |
| PROTECTIONS | |
|---|---|
| Overvoltage | 16V & 32V+10% SELV Ouput, Hiccup Mode, Non-Latching (Auto-Recovery) |
| Overload/Overcurrent | > 120% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery) |
| Over Temperature | > 75C Surrounding Air Temperature @ 100% load, Latch-off Mode |
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed) |
| Protection against Shock | Class 1 with Primary Earth connection |
| MTBF | > 700,000 hrs as per Telcordia SR-332 |
| MECHANICAL | |
|---|---|
| Dimensions | PMC35: 128 x 97 x 38mm, 0.24Kg PMC50: 128 x 97 x 38mm, 0.26kg PMC75: 128 x 97 x 38mm, 0.30kg PMC100: 158 x 97 x 38mm, 0.41kg PMC150: 178 x 97 x 38mm, 0.48kg |
| Case Material | Aluminium |
| Cooling system | Convection |
| Indicator | Green LED (DC OK) |
| ENVIRONMENT | |
|---|---|
| Operating temperature | -10°C to + 70°C |
| Storage temperature | -25°C to + 85°C |
| Power de-rating | >50°C (2.5% / °C) |
| Operating humidity | <95% RH (Non-condensing) |
| Shock Test | IEC60068 -2- 27, 30G (300m/s) for a duration of 18ms |
| Operating altitude | 3,000m |
Selection Table
| MODEL NUMBER | Output Voltage | Output Current | Output Power |
|---|---|---|---|
| PMC-12V035W1AA | 12Vdc | 3.00A | 35W |
| PMC-12V050W1AA | 12Vdc | 4.17A | 50W |
| PMC-12V100W1AA | 12Vdc | 8.33A | 100W |
| PMC-12V150W1BJ | 12Vdc | 12.5A | 150W |
| PMC-24V050W1AA | 24Vdc | 2.10A | 50W |
| PMC-24V100W1AA | 24Vdc | 4.17A | 100W |
| PMC-24V150W1AA | 24Vdc | 6.25A | 150W |

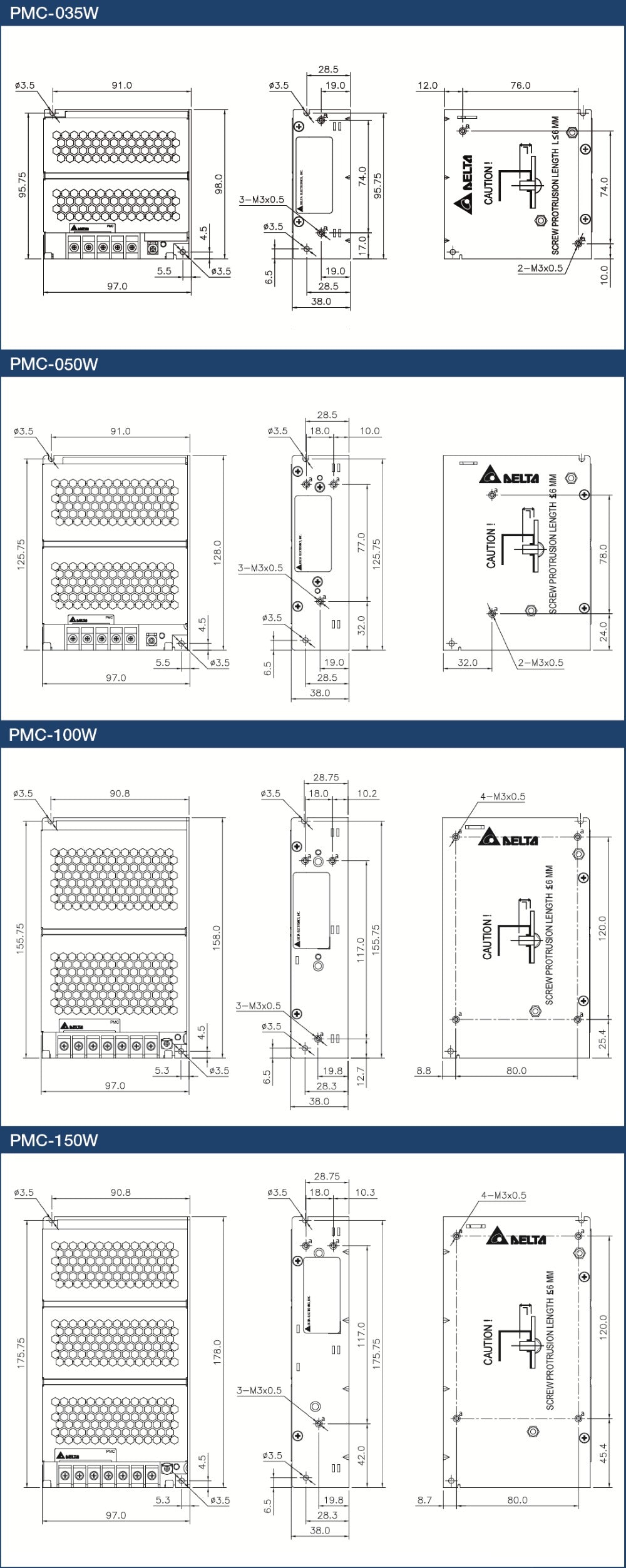

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
