Delta Electronics MEB-750A Series Medical / Industrial AC/DC Power Supply

The Delta Electronics MEB-750A series are enclosed AC/DC power supplies designed for medical and industrial applications requiring high-density, high-power output with a dedicated 5 V / 2 A standby rail. Available in 12 Vdc, 24 Vdc and 48 Vdc output configurations, the series delivers up to 750 W continuous power (700 W for 12 V models) and up t...

Read More

The Delta Electronics MEB-750A series are enclosed AC/DC power supplies designed for medical and industrial applications requiring high-density, high-power output with a dedicated 5 V / 2 A standby rail. Available in 12 Vdc, 24 Vdc and 48 Vdc output configurations, the series delivers up to 750 W continuous power (700 W for 12 V models) and up to 1200 W peak on the 48 V model — all within a compact 177.8 × 101.6 × 40 mm (7" × 4" × 1.575") enclosed package.

Two inlet options are available: C14 inlet (B models, 85 Vac fixed input) and American barrier strip terminal (T models, 90–264 Vac universal input). T models maintain full-rated output across the full universal input range.

The MEB-750A series features 2 × MOPP galvanic isolation and is rated for Type BF medical product applications. Additional features include conformal coating, current sharing for parallel operation, remote on/off control with power good signal output, remote sense compensation of up to 500 mV, voltage trimming, and IEC 60601-1-2 4th Edition immunity compliance. The series meets Class B conducted and radiated EMI requirements and includes a built-in cooling fan.

Show Less
Unit Price
—
or send a quick enquiry about this product only

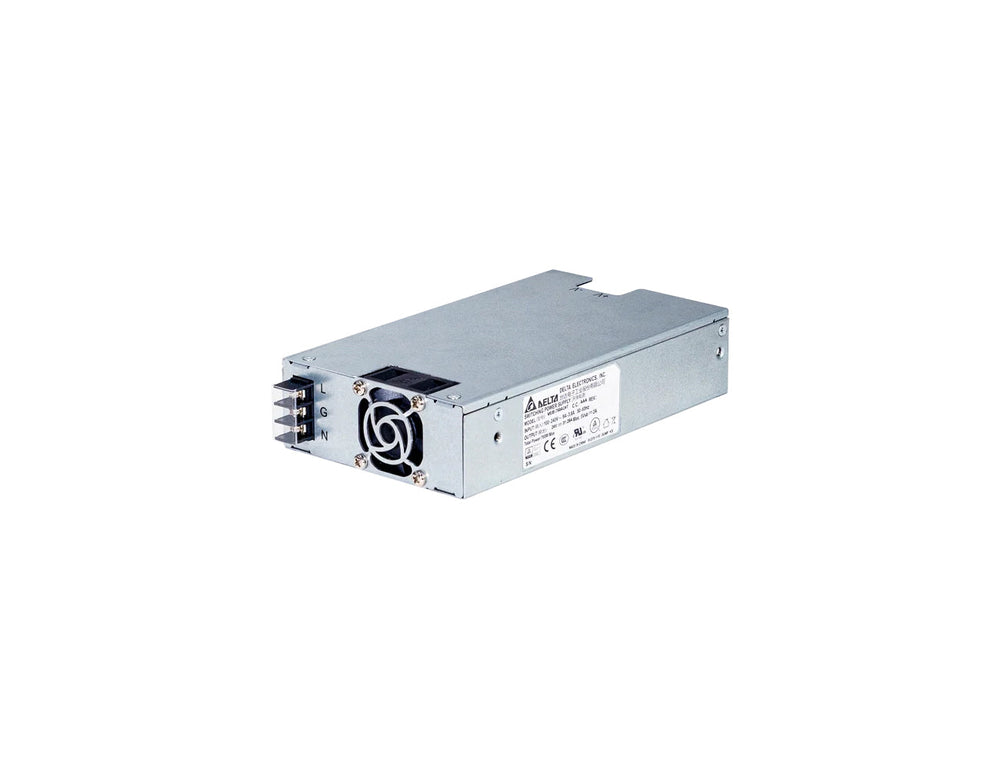

  • MEB-750A-1

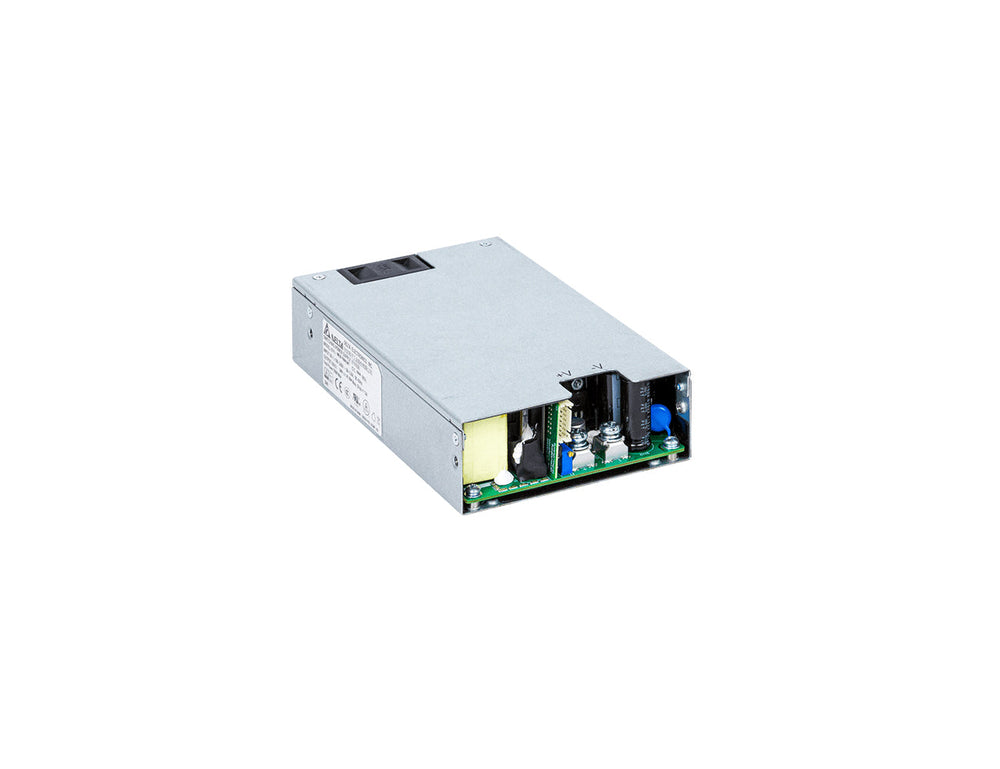

  • MEB-750A-2
  • MEB-750A-1
  • MEB-750A-2
Features
  • Input voltage range: 85-264Vac nominal operation.
  • Output voltage: main 24Vdc output with 5V / 2A standby output.
  • Output current: main output 0-31.25A, standby output 2A.
  • Output power: 750W maximum.
  • Efficiency: 92% typ. at 115Vac and 94% typ. at 230Vac for the 24V model.
  • 2 x MOPP isolation and suited for Type BF medical products.
  • Current sharing supported.
  • Conformal coating.
  • Remote on/off, power good and remote sense supported.
  • Voltage trimming ±10% of rated output.
  • Built-in fan cooling.
  • Class B conducted and radiated EMI performance.
Technical Drawings

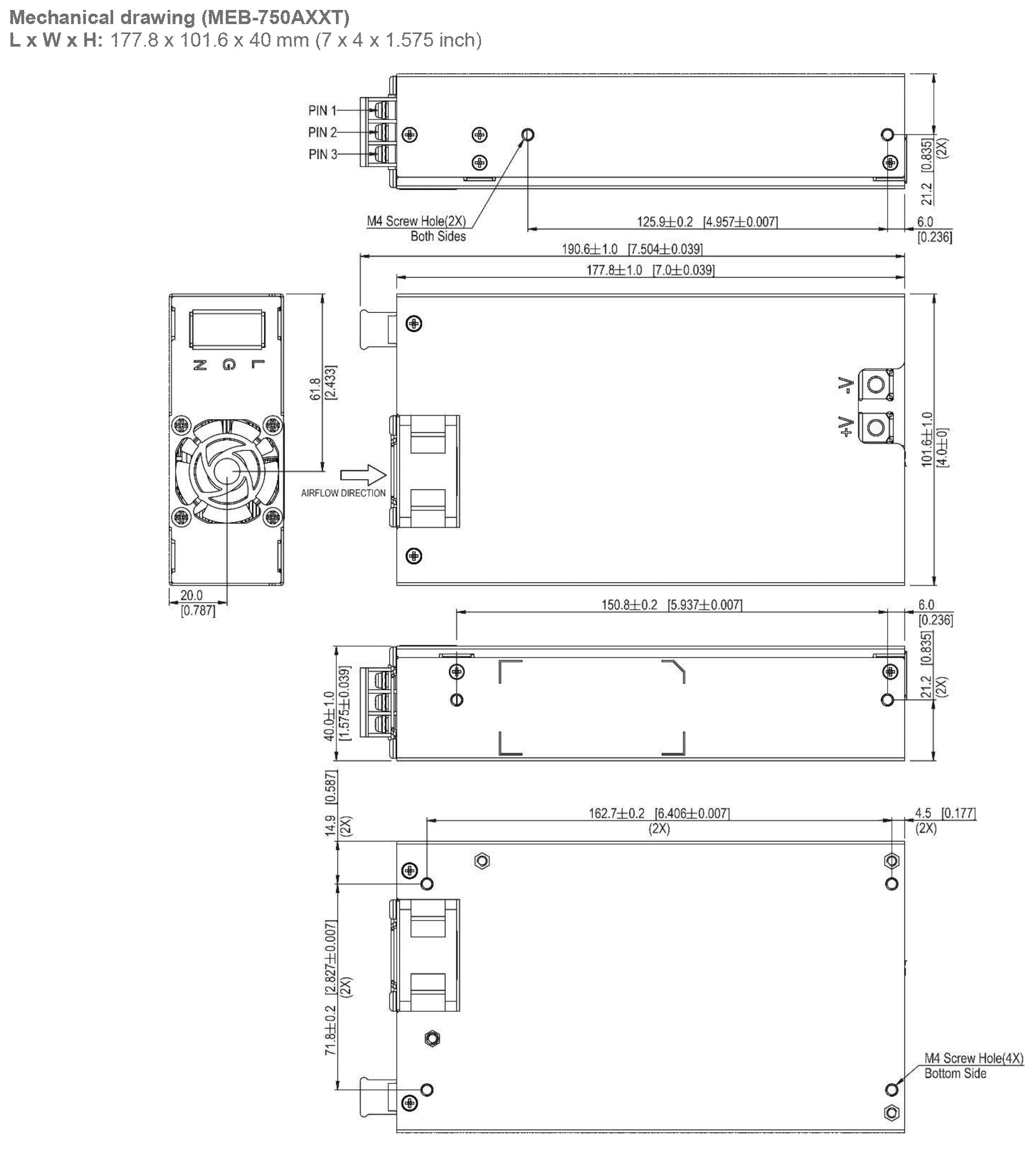

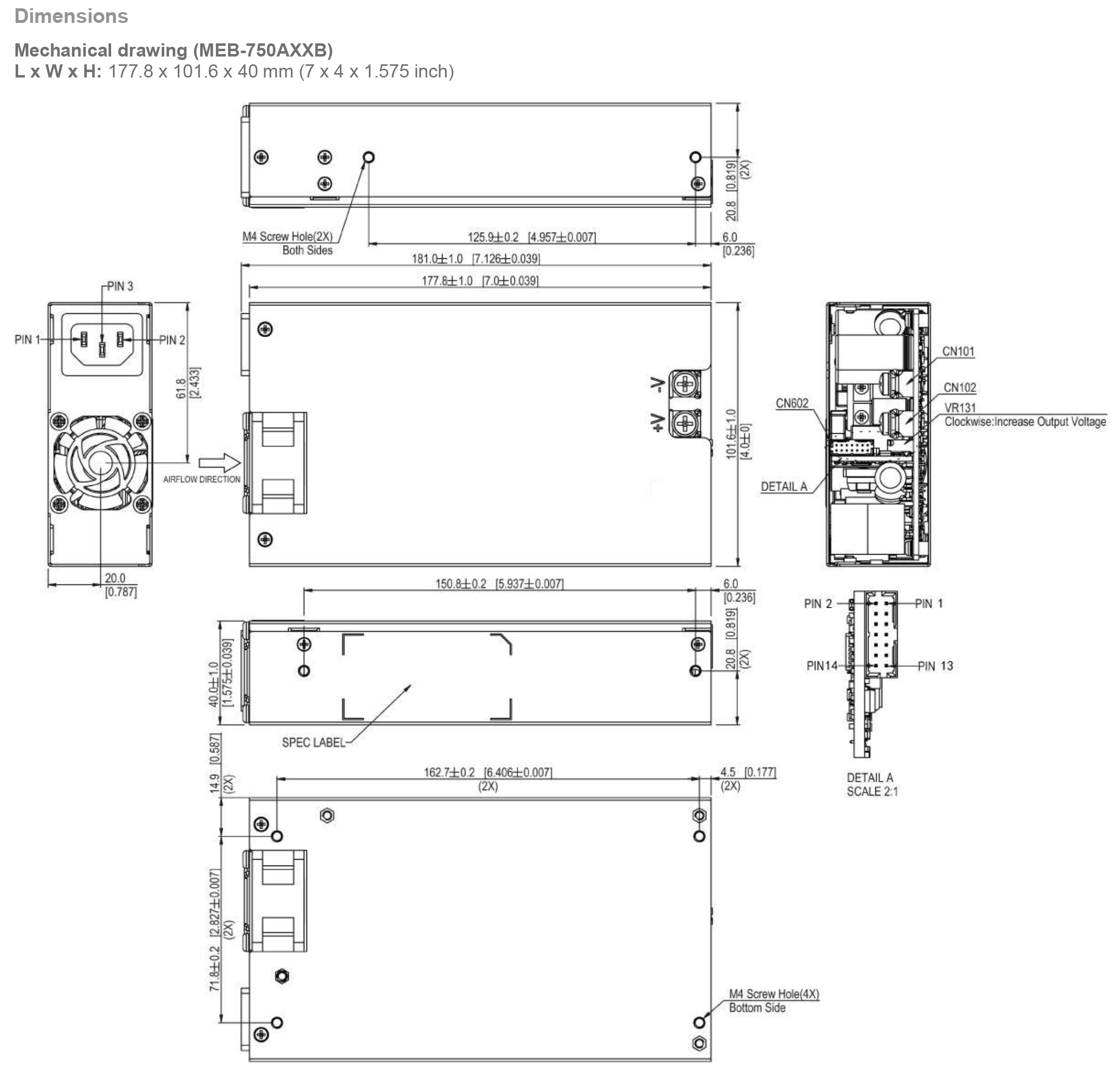

GA_Drawing_MEB-750AXXB GA_Drawing_MEB-750AXXT
Downloads
Datasheet_MEB-750A24T.pdf
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs
The MEB-750A is available in 12Vdc, 24Vdc, and 48Vdc output models at 750W total output power — for example, the MEB-750A24T delivers 24Vdc at 31.25A. All models accept a universal 90–264Vac input and achieve approximately 92% efficiency.
The MEB-750A is certified to IEC 60601-1 and UL 60601-1 (medical electrical equipment safety), qualifying it for integration into Class I medical devices and equipment used in patient care environments. It also holds IEC 62368-1 for dual-use medical/industrial applications.
The MEB-750A (750W) is the mid-range model positioned above the MEB-500A (504W) and below the MEB-1K2A (1200W) and MEB-1K5A (1500W). All share the same internal panel-mount enclosed format with intelligent fan speed control and PMBus interface. Choose the MEB-750A when your equipment's power budget falls between 500W and 1000W.
Universal 90–264Vac single-phase input, covering Australian and New Zealand mains (230Vac) and international 115Vac without manual switching. The wide input range supports global equipment designs and Australian/NZ market deployments without modification.
The MEB-750A supports active current sharing for parallel operation (N+1 redundancy or combined power scaling), PMBus v1.3 digital interface for voltage adjustment and monitoring, and analogue ±10% voltage adjustment. Intelligent fan speed control minimises audible noise relative to load conditions.
The MEB-750A provides 2×MOPP (Means of Patient Protection) isolation between input and output, meeting the IEC60601-1 third edition requirements for devices operating in direct patient care environments. This leakage current level is mandatory for applied parts and patient-connected equipment in Australian medical device compliance. Contact Powerbox at sales@powerbox.com.au for compliance documentation.
