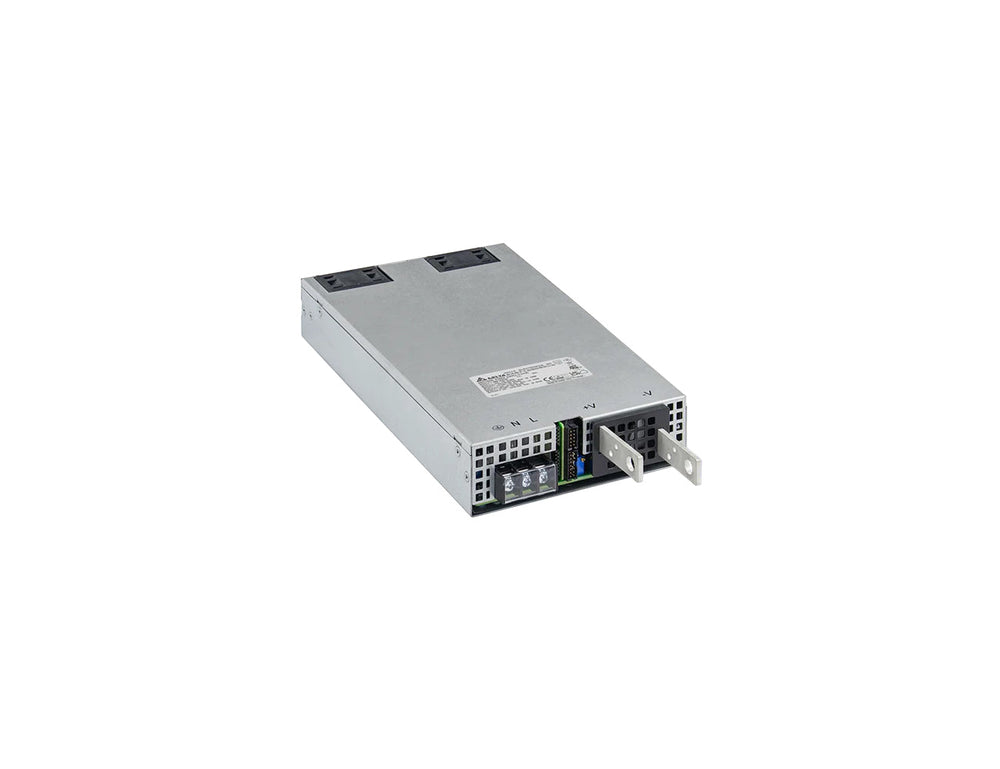

Delta Electronics MEB-2K5A Series 2500W Medical / Industrial AC-DC Power Supply
The Delta MEB-2K5A series is an enclosed medical and industrial AC-DC power supply family with up to 2500W output power and a built-in 5V / 2A standby output. The series accepts 85–264Vac input and includes 24Vdc, 36Vdc, and 48Vdc terminal-input variants for high power system applications. The Delta MEB-2K5A features include 2 x MOPP isolation, ...
Read MoreThe Delta MEB-2K5A series is an enclosed medical and industrial AC-DC power supply family with up to 2500W output power and a built-in 5V / 2A standby output. The series accepts 85–264Vac input and includes 24Vdc, 36Vdc, and 48Vdc terminal-input variants for high power system applications.
The Delta MEB-2K5A features include 2 x MOPP isolation, active current sharing, conformal coating, Class B conducted and radiated EMI, remote on/off, power good signal, remote sense, PMBus v1.3 support, and intelligent fan speed control. The series operates from −20°C to +70°C with derating above 50°C and uses an enclosed chassis with forced-air cooling.
Show Less
Features
- Input voltage range: 85–264Vac.
- Output voltage: available in 24Vdc, 36Vdc, and 48Vdc variants, with 5V / 2A standby output.
- Output current: 24V model up to 104.2A, 36V model up to 69.5A, 48V model up to 52.1A.
- Output power: 2,500W maximum.
- 2 x MOPP isolation and suited for Type BF medical products.
- Active current sharing supported.
- Conformal coating.
- Remote On/Off and Power Good signal supported.
- Remote sense up to 500mV compensation.
- PMBus Ver 1.3 supported.
- Intelligent fan speed control.
- Operating temperature range: −20°C to +70°C with derating above 50°C.

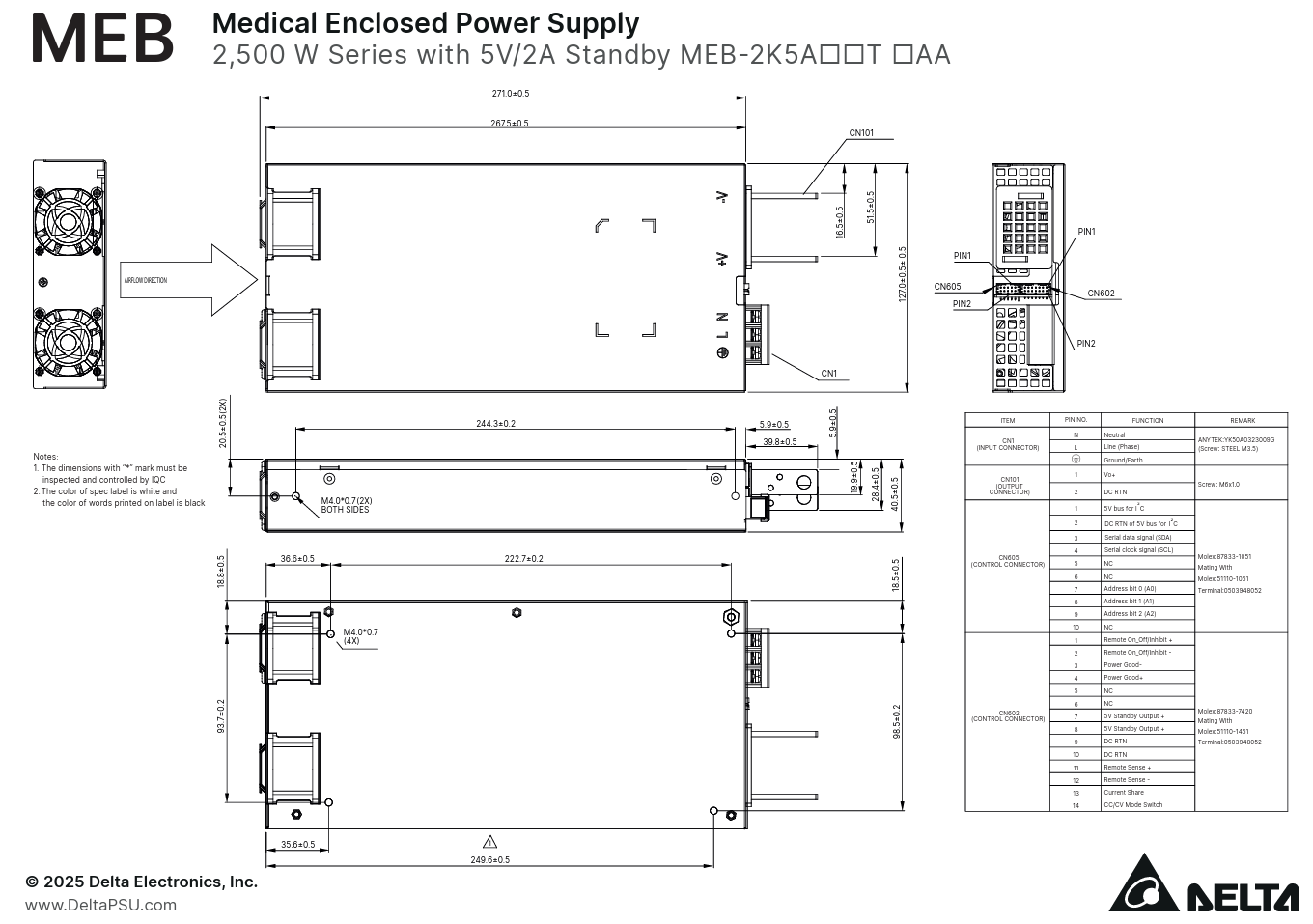

Technical Drawings
