Delta Electronics MEB-1K5A Series 1500W Medical / Industrial AC/DC Power Supply

The Delta MEB-1K5A series is an enclosed medical and industrial AC/DC power supply family with up to 1500 W output power and a built-in 5 V / 2 A standby output. The series accepts 90–264 Vac input and includes 24 Vdc and 48 Vdc terminal-input variants for high-power system applications. The Delta MEB-1K5A features include current sharing, confo...

Read More

The Delta MEB-1K5A series is an enclosed medical and industrial AC/DC power supply family with up to 1500 W output power and a built-in 5 V / 2 A standby output. The series accepts 90–264 Vac input and includes 24 Vdc and 48 Vdc terminal-input variants for high-power system applications.

The Delta MEB-1K5A features include current sharing, conformal coating, Class B conducted and radiated EMI, remote on/off control, analog voltage trimming, green LED indicator, and intelligent fan speed control. The series operates from -20°C to +70°C with derating above 50°C, supported by active fan cooling.

Show Less
Unit Price
—
or send a quick enquiry about this product only

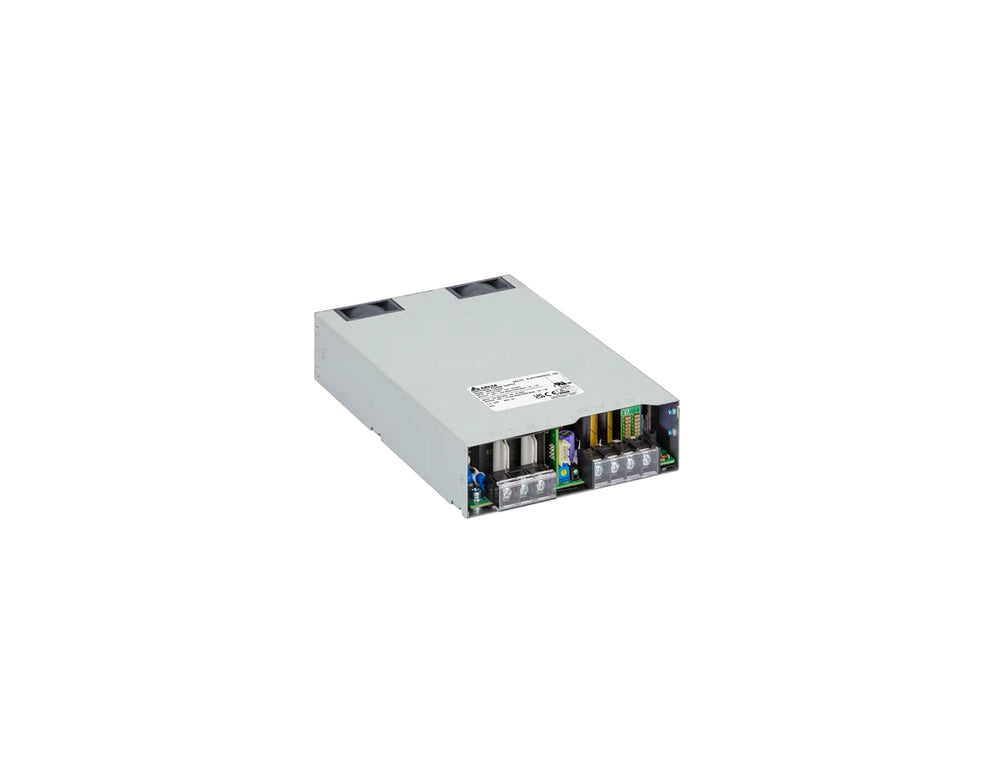

MEB-1K5A_IMG
Features
  • Input voltage range: 90-264Vac.
  • Output voltage: available in 24Vdc and 48Vdc variants, with 5V / 2A standby output.
  • Output current: 24V model 50.0A @ 115Vac / 62.5A @ 230Vac; 48V model 25.0A @ 115Vac / 31.25A @ 230Vac.
  • Output power: 1200W @ 115Vac and 1500W @ 230Vac.
  • Efficiency: 24V model 88% @ 115Vac and 91% @ 230Vac; 48V model 89% @ 115Vac and 92% @ 230Vac.
  • Current sharing supported for up to six power supplies in parallel.
  • Conformal coating.
  • Remote on/off control.
  • Analog voltage trimming up to ±10% of rated output.
  • Built-in intelligent fan speed control.
  • Green LED indicator.
  • Class B conducted and radiated EMI.

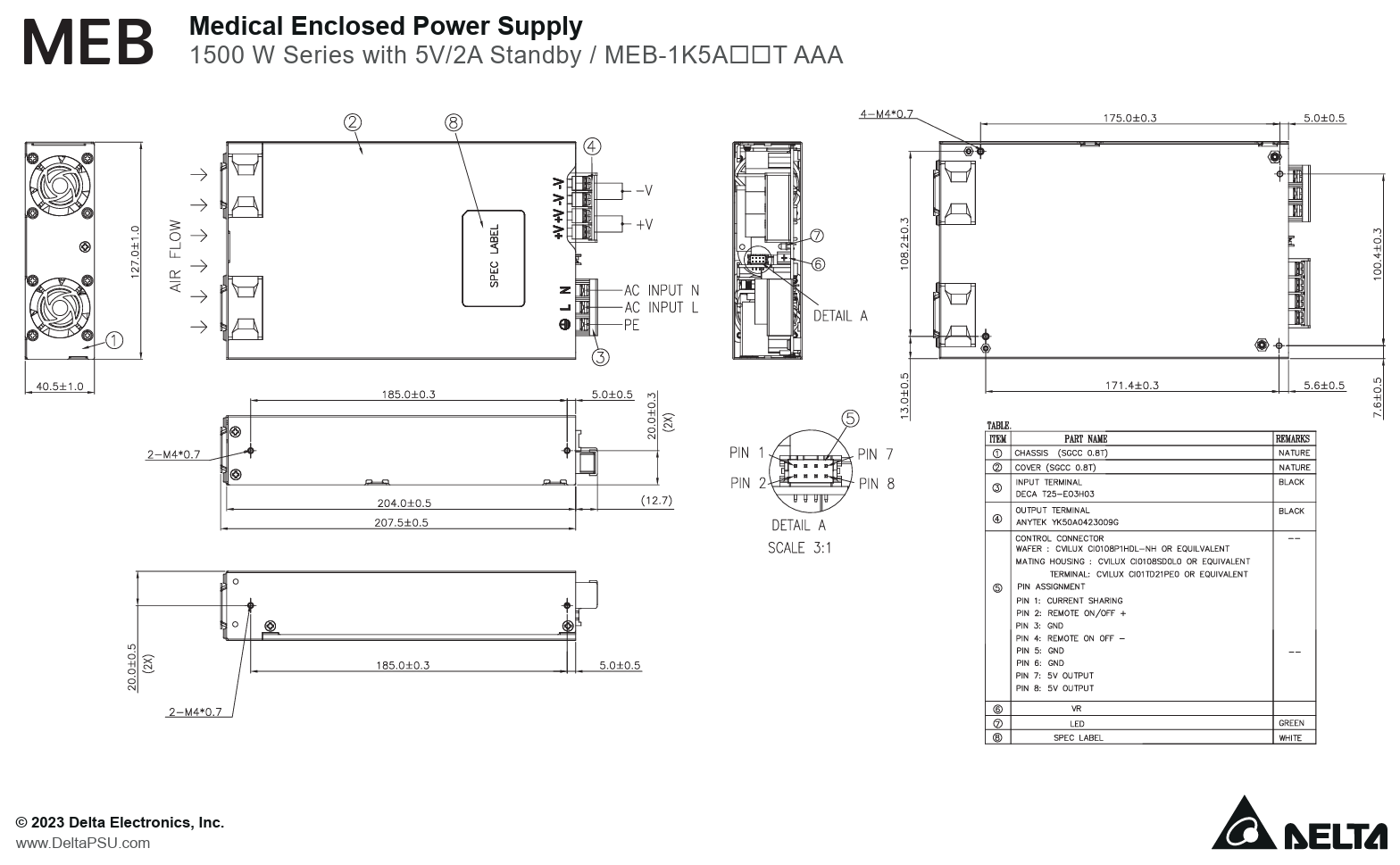

Technical Drawings
GA_Drawing_MEB-1K5A
Downloads
Datasheet_MEB-1K5A.pdf
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs
The MEB-1K5A is available in 24Vdc (62.5A) and 48Vdc (31.25A) models at 1500W continuous output with approximately 92% efficiency — the highest-power model in the Delta MEB series. Universal 90–264Vac single-phase input with active PFC.
Certified to IEC 60601-1 and UL 60601-1 / ANSI/AAMI ES60601-1 / CAN/CSA C22.2 No. 60601-1 for medical electrical equipment safety, and IEC 62368-1 for information and communication technology and audio/video equipment — making it dual-certified for both medical and industrial deployment.
The MEB-1K5A (1500W) delivers 25% more output power than the MEB-1K2A (1200W). Both offer 24Vdc and 48Vdc outputs, PMBus interface, parallel operation, and the same enclosed panel-mount format with intelligent fan. Choose the MEB-1K5A when the load power budget exceeds approximately 1100W continuously or where growth headroom above the MEB-1K2A's rating is needed.
PMBus v1.3 digital interface for voltage adjustment, output monitoring, and fault reporting. Analogue ±10% voltage adjustment. Active current sharing for N+1 parallel redundancy or combined power scaling. Remote ON/OFF control in both normal and inverted logic — useful for interlock systems and sequenced power-up in complex equipment.
The MEB-1K5A provides 2×MOPP (Means of Patient Protection) input-to-output isolation per IEC 60601-1 3rd edition. This requires leakage current levels low enough for devices that may be used on or near patients — a mandatory requirement for Class I medical devices under Australian TGA and IEC60601-1 compliance.
Approximately 92% typical efficiency at full load, 230Vac. Cooling is via an intelligent variable-speed fan that adjusts speed based on load and temperature — minimising audible noise under partial load while maintaining thermal performance at full power. Contact Powerbox at sales@powerbox.com.au for pricing, availability, and integration guidance.
