Delta Electronics MEA-160A C14 4 Pin DIN Series Medical AC/DC Adapter

The Delta MEA-160A series is a medical AC-DC desktop adapter family with universal 85-264Vac input, IEC 60320 C14 input connection, and 4 Pin Din output. The series includes 12Vdc, 15Vdc, 19Vdc, and 24Vdc single-output models with rated output current up to 12.5A and output power up to 160W. The Delta MEA-160A features include 2 × MOPP isolation...

Read More

The Delta MEA-160A series is a medical AC-DC desktop adapter family with universal 85-264Vac input, IEC 60320 C14 input connection, and 4 Pin Din output. The series includes 12Vdc, 15Vdc, 19Vdc, and 24Vdc single-output models with rated output current up to 12.5A and output power up to 160W.

The Delta MEA-160A features include 2 × MOPP isolation, low touch current, Efficiency Level VI / VII and CoC Tier 2 compliance, IP22 protection, green LED indication, and medical and ITE safety approvals. The family is intended for medical and information technology equipment requiring compact external power conversion.

Show Less
Unit Price
—
or send a quick enquiry about this product only

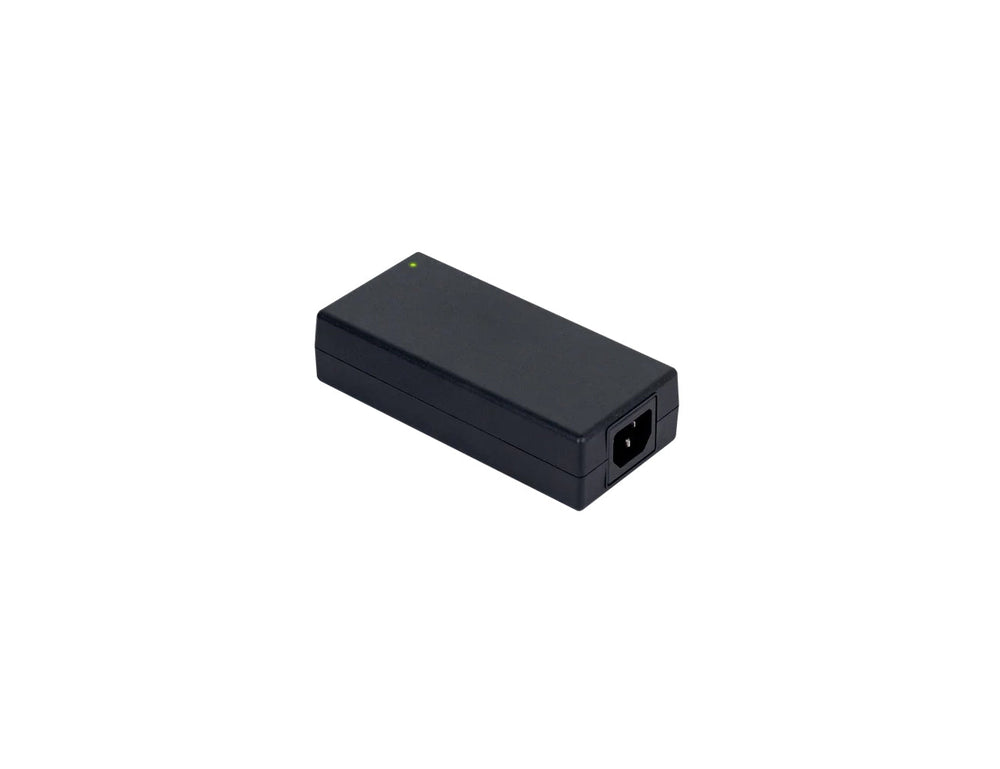

MEA-160AXX_IMG
Features
  • Input voltage range: 85-264Vac universal input.
  • Output voltage: available in 12Vdc, 15Vdc, 19Vdc and 24Vdc variants.
  • Output current: up to 12.5A, 10.67A, 8.42A or 6.67A depending on model.
  • Output power: 150W for the 12V model and 160W for the 15V, 19V and 24V models.
  • Efficiency: meet Efficiency Level VI / VII and CoC Tier 2.
  • 2 × MOPP isolation.
  • Low touch current: <0.1mA normal and single fault.
  • IEC 60320 C14 input socket.
  • 4 Pin Din output connector.
  • Green LED indication.
  • Protection rating: IP22.
  • Medical and ITE safety approvals.

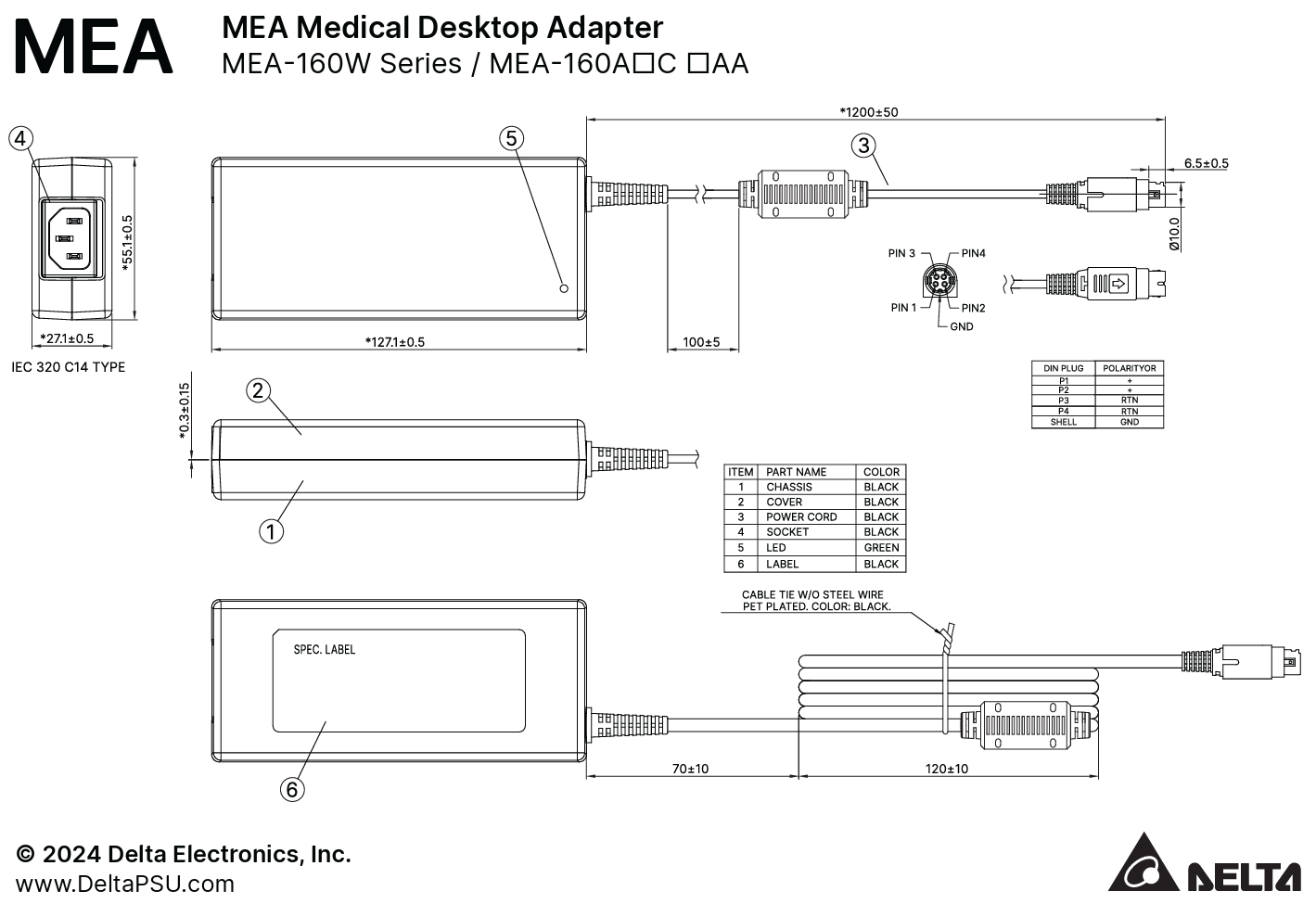

Technical Drawings
Technical Drawing of MEA Medical Desktop Adapter with labeled parts and specifications.
Downloads
Datasheet_MEA-160AXXC.pdf
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs
The MEA-160A is a 160W medical-grade AC/DC adapter with a C14 (IEC) input connector and a 4-pin DIN output connector, designed for medical devices requiring a detachable, certified power adapter.
The C14 connector allows a standard IEC mains cable to be used, making it straightforward to replace the mains lead for different regional plugs (Australian, UK, European, etc.) without replacing the adapter.
The 4-pin DIN connector is a common output format on medical adapters, providing a keyed, locking connection to the medical device to prevent accidental disconnection and ensure polarity safety.
Certified to IEC 60601-1 for medical electrical equipment safety, with 2×MOPP (Means of Patient Protection) input-to-output isolation — qualifying it for use in equipment operating in patient care environments and meeting IEC 60601-1 3rd edition leakage current requirements. DOE Efficiency Level VI compliant.
Universal 90–264Vac (47–63Hz) single-phase input via the C14 IEC connector, covering Australian 230Vac mains and international 115Vac without manual switching.
The MEA-160A (160W) is the lower-power medical adapter; the MEA-250A (250W) and MEA-300A (300W) are for higher-power devices. All share the IEC 60601-1 medical certification.
